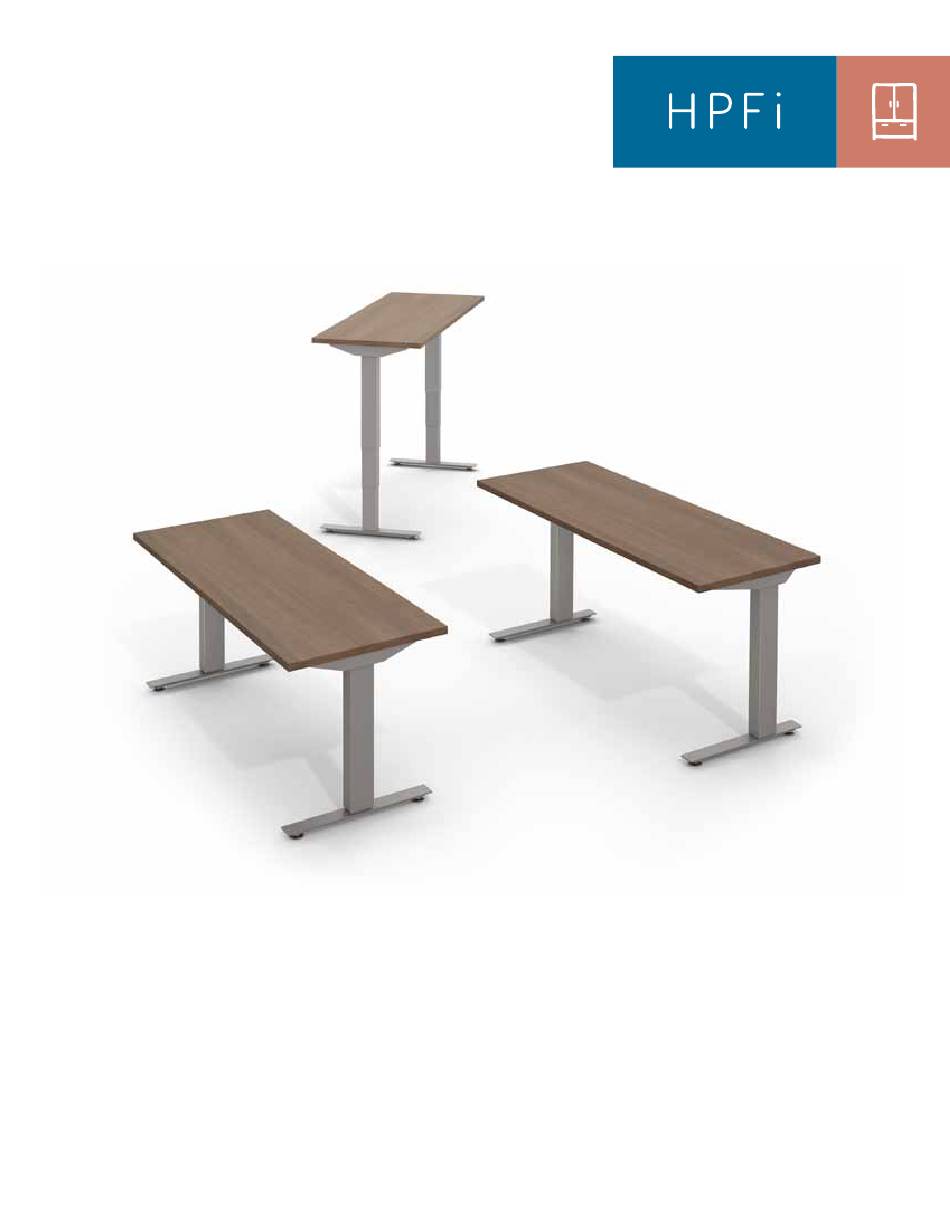

- Page 1 Assembly & Operating Instructions Boost Tables Adjustable Height ©2018 HPFi 1104 Bedford Street High Point, NC 27263 www.hpfi.com (p) 800.447.3462 (f) 800.231.6784...
-
Page 2: Table Of Contents
Standing can increase blood flow to the brain to facilitate thinking. But doing office or school work while standing conflicts with what we were previously taught. Maybe it was wrong to "sit down and focus". Maybe it is time stand up and Boost your creativity and thinking. -
Page 3: Parts Diagram
2. Column 3. Top Support 4. Foot 5. M8 x 1.25 x 12 mm Screw 6. M10 x 1.5 x 50 mm Screw 7. Handswitch 8. Control Box 9. Power Cord 10. 1” Wood Screws (not shown) BOOst tABles -... -
Page 4: Safety Information
• Make sure corded objects will not be pulled off table or cause other objects to fall 1" 1" • Make sure desk power cord moves freely as desk moves up and down 1" 1" 1" OV1000 | 9 - BOOst tABles... - Page 5 – if it will not fit the outlet, have a proper outlet Outlet Outlet installed by a qualified electrician. Grounded Grounded Outlet Box Grounded Outlet Box Outlet No adapters are to be used with this product. Keep cord away from heated surfaces. Grounded Outlet Box 10 | OV1000 BOOst tABles -...
-
Page 6: Assembly Instructions
Failure to do so will damage the motor! Do not try to turn the female hex adaptor in the motor. Column Male Hex Motor Female Hex - BOOst tABles... - Page 7 (4 per column). The maximum tightening torque for these screws is 24Nm (18 lbs-ft). Align the top support holes with beam assembly. Repeat for remaining column. Feed the motor cables through the beam cut out toward the working / user’s side. BOOst tABles -...
- Page 8 Fasten the control box and handswitch to the table top. Make sure the control box and handswitch are fas- tened in a location where all the cables will connect without being in tension. Use the 1” wood screws included. - BOOst tABles...
- Page 9 Control Box. Connect the Power Cord (AC) to the Control Box. Attach all cables to the table frame or on the underside of the table top. Attach cables in order to avoid any damage during operation. BOOst tABles -...
-
Page 10: Operation
“EXX,” instead of the current table height. To resolve the error, see the Troubleshooting Section (p. 16-17 of this guide). The programmable handswitch also has the ability to save up to four different height positions. OV1000 - BOOst tABles... - Page 11 Press and hold the desired memory location button (1, 2, 3 or 4) and the table moves independently from the current position into the saved position. The button must be pressed until the position is reached. If the button is released, the table will stop short of the desired height. OV1000 | 19 BOOst tABles -...
-
Page 12: Troubleshooting
No connection or a loose Verify the plug connections of the motor cable Table moves connection to the drives to the control box and reset the control box on one side only briefly and then stops Defective drive Contact customer service - BOOst tABles... - Page 13 If it is not possible to resolve an error as described, disconnect the power cord, wait a few minutes and reset the table again. If the error still occurs, remove the table from the power source and contact customer service. (Error Code list is valid from firmware 1.7.5 and higher) OV1000 | 21 BOOst tABles -...
-
Page 14: Technical Data
250 lb (≈ 113 kg / 1112N) Adj. range, depending on version View Illustration B Maximum input current 6.5 A Maximum duty cycle 10% (2 min. on / 18 min. off) ILLUSTRATION B stroke length stroke length 18.9" 23.6" 22 | OV1000 - BOOst tABles... -
Page 15: Standards & Certifications
System: Clever OMT-Veyhl USA 11511 James Street Holland, MI 49424 End of life cycle: Once product is disassembled, all steel components can be recycled at your local metal collector. For products with electronic components, see Disassembly Guide. BOOst tABles -... - Page 16 ©2018 HPFi 1104 Bedford Street High Point, NC 27263 www.hpfi.com (p) 800.447.3462 (f) 800.231.6784...
