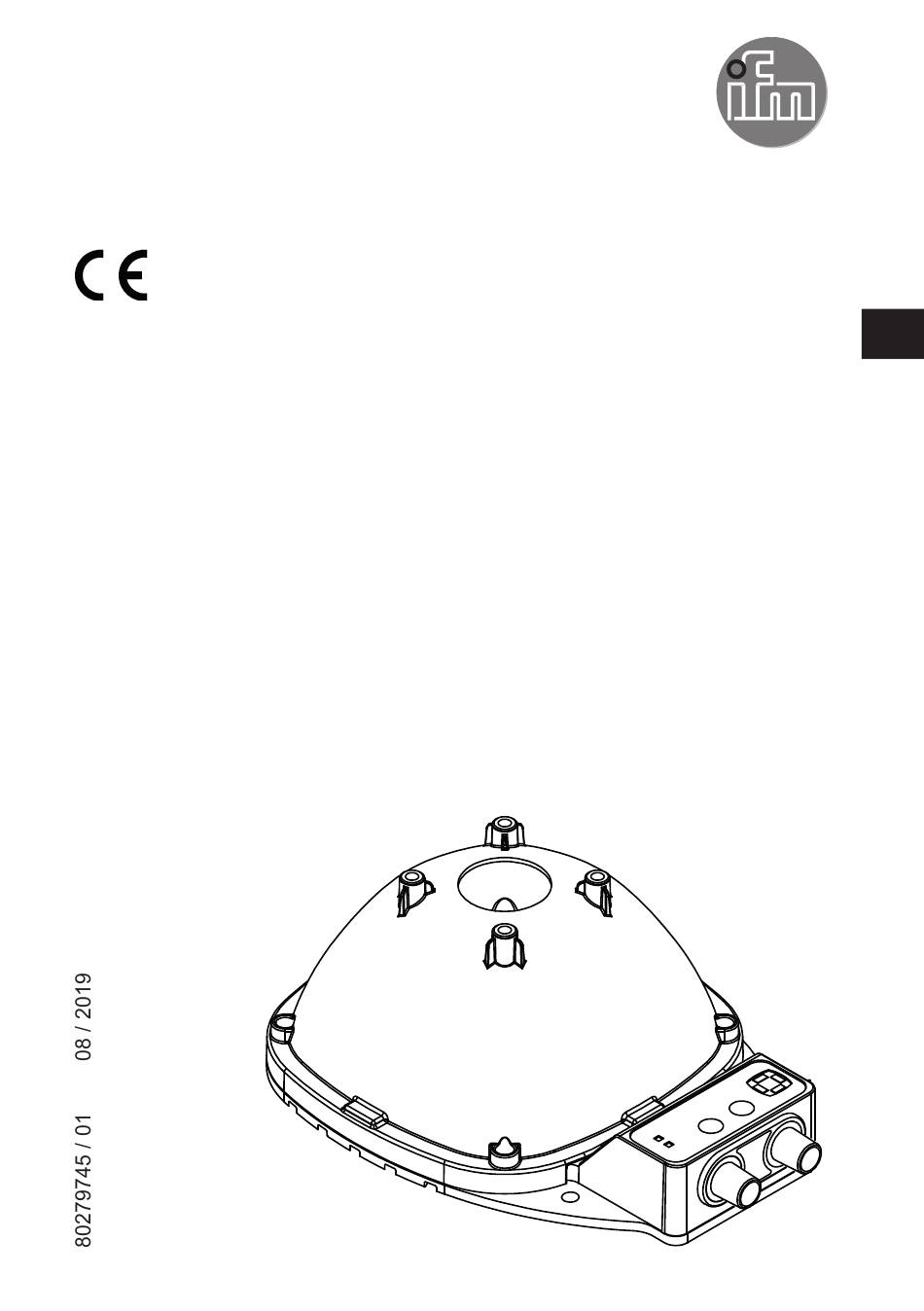

Operating instructions O2D93x 2 Safety instructions ● The device described is a subcomponent for integration into a system� – The manufacturer is responsible for the safety of the system� – The system manufacturer undertakes to perform a risk assessment and to create a documentation in accordance with legal and normative requirements to be provided to the operator and user of the system�...
The device may only be used under the operating conditions specified in the data sheet� 4 Items supplied ● O2D93x illumination unit ● Operating instructions ► In the event of incomplete or damaged items supplied please contact ifm electronic� The device is supplied without mounting and connection accessories�...
Operating instructions O2D93x 5 Installation ① : Mounting holes ② : Fixtures for accessory Colour Segment Power Light on Fig� 1: Installation 5.1 Install device ► Install the device via the mounting holes with 2x M5 screws� For an additional locking of the screws seal them with a screw retaining compound�...
Operating instructions O2D93x 6 Electrical connection Observe the following instructions before electrical installation� ATTENTION! The device must be connected by a qualified electrician� Observe the electrical data in the data sheet� Device of protection class III (PC III). The electrical supply must only be made via PELV circuits� For cable lengths >...
Operating instructions O2D93x 7 Operating and display elements ① ① : LED 1 : Segment 1 ② ② : LED 2 : Segment 2 ③ ③ : LED 3 : Segment 3 ④ ④ : LED 4 : Segment 4 Colour Segment Power ⑤...
Operating instructions O2D93x 8 Set-up After power on the device is put into operation� 8.1 Mode continuous light In the mode "continuous light" the device is continuously on� This mode is available after power on (→ 6.2 Mode continuous light). 8.2 Mode pulse operation In the mode "pulse operation"...
Operating instructions O2D93x 8.2.2 Signal delay Changing the colours and segments leads to a signal delay� The signal delay concerns the mode pulse operation with PNP circuit� ① : Trigger ② : Colour ③ Segment 65 µs 2 µs 80 µs 25 µs 65 µs 10 µs 65 µs...
Operating instructions O2D93x 8.4 External control The device can be controlled externally by connecting the respective pin of the 8-pole M12 connector to a 24 V voltage (→ 6.1 Wiring). Pin Connection activate high lighting power activate colour 2 activate segment 1 activate segment 2 activate segment 3 activate segment 4...
