Summary of Contents for Ryobi ONE Plus R18SEC

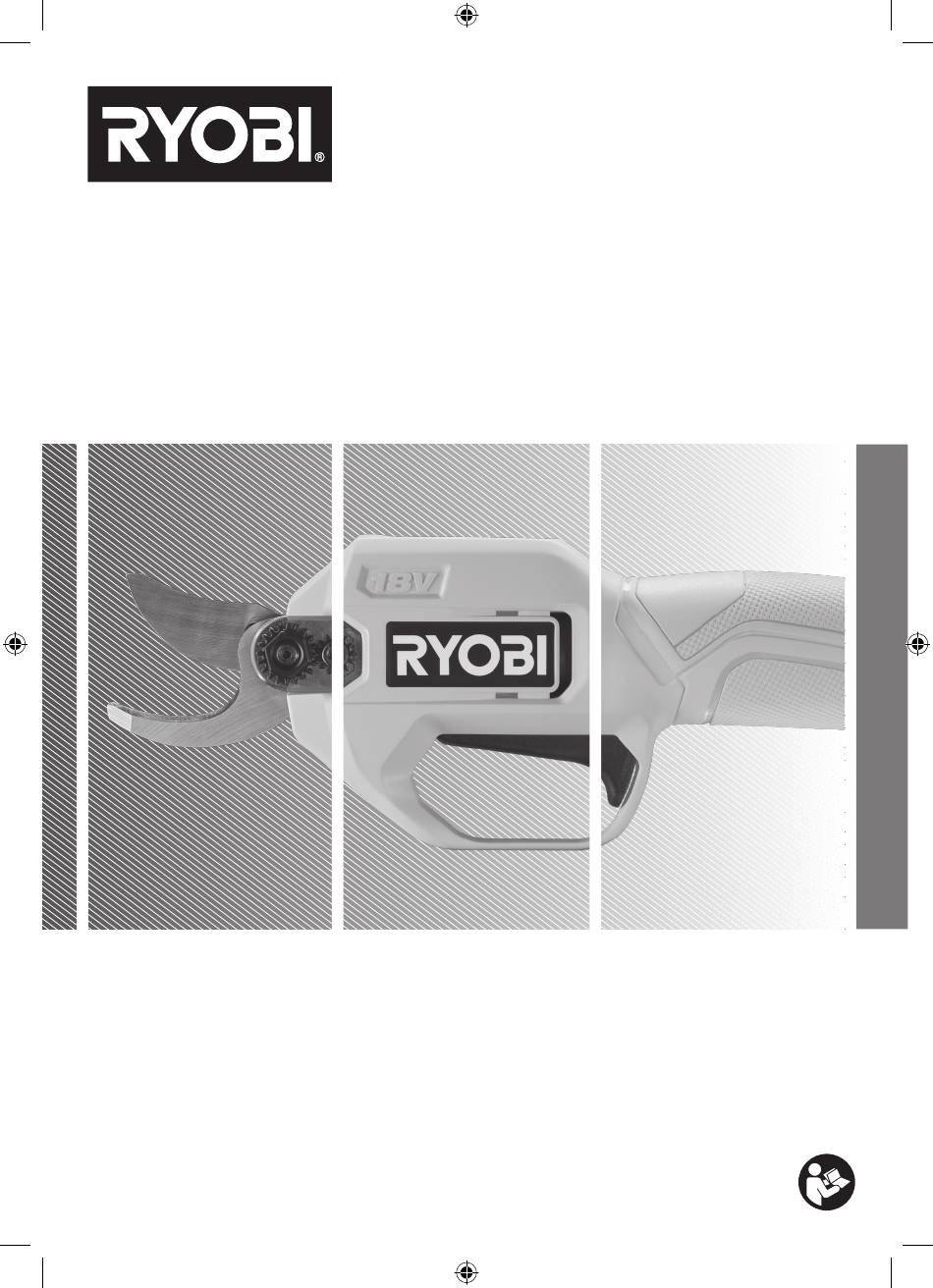

  • Page 1 FRONT PAGE R18SEC...

  • Page 2: Intended Use

    PERSONAL SAFETY IMPORTANT! ■ Stay alert, watch what you are doing and use It is essential that you read the instructions in this manual common sense when operating a power tool. Do not before assembling, operating, and maintaining the use a power tool while you are tired or under the product.
  • Page 3 ■ Use the power tool, accessories and tool bits etc. ■ Never allow children, persons with reduced physical, in accordance with these instructions, taking into sensory, or mental capabilities or lack of experience account the working conditions and the work to and knowledge, or people who are unfamiliar with these be performed.

  • Page 4: Transportation And Storage

    ■ You may make adjustments and repairs described in this ADDITIONAL BATTERY SAFETY WARNINGS manual. For other repairs, contact an authorised service ■ To reduce the risk of fire, personal injury, and product centre. damage due to a short circuit, never immerse the tool, ■...

  • Page 5: Symbols In This Manual

    Wear head and eye protection. Do not expose the product to rain or damp conditions. To prevent serious injury, do not touch the cutting blades. Regulatory Compliance Mark (RCM). The product meets applicable regulatory requirements. Visible radiation, instructional safeguard Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.
  • Page 6 R18SEC Cutting blade LED indicator Handle Trigger Locking screw and washer Locking nut Fixed blade Blade cover Operator’s manual Battery pack Charger Replacement cutting blade Light lubricant oil Sharpening stone Screwdriver Socket wrench Wrench Know your product...
  • Page 7 Always wear head and eye protection. Remove the blade cover. Install the battery pack. Make sure that Wear non-slip, heavy-duty protective the latches on the battery pack click into gloves. place. Press and hold the trigger for 4 seconds WARNING: Keep bare hands away to turn on the product and open the from the blade.
  • Page 8 Operating the Cleaning the p.14 product product Replacing or Storing the p.11 p.15 sharpening the cutting product blade...

  • Page 9: Operating The Product

    OPERATING THE PRODUCT 1. Remove the blade cover. 2. Install the battery pack. Make sure that the latches on the battery pack click into place. 3. Press and hold the trigger for 4 seconds to turn on the product and open the cutting blade.
  • Page 10 NOTE: The product goes into sleep mode if the trigger is not pressed for more than 30 seconds. The LED indicator turns off. Press and hold the trigger for 4 seconds to wake the product. 5. Press and hold the trigger for 4 seconds to turn off the product and close the cutting blade.
  • Page 11 REPLACING OR SHARPENING THE CUTTING BLADE NOTE: Before removing the blade for sharpening or replacement, ensure that you have a T10 screwdriver, a #4 wrench, and a #13 socket wrench. Refer to the replacement parts list in this manual for the correct replacement parts.
  • Page 12 5. Flip the product over onto its other side. 6. Remove the swing gear assembly, bolt, and cutting blade. 7. Remove the cutting blade, and dispose of it properly. NOTE: Use a 300 - 400 grit sharpening stone to sharpen the cutting edge of the cutting blade and to remove burrs on the edge of the fixed blade if there are any.
  • Page 13 9. Reinstall the swing gear assembly, bolt, and cutting blade. 10. Reinstall the locking nut, washer, and screw on the other side. 11. Reinstall the housing and the screws. Turn the screws clockwise to secure the housing. 0.2Nm Maintenance...

  • Page 14: Cleaning The Product

    CLEANING THE PRODUCT 1. Press the latches on the battery pack to remove it from the product. 2. Clean the body and handles of the product with a soft, dry cloth after each use. Do not use water and soap to clean the product.

  • Page 15: Storing The Product

    STORING THE PRODUCT 1. Press the latches on the battery pack to remove it from the product. NOTE: Make sure that all parts are clean and dry before storing the product. 2. Install the blade cover. Always install the blade cover when storing or transporting the product.

  • Page 16: Product Specifications

    RB18L15B, RB1815C, RB18L20, RB18L20A, RB1820C, RB18L25, RB18L25A, RB18L30A, RB18L40, RB18L40A, RB1840C, RB1840X, RB18L50, RB18L50A, RB18L60A, RB18L90A REPLACEMENT PARTS Replacement blade set RSE1 (099981387) NOTE: Visit your local Bunnings special orders desk or contact RYOBI customer service for replacement parts.
  • Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 099241001001-03...
