JBL PARTY BOX 100 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

JBL PARTY BOX 100
BU Connected Home
SKU:JBLPARTYBOX100AM,JBLPARTYBOX100AS,JBLPARTYBOX100CN,JBLPARTYBOX100EU,
JBLBAR51BLKBR
JBLPARTYBOX100JN,JBLPARTYBOX100IN,JBLPARTYBOX100BR,JBLPARTYBOX100RU
Released by Global Quality
CONTENTS
Safety Instruction ...................................................................................... 2
Technical Specifications ............................................................................ 5
Software upgrade Instruction & Reset Procedure .................................... 6
Troubleshooting Charts ............................................................................ 7
Disassembly Instruction ............................................................................ 8
Block Diagram.......................................................................................... 11
Wiring Diagram ........................................................................................ 12
Circuit Diagarms & PCBA Layout ............................................................ 13
Mechanical Exploded View .................................................................... 36
Ist . ..................................................................................... 40
Revision List ............................................................................................
harman/kardon, Inc.
Service Manual
Ver.1.2 MAR./2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARTY BOX 100 and is the answer not in the manual?

Questions and answers

Andrzej
March 23, 2025

Świeci się włącznik na czerwono i nic więcej się nie zapala i nie załącza się

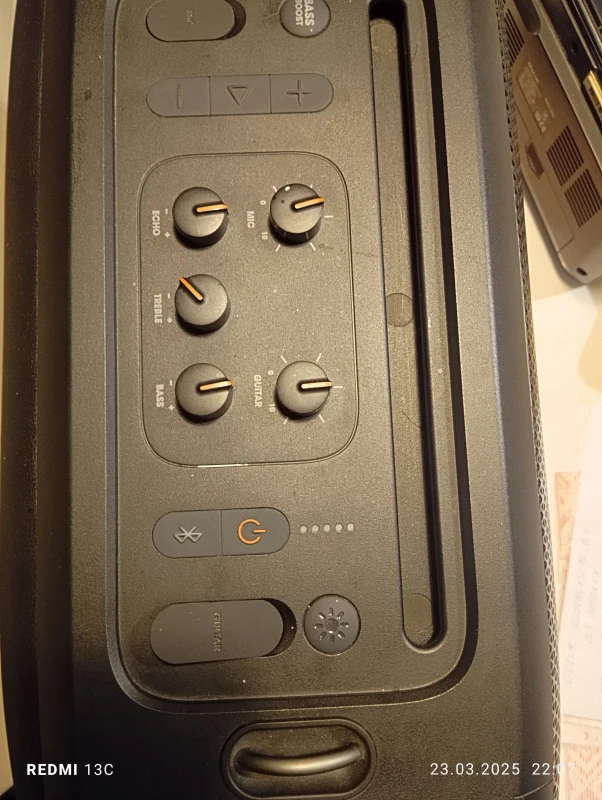

User image 67e078580d96a
0
1 comments:
Mr. Anderson
March 23, 2025

The JBL Partybox 100 is not turning on, and the power indicator is red, possibly due to a power supply issue. The context mentions voltage dropping over time, indicating a failing power circuit. A faulty MOSFET or transformer might be causing the issue, preventing stable power delivery. Additionally, there is no standby voltage, which suggests a failure in the power regulation components.

This answer is automatically generated

0
stefan
June 12, 2025

can I change the treble speakers? The bass speakers are almost the only I hear

0

Related Manuals for JBL PARTY BOX 100

Summary of Contents for JBL PARTY BOX 100

  • Page 1 Service Manual JBL PARTY BOX 100 BU Connected Home SKU:JBLPARTYBOX100AM,JBLPARTYBOX100AS,JBLPARTYBOX100CN,JBLPARTYBOX100EU, JBLBAR51BLKBR JBLPARTYBOX100JN,JBLPARTYBOX100IN,JBLPARTYBOX100BR,JBLPARTYBOX100RU CONTENTS Safety Instruction ..................2 Technical Specifications ................5 Software upgrade Instruction & Reset Procedure ........6 Troubleshooting Charts ................7 Disassembly Instruction ................8 Block Diagram..................11 Wiring Diagram ..................
  • Page 5 4 Technical Specifications 4.1 Audio Amplifier Section Set all additional processing (tone controls, equalizers, audio effects, etc) to native or bypass, Unit on Test mode , set digital generator dither off if not additionally defined. Output resistive load = 4Ω, 2 channels loaded.
  • Page 6 Function Crosstalk 75dB@100Hz 70dB @1KHz 65dB @10KHz Dynamic range 80dB@1KHz Input Impedance > 4 Kohm Residual Noise 1.2mV rms DC Offset <30mV Damping Factor >8 Signal Sensing(ATO) at 1 kHz Analog: <5mV ,Typ. 3mV Digital : < -70dBF 4.1.2 Other Requirements Short Circuit Protection at Output Stage The amplifier should be protected so that no functional failure occurs when it is operated with a short across its output stage...
  • Page 7 Frequency Response (Output Power and THD+N) with EQ setting THD+N at 1W(at 1kHz) <0.5 % TBD THD+N at Rated Output Power(at 1kHz) <1% TBD Signal-to-Noise ratio at Rated Output 60dB (A-Weighted) Power(at 1kHz) Input Impedance >10Kohm for MIC >20Kohm for Guitar Residual Noise 8mV rms 4.1.4 Aux Output (2 channels)
  • Page 8 Software upgrade instruction & Reset Procedure Restore factory setting 1. Power on, Hold down<PLAY> & <VOLUME +>keys on the top panel about 10 seconds. 2. Then, the unit will power off, the reset successful. 3. After factory settings restored, the unit will reboot automatically. Check soft Version：...
  • Page 9 Trouble Shooting Party Box 100 REPAIR CHART All Function No All Function No Sound AUX IN No Sound Bluetooth No Sound MIC/GT No Sound USB No Sound Power Supply No Battery No Charging All Function No AUX IN No Sound...
  • Page 10 DISASSEMBLY INSTRUCTIONS ④ ② ④ ② ① ① ③ ③ ① ② ③ Figure 1 Figure 2 Figure 3 Take 3pcs PC sheet apart from Take 4pcs side rubber foot Take 4pcs side rubber foot apart from top cover and open the screws. apart from right side cover left side cover and open screws.
  • Page 11 Dismantling of PCBAs ① ② ④ ③ Figure 7 Figure 8 Figure 9: Dismantling of main PCBA Open the top cover from upper side. Dismantling the cables. Open the main PCBA screws. ⑨ ⑩ ⑦ ⑧ ⑤ ⑥ ③ ① ①...
  • Page 12 Dismantling of lighting PCBA and speaker drivers ① ② ③ ① ② ① ② ④ ⑤ ⑥ Figure 14 Figure 13 Figure 15 Open 2pcs screws from bottom side Open 6pcs screws from front cover. Open 2pcs screws from top side of of wooden box.
  • Page 13 Block Diagram AK7755 30W 4 Ω 1% LRCK DAC IC AMP IC CS42528 TPA3116D2 15W 4 Ω 1% Out L/R AUX Out AUX Out 30W 4 Ω 1% AUX in AMP IC Op IC TPA3116D2 15W 4 Ω 1% AUX Out BATTERY MODE: MIC out*1 18W*2...
  • Page 14 Wiring Diagram...
  • Page 15 Circuit Diagram-MCU+DSP+AMP PCBA VDD_22V USB_FAULT R389 CURRENT_SET 3.3V_VCC CON7 USB CHARGER R390 AC_DET 2.1A EC15 TO SMPS R256 R401 C350 C249 3904 CURRENT_SET 220uF/35V 120K 0.1uF/50V/X5R 1 R402 100K R343 3.9K 6PIN/2.0 R229 TPS2546 10uH C256 22K1% R231 22K1% 1 IN ILIM_HI 0.1uF/16V/0402/X5R EC19...
  • Page 16 Circuit Diagram-MCU+DSP+AMP PCBA CON5 3.3V_VCC 3.3VA MCS_TX_MCK 3.3V_VCC MCS_TX_MCK MCS_TX_LRCK MCS_TX_LRCK ADC_3.3VA ADC_3.3VA R292 300RH FB20 FB/300R FB22 FB/300R R1A1 BASS_WLED MCS_TX_BCK R268 300RH KDS226 MCS_TX_BCK AD_KEY2 R376 300RH D105 AD_KEY1 C215 C216 C218 MCS_TX_ADATA0 R238 300RH X101 24M MCS_TX_ADATA0 BT_LED R261 300RH...
  • Page 17 Circuit Diagram-MCU+DSP+AMP PCBA DIFFERENTIAL INPUT 22uF/6.3V/0805/Y5V 4.7R AUX_IN OP AUX_IN 100PF 4.7R 100uF/16V C334 10K/1% R_DET 220uF/10V L_DET AUX_R 10uF/6.3V/0603/Y5V 1.5K FB/300R AUDIO_R AUX_R 22uF/6.3V/0805/Y5V 10uF/6.3V/0603/Y5V FB/300R 1.5K AUX_R- AUX_L D4558 10uF/6.3V/0603/Y5V AUX_L 10uF/6.3V/0603/Y5V 22uF/6.3V/0805/Y5V JK301 AUDIO_L 100PF 100PF 10K/1% F4558 AUX_INPUT_DET 100PF...
  • Page 18 Circuit Diagram-MCU+DSP+AMP PCBA 4.7R MIC/GUITAR OP C336 22uF/6.3V/0805/Y5V 10uF/16V/0603/Y5V MIC_VOL2 100uF/16V MIC_VOL1 R391 1.5K/1% MIC_VOL1 GT_VOL1 MIC_VOL2 GT_VOL2 12K/1% R393 330K/1% CON4 6.35-GT 102PF 47PF MIC_IN 10uF/6.3V/0603/Y5V TO MIC/GT VOL BOARD R371 MIC1_DET 3.3K MIC_IN D4558 100PF 100K 1K/1% R372 MIC1 1K/1% MIC_IN1...
  • Page 19 Circuit Diagram-MCU+DSP+AMP PCBA TO MCS3730/AK775 R281 MIC/GT IIS Output (DAC Output) R294 M/GADC_CS->3730/AKM R309 MCS_TX_MCK R216 MCS_TX_LRCK R310 MCS_TX_BCK R311 MCL3730 TO CS42528 MIC_DATA R334 AK7755 TO CS42528 TW_DATA R335 FB10 FB/80R C346 DSP_3V3 R337 C345 C100 From AK7755 47PF C104 C105 47PF...
  • Page 20 Circuit Diagram-MCU+DSP+AMP PCBA Master Mode Master Mode R154(TO GND) R153(TO GVDD) R124(TO GND) R123(TO GVDD) GAIN GAIN AMP_SD 20DB 5.6K OPEN 20DB 5.6K OPEN Out Hi_Z 26DB 100K 26DB 100K TPA3116D2 32DB 100K 32DB 100K C132 C133 EC10 Enabled 36DB 36DB 0.1uF/50V/X5R R415...
  • Page 21 Layout Top View Diagram-MCU+DSP+AMP PCBA...
  • Page 22 Layout Bottom View Diagram-MCU+DSP+AMP PCBA...
  • Page 23 Circuit Diagram-SMPS PCBA * CAUTION : THE PARTS MARKED WITH ARE IMPORTANT PARTS ON THE SAFETY. PLEASE USE THE PARTS HAVING THE DESIGNATED PARTS NUMBER WITHOUT FAIL. PQ32 PB100 3.5X9MM 3.5X6MM L905 5D-9 C900 C914 CY904 100uF/450V 103PF/630V BD900 0.022UF/1000V 470PF/250V KB307 R912...
  • Page 24 Layout Top View Diagram-SMPS PCBA...
  • Page 25 Layout Bottom View Diagram-SMPS PCBA...
  • Page 26 Circuit Diagram-Woofer LED PCBA CON3 LED_5V LED_W3 LED_PWM4 LED_PWM3 LED_5V 104P 2.2R 2.2R 2.2R 104P 104P 104P 106P 2.2R 2.2R 2.2R 2.2R 104P 2.2R 2.2R 2.2R 2.2R 2.2R 2.2R LED_PWM3 14pin LED9 LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8 LED11 LED13 LED10...
  • Page 27 Layout Top View Diagram-Right Woofer LED PCBA...
  • Page 28 Layout Top View Diagram-Light Woofer LED PCBA...
  • Page 29 Layout Bottom View Diagram-Right Woofer LED PCBA...
  • Page 30 Layout Bottom View Diagram-Light Woofer LED PCBA...
  • Page 31 Circuit Diagram-FLASH LED PCBA LED_5V LED_5V CON10 LED56 LED_W2 CON7 LED_W5 100R LED_PWM2 LED27 LED_PWM1 100R LED_5V LED_5V 4pin LED_W2 CON10 TO CON8 LED_PWM2 2.2K 104P 104P LED_PWM1 LED_W5 8050 2.2K LED_W1 8050 LED_5V LED_5V LED_5V CON9 LED_W1 CON14P 104P CON9 TO CON3 104P 16pin...
  • Page 32 Layout Top View Diagram-Flash LED PCBA...
  • Page 33 Layout Bottom View Diagram-Flash LED PCBA...
  • Page 34 Circuit Diagram-Key PCBA LED67 BASS WHITE R141 220R R131 LED58 C0N2 BASS WHITE AD_KEY1 R142 220R AD_KEY2 BASS_WLED-1 3.3V-1 6PIN 2.2K R127 BASS_WLED-1 8050 CON3 TO CON2 KEY BOARD 2 3.3V CON11 BASS_WLED AD_KEY2 R107 AD_KEY1 R112 BT_LED R109 P_YELLOW FB 80HR POWER_KEY R108...
  • Page 35 Layout Top View Diagram-Key2 PCBA...
  • Page 36 Layout Bottom View Diagram-Key2 PCBA...
  • Page 37 Layout Top View Diagram-Key1 PCBA...
  • Page 38 Layout Bottom View Diagram-Key1 PCBA...
  • Page 39 Circuit Diagram-MIC/GT Gain PCBA MIC_VR B50K C0N3 MIC- MIC+ GT_VR B50K GT MIC GAIN VOLUME BOARD...
  • Page 40 Layout Top View Diagram-MIC/GT Gain PCBA...
  • Page 41 Layout Bottom View Diagram-MIC/GT Gain PCBA...
  • Page 42 2.20.2.35160212RR 2.20.2.30120216RR 2.20.2.30080225RR 2.20.1.30080226RR 5.05.5.40204001RR 7.23.1.VX907001RR 7.23.1.VX907001RR 5.27.1.JVX90701ER 3.12.H.JVX90701ER 7.01.B.JVX90722RR 1.28.1.52544001RR 1.28.1.25420001RR 7.01.9.JVX90707RRH 3.22.A.JVX90701ER 7.01.B.JVX90721RR 3.07.H.X907SA01ER 7.01.2.JVX90708RR 7.23.1.VX907002ER 7.23.1.VX907002ER 3.07.H.X907FA01ER 7.01.2.JVX90707RR 3.15.H.JVX90701ER 3.21.H.JVX90701ER 7.01.1.JVX90709RRH 3.22.A.JVX90704ER 5.13.2.JVX90702ER 7.01.7.JVX90704RR 3.11.H.JVX90701ER 3.20.4.JVX90701ER 5.04.6.JVX90705ER SCREW HOLE 2.02.H.VX907A1SER 5.11.3.HARMAN01RR 14.4V/2600MAH 3.25.1.JVX90702ER 3.25.1.JVX90703ER 3.25.1.JVX90701ER 3.22.A.JVX90705ER 1.21.7.STA00313ER 5.14.3.JVX90701ER 3.22.A.JVX90703ER 5.13.2.JVX90701ER...
  • Page 43 JBL PARTYBOX 100 Spare Part List Part Number SAP Description Usage Pos. No. 7.01.7.JVX90704RR VR PCBA PB100 1.28.1.25420001RR TWEETER PB100 7.01.B.JVX90722RR TOP LIGHTING PCBA PB100 7.01.B.JVX90721RR TOP FLASH PCBA PB100 7.23.1.VX907002ER TOP COVER ASSY PB100 30,31 5.13.2.JVX90702ER SIDE RUBBER FOOT PB100 3.20.4.JVX90701ER...
  • Page 44 1.25.B.15025024ERH POWER CORD 1.5M BR PB100 CORD6 1.23.1.44035134RR CABLE FOR TWEETER TO MAIN PCBA PB100 1.23.1.44050132RR CABLE FOR DRIVER TO MAIN PCBA PB100 3.07.H.X907FA01ER BUTTON RUBBER R PB100 3.07.H.X907SA01ER BUTTON RUBBER L PB100 7.01.Y.MB881105RR BT MODULE MB8811QA PB100 7.01.B.JVX90720RR BOTTOM LIGHTING PCBA PB100 7.01.B.JVX90719RR BOTTOM FLASH PCBA PB100 5.04.6.JVX90704ER...
  • Page 45 REVISION LIST Version 1.0 *Initial release.May.2019 Version 1.1 *Correct the part description in the exploded view. Nov.2019 Version 1.2 *US SKU_& India SKU change production site from China to Malaysia. Mar.2020...
