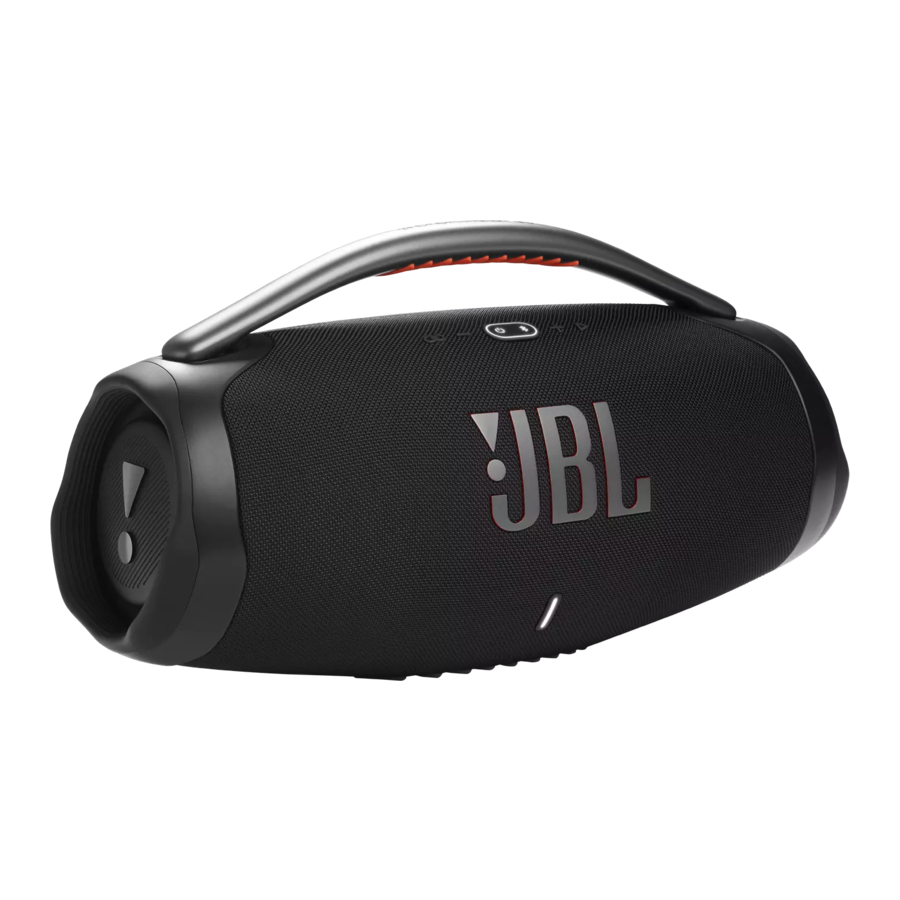

JBL BOOMBOX3 Quick Start Guide

Table of Contents

WHAT'S IN THE BOX

JBL PORTABLE
Use the JBL PORTABLE app for speaker configuration and software upgrade.

Transducers:	189 x 114 mm Subwoofer, 2 x 80.9 x 80.9 mm Midrange/ 2 x 2.75 inch, 2 x Φ20 mm Tweeter/ 2 x 0.75 inch
Output power:	1 x 80 W RMS-subwoofer + 2 x 40 W RMS-midrange + 2 x 10 W RMS-tweeter (AC mode) 1 x 60 W RMS-subwoofer + 2 x 30 W RMS-midrange + 2 x 8 W RMS-tweeter (Battery mode)
Power input:	100 - 240 Vac; 50/60 Hz;
Frequency response:	40 Hz - 20 kHz
Signal-to-noise ratio:	> 80 dB
Battery type:	Li-ion polymer 69.12 Wh (equivalent to 7.2 V / 9600 mAh)
Battery charge time:	6.5 hours
Music play time:	up to 24 hours (dependent on volume level and audio content)
Connection ports:	AC-in, USB-A, Aux-in
Cable type:	AC Power Cable
Cable length:	2000 mm / 78.7"
USB charge out:	5 V / 2 A (maximum)
Bluetooth® version:	5.3
Bluetooth® profile:	A2DP 1.3, AVRCP 1.6
Bluetooth® transmitter frequency range:	2.4 GHz - 2.4835 GHz
Bluetooth® transmitter power:	≤ 9 dBm (EIRP)
Bluetooth® transmitter modulation:	GFSK, π/4 DQPSK, 8DPSK
Product dimensions (W x H x D):	482.4 x 256.9 x 199.7 mm / 19.0 x 10.1 x 7.9 "
Net weight:	6.7 kg / 14.7 lbs
Packaging dimensions (W x H x D):	565 x 324 x 256.5 mm / 22.2 x 12.8 x 10.1 "
Gross weight:	9.74 kg / 21.47 lbs
Maximum operation temperature:	45°C
