Basic American Slide-W-I-D-E Zenith 9000 APS Supplemental Service Manual

35"- 39"- 42" expandable/retractable sleep deck
Hide thumbs Also See for Slide-W-I-D-E Zenith 9000 APS:

Advertisement

Table of Contents

Expandable/Retractable Sleep Deck
APS98674 - with pedal lock
APS986741 - with pedal lock, backlit handset, and
underbed light
APS986742 - with pedal lock, backlit handset,
underbed light, and onboard back-up battery
APS9867406 - Export 230V
APS78674 - with pedal lock
APS58674 - with low roll casters
APS586741 - with low roll casters and
underbed light
APS586742 - with low roll casters,
underbed light, and onboard
back-up battery
This Supplemental Service Manual describes important information regarding the Expandable/Retractable Sleep Deck.
It has been included with the Primary Service Manual of your particular bed model (i.e. Zenith 9000 APS, Zenith 9000,
Zenith 7000APS, Zenith 7000, Zenith 5000APS, or Zenith 5000). To avoid personal injury or damage to the bed, read this
entire manual as well as all sections pertaining to your bed model in your bed's Primary Service Manual before use.
GF Health Products, Inc. - www.grahamfield.com
35"- 39"- 42"
Supplemental Service Manual
42" 39" 35"
Slide-W-I-D-E Expandable/Retractable Sleep Deck Supplement 999-0881-190G APR 2015

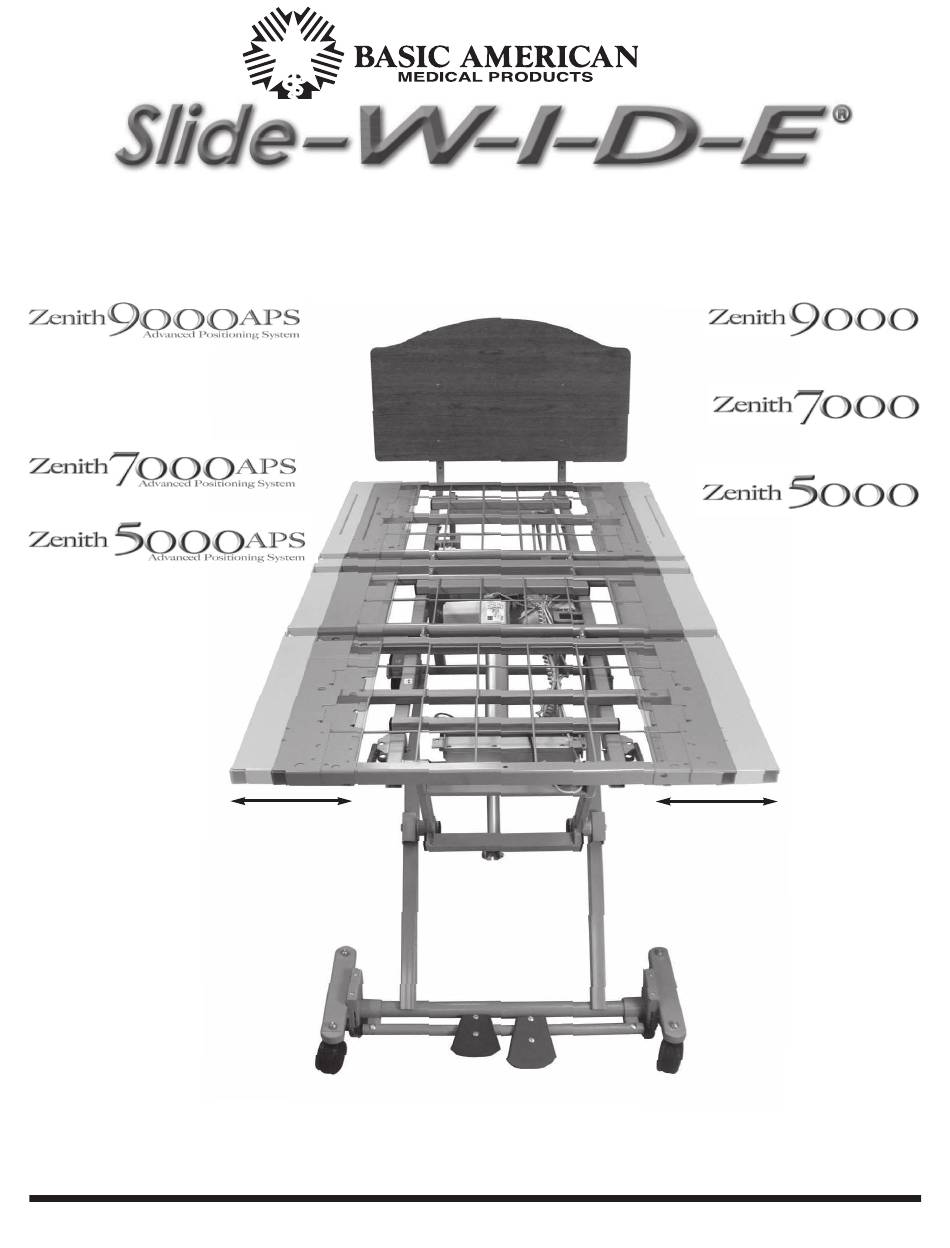

Shown with
Expandable/Retractable
Sleep Deck on
Zenith 7000 bed
ZZ98674 - with pedal lock
ZZ98774 - 84" Custom
ZG78674 - with pedal lock
ZG78674 - with 4 locking casters
ZG58674 - with low roll casters
35" 39" 42"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slide-W-I-D-E Zenith 9000 APS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Basic American Slide-W-I-D-E Zenith 9000 APS

Summary of Contents for Basic American Slide-W-I-D-E Zenith 9000 APS

  • Page 1 35"- 39"- 42" Expandable/Retractable Sleep Deck Supplemental Service Manual ZZ98674 - with pedal lock APS98674 - with pedal lock ZZ98774 - 84" Custom APS986741 - with pedal lock, backlit handset, and underbed light APS986742 - with pedal lock, backlit handset, underbed light, and onboard back-up battery APS9867406 - Export 230V ZG78674 - with pedal lock...

  • Page 2: Table Of Contents

    Basic American Medical Products 336 Trowbridge Drive Fond du Lac, WI 54937 For Slide-WIDE Expandable/Retractable Sleep Deck service parts, contact our Customer Service Department at 770-368-4700 Manufactured by: GF Health Products, Inc. 2935 Northeast Parkway Atlanta, GA 30360 www.grahamfield.com Made in the USA To order a Slide-WIDE Expandable/Retractable Sleep Deck, contact a GF Health Products, Inc.

  • Page 3: Important Safety And Warning Information

    ZENITH SERIES IMPORTANT SAFETY AND WARNING INFORMATION WARNING: Read and follow all instructions. Care must be taken when adjusting your Slide-W-I-D-E Expandable/Retractable Sleep Deck. To avoid possible injury, keep hands clear of deck ends when expanding or retracting, especially near the headboard or footboard.

  • Page 4: Sleep Deck Positioning

    ZENITH SERIES SLEEP DECK POSITIONING 1. The Slide-W-I-D-E Expandable/Retractable Sleep Deck can be set to one of three widths: Fully Retracted = 35"; Partly Expanded = 39"; and Fully Expanded = 42". 2. To adjust the deck position, first remove all four quick-release detent pins from the underside of both Head and Foot Decks by pulling out the pins by the small rings. Each detent pin is attached to a lanyard which is connected to a screw on the underside of the deck to prevent misplacement (see illustrations below). 3. Stand at the side of the bed and place your hands near the detent pin labels (your hands must be this widely spaced) Labels on deck sides indicate and hold the entire left or right side of the expandable deck locations of 4 removable (not the ends). Pull the deck out toward you to expand, detent pins or push the deck inward toward center to retract. On the underside, align the desired hole position on the deck insert tubes with the single hole in the end of the mainframe cross tubes (see below). 4. IMPORTANT: Reinsert the detent pin in all four locations (A - D), ensuring the ball at the end of the detent pin extends through the other side of all four mainframe position holes. View of underside of bed is shown below for reference only.

  • Page 5: Headboard And Footboard Positions Using The Quick-Release Detent Pins

    ZENITH SERIES HEADBOARD AND FOOTBOARD POSITIONS USING THE QUICK-RELEASE DETENT PINS HEADBOARD INSTALLATION FOOTBOARD INSTALLATION 1. The headboard has four pre-installed inserts on the 1. The footboard has four pre-installed inserts on the inside surface. outside surface. 2. Position two mounting tubes on the outside of the 2. Position two mounting tubes on the inside of the headboard with “L” facing inward toward center footboard with “L” facing inward toward center of bed. of bed. Align the mounting tube top holes with the Align the mounting tube top holes with the footboard headboard top holes. top holes. 3. Insert socket head cap screws from Panel Mounting 3. Insert socket head cap screws from Panel Mounting Kit through top holes into headboard. Kit through top holes into footboard. 4. Insert a second set of socket head cap screws 4. Insert a second set of socket head cap screws through third-from-top tube holes into headboard. through fourth-from-top tube holes into footboard.

  • Page 6: Mattress Retainer Installation

    ZENITH SERIES MATTRESS RETAINER INSTALLATION 1. The Slide-W-I-D-E Expandable/Retractable Sleep Deck features two sets of Mattress Retainers that are positioned at bed head and foot corners. 2. To install, position the mattress retainers above the sleep deck corners with ends perpendicular to the sleep deck surface and long crooked bent ends on outside as shown below. 3. Insert the rod ends into the appropriate 80" or 76" bed length holes as shown in detail at bottom right. 4. Once both ends are engaged, tilt each retainer toward the corner so that the retainer elbows rest on the deck. HEAD END Right Head Corner When in final position, Mattress Retainer all retainer elbows rest 999-0881-001 on sleep deck surface Right Foot Corner Mattress Retainer 999-0881-002 Left Head Corner Mattress Retainer...

  • Page 7: Sleep Deck Service Parts

    ZENITH SERIES SLEEP DECK SERVICE PARTS 1. Listed below are the only Slide-W-I-D-E 2. Head Section Assembly and Knee Sections Adjustable Sleep Deck service parts: must be installed before Seat Sections and Foot Section Assembly. • (1) Head Section Assembly, complete (one per bed required); Seat Sections and Foot Section Assembly must be disassembled before Head Section • (1) Foot Section Assembly, complete Assembly and Knee Sections. (one per bed required); 3. Carriage bolts and nylock nuts, oriented as • (2) Knee Section, universal side piece shown below, can be disassembled and (two per bed required); and assembled using " deep socket or " • (2) Seat Section, universal side piece wrench. (two per bed required) 1/2" long Carriage Bolt 100-5231-002 DETAIL: Attachment, Seat Pan Section to Head and Knee Sections...
  • Page 8 GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 Customer Service: phone 770-368-4700, fax 770-368-2386 © 2013 GF Health Products, Inc., All Rights Reserved Basic American Medical Products, Zenith, and Slide-W-I-D-E are registered trademarks of GF Health Products, Inc.
