Videotel VP92 Operation Manual

What is in the box

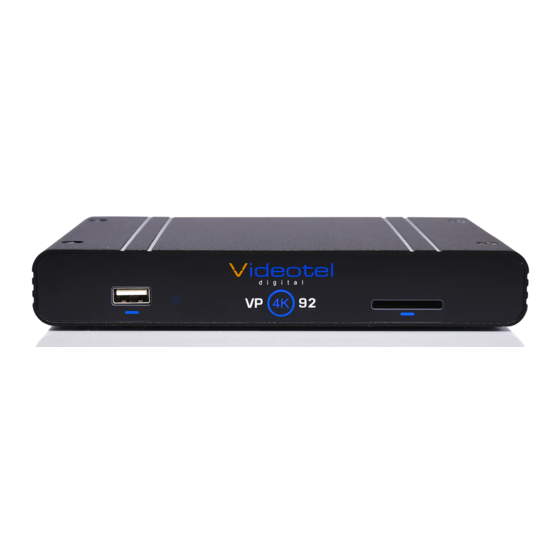

1 - VP92 Video Player
1 - 32-256 GB Micro SD (in-
stalled)
1 - Remote Control
1 - 5' HDMI Cable
1 - USB Power Supply
1 - 5' USB Power Cable
1 - 5' 3.5mm to RCA A/V Cable
1 - Wifi Antenna
4 - Mounting Screws
Connections
The VP92 is capable out outputting vid-
eo either (A or B) (5 & 6)
out jacks. The I/O port
RS232/TTL communication and con-
necting to our line of interactive solu-
tions including PUSH, MOVE, SENSE,
WAVE, RFID, SCAN, TAP and ELEVATE.
The USB on the front or back
used for a keyboard and/or mouse. Use
the enclosed Wifi antenna and attach to
(8)
the threaded plug
Wifi. The Micro SD is inside of the player
for storing files when using FTP/LAN/
URL. The audio jack (9)
puting line level (not am-
plified) stereo audio (R &
L) . Use the enclosed pow-
er supply and make sure
to line up the pins on the
Videotel Digital
Chula Vista, California
(619) 670-4412
www.videoteldigital.com
d i g i t a l
DRAFT - Updated 9/16/22
or both HDMI
(4)
is used for
(3)
can be
if you plan to use
is used for out-
plug and
then "Twist
& Lock" the
plug into
the jack (1).
(1) (2) (3)
Remote Functions
Power On & Off
Change Video
Output - HDMI
and A/V
Mouse Mode -
Press to enter
& exit "mouse
mode", then
use arrow keys
Home - Returns
to start up
screen
Rewind
Play / Pause
Previous Video
Volume Down
Volume Up
Rotate -Rotates
video counter
clockwise /
clockwise /
normal
VP92 Operation Manual
(13)
(4) (5) (6) (7)
OS Settings -
(HDMI, Wifi, Time,
Date, Etc)
ALL -
tent on SD/USB/
Micro SD
Turns on/off OSD
Arrow & SELECT
- Navigate all op-
tions
Last -
previous screen
Fast Forward
Next Video
Stop Video
Mute Audio
Scale -
output
4 : 3 / 1 6 : 9 / f u l l
screen/origin
Zoom
screen size with
11 pre set op-
tions
(8)
(9)
Lists all con-
Returns to
Various
options
- Trim
