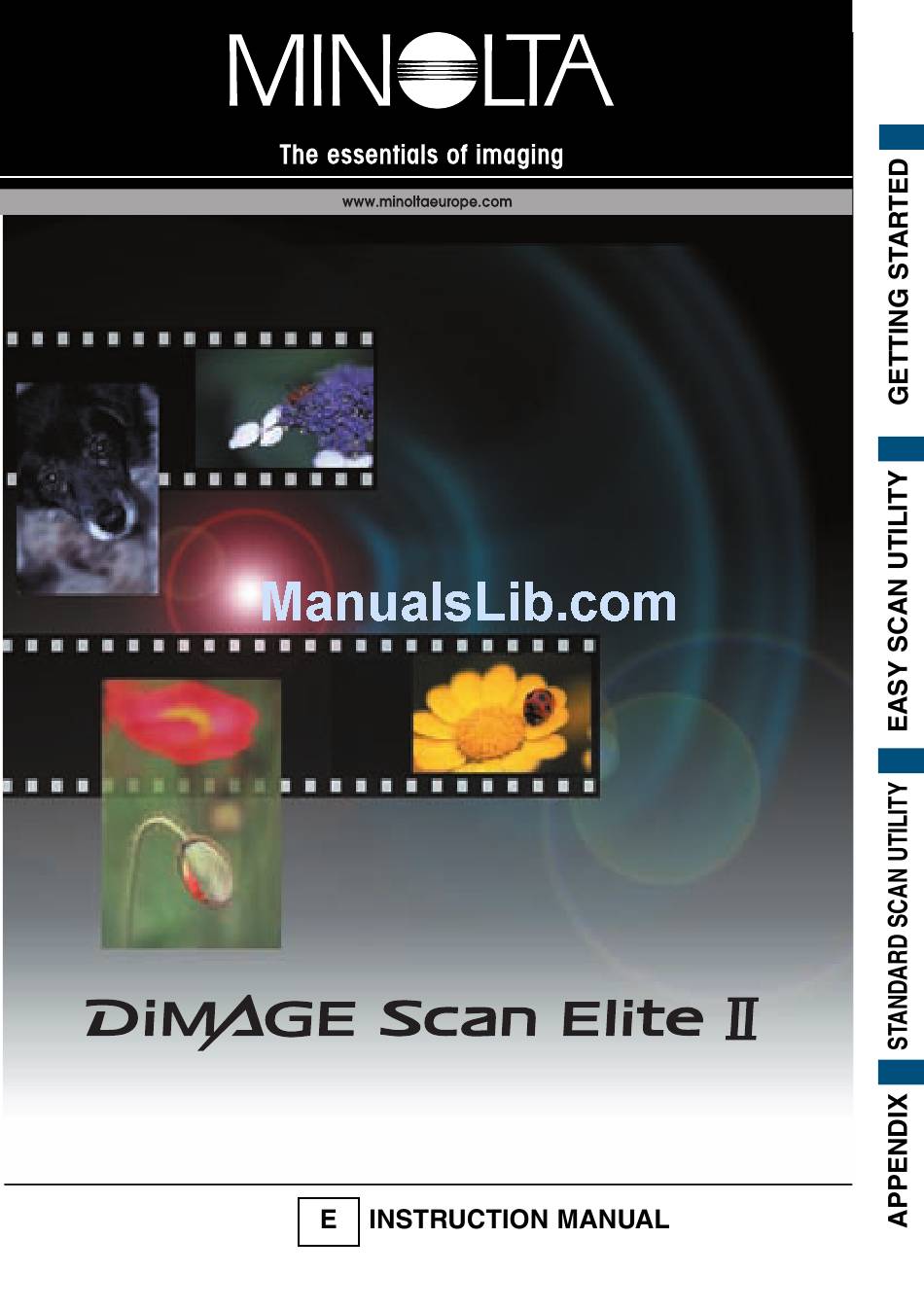

  • Page 1 9224-2888-11 H-A109...

  • Page 2: Table Of Contents

    8. CHOOSING DIGITAL ICE/ROC/GEM PRO- CESSING ...28 9. CONFIRMING THE SCANNER SETTINGS...28 10. SCANNING AND SAVING THE IMAGE ...28 Turning off the scanner ...29 WINDOWS LAUNCHING THE STANDARD SCAN UTILITY ...31 Launching the utility with Photoshop Elements...31 Launching the utility software ...31 MACINTOSH LAUNCHING THE STANDARD SCAN UTILITY ...32...
  • Page 3 INPUTTING SCAN SETTINGS MANUALLY ...77 Resolution and output size ...78 Example: setting the scanner output by pixels ...78 Example: setting the scanner output by print size and output resolution ...79 SAVING A JOB FILE ...80 DELETING A JOB FILE ...80 When using the utility through an image-pro- cessing application ...81...

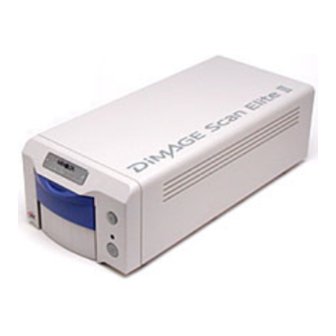

  • Page 4 Thank you for purchasing the Minolta DiMAGE Scan Elite II. This highly advanced, but easy-to-use dual-format digital film scanner is able to scan both 35mm and Advanced Photo System film (with the optional AD-10 APS adaptor). Please read this manual thoroughly to achieve the best results from your scanner.
  • Page 5 (2) this device must accept any interference received, including interference that may cause undesired operation. To meet FCC regulations, the IEEE1394 cable used with this scanner must be equipped with ferrite cores. As an ENERGY STAR Partner, Minolta has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
  • Page 6 Keep inflammable products away from uct. The use of inflam- the scanner mable cleaners and solvents may cause an explosion or fire. • Do not operate this product or handle the power cord with wet hands.
  • Page 7 • Store this product out of reach of children. Be careful when around children, not to harm them with the product or parts. • If the product emits a strange odour, heat, or smoke, discontinue use. Immediately unplug the power cord taking care not to burn yourself.
  • Page 8 Before using this product, please take following steps: • CHECK THE PACKAGE CONTENTS • INSTALL THE DIMAGE SCAN ELITE II UTILITY SOFTWARE • INSTALL ADOBE PHOTOSHOP ELEMENTS • CONNECT THE AC ADAPTOR • CONNECT THE USB OR IEEE1394 CABLE The following is included in this package:...
  • Page 9 To use the scanner, your computer system must meet the following requirements: Pentium or later processor. Pentium III processor is recommended when scanning with 16 bit output or using Digital ROC or GEM. Operation is not guaranteed for custom or home built computers.
  • Page 10 • The DiMAGE Scan Elite II setup screen will appear. • To check the contents of the DiMAGE Scan Elite II CD- ROM, click the “To access the CD-ROM” button. • The program decompression screen will briefly appear.
  • Page 11 • To install the software icons to another existing folder, select one of the folders listed in the existing-folders box below. Click “Next>” to begin installation. • When the computer restarts, the scanner driver soft- ware will be ready to use.
  • Page 12 • Dimage Scan Elite2 CD-ROM icon will appear on the desktop. • The driver, manual, and acrobat reader folders will appear. • The language folders will appear. • The installer’s start-up screen will appear. • If you do not agree to the conditions stated in the end- user license agreement, click “Decline”...
  • Page 13 • Clicking “Cancel” will end the installation routine. • To exit the installer without restarting the computer, click “Quit”. To make additional installations, click “Continue”. • If easy install was chosen, the DiMAGE Scan Elite 2 fold- er will contain the following items: DS Elite 2 Easy Utility, DS Elite 2 Utility, DS Elite 2 Plug-in, and DS Elite 2 Read •...
  • Page 14 Take time to register your copy of Photoshop Elements with Adobe. You can register online, by fax, or by mail. The software can be registered online during installation by following the instructions on the installer screens. To register by fax or mail, read the instructions in the registration folder located in the technical-information folder on the Adobe Photoshop Elements CD-ROM.
  • Page 15 • Click “Cancel” to exit the setup routine to stop any appli- cations that may be running. To start the installation routine again, double click on the elements icon in My Computer. The routine will start from step 2. • Read the entire agreement carefully before continuing the setup.
  • Page 16 • The serial number is found on the back of the CD-ROM case. Enter the serial exactly as it is displayed. • To correct the information, click “Back” to return to the user information screen. Tarou X Minolta Co., Ltd. XXXXXXXXXXXXXXXXXXXXXXXX...
  • Page 17 • The Adobe Photoshop Elements CD-ROM icon will appear on the desktop. 3 Locate the Photoshop Elements installer in the Adobe Photoshop Elements folder located in the appropriate language folder. • Read the entire agreement carefully before continuing the setup. If you do not agree to the terms, click “Decline”...
  • Page 18 INSTALLING ADOBE PHOTOSHOP ELEMENTS – MACINTOSH • The easy-install option will install the required software. If only specific programs need to be installed, select the custom-install option; click the check box of the files to be installed. • The serial number is found on the back of the CD-ROM case.
  • Page 19 Pull down the front door to this position when inserting a 35mm film holder. Pull down the front door to this position when inserting the optional APS adaptor. When the scanner is not in use, close the door to prevent dust from entering the unit.
  • Page 20 &211(&7,1* $& $'$3725 7KH ,(((  RU 86% FDEOH LV XVHG WR FRQQHFW WKH VFDQQHU WR D FRPSXWHU ,(((  FRQQHFWLRQ FDQ RQO\ EH XVHG ZLWK D FRPSXWHU ZKLFK LQFRUSRUDWHV D SUHLQVWDOOHG ,(((  RU )LUH:LUH SRUW ZLWK D SUHLQVWDOOHG RSHUDWLQJ V\VWHP WKDW VXSSRUWV WKLV FRQQHFWLRQ 7KH 86% DQG ,(((  SRUWV DUH FRYHUHG ZLWK SURWHFWLYH FDSV $OZD\V FRYHU WKH XQXVHG SRUW ZLWK D FDS :KHQ WKH VFDQQHU LV QRW LQ XVH IRU H[WHQGHG SHULRGV XQSOXJ WKH FDEOH DQG UHLQVHUW WKH FDS &RQQHFW RQH HQG RI WKH ,(((  FDEOH WR WKH VFDQ...
  • Page 21 Save the data on the computer’s hard disk before transferring the data to the storage device. • The unused port should always be covered with its protective cap. When the scanner is not in use for extended periods, unplug the cable and reinsert the port cap.
  • Page 22 - sRGB output colour space when colour matching is on. - AE (Auto Exposure) with all films except black and white slides. The front door of the scanner must be completely closed before turning on the scanner or launching the software.
  • Page 23 Using the included holders, the DiMAGE Scan Elite II can scan mounted or unmounted... • Colour negatives • Black and white negatives APS (Advanced Photo System) film can also be scanned using the optional APS adaptor AD-10. Remove any dust from the film before placing it in the film holder. Only use brushes or com- pressed air specifically for photographic film.
  • Page 24 LOADING THE FILM HOLDER • The slide mount holder SH-U1 accommodates up to four slides. Slide mounts must be thicker than 1 mm and thinner than 2 mm to be used in the holder. Do not use glass mounted slides. APS slide mounts can be used.
  • Page 25 • Do not remove the APS film from the cassette. • When using the APS adaptor, if the scanner makes a strange sound or the “Film advance error” warning appears, eject the APS cassette immediately (see page 29), and do not insert it again.
  • Page 26 • The scanner detects the holder and automatically loads the film from the cassette. • To eject the holder, push the eject button. The scanner will automatically rewind the film. Do not remove the adaptor until the rewind motor has stopped.
  • Page 27 An index scan displays a thumbnail image of all the images in the holder. This is especially useful when a selection needs to be made between similar negatives on one strip of film. • When an index scan is not needed, click “No Index Scan”. •...
  • Page 28 The scanned image can be enhanced with Digital ICE used with traditional black and white film. • Digital ICE reduces the effect of dust, flaws, scratches, and fingerprints on the film surface. This cannot be used with Kodachrome film. • Digital ROC restores the colour of faded film. •...
  • Page 29 Do not remove the adaptor until the rewind motor has stopped. • Unplug the scanner when cleaning or when the product is not in use for extended periods. • When using the IEEE 1394 cable with Windows Me, com- plete the “Unplug or eject hardware”...
  • Page 30 The utility can be launched through an image-processing software or as a stand-alone applica- tion. Settings to control basic scanner operation can be made. Settings to control the index scan can be made. This step is unnecessary if the index scan is not needed.
  • Page 31 Confirm the cable is securely connected and the front door of the scanner is closed before turn- ing on the scanner and launching the software. If the front door is open before launching the soft- ware, the scanner cannot initialise and will not accept the film holder.
  • Page 32 Confirm the cable is securely connected and the front door of the scanner is closed before turn- ing on the scanner and launching the software. If the front door is open before launching the soft- ware, the scanner cannot initialise and will not accept the film holder.
  • Page 33 71). To reduce the effect of dust, flaws, scratches, and fingerprints on the film surface (see page 70). To eject the film holder or APS adaptor from the scanner. To make automated scan settings (see page 83). Describes the button...
  • Page 34 ROC or GEM (see page 69), the use of autofocus is recommended. The autofocus function increases the scanning time. Checking this option closes the Standard Scan Utility after the final scan when using the scanner with Photoshop Elements. Activate this function when individual images will be scanned and then processed or retouched in Photoshop Elements.
  • Page 35 Simply click the appropriate radio button. The default setting is “Speed.” This allows high-speed index scans. Only index thumbnails are created with this setting. The scanner will make separate scans when prescans are required. The autofocus function is disabled when scanning the index thumb- nails.
  • Page 36 Load the film holder or APS adaptor, and insert it in the scanner. See page 23 for details on how to place film or slides in the film holder. 35mm film holder FH-U1 • 35mm or APS film formats can be selected. The default setting is “35mm.”...
  • Page 37 The index scan is a low-resolution scan used to show thumbnail images of all the frames in the film holder. Index scans are particularly useful when selecting images from negatives. If an index scan is not needed, simply click on the thumbnail frame of the corresponding frame in the film holder to scan a specific image.
  • Page 38 • All the frames in the film holder will be scanned. • To cancel the index scan, click the cancel button in the small dialog box that appears during the scan, or... :press the escape key :press the command ( scan message appears.
  • Page 39 Flipping the image vertically creates a mirror image and does not simply rotate it 180°.
  • Page 40 • The standard save-as dialog box will appear. • File formats with Windows are Bitmap (BTM) or JPEG. File formats with Macintosh are Pict or JPEG. • The film holder does not have to be in the scanner to save the images.
  • Page 41 The index thumbnails can be saved as an index file. The index file can be loaded into the scanner so that the index scan does not need to be made again. All the frames in the film holder, including empty frames, must be scanned before the index thumbnails can be saved.
  • Page 42 To automatically size the prescan to the utility window size (see page 45). To manually focus the scanner (see page 50). To crop the final image (see page 43). To crop the image to the C, H, or P for- mats (see page 51).
  • Page 43 • The prescan window will be displayed automatically. • Double clicking on the index frame will activate the pres- can even if no thumbnail is displayed in the frame. • Clicking the prescan button when more than one frame is selected will make a prescan of all the selected frames.
  • Page 44 CROPPING THE IMAGE After clicking the auto-cropping button, the cropping frame can be adjusted with the mouse. Using the mouse, place the pointer over the cor- ners or sides of the cropping frame; the pointer will change to a double arrow (figure A). Simply click and drag the edge of the frame to adjust the crop- ping.
  • Page 45 • To return to the full prescan image, press the prescan button. • The prescanned image is automatically magnified or reduced to fit the utility window. To resize the utility window, see page 38. • To return the prescan to its original size, click the fit-to-window button again. •...
  • Page 46 Flipping the image vertically creates a mirror image and does not simply rotate it 180°.
  • Page 47 The prescan image can be enlarged or reduced to examine areas within the image. • The mouse pointer changes to the plus magnifying glass. • When the fit-to-window function is active, the zoom button cannot be used. • The clicked position becomes the centre for zooming.
  • Page 48 The AE lock function sets the scanner exposure based on the exposure of a specific prescan. This exposure can be applied to scans of different images. These two functions are especially useful with negative film.
  • Page 49 • The prescan and final scan will be made with the locked exposure settings until the AE lock is cancelled, or the scanner is reinitialized. The DiMAGE Scan Elite II’s autofocus system uses the CCD sensor to focus the scanner. When the autofocus-at-scan option is selected in the preferences box, the autofocus system uses the centre of the image to determine the focus.
  • Page 50 The scanner can be focused manually using the focus meter. • The mouse pointer will change to the manual- focus icon. • To cancel the function, click the manual-focus button again. • The focus meter window will appear. • The black bar indicates the change in focus. The white bar indicates the longest extent of the black bar and the point of sharpest focus.
  • Page 51 When APS film format is selected, the CHP button the CHP button cycles the cropping frame through the “C,” “H,” and “P” APS framing formats. When using the image-correction tools, only the cropped area is displayed. • The cropping area can be adjusted or moved using the mouse.
  • Page 52 To optimise the scan data, the image can be processed before it is scanned Click the correction tab in the main window to view the correction window. Graphic control over colour, contrast, and value (see page 53). Slider control over colour, contrast, and values (see page 62).
  • Page 54 The RGB colour model is an additive process that uses the primary colours of light: red, green, and blue. An additive colour system mixes the three colours to recreate the entire spectrum of light. If all three colours are mixed, white light is produced. Television sets and computer monitors use RGB to create images.
  • Page 55 • Each time the tone curve is clicked, a new node will be attached to the curve. The nodes can be moved by clicking and dragging. • The input and output levels of the node are dis- played as it is moved. The input level (horizontal axis) refers to the original scan, and the output level (vertical axis) refers to the correction applied to the image.
  • Page 56 Image processing is a highly specialised and difficult field that takes years of practice to master. This basic guide to using tone curves covers a few simple procedures to improve your pictures. For more about digital-image processing, consult your local book dealer about self-help guides on this subject.
  • Page 57 The contrast of an image can be changed. The light blue 45° line on the tone curve chart represents the original contrast of the scanned image. Making the angle of the tone curve greater than 45° will increase the contrast of the image. Making the angle less than 45° will reduce the contrast. With the RGB channel selected, click on the tone curve near the top and bottom to add two nodes.
  • Page 58 Advanced image corrections can be made by specifying a white, black, and gray point within the image. Locating an appropriate neutral area within the image is critical to correctly calibrate the soft- ware. When the dropper tool is selected, the RGB display is active and can be used to evaluate the image area.
  • Page 59 • The area used to calibrate the gray point must be neutral. The brightness level of the area is not important, but if the area has a definite colour, the image will not be colour bal- anced correctly. • Click the reset button to cancel all corrections. The white and black-point values are set to 255 and 0 for each RGB level.
  • Page 60 The histogram indicates the distribution of pixels with specific brightness and colour values inside the cropping frame. Using the histogram can maximise the output of the image data. Changes made with the histogram are also displayed on the tone curve. •...
  • Page 61 • The tone curve and histogram dialog box extends to the right to show the R, G, B channel his- tograms. • Click the histogram RGB display button again to close the RGB histograms. • The changes are reflected in the prescan image.
  • Page 62 This palette allows easy corrections to be made to brightness, contrast, and colour. • Dragging each slider to the right or inputting a positive number in the text box increases the brightness, con- trast, and colour. • To correct for an unnatural colour cast is simple. If the image is too: Red –...
  • Page 63 This palette adjusts the image in reference to the HSB colour model. These controls can be used to manipulate the colour image rather than producing a realistic representation. The HSB colour model defines colour based upon human perception rather than photographic processes.
  • Page 64 The variation dialog box allows an image to be corrected by comparing it to other slightly corrected images surrounding it. This is an easy method to correct images for individuals who are inexperi- enced in image processing or photofinishing. • The variation dialog box appears. •...
  • Page 65 Eight images with a slight correction to brightness and contrast are displayed around a thumbnail of the uncorrected prescan image. • The initial setting is 10. The step can be set between 1 and 20. • Checking the display-limit check box will indi- cate when any of the image values exceed 0 (black limit) or 255 (white limit) with the com- plementary colour.
  • Page 66 Selective-colour correction is an advanced technique to refine the colours in the image. The colour of each process colour, cyan, magenta, yellow, and black, can be used to adjust the six separate colour groups in the image: red, green, blue, cyan, magenta, and yellow. This type of correction is effective in changing a specific colour without influencing any of the other colours in the image.
  • Page 67 • limit the sharp subject pixels in the shadows. When the luminance level is greater than the shadow protection level, that pixel is recognised as a sharp pixel. When the undo button is clicked, the last image correction is can- celled.
  • Page 68 All corrections applied to an image can be saved as a correction Job. The correction Job can be loaded into the utility at any time, and the correction settings can be applied to different images. • The registration dialog box appears. •...
  • Page 69 Digital ICE is an collection of powerful image-processing tools: ICE, ROC, and GEM. To make use of these image-processing functions, the following system requirements must be met: Minimum system requirements Memory Pentium 166MHz or later 128MB Minimum system requirements Memory Pentium 166MHz or later 128MB Minimum system requirements...
  • Page 70 Digital ICE (Image Correction Enhancement) eliminates surface defects (dust, scratches, finger- prints, mould, etc.) from the film image during scanning. • Digital ICE processing is applied to the prescan and final scan. • Digital ICE cannot be used with Kodak Kodachrome film. •...
  • Page 71 The Digital ROC (Reconstruction of Colour) can restore the faded colour of old film. • When Digital ROC is used, the prescan also makes the final scan. When the final scan is made, the image data is simply processed and saved. While the final scan is relatively fast, the prescans require more time.
  • Page 72 Digital GEM (Grain Equalisation and Management) reduces the effect of grain in colour film. Grain is a sandy texture that can sometimes be seen smooth uniform areas of the image, such as the sky. Grain is more pronounced in fast film. Digital GEM cannot be used with traditional black and white films.
  • Page 73 • Choose a smooth uniform area to evaluate. Skin is a good subject. • Using the mouse, place the pointer over the corners or sides of the GEM sample area frame; the pointer will change to a double arrow. Simply click and drag the edge of the frame to adjust the area.
  • Page 74 Before making the final scan, the input and output parameters must be specified. While it is possible to input the scan settings yourself, DiMAGE Scan Elite II gives you an easier choice – the Job func- tion, which automatically loads the scan settings based on the final use of the image.
  • Page 75 The Standard Scan Utility contains approximately 110 preinstalled Job files to cover a wide range of image use. • The Job-selection dialog box will appear. • The scan settings of the selected Job file are displayed on the right side of the selection window. •...
  • Page 76 USING JOB FILES User-created scan settings (see page 74). For digital colour copiers and colour laser printers. Uses an output resolution of 600 dpi with four paper sizes from A4 Quarter through Letter Eighth. For printers that use photosensitive/photographic material. Uses an output resolution of 400 dpi with five paper-sizes from A5 full through Postcard 4x6.
  • Page 77 Values can be selected from the drop-down list or be entered into the box directly. The resolutions on the list are 2820, 1410, 940, 705, 470, 352, and 282 dpi. The default setting is 705 dpi. Values can be selected from the drop-down list or be entered into the box directly. The resolutions on the list are 2400, 1440, 1200, 800, 720, 600, 400, 360, 350, 300, 240, 200, 180, 150, 96, 72, and 36 dpi.
  • Page 78 INPUTTING THE SCAN SETTING BY YOURSELF The resolution can be expressed in dpi (dots per inch). This refers to how many pixels are placed along one linear inch. The resolution of 350 dpi, which is commonly used in the commercial print- ing field, means that an area of one square inch would use 122,500 pixels.
  • Page 79 • This example is based on a printer with a 300 dpi output. • Click on the frame of the cropping area to resize the box. The input res- olution will adjust according to the cropping area. Click and drag the centre of the area to move the frame.
  • Page 80 Frequently used scan settings can be saved. • The Job-registry dialog box appears. • The Job file name can contain up to 24 characters. A Job file can be deleted. : Delete key : Command ( • Once deleted, the Job file cannot be recovered. ) key + D.
  • Page 81 • The final scan will start. • When the scanning is complete, the image is automatically loaded into Photoshop Elements. • If the close-utility-after-scanning option is active in the preference box, the utility will automat- ically shut down. • File types depend on the operating system: Windows – BMP, JPEG, and TIFF: Macintosh –...
  • Page 82 FINAL SCAN AND SAVING – the bitmap image file type is used in Windows. This file type can be opened in the print software installed in the Windows operating system. – the image file can be compressed to reduce the file size. The compression ratio can be selected when saving.
  • Page 83 This function automates the scanning procedure. • The film format and type should be entered. See details on page 36. • The frame(s) to be selected can be checked by check- ing the radio box. • The frame number refers to the frame number of the holder.
  • Page 84 CUSTOM WIZARD • See page 74 for details on scan settings. • When the window opens, the last scan settings made will be displayed. • When auto-cropping function is active, blank space around the image area will be automatically eliminated. Inside-edge cropping crops the image just inside the image area.
  • Page 85 To turn off the scanner at the end of a scanning session, following steps 1 through 4. To restart the computer, following steps 1 through 3. • The scanner automatically ejects the 35mm film or slide mount holder to the initial inserting position.
  • Page 86 Save the data on the computer’s hard disk before transferring the data to the storage device. • The unused port should always be covered with its protective cap. When the scanner is not in use for extended periods, unplug the cable and reinsert the port cap.
  • Page 87 • The unplug-or-eject-hardware dialog box will appear. • A confirmation screen will appear. • If the scanner is disconnected or turned off without fol- lowing the above procedure, a message will appear to indicate that the unsafe removal of device may cause your computer to crash and lose valuable data.
  • Page 88 Colour matching is activated in the preferences box (see page 34). Colour matching increases the scanning time. The DiMAGE Scan Elite II colour matching function matches the scanned colour with specified colour spaces. The colour matching system can use the monitors ICC profile to display the image...
  • Page 89 The choice of output colour space is dependent on how the image will be reproduced. For most home use where the image is displayed on a monitor or printed with a small printer, sRGB colour space is adequate. Other colour spaces have been included for professional and technical applica- tions.
  • Page 90 • The operating systems file-open dialog box will appear. • The ICC profiles can be found at the following locations: 98/98SE/Me : Select “Windows” folder -> “System” folder -> “Colour” folder. 2000/XP : “System folder” ->”ColorSync Profile folder” • This will apply all the settings in the dialog box. Confirm each settings before clicking “OK”. The following are recommendations for output colour space and monitor ICC-profile settings with image-processing applications.

  • Page 91: Installing The Utility Software

    Scanner colour profiles When installing the utility software, the scanner profiles listed below will be automatically installed in the colour folder in Windows, and in the ColorSync profile folder in Macintosh. These profiles have been included for advanced colour matching with profile to profile conversions in sophisti- cated image-processing or DTP applications.
  • Page 92 When installing the utility software, the following files and folders are installed. Program Files DS_Elite2 Windows Twain.dll Twain32.dll Twunk_16.exe Twunk_32.exe System twain_32 DS Elite2 DS Elite2 Utility DS Elite2 Easy DS Elite2 Plug-in Readme System folder Preferences folder Extensions folder ColorSync Profile folder *1 The Job files are included in the Job-category folder in the Job folder.

  • Page 93: Macintosh

    • To save new Job files, see page 80. • Do not handle the Job file using Explorer in Windows or the Finder in Macintosh. Category Job Name Default Default ColorLaserPrinter A4Quarter A4Eighth LetterQuarter LetterEighth Photosensitive A5Full LetterHalf LetterQuarter PostCard4x6 Ink-Jet &...

  • Page 94: Job File List

    JOB FILE LIST Category Job Name Default Default ColorLaserPrinter A4Eighth LetterEighth Photosensitive A5Full LetterQuarter PostCard4x6 Ink-Jet & A4Half Dye-SubPrinter A4Quarter A4Eighth LetterHalf LetterQuarter LetterEighth Photo4x6 Photo3x5 WebPage 1240x836 1112x750 984x663 792x534 760x512 600x404 320x240 PhotoCD PhotoCD1024x1536 PhotoCD512x768 Screen 1920x1200 1600x1200 1280x1024 1280x960 1152x870...

  • Page 95: Macintosh

    Moving film, fixed sensor, single-pass scan Negative and positive, colour and monochrome Mounted and unmounted 35mm film. Mounted APS film. APS cassette with optional adaptor. 35mm – 24.21 x 36.32mm (2688 x 4032 pixels) APS – 17.29 x 29.98mm(1920 x 3328 pixels) 2820 dpi 3-line colour CCD (2700 pixels/line) 16 bit...
  • Page 96 This section covers minor problems with scanner operation. For major problems or damage, or if a problem continues to reoccur frequently, contact your dealer or a Minolta Service Facility. When starting up the utility software, Error=4 – could-not-confirm-scanner- connection message appears.
  • Page 97 • The version number of the utility software can be displayed by placing the mouse pointer on the status bar in the main window. Please take the time to fill in the warranty and product registration card. Technical support, scanner software upgrades, and product information is available when the product is registered.

  • Page 98: Connecting The Scanner Cable

    Digital-ICE button ...33, 70 Digital ROC ...28, 69, 71 Digital-ROC button ...33, 71 Disconnecting the cable ...21, 86 Disconnecting with the computer and scanner on ...86 Display-limit check box ...64 Document (Job category)...76 E Easy Scan Utility ...22 Eject button ...19, 29, 33 Examples of tone curve corrections ...56...

  • Page 99: Usb Cable

    Selective-colour button ...52, 66 Setting monitor ICC profiles ...90 Setting the film format and film type...36 Setting the output colour space...88 Setting scanner preferences ...33 Slide mount holder ...8, 24 Smooth curve button ...53, 55 SMPTE-C ...89 Snapshot button ...52, 67 Specifications ...95...
