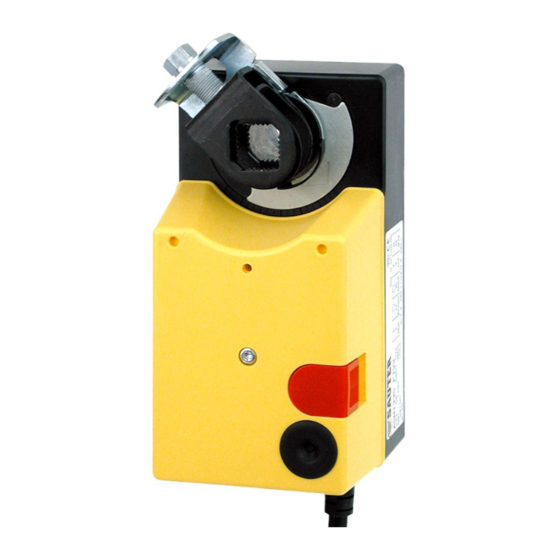

ASM 124: Actuators

How energy efficiency is improved

Torque related cut-off for efficient energy use.

Areas of application

For controllers with a switching output (2-point or 3-point control). For actuation of air, shut-off and
restrictor dampers and louvres.

Features

•
18 Nm torque and holding torque
•
230 V, 50/60 Hz or 24 V, 50/60 Hz
•
120 sec. running time for 90°
•
Protection class IP54
•
Operating noise < 30 db(A)
•
Self-centring axle adaptor
•
Gearbox that can be disengaged for positioning the damper and manual adjustment
•
Synchronous motor with control and electronic cut-off
•
Maintenance-free

Technical description

•
Two-part housing made of self-extinguishing plastic, lower section black and upper section
yellow
•
Suitable for all installation positions
•
Connecting cable 1.2 m long, 3x 0.75 mm²
•
Direction of rotation can be changed by reversing connections
3)
Type Torque
ASM 124 F120
ASM 124 F122
Power supply 230 V~
24 V~
Power consumption
ASM 124 F120
ASM 124 F122
Angle of rotation
Damper spindle
Damper spindle (hardness)
Permissible ambient temp.
Permissible ambient humidity
Accessories
0361977 001 Assembly kit for MH32 / MH42 control valve; MV 505477
0370059 000* Clamp-on lever for shafts of d=8-18 mm
0370990 001* Auxiliary change-over contacts
0370990 002* Auxiliary change-over contacts
001* Potentiometer, 2000 Ω, 1 W, MV 505446
0370992
002* Potentiometer, 130 Ω, 1 W, MV 505446
0370992
0372200 001 Fixing bracket; MV 505676
0372201 001 Spindle extension with coupling; MV 505676
0372202 001 Lever and tape; MV 505676
0372203 001 Connecting piece for contact unit; 0370990; MV 505676
0372204 001 Spindle for clamp-on lever 0370059; MV 505676
*)
Dimension drawing or wiring diagram are available under the same number
1)
Maximum angle of rotation: 95° (without stops)
2)
Fully variable from 0...90°; max. loading 5 (2) A, 24...230V
3)
Version with halogen-free cable available on request
4)
See fitting instructions
4)
Holding
torque
Nm Nm
18 18
18 18
± 15%, 50...60 Hz
± 20%, 50...60 Hz
2,9 W 5,6 VA
2,3 W 2,4 VA
1)
90°
Ø 10...20 mm
10...16 mm
max. 300 HV
–20...55 °C
< 85 %rh
without condensation
2)
, single, MV 505446
2)
, double, MV 505446
1)
Running time Power
for 90°
s
120 230 V~
120 24 V~
4)
Degree of protection
Protection class 24 V
230 V
Noise while running
Response time
Wiring diagram
2-point 24 V
2-point 230 V
3-Punkt
Dimension drawing
Fitting instructions
Declaration on materials
Sauter Components
Weight
kg
1,2
1,2
IP 54 as per EN 60529
III as per IEC 60730
II as per IEC 60730
< 30 dB(A)
200 ms
A10210
A10402
A09713
M05671
MV 505792
MD 51.025
51.025/1
M
Y07551
7151025003 04
