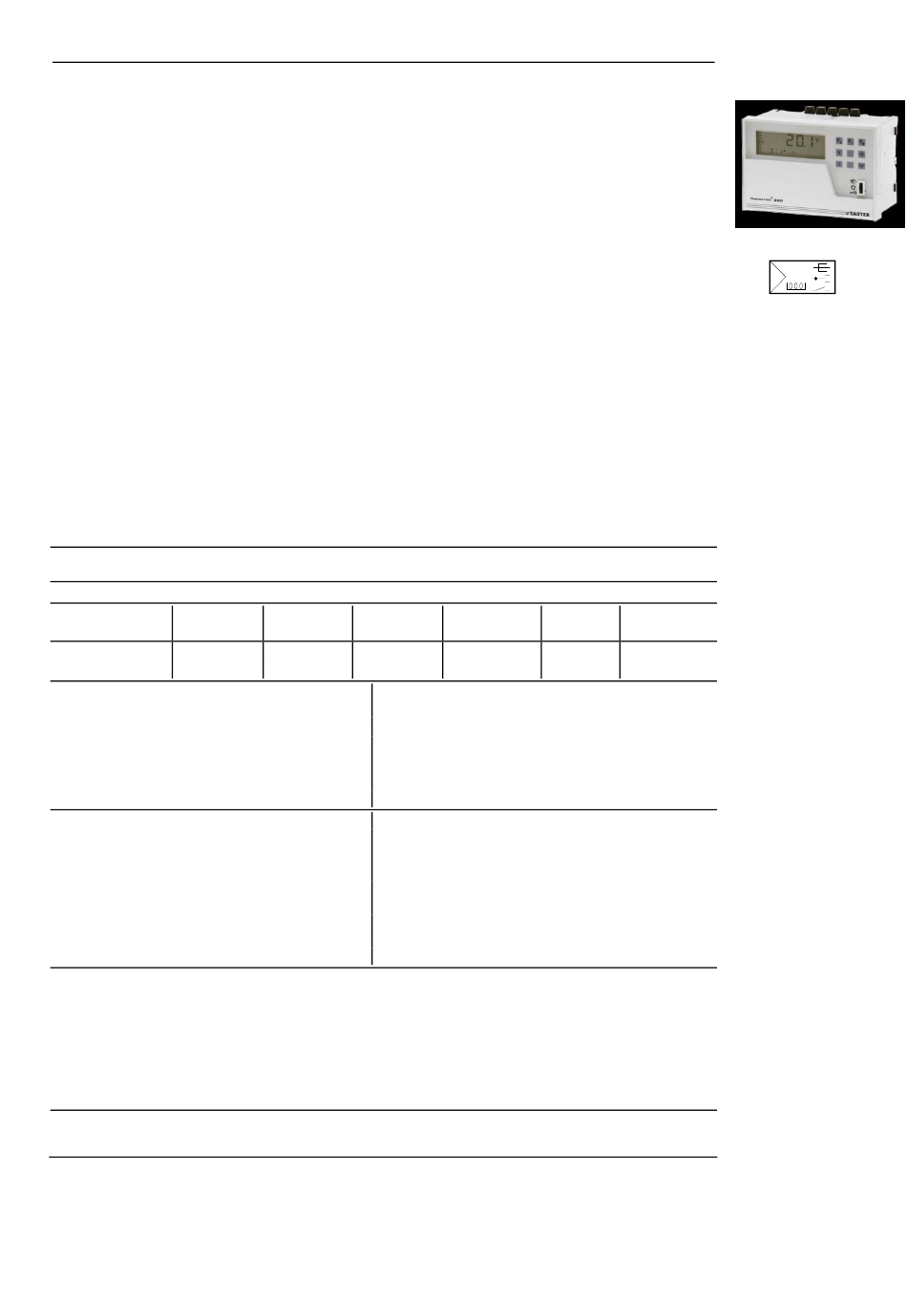

flexotron 300
RDT 300: Electronic controller for ventilation and air-conditioning
How energy efficiency is improved
Top quality algorithm for generation of c/o signal for changeover between heating and cooling mode,
and therefore ensuring energy saving operation of the system.
Areas of application
Weather-compensated flow temperature control in 2- and 4-pipe systems for heating/cooling. Activa-
tion of intelligent unitary controllers.
Features
•
Clearly-laid-out operating unit with large LCD display and generously proportioned keypad
•
6 controller models
•
Plug-in memory for copying and documenting system parameters
•
Fast commissioning thanks to preset parameters
•
Room user panel with display available as accessory
•
Weekly and annual switching program
•
Automatic summertime/wintertime changeover
•
Sealable sliding switch for selection of operating mode
Technical description
•
Housing 144 x 96 mm made of flame-retardant, pure white thermoplastic (RAL 9010)
•
4 universal inputs and 2 analogue inputs
•
2 independent PI controllers
•
3 continuous outputs and 6 relay outputs
•
Reset, sequencing and limiting functions, as well as alarm and time functions
•
Suitable for fitting on walls, in panels and on top-hat rails
•
Electrical connection in base with screw terminals for wires up to 2.5 mm²
1)
Type Setting range
RDT 300 F001 –30...150
Ranges (depend- Temperature
ing on transmitter) °C or K
Setpoint X s –30...150 °C
P-band 0.1...180 K
3)
4 universal inputs
Temperature Ni1000 (DIN 43760)
Voltage
0(2)...10 V; R
0...1 V, R
Current
0(4)...20 mA, R
Potentiometer
2 kΩ (min.1 kΩ)
Power supply 230 V~ +10/–15%; 50...60 Hz
Power consumption 5 VA
P-band X 0,1....180 K
p
Integral action time T 0....9990 s
n
Cycle time 1 s
Permissible ambient temp. 0...45 °C
Ambient humidity 5...80 %rh
non-condensing
Accessories
Remote-control unit see Section 46
RDB 300
Additional operating instructions (7000927 and 7000928)
0313516 . . .
German 001, French 002, English 003, Italian 004.
Cover plate for the whole front; of transparent thermoplastic; sealable
0369746 001
0226187 002* Plug-in dummy for memory slot
0226187 003* Plug-in memory for flexotron
*)
Dimension drawing or wiring diagram are available under the same number
1) Since several languages are available, please order the operating instructions as an accessory.
2) Can also be used as a binary input (gold contacts).
3) Protected against short-circuiting and excess voltage up to 24 V a.c. Current input for max 70 mA.
Control modes
°C
P, PI
Percentage Rel. humidity
% %rh
0...100 0...100
0.1...200 0.1...100
2 analogue inputs
2× temperature
= 100 kΩ
i
Outputs
= 500 kΩ
i
= 50 Ω
3 continuous
i
4 relays
2 relays
Degree of protection
Protection class F001
Wiring diagram
Dimension drawing
Fitting instructions
Operating instructions
For end users
Commissioning
Power supply Weight
230 V~ 0,67
Abs. humidity Enthalpy
g/kg kJ/kg
0.0...20 0...100
0.1...100 0.1...100
2) 3) Ni1000 (DIN 43760)
3)
0(2)...10 V, load > 5 kΩ
5(2) A, 250 V~
5(2) A, 24/250 V~
IP 30 (EN 60529)
230V II (IEC 60730)
A09432
M368900
MV 505711
7000927 (Part 1)
7000928 (Part 2)
Sauter Components
kg
No unit of
measurement
–4999...4999
10...4999
46.102/1
