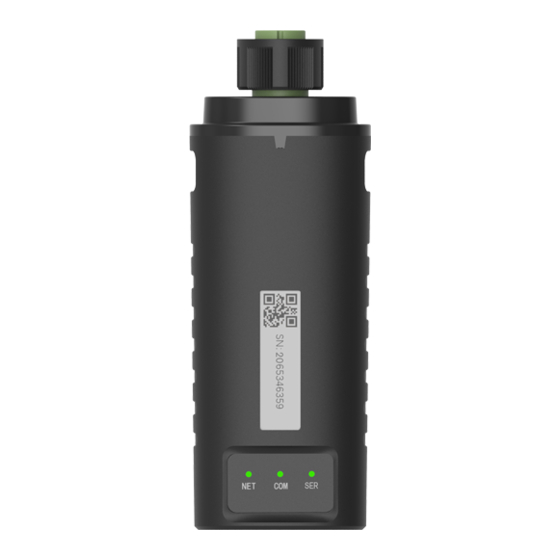

Quick Guide for Stick Logger (4G)
Product Model: LS4G-5
Please read this manual carefully before using products and keep it in the
place where O&M providers can easily find.
Due to product upgrade and other factors,the content of this manual might
change from time to time.Please take actual product as standard and get
latest manual from www.solarmanpv.com or sales. Unless otherwise agreed
herein,this manual will only be used as guidance.Any statement,information
or suggestion in this manual will not take any form of responsibility.
Without written permission,any content of this document(partly or entirely)
cannot be extracted, copied or transmitted in any form by any company or
individual.
Warning:
1.Please power off during the installation.
Monitoring Platform
If you are an end-user, it is recommended to use SOLARMAN Smart. Scan the QR
code below to download the APP or go to Android Market/App Store and search
"SOLARMAN Smart"to download.
Web entrance: https;//home.solarmanpv.com
SOLARMAN Smart
If you are a distributor, manufacturer or O&M provider, it is recommended to use
SOLARMAN Business. Scan the QR code below to download the APP or go to Android
Market/App Store and search "SOLARMAN Business"to download.
Web entrance: https;//pro.solarmanpv.com
SOLARMAN Business
1.Logger Installation
Interface 1
Fix inverter and logger with the screws. Please refer to the
installation steps for DB9 interface.
Fix logger to inverter com interface according the diagram.
Interface 2
Fix inverter and logger with aeronautical head.
Install the logger according to guide slot.
Tighten the cap in a clockwise direction.
Interface 3
Fix inverter and logger with USB head.
Install the logger according to guide slot.
Tighten the cap in a clockwise direction.
