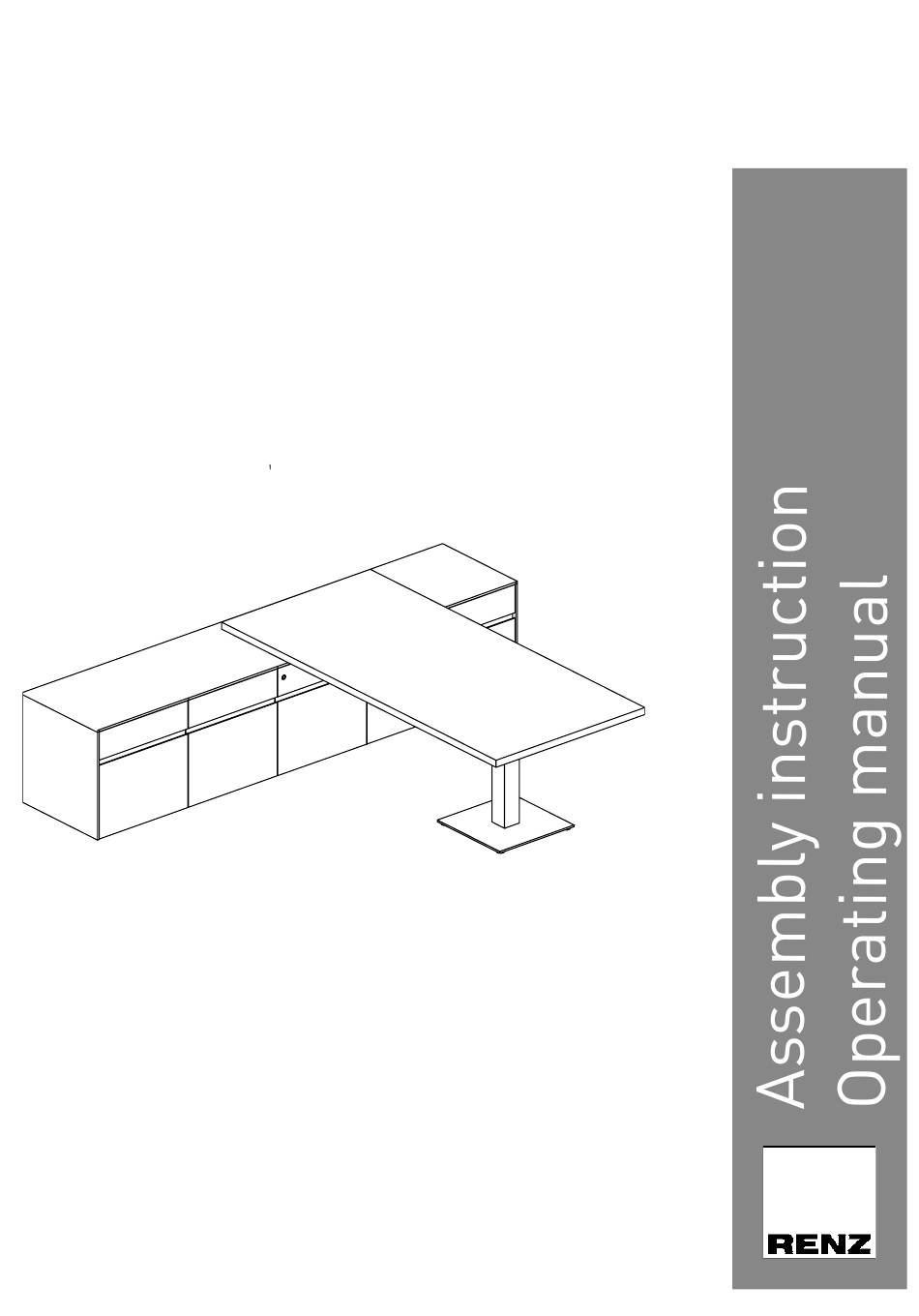

- Page 1 Sono...
-
Page 2: Table Of Contents
Sono Electrical, height-adjustable office desks This manual is valid for the following models: = Table top format 2200 x 1000mm = Table top format 2400 x 1000mm = Table top format K22/K23 2200/2400 x 1000mm + container K39 The enclosed assembly instruction and the operating instructions for the control unit and the manual switch from Vibradorm are binding properties of this operating manual. -
Page 3: Safety Instructions, Intended Use
Sono Safety instructions, intended use Safety instructions, intended use The height adjustability of the undercarriage serves for the electrically operated adjustment of an individual working height for the optionally sitting or standing user of the table by the hand switch,considering the following notes. - Page 4 In case of damage of the electric cable, the device mustn’t be operated any more. The damaged cable must be replaced by a new, special electric cable delivered by Wilhelm Renz GmbH + Co.KG. Install the new cable in the reverse order. The strain relief must be reattached.
-
Page 5: Lifetime Of The Lifting Columns
ATTENTION: By unintended use the manufacturers liability and the general type approval will lapse. Modifications from the factory-made delivery status are not permitted and result into extinction of the liability of Wilhem Renz GmbH + Co.KG. The desk must not be used in humid or corrosive areas or areas exposed to explosion hazards. -
Page 6: Assembly Instruction
Sono Assembly instruction Assembly Please read the safety instructions carefully before assembly. Set up, align and connect lifting column container K39 and all other containers. - Also include the gliders next to the column. - Place and fasten the Toolboard covering panel (M4x25 mm). - Fasten the upper steel plate of the Toolboard column (4x M6x20 mm flat head screw). -
Page 7: Function And Operation
Sono Function and operation, ergonomics Function and operation, ergonomics The height adjustable desk is is adjustable between 740 and 1140 mm by the hand control. The hand control is at the underside of the tabletop, on the right from the seat. The adjusted table height will be shown on the display. -
Page 8: Manufacturer's Manual Vibradorm For Manual Switch
Appendix Manufacturer‘s manual Vibradorm for hand control... - Page 9 Appendix Manufacturer‘s manual Vibradorm for hand control...
-
Page 10: Manufacturer's Manual Vibradorm For Control Unit
Appendix Manufacturer‘s manual Vibradorm for control... -
Page 11: List Of Error Codes, Display
Appendix Trouble Shooting List... -
Page 12: Ec Declaration Of Conformity
We hereby declare that the following products in the versions marketed by us comply with the following directives. This declaration shall lose its validity in the event of modification or improper use. Manufacturer: Wilhelm Renz GmbH + Co. KG Hanns-Klemm-Straße 35 71034 Böblingen...
