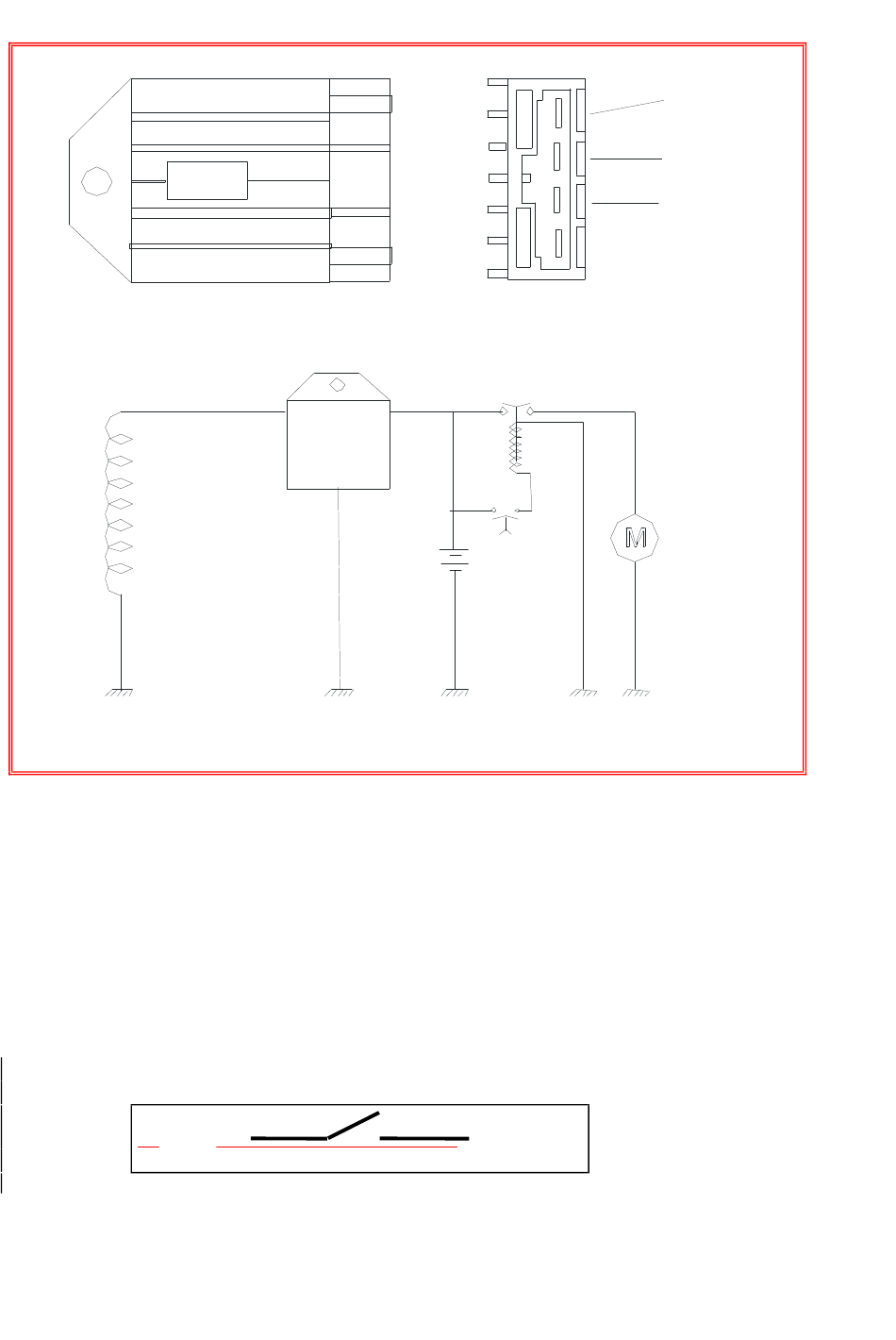

Wiring Diagram - Compact Radial Engines MZ201 Instruction And Maintenance Manual

WHITE/YELLOW
NO T USED
Ensure the battery cables are securely soldered to the terminals.
Bad connections will lead to over-heating and irreversible damage to the battery. If you wish to be able to
disconnect the battery, cable connectors of the right size may be used. Remember that the battery generates
250 A.
When connecting the battery and start-up motor, always ensure the cross-section of the cables is adequate; if
the cables used are too small, this could lead to a drop in voltage which will make it more difficult to start
up the motor and cause the cables to over-heat and melt.
"Start-Stop" Circuit (the motor functions with the switch on)
BLACK
WHITE/RED
REGOLATOR
EARTH
OUTLET
12V
RELAY
IGNITION
SWITCH
BA TTERY
12V 2.5A
WARNING
BLACK
BATTERY
WHITE/RED
EARTH
ST ARTER
MOTOR
18
