- Page 1 Operator Manual POWER OX 240B Original Operator’s Manual 12-10007 Rev.00...
- Page 3 To the Owner Contact Information and Product Identification If contacting Tilmor for information about servicing your product please provide the product and serial numbers. Please complete the following information for future reference. See the pictures below to find the location of the identification numbers.
-
Page 4: Table Of Contents
Preventing Accidents ..........................11 Keep Riders Off ............................ 11 Truck or Trailer Transport ........................11 Maintenance ............................11 Fuel Safety ............................12 Power Ox 240B Tractor Safety Procedures ..................13 OPERATIONAL CONTROLS PAGE 14 Standard Operational Controls ......................14 GENERAL OPERATION PAGE 15 Handlebar Adjustment ..........................15... - Page 5 TABLE OF CONTENTS Track Width Dimensions ........................27 Overall Dimensions ..........................28 WARRANTY PAGE 29 Return Policy & Procedure ........................29 Warranty ...............................29 Non-serialized Product - 1 year ......................29 Serialized Product - 2 year or 1000 hours ....................29 Warranty Policy ............................29 Warranty Procedure ..........................29...
-
Page 6: Introduction

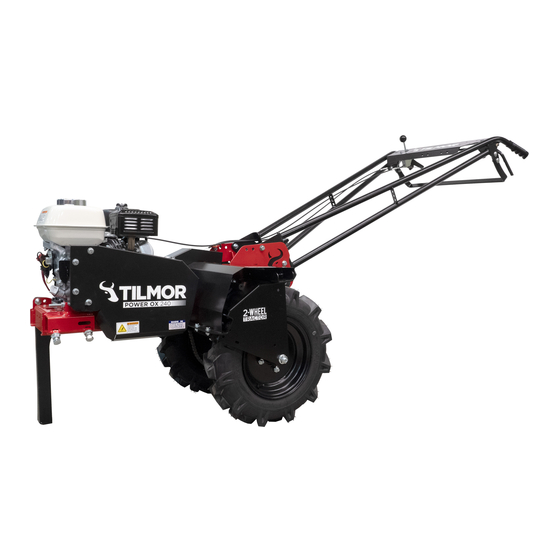

Product Description The Power Ox 240B Two Wheel Tractor Is designed for planting, cultivation, and light hilling. The Power Ox 240B is powered by a Honda GX120 engine. It is a well balanced machine with 13” + of ground clearance. -
Page 7: Using Your Manual
INTRODUCTION Using Your Manual Throughout this manual, you will encounter special messages and symbols that identify potential safety concerns to help you as well as others avoid personal injury or damage to the equipment. Symbol Definitions Attention This symbol identifies potential health and safety hazards. -
Page 8: Safety
Remove all grease, dirt, and debris from safety decals and instructional labels. If any decals are faded, illegible, or missing, visit www.tilmor.com or call 1-844-255-5864 for replacements. When replace- ment or new components are installed, be sure that current safety decals are affixed to the replacement or new part. - Page 9 SAFETY General Safety Procedures for Tilmor Tractors, Attachments, & Accessories WARNING WARNING Read and understand Moving parts can operator’s manual before cause injury. using this machine. Keep hands, feet, Failure to follow operating and objects clear instructions could result in injury or death.
-
Page 10: Training Required
SAFETY General Safety Procedures for Tilmor Tractors, Attachments, & Accessories Training Required • The owner of this machine is solely responsible for properly training the operators. • The owner/operator is solely responsible for the operation of this machine and prevention of accidents or injuries occurring to him/herself, other people, or property. -
Page 11: Preventing Accidents
When new components are installed, be sure that current safety decals are affixed to the replacement components. • If any component requires replacement use only original Tilmor replacement parts. • Keep all bolts, nuts screws and other fasteners properly tightened. -
Page 12: Fuel Safety
SAFETY General Safety Procedures for Tilmor Tractors, Attachments, & Accessories Maintenance (continued) • Never perform maintenance on the power unit and/or implement if someone is in the operator’s station. • To reduce the hazard of fire, keep the engine and muffler areas free of debris. -
Page 13: Power Ox 240B Tractor Safety Procedures
Clear the area of all obstacles, hazards, and personnel before operating the Power Ox 240B. • Do not modify the Power Ox 240B in any way. Modifying the Power Ox 240B could cause injury or damage to equipment. Any modification made to the Power Ox 240B will void any warranty. -
Page 14: Operational Controls
OPERATIONAL CONTROLS Standard Operational Controls Use the following images to help identify the loca- tions of operational controls. The letter next to each control can be referenced to the list that follows these images. Drive Control Handles Throttle Control Choke Fuel Shutoff Starter Cord Handle Stop Switch... -
Page 15: General Operation
GENERAL OPERATION Handlebar Adjustment Track Width Adjustment The Power Ox 240B has a height adjustable handle- The wheels can be adjusted to three different loca- bar to increase operator control and comfort. The tions (Narrow, Mid, Wide), in four inch increments to following steps describe how to adjust the handle- accommodate different row spacing. - Page 16 GENERAL OPERATION 4. Remove the bearing adjustment mechanisms 8. Remove the fender and wheel assembly from (C). from both outer flange bearings. the axle. 9. Adjust the snap rings, sprocket, and woodruff key (F) to the desired location. NOTE: When adjusting the right side of the machine to the narrow position the inner snap ring (G) will not be used.
-
Page 17: Receiver Hitch Use
3. In both configurations the hitch receiver is secured in position using a 5/8” hitch pin (C) The Power Ox 240B has an adjustable receiver placed through the top of the frame secured in hitch to easily connect and disconnect tools. The... -
Page 18: Pre-Operations Inspection
Some malfunctions can result in serious injury or death. Before operating the Power Ox 240B for the first Always complete the pre-operation inspection time, ensure that the engine has had oil added before operating and correct any problems. -
Page 19: Starting The Engine
Starting the Engine 7. Turn the engine switch (D) to the ON position. WARNING Do not operate the Power Ox 240B in an enclosed area. Exhaust gas contains carbon monoxide gas that can build up to dangerous levels in enclosed areas. Breathing carbon monoxide can cause unconsciousness or death. -
Page 20: Storage
GENERAL OPERATION Storage Preparing the Power Ox for Storage CAUTION Do not use high pressure water to clean the trac- tor. High pressure water can force its way into bearings and other components causing damage to equipment. Attention Fuel can become stale when stored over 30 days. Stale fuel causes acid and gum deposits to form in the fuel system or on essential carburetor parts. -
Page 21: Service
Attention If any component requires replacement, use only original Tilmor replacement parts. Proper and timely service of the Power Ox 240B is critical to keep the tractor in safe and reliable oper- ating condition. Engine Servicing All engine servicing is to be completed in accor- dance with the Honda GX120 owner’s manual. -
Page 22: Engine Drive Belt Replacement
1. Remove the belt and pulley cover by loosening CAUTION three 5/16” bolts (A). Ensure that the Power Ox 240B is securely sup- ported. Failure to properly support the unit could result in damage to equipment or injury. Support the unit with jack stands, ensure the left rear wheel is off of the ground. -
Page 23: Chain Tension Adjustment
The chain tension is adjusted by adjusting the drive sprocket. axle. CAUTION Ensure that the Power Ox 240B is securely sup- ported. Failure to properly support the unit could result in damage to equipment or injury. Lift the rear of the power ox so that the tires are off of the ground. - Page 24 SERVICE 5. On the left side tighten the upper 3/8” locking 10. Tighten the flange bearing mounting hardware flange nut (D) against the frame to adjust the (G). axle and tighten the chain. Check the differential function. Rotate one wheel by while holding the other wheel in place.
-
Page 25: Drive Control Cable Adjustment
SERVICE Drive Control Cable Adjustment 4. Adjust the spring adjustment plate (C) to increase or decrease the cable tension. Over time the drive control cable may need to be 5. Tighten the 5/16” locking flange nut (B) when the adjusted to increase the tension on the drive belt. The cable is at the desired tension. -
Page 26: Specifications
SPECIFICATIONS SPECIFICATIONS Engine Manufacturer ....... . Honda Model Number....... . GX 120 Type . -
Page 27: Track Width Dimensions
SPECIFICATIONS Track Width Dimensions NARROW 16-1/4” 12-1/4” 20-1/4” 16-1/4” 24-1/4” 20-1/4” WIDE 20-1/4” 24-1/4” 28-1/4” Specifications - 27... -
Page 28: Overall Dimensions
SPECIFICATIONS SPECIFICATIONS Overall Dimensions 73” 50” 13.5” Specifications - 28... -
Page 29: Warranty
(whichever comes first). Warranties on serialized Tilmor products are transferable. Warranty Policy Tilmor LLC may opt to repair, replace, or issue a refund for Tilmor products that are defective or have sus- tained damage in shipping. The following actions and damages are excluded from warranty: •...
