Summary of Contents for TILMOR Power Ox 220A

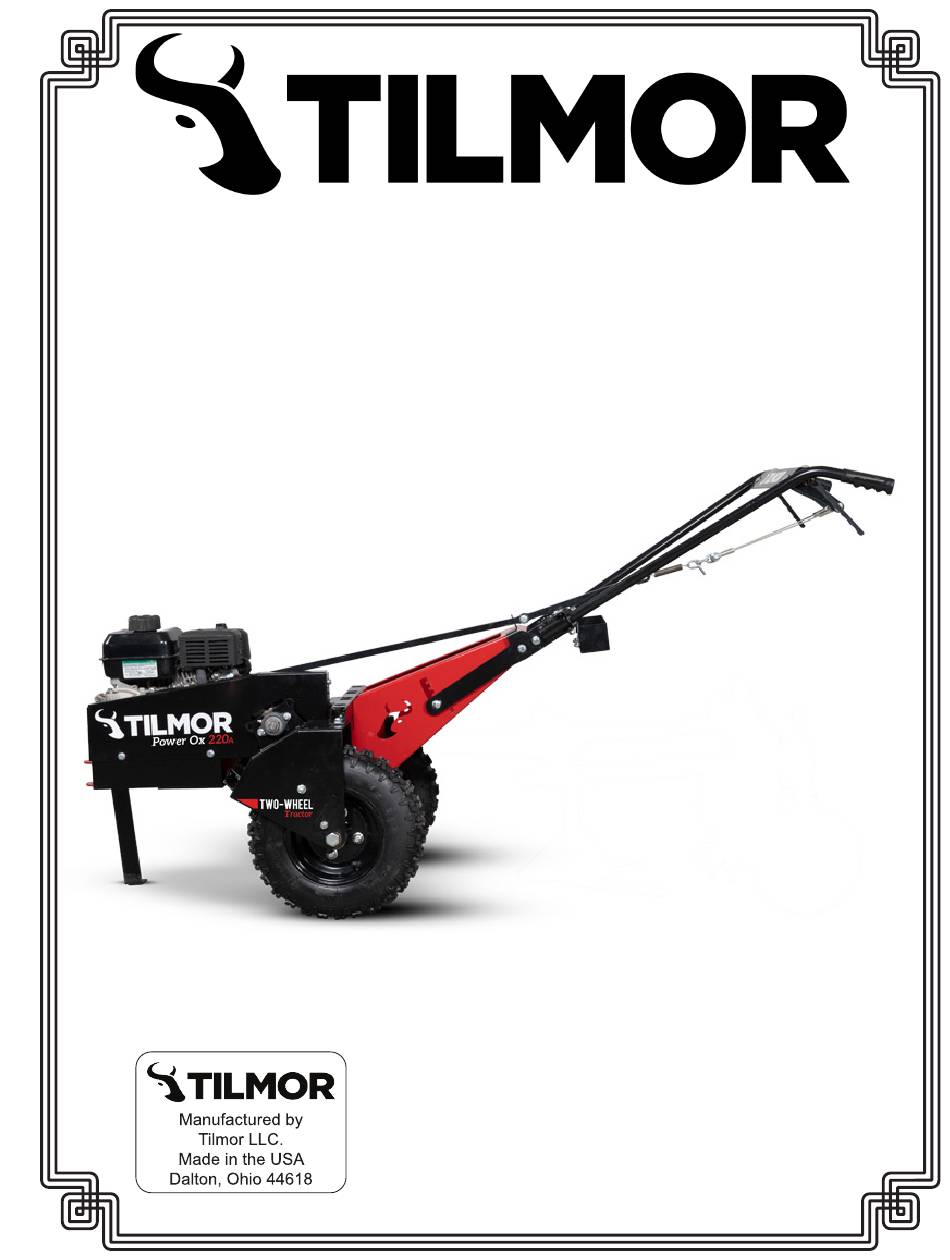

- Page 1 Operators Manual Power Ox 220A Original Operator’s Manual 12-10003 Rev.02...
-
Page 2: Table Of Contents
Operation Safety ............................8 Preventing Accidents ..........................9 Keep Riders Off ............................9 Truck or Trailer Transport ........................9 Maintenance ............................9 Fuel Safety ............................10 Power Ox 220A Tractor Safety Procedures ..................11 OPERATIONAL CONTROLS PAGE 12 Standard Operational Controls ......................12 GENERAL OPERATION PAGE 13 Handlebar Adjustment ..........................13... - Page 3 Dimensions Narrow Tire Configuration ....................26 Features ...............................27 WARRANTY PAGE 28 Return Policy & Procedure ........................28 Warranty ...............................28 Non-serialized Product - 1 Year ......................28 Serialized Product - 2 Year or 1000 hours ...................28 Tilmor Warranty Policy .........................28 Tilmor Warranty Procedure ........................28...
-
Page 4: Introduction

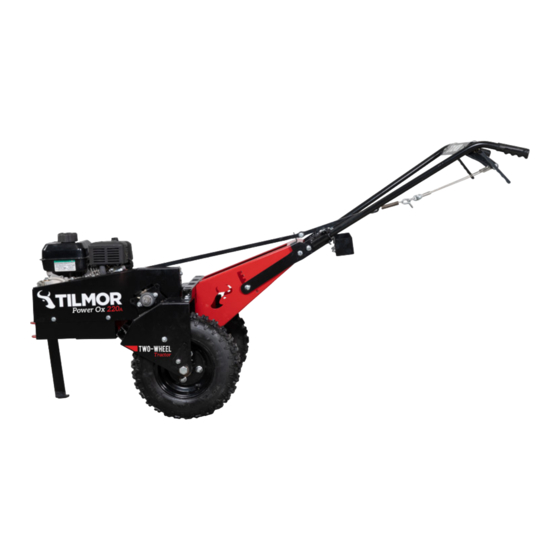

Product Description The Power Ox 220A Two Wheel Tractor Is designed for planting, cultivation, and light hilling. The Power Ox 220A is powered by a Briggs and Stratton 550 series engine with 6:1 gear reduction. It is a well balanced machine with 11”... -
Page 5: Using Your Manual
Manual Glossary Power Unit A Tilmor tractor or other Tilmor engine powered device that may be operated by itself or with an attachment or accessory. Implement A piece of Tilmor equipment that requires a Power Unit for operation. -
Page 6: Safety
Remove all grease, dirt, and debris from safety decals and instructional labels. If any decals are faded, illegible, or missing, visit www.tilmor.com or call 1-844-255-5864 for replacements. When replace- ment or new components are installed, be sure that current safety decals are affixed to the replacement or new part. - Page 7 SAFETY General Safety Procedures for Tilmor Tractors, Attachments, & Accessories Decal Description Part Number Quantity Warning, Moving Parts 00-0216 Warning - Read Owners Manual 00-0217 Warning - General Safety 00-0220 Warning - Pinch Point 00-0218 Danger Shield Missing 00-0492 Safety - 7...
-
Page 8: Training Required
SAFETY General Safety Procedures for Tilmor Tractors, Attachments, & Accessories Training Required • The owner of this machine is solely responsible for properly training the operators. • The owner/operator is solely responsible for the operation of this machine and prevention of accidents or injuries occurring to him/herself, other people, or property. -
Page 9: Preventing Accidents
When new components are installed, be sure that current safety decals are affixed to the replacement components. • If any component requires replacement use only original Tilmor replacement parts. • Keep all bolts, nuts screws and other fasteners properly tightened. -
Page 10: Fuel Safety
SAFETY General Safety Procedures for Tilmor Tractors, Attachments, & Accessories Maintenance (continued) • Never perform maintenance on the power unit and/or implement if someone is in the operator’s station. • To reduce the hazard of fire, keep the engine and muffler areas free of grass, leaves and excessive grease. -
Page 11: Power Ox 220A Tractor Safety Procedures
Clear the area of all obstacles, hazards, and personnel before operating the Power Ox 220A. • Do not modify the Power Ox 220A in any way. Modifying the Power Ox 220A could cause injury or damage to equipment. Any modification made to the Power Ox 220A will void any warranty. -
Page 12: Operational Controls
OPERATIONAL CONTROLS Standard Operational Controls Use the following images to help identify the loca- tions of operational controls. The letter next to each control can be referenced to the list that follows these images. A. Drive Control Handles B. Throttle Control C. -
Page 13: General Operation
4. Push the adjustment mechanism (B) away from the engine to engage the notches. Ensure that The Power Ox 220A has a height adjustable handle- the mechanism is fully seated in the notches. bar to increase operator control and comfort. The following steps describe how to adjust the handle- bars. -
Page 14: Receiver Hitch Use
3. In both configurations the hitch receiver is secured in position using a 5/8” hitch pin (C) The Power Ox 220A has an adjustable receiver placed through the frame secured in place with hitch to easily connect and disconnect tools. The fol-... -
Page 15: Daily Inspection
Before Operating the Power Ox 220A for the first time, ensure that the engine has had oil added in Park the power unit on a level surface, with the accordance with the Briggs and Stratton operators engine shut off and all fluids cold. -
Page 16: Starting The Engine
Before Starting the Power Ox 220A for the first 2. Move the fuel shutoff lever to the off position. time, ensure that the engine has had oil added in... -
Page 17: Service
Tilmor replacement parts. • Clean finger guard. Service and General Maintenance Every 25 Hours or Annually Proper and timely service of the Power Ox 220A is • Clean air filter*. critical to keep the tractor in safe and reliable oper- •... -
Page 18: Belt Inspection
SERVICE Belt Inspection Belt Replacement Narrow Frame Unit Inspecting the drive belt of the Power Ox 220A can At some point it will be necessary to replace a worn prevent sudden belt failure by finding problems belt. The following steps describe the process. - Page 19 SERVICE 4. Remove the two 3/8” carriage bolts and locknuts 8. Install the two 3/8” carriage bolts and locknuts (C) that secure the left fender assembly to the (D) through the upper frame tube and fender. upper frame tube. Removing the bolts allows the fender assembly to rotate freely on the axle.
-
Page 20: Belt Replacement Wide Frame Unit
SERVICE Belt Replacement Wide Frame Unit 4. Loosen the two set screws (D) in the left outer flange bearing using a 1/8” hex key. 1. Remove the belt and pulley cover by removing the five 5/16” bolts and washers (A). Loosen the two set screws (E) from the left axle shaft coupler using a 5/32”... - Page 21 SERVICE 8. Remove the belt from the pulleys and between 15. Tighten the two set screws (J) in the left outer the axles. flange bearing using a 1/8” hex key. 9. Install the new belt by routing it between the axles. 10.
-
Page 22: Lubrication Locations
SERVICE Lubrication Locations Chain Tension Adjustment Lubrication is required at the following locations. The chain tension can be adjusted using the follow- ing steps. Lubricate the right and left drive axle flange bear- 1. Loosen the wheel axle (A) using 1-1/8” wrench. ings with grease. -
Page 23: Drive Control Linkage Adjustment
SERVICE Drive Control Linkage Adjustment Attention Over time the drive control linkage may need to be adjusted to increase the tension on the drive belt. The It may be necessary to remove the upper belt and following steps describe how to adjust the tension. pulley cover to see the engagement of the drive belt and pulley. -
Page 24: Specifications
SPECIFICATIONS Engine Manufacturer ......Briggs & Stratton Model Number.......550 Series Type . -
Page 25: Dimensions Wide Tire Configuration
SPECIFICATIONS Dimensions Wide Tire Configuration Specifications - 25... -
Page 26: Dimensions Narrow Tire Configuration
SPECIFICATIONS SPECIFICATIONS Dimensions Narrow Tire Configuration Specifications - 26... -
Page 27: Features
SPECIFICATIONS Features Quick-Adjust handles for optimal operating height for any operator. 11” + of ground clearance. Integrated drive control handle guard Integrated kickstand Integrated toolbox Engine: Briggs & Stratton 550 Series - 127cc - 5.5 ft/lbs torque - 6:1 gear reduction. Wheel Weights Kit (optional): Can add up to 25lbs per wheel for additional traction. -
Page 28: Warranty
(whichever comes first). Warranties on serialized Tilmor products are transferable. Tilmor Warranty Policy Tilmor LLC may opt to repair, replace, or issue a refund for Tilmor products that are defective or have sus- tained damage in shipping. The following actions and damages are excluded from warranty: •...
