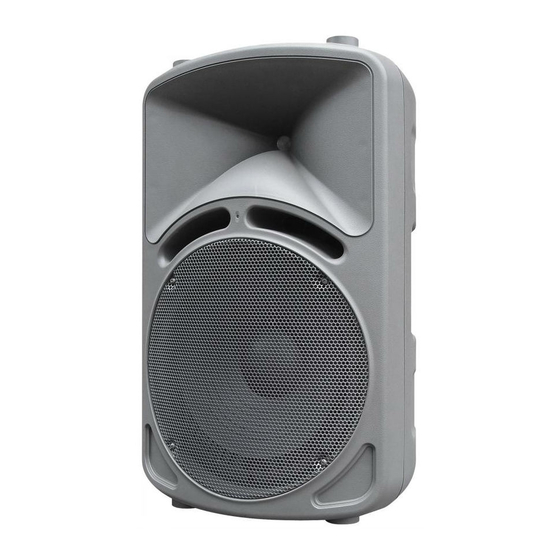

SOUNDFORCE15A
Active injection moulded speaker with mic input
M
A
N
U
A
Peak power handling: 1000w / Program power handling: 600w
Low frequency: 300w / High frequency: 50w
Total output power: 350w / Equalization: 2 bands EQ ±15 dB
Frequency response: 20Hz to 20kHz / Crossover frequency: 2.5kHz
Dimensions (WxHxD): 500mm x 700mm x 360mm
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
L
V
E
R
22 / 10 / 10
Speaker
RMS power: 350w / Impedance: 8 Ohms
Sensitivity: 98 dB / SPL max: 128 dB
Frequency response: 45Hz to 18kHz
Amplifier
Weight: 21Kg
© Copyright Lamba plc 2010. E&OE.
S
I
O
N
3
.
0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KAM SOUNDFORCE15A
Summary of Contents for KAM SOUNDFORCE15A
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. After you have read the instructions, please retain them for future reference. This unit has been tested at the factory before being shipped to you.
- Page 3 Operating instructions 1. Microphone volume control Use this to set the desired volume of the microphone input. 2. Volume control Use this to set the desired volume control for the speaker. 3. Treble control Use this to set the increase or decrease the high frequencies of the signal. In the centre position the high frequency is set at neutral.
- Page 4 Specifications Speaker Peak power handling: 1000w / Program power handling: 600w RMS power: 350w / Impedance: 8 Ohms Sensitivity: 98 dB / SPL max: 128 dB Frequency response: 45Hz to 18kHz Amplifier Low frequency: 300w / High frequency: 50w Total output power: 350w / Equalization: 2 bands EQ ±15 dB Frequency response: 20Hz to 20kHz / Crossover frequency: 2.5kHz Dimensions (WxHxD): 500mm x 700mm x 360mm Weight: 21Kg...
