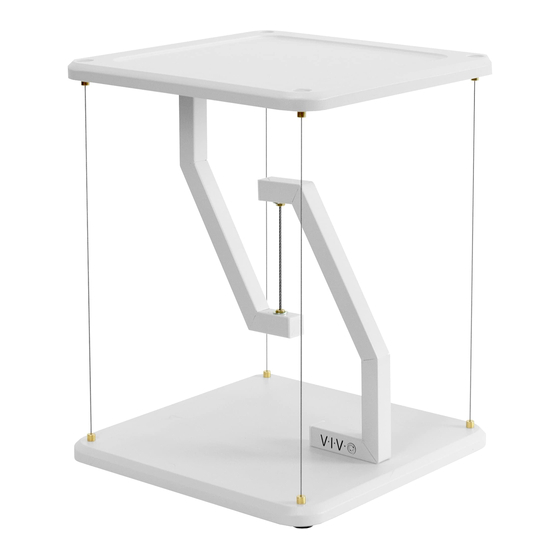

White floating speaker stand

Advertisement

Quick Links

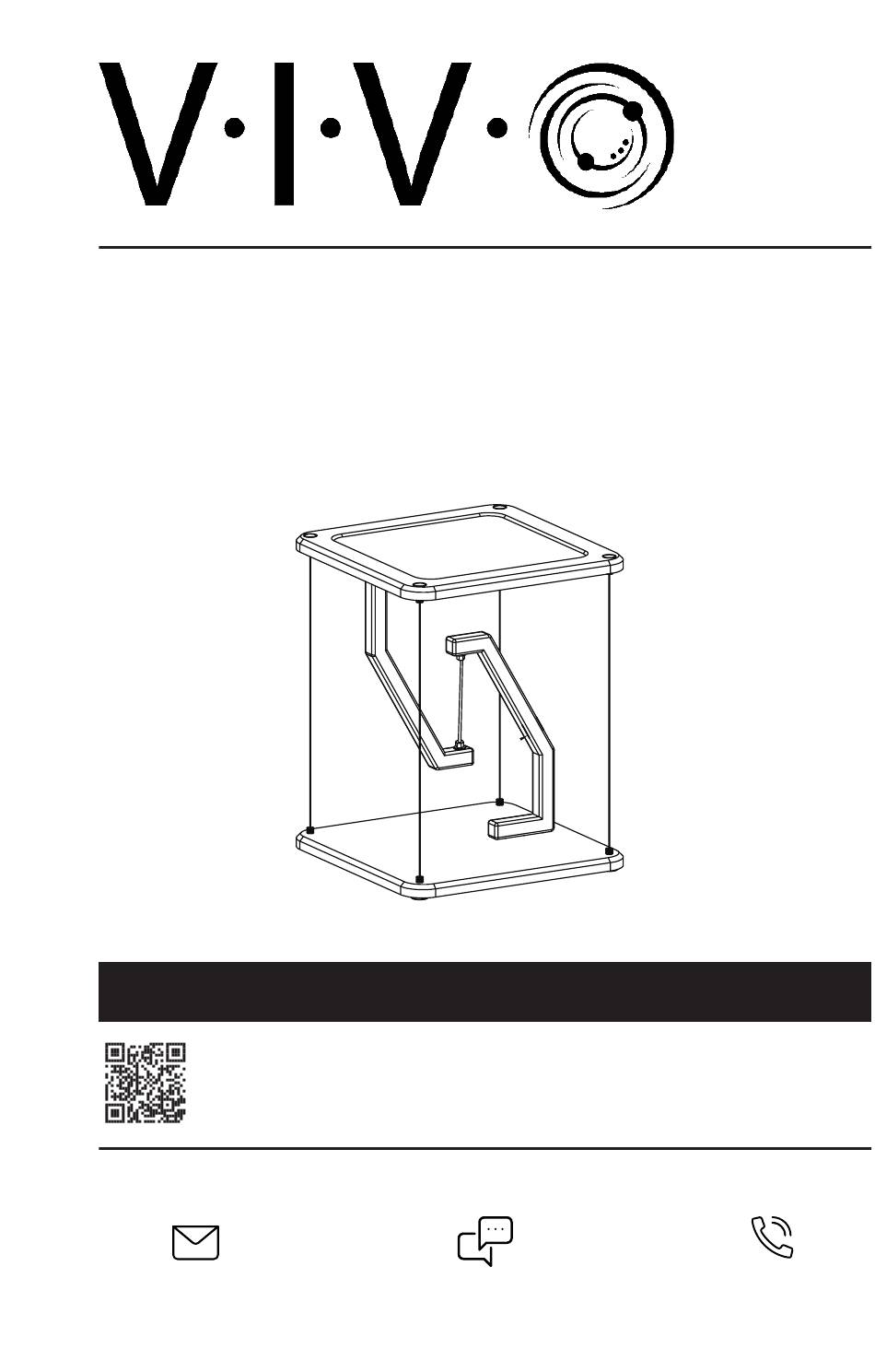

White Floating Speaker Stand
Instruction Manual
SKU: STAND-TEN01W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-ten01b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-TEN01W and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-TEN01W

  • Page 1 White Floating Speaker Stand Instruction Manual SKU: STAND-TEN01W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-ten01b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 Mount Base Support Bar (K) to Base (J) using M6x25 Screws (D) and tighten using 5mm Allen Wrench (F). Please Note: The screw heads should be on the same side as the threaded inserts shown. STEP 2 Mount Shelf Support Bar (L) to Shelf (I) using M5x30 Screws (E) and tighten using Phillips end of the 5mm Allen Wrench (F).
  • Page 4 STEP 3 Insert the Binding Barrels (C) into the top of Shelf (I) and attach the short threads of Outer Cables (B) to Binding Barrels (C). Attach the long threads of Outer Cables (B) to the top of Base (J). STEP 4 Attach Inner Cable (A) into the bottom of Base Support Bar (K).
  • Page 5 STEP 5 Attach Inner Cable (A) into the top of Shelf Support Bar (L). Tighten Inner Cable (A) using Wrench (G). If Cable does not easily reach, partially loosen from Base Support Bar (K) until Cable threads into Shelf Support Bar (L), then retighten.
  • Page 6 STEP 6 Apply Soft Pads (H) to the underside of Base (J).
