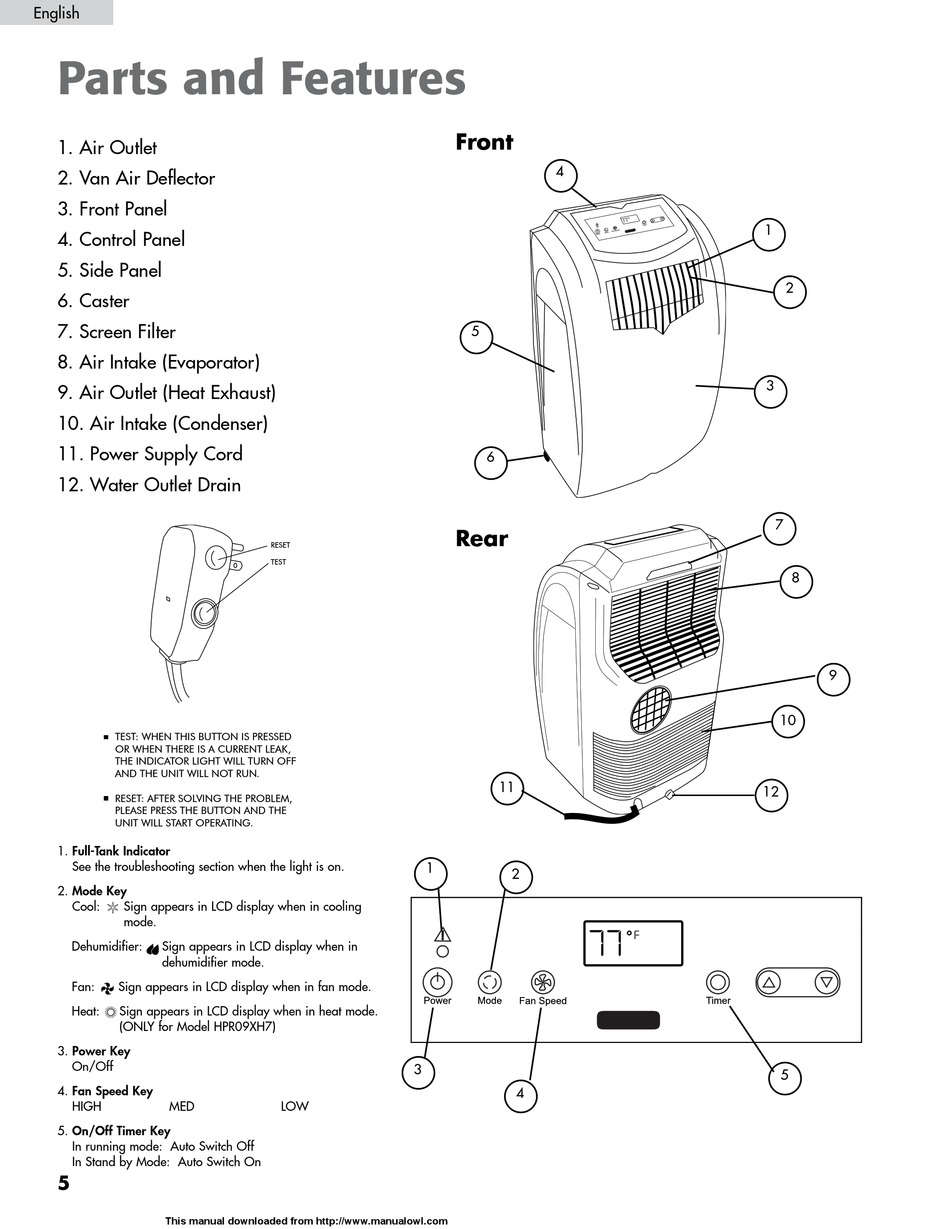

Parts and Features

1. Air Outlet
2. Van Air Deflector
3. Front Panel
4. Control Panel
5. Side Panel
6. Caster
7. Screen Filter
8. Air Intake (Evaporator)
9. Air Outlet (Heat Exhaust)
10. Air Intake (Condenser)
11. Power Supply Cord
12. Water Outlet Drain
TEST: WHEN THIS BUTTON IS PRESSED
OR WHEN THERE IS A CURRENT LEAK,
THE INDICATOR LIGHT WILL TURN OFF
AND THE UNIT WILL NOT RUN.
RESET: AFTER SOLVING THE PROBLEM,
PLEASE PRESS THE BUTTON AND THE
UNIT WILL START OPERATING.
1. Full-Tank Indicator
See the troubleshooting section when the light is on.
2. Mode Key
Cool: Sign appears in LCD display when in cooling
mode.
Dehumidifier: Sign appears in LCD display when in
dehumidifier mode.
Fan: Sign appears in LCD display when in fan mode.
Heat: Sign appears in LCD display when in heat mode.
(ONLY for Model HPR09XH7)
3. Power Key
On/Off
4. Fan Speed Key
HIGH MED
5. On/Off Timer Key
In running mode: Auto Switch Off
In Stand by Mode: Auto Switch On
5
This manual downloaded from http://www.manualowl.com
RESET
TEST
1
3
LOW
Front
4
5
6
Rear
11
2
77
F
4
1
2
3
7
8
9
10
12
5
