Installation Guide

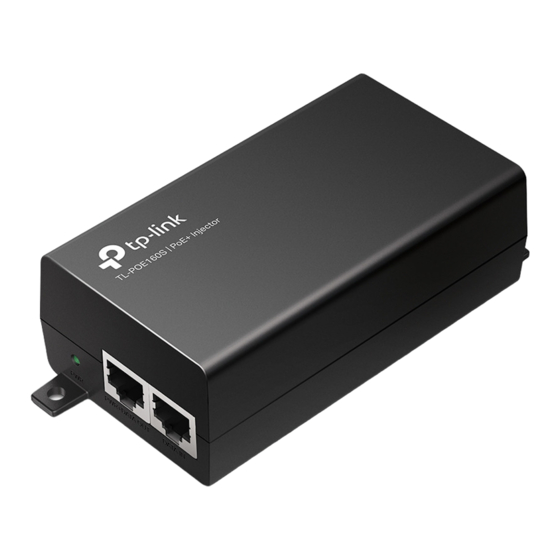

PoE Injector
Note:
For simplicity, we will take TL-POE160S for example in this Guide.

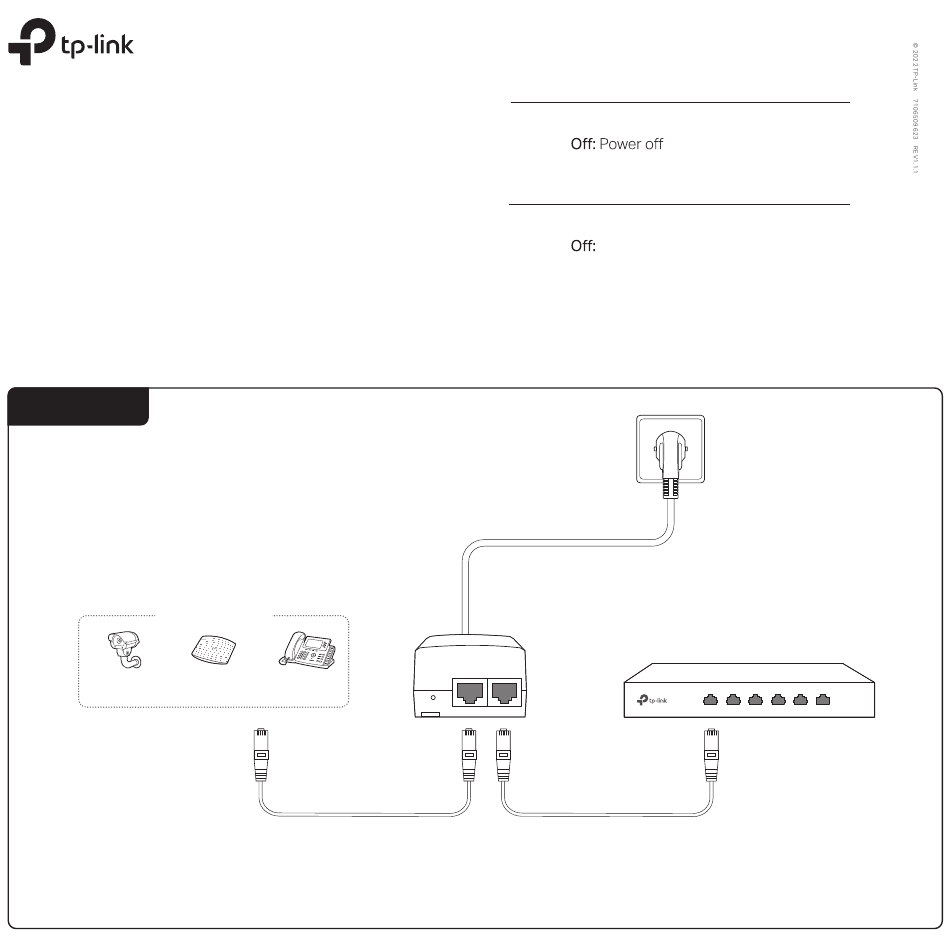

Connection
Powered Device (PD)
IP Camera
Note:
1. The PoE Injector supplies steady power and data connectivity to a powered device such as PoE IP Camera, PoE AP and PoE IP Phone through an Ethernet cable.
2. For TL-POE170S, plug the product into the wall outlets with earthing connection through the power supply cord.
AP
IP Phone
LED Explanation
PWR
On:
Power on
PoE (Only for TL-POE170S)
On:
Normal power supply
No powered device connected
Flashing:
PoE+ Injector
PWR
PWR+DATA OUT
DATA IN
Abnormal power supply
Ethernet Device
(switch, router, etc.)
