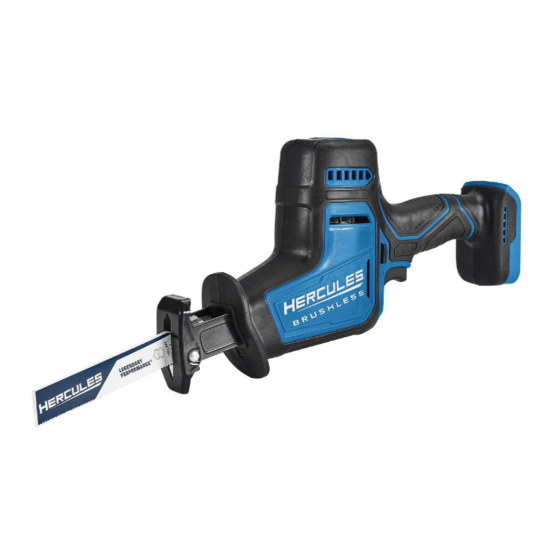

Compact reciprocating saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual &
Safety Instructions
22j
Model
HCB710B
Compact Reciprocating Saw
WARNING: To prevent serious injury, User must read and
understand Owner's Manual. SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-888-866-5797
as soon as possible. Reference 58015.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCB710B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hercules HCB710B

Summary of Contents for Hercules HCB710B

  • Page 1 Owner’s Manual & Safety Instructions Model HCB710B Compact Reciprocating Saw WARNING: To prevent serious injury, User must read and understand Owner’s Manual. SAVE THIS MANUAL. When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION GENERAL POWER TOOL SAFETY WARNINGS Personal Safety 1. Stay alert, watch what you are doing and use Read all safety warnings and all instructions. common sense when operating a power tool. Do Failure to follow the warnings and instructions may not use a power tool while you are tired or under result in electric shock, fire and/or serious injury.

  • Page 3: Safety Instructions For Reciprocating Saws

    13. This product is not a toy. Battery Tool Use and Care Keep it out of reach of children. 1. Recharge only with the charger specified by 14. People with pacemakers should consult their physician(s) before use. Electromagnetic fields the manufacturer. A charger that is suitable for one type of BATTERY pack may create a risk of in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.

  • Page 4: Vibration Safety

    Keep a fire extinguisher and a smoke detector in the area. Frequently monitor the Charger and Battery Pack while charging. 2. Charge Battery Pack using Hercules 20V Lithium Battery Charger only (sold separately). Page 4 For technical questions, please call 1-888-866-5797.

  • Page 5: Extension Cords

    6. Grip tool as lightly as possible (while still keeping Warning Symbols and Definitions safe control of it). Let the tool do the work. 7. To reduce vibration, maintain the tool as This is the safety alert symbol. It is used to explained in this manual.

  • Page 6: Specifications

    2. Secure loose workpieces using a vise or clamps SPECIFICATIONS (not included) to prevent movement while working. 3. There must not be objects, such as utility lines, Hercules 20V 5.0Ah Li-ion (sold nearby that will present a hazard while working. Battery separately), Item 56560, 57373 This is especially critical for plunge cuts.

  • Page 7: Setting And Testing

    Blade Clamp Plunge Cutting Blade Plunge cut into plywood, sheetrock, and thin board panels. Do not attempt to plunge cut into thick, hard wood or metal panels. 1. Mark the cut line. Collar 2. Place Shoe on workpiece with blade parallel to cut line, and NOT touching the workpiece.

  • Page 8: Maintenance And Servicing Instructions

    Cleaning, Maintenance, MAINTENANCE AND and Lubrication SERVICING INSTRUCTIONS 1. BEFORE EACH USE, inspect the general Procedures not specifically explained condition of the tool. Check for: in this manual must be performed • leaking, swollen, or cracked battery pack only by a qualified technician. •...

  • Page 9: Troubleshooting

    Troubleshooting Problem Possible Causes Likely Solutions Tool will not start. 1. Battery Pack not properly 1. Remove Battery Pack, make sure there are no connected. obstructions, clean battery contacts on tool, reinsert the Battery Pack according to its shape (it should only fit one way), and press firmly until the Battery Pack locks in place.

  • Page 10: Parts List And Diagram

    Parts List and Diagram Part Description Part Description Shoe hex Socket Pan Head Screw hex Socket Pan Head Screw hex Socket Disc Head Cross Recessed Countersunk Self-Tapping Screw Head Screw Motor Housing (Left) Lock Washer Motor Housing (Right) Gearbox (Right) Stator Assembly Cylindrical Pin 1 Deep Groove Ball Bearing 2...

  • Page 11: Year Limited Warranty

    5-YEAR LIMITED WARRANTY This Hercules tool is warranted to the original purchaser to be free from defects in materials and workmanship for a period of five (5) years beginning on the date of purchase. This warranty does not cover battery packs and battery chargers, which are covered under separate warranties.
  • Page 12 Visit our website at: http://www.harborfreight.com Email our technical support at: productsupport@harborfreight.com For technical questions, please call 1-888-866-5797 © ® Copyright 2020 by Harbor Freight Tools . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
