Axis AX-M7 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

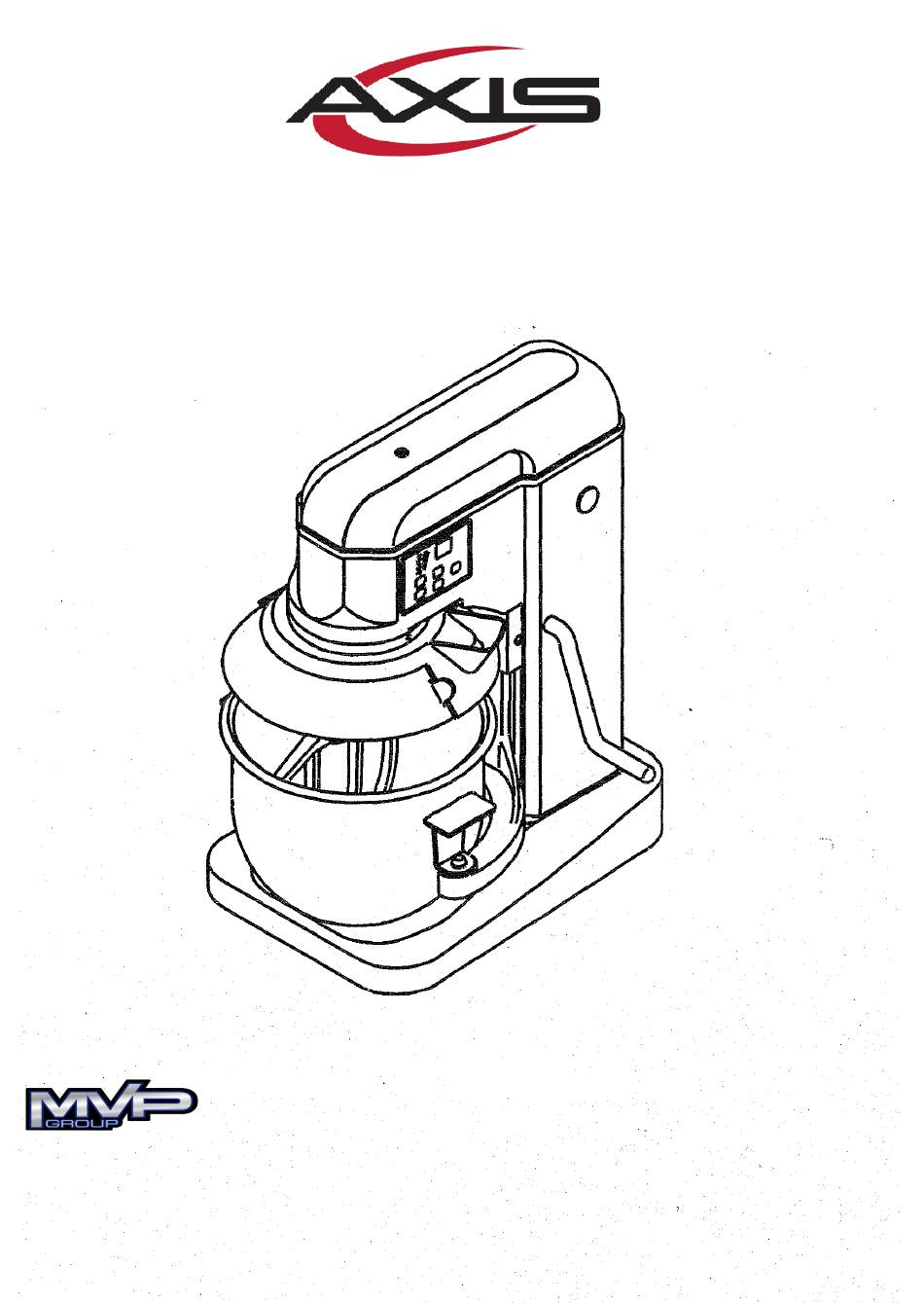

AX-M7 Mixer
Owner's Manual
5 6 5 9 R o y a l m o u n t A v e .
M o n t r e a l , Q C H 4 P 2 P 9
T e l : 5 1 4 - 7 3 7 - 9 7 0 1 8 8 8 - 2 7 5 - 4 5 3 8
F a x : 5 1 4 - 3 4 2 - 3 8 5 4 8 7 7 - 4 5 3 - 8 8 3 2
s a l e s @ m v p g r o u p c o r p . c o m w w w . m v p g r o u p c o r p . c o m
1 2 0 0 0 B i s c a y n e B l v d . S t e 1 0 8
M i a m i , F L 3 3 1 8 1
T e l : 7 8 6 - 6 0 0 - 4 6 8 7 8 4 4 - 2 1 8 - 8 4 7 7
F a x : 7 8 6 - 6 6 1 - 4 1 0 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX-M7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis AX-M7

Summary of Contents for Axis AX-M7

  • Page 1 AX-M7 Mixer Owner's Manual 1 2 0 0 0 B i s c a y n e B l v d . S t e 1 0 8 5 6 5 9 R o y a l m o u n t A v e .

  • Page 2: Table Of Contents

    TABLE OF CONTENT Page Overview Safety Precautions Specifications Installation Location Electrical Installation Diagram Operation Controls How to install an agitator How to install a bowl Attachment use guide Mixing Capacity Maintenance...
  • Page 3 UpperL'd Control Panel Column Cover Locating Pins...

  • Page 4: Overview

    1. OVERVIEW The 7 quart mixer has a High 650 Watts power to allow mixing stiffer doughs and larger batches. All metal body and counter-top style is designed professionally. Its shafts are mounted in ball bearing and 100% steel gears drive. Electronic 5-speed control helps you to enjoy non-stop shifting speed.

  • Page 5: Specifications

    1-2 SPECIFICATIONS 650 Watts powerful, ball bearing ventilated within mixer Motor: enclosure. Electrical: 100-120V, single phase or 208-240V, single phase Switch & Timer: All in one digital control panel 6 feet flexible cord and plug (for llOV model only), Cord and Plug: respectively consist of 3 wires which one wire is connected for grounding, other wires are connected to power supply.

  • Page 6: Installation

    2. INSTALLATION BEFORE INSTALL YOUR MIXER, CHECK TO BE SURE THAT YOUR ELECTRICAL SERVICE SPECIFICATIONS MATCH THOSE OF YOUR MIXER AS PRINTED ON THE MIXER'S NAMEPLATE. 2-1 LOCATION Place the mixer in its operating location. · Bench should be placed on a sturdy level surface.

  • Page 7: Installation Diagram

    2-3 INSTALLATION DIAGRAM (MM)

  • Page 8: Operation

    3. OPERATION Note: New mixers bowls and agitators (beaters, whip, and dough hook) should be thoroughly washed with hot water and mild soap solution, rinsed with either a mild soda or vinegar solution, and thoroughly rinsed with clean water BEFORE being put into service. This cleaning procedure should also be followed for bowls and agitators before whipping egg whites with or whole eggs.

  • Page 9: How To Installan Agitator

    3-2 HOW TO INSTALLAN AGITATOR To install an agitator, the bowl must be installed and fully lowered. Place the agitator in the bowl, push it up on the agitator shaft, and turn it clockwise to seat the shaft pin in the slot of the agitator shank. 3-3 HOW TO INSTALL A BOWL The bowl must be installed before the agitator.

  • Page 10: Mixing Capacity

    4. MIXING CAPACITY: PRODUCT TOOL 7QUARTBOWL Egg Whites Whip 700 g Mashed Potatoes 1500 g Beater Mayonnaise (Qts. Oil) Beater 3 liter Meringue (Qts. Water) Whip 1 liter Waffle/Pan cake Batter 2 liter Beater Whipped Cream Whip 3 liter 2000 g Sheet Cake Batter Beater 2500 g.

  • Page 11: Maintenance

    5. MAINTENANCE NOTE : ALL MAINTENANCE WORK SHOULD BE DONE ONLY AFTER UNIT HAS BEEN DISCONNECTED FROM ELECTRICAL POWER AND GROUNDING. • Never use a metal or stiff brush to dean the mixer. Never clean the mixer with a water hose or any fluid pressure. •...
