Summary of Contents for Axis AX-M30

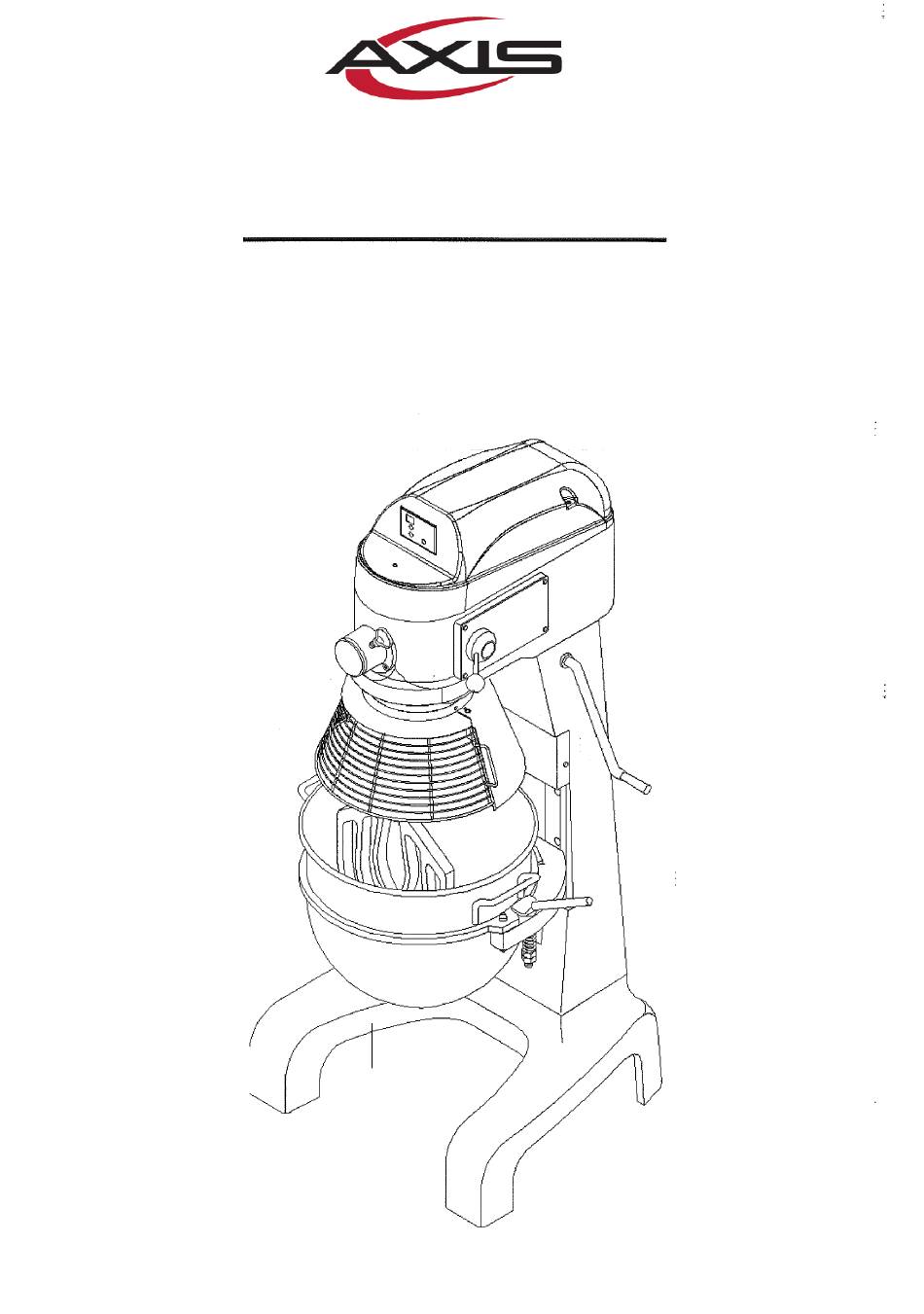

  • Page 1 AX-M30...
  • Page 2 Installation, Operation and Care of AX-M30 MIXER + SA VE THESE INSTRUCTIONS + GENERAL This Mixer is an advanced design, highly reliable professional food processing tool, and is ideal for mixing all types of dough, as well as eggs, cream, mayonnaise, etc.
  • Page 3 Motor for Agitator speeds Bowl Capacity Model No. ELECTRICAL Agitator (R.P.M.) AX-M30 30 Qt. l HP 390/214/115 110V/60HZ/l PH UNPACKING Immediately after unpacking the mixer, check it for possible shipping damage. If this machine is found to be damaged after unpacking, save the packaging material and contact the carrier immediately.
  • Page 4 OPERATION WARNING: MOVING BEATER IN BOWL. KEEP HAND, CLOTHING, UTENSILS WHILE IN OPERATION. All models are furnished with an ON-OFF SWITCH ----------1J ( figure 1-11 ), which controls power to the mixer. The GEAR SHIFT LEVER (figure 1-3) is used to - - - - - 1 change speeds.
  • Page 5 AGITATOR To install an agitator (figure 1-5), the bowl (Figure l-6)must be installed and fully lowered. Place the agitator in· the bowl, push it up on the agitator shaft, and turn it clockwise to seat the shaft pin in the slot of the agitator shank. DOUGH ARM: Frequently used for heavy bread dough, and preferable to be used at low speed.
  • Page 6 HUB ATTACHMENTS The mixer's standard-sized, No. 12 hub accommodates a variety of optional attachments. To install an attachment, loosen the thumbscrew (Figure 1-7) on the attachment hub and remove the hub cover plug (Figure 1-8). Insert the attachment into the attachment hub making certain that the square shank of the attachment is in the square driver of the mixer.
  • Page 7 Hook Water Flour Medium Pizza Dough (50% AR, 5 lbs. 10 lbs. Hook Water Flour Thick Pizza Dough ( 60% AR, =) 9.6 lbs. 16 lbs. Hook Water Raised Donut Dough (65% AR) Flour 5.2 lbs. 8 lbs. Hook Water Whole Wheat Dough ( 70°!c>...
