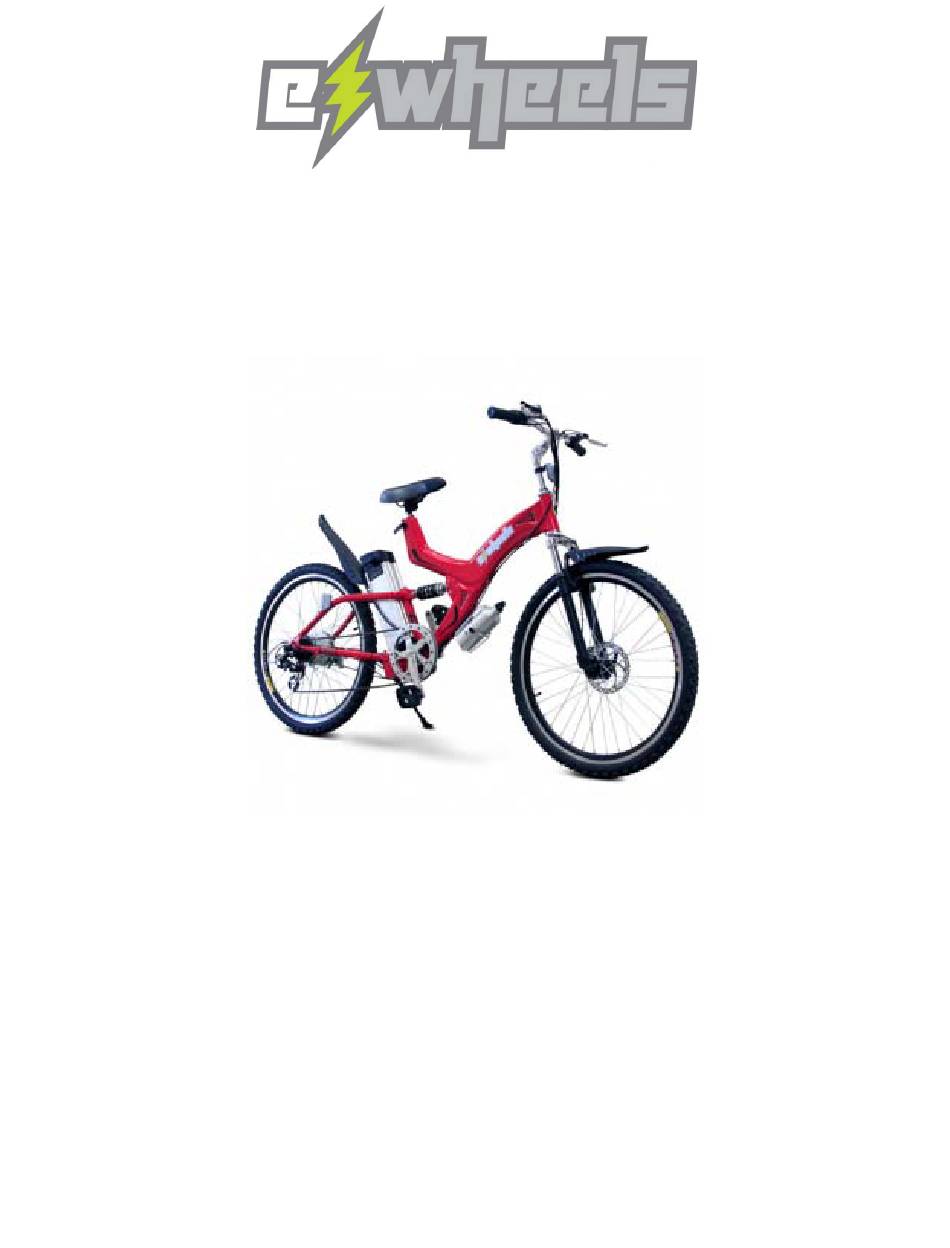

- Page 1 Assembly and Setup Instructions EW-400 ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 2 4. 6mm Allen Wrench 1. Remove the EW-400 from it’s carton. Lift the bike out of the carton, assistance will be needed. If no assistance available start by opening the top to allow access to the inside of the carton. Use a knife to cut each corner from the inside out (Figure A).
- Page 3 3. After you have placed the bike make sure you have all the components in the bike as shown in Figure C. Components included on the EW-400 A. Fender B. Steering Wheel C. Charger D. Pedals E. Seat ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 4 Handlebar Installation Tools you will need to attach the Handlebar - 6mm Allen Wrench 1. Insert handlebar and align steering correspondingly (Figure A). 2. Use the 6mm Allen Wrench to tighten the steering wheel until it is fully tightened (Figure A). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 5 Front Wheel Installation -Prior Front Wheel installation made sure disc brake is on the correct side as shown in Figure A. -Insert Wheel by lifting from steering wheel and secure (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
-
Page 6: Fender Installation
Fender Installation -Remove Screw located in the middle of steering wheel fork (Figure A). -Insert the fender and secure it with screw (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660... - Page 7 Pedals Installation Tools you will need to attach the Pedals -15mm Wrench 1. Check each pedal for their corresponding side (L) Left and (R) Right (Figure A). 2. Insert pedal into place and tighten it using the 15mm Wrench (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 8 Seat Installation -Insert Seat as shown in Figure A. -Secure seat as shown in Figure B. ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 9 How to properly remove the Battery Pack 1. Unlock the Battery lock located at the bottom of the Battery Pack. 2. Press on the lever underneath the seat to unlock the sea (Figure A). 3. Use Battery pack handle to remove Battery Pack (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 10 How to Turn the Bike on and unlock/lock Battery Pack -Insert Key in ignition located on Battery Pack and turn to the right to turn on (Figure A). -To Unlock push down and turn key to the left. ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 11 Charging the Battery 1. Plug Charger into Battery Pack (Figure A). 2. Leave Battery pack charge Until green light on charger appears ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 12 How to accelerate -Turn the throttle down to accelerate ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
