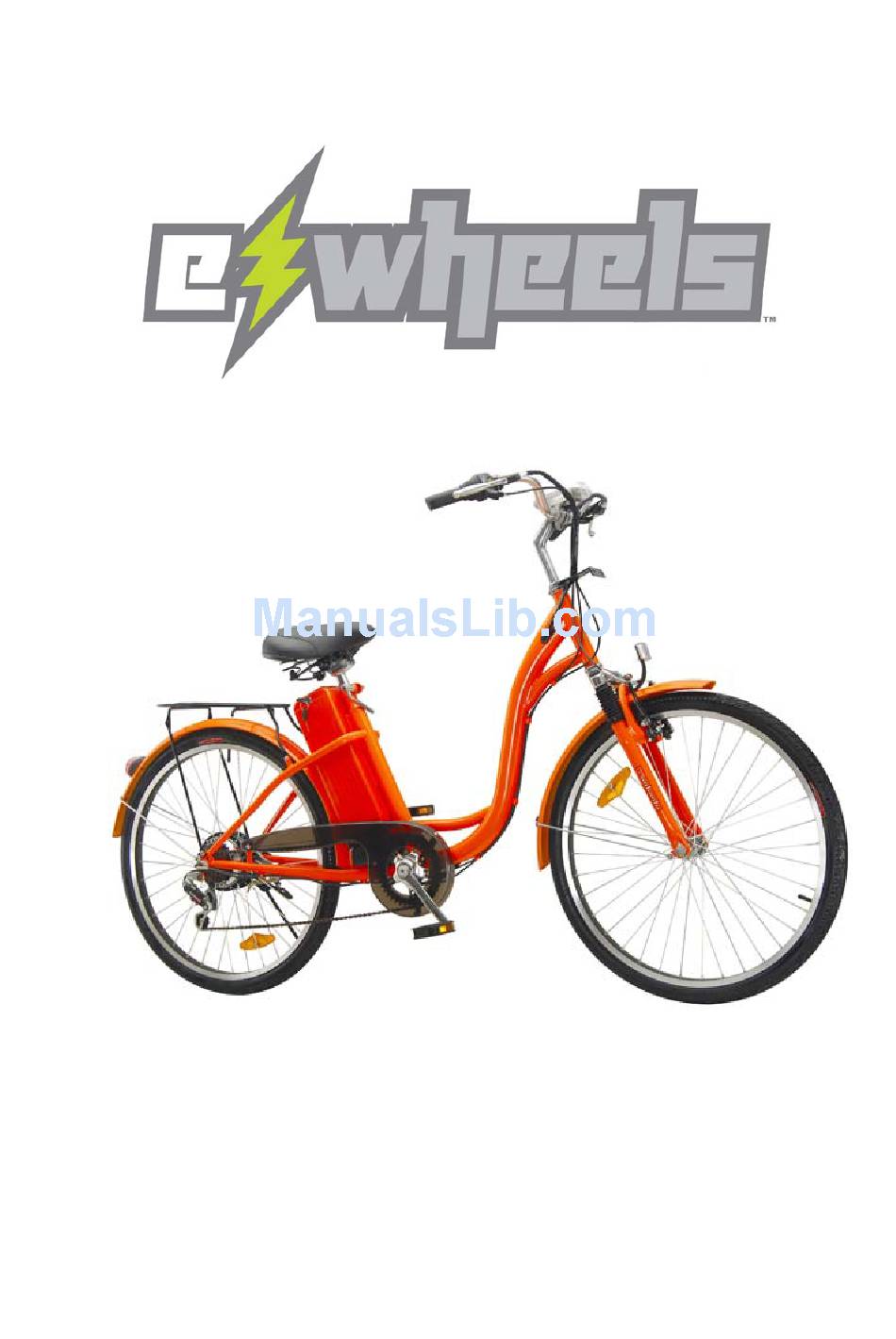

- Page 1 EW-620 Owners Manual Electricwheelstore.com...
- Page 2 ELECTRIC WHEELS LLC ONE RIVERWAY, SUITE 1700, HOUSTON, TEXAS 77056 PHONE: 713-840-6372 FAX: 713-583-9019 INFO@ELECTRICWHEELSTORE.COM (The company can change the parameter of the bike without any notification)
- Page 3 ● Bicycle bell ● Seat ● fender ● pedal ● reflector ○ Rear view mirror ● Rear Shock absorber ● braking system 1. "●" means YES, "-"means NO, "○" means choosing, you can get reference from sample. 2. If something in the manual are not the same as sample, according to sample, please. 3.
-
Page 4: Dear Customer
Dear customer: Thanks for choosing a e-bike from ELECTRIC WHEELS LLC, have fun! Please read this user’s manual before your riding! Driving with safety helmet and obeying the local traffic rules, please! Visit; ELECTRICWHEELSTORE.COM if you have any questions regarding the product. Safety instruction: Fasten the screws of the bike before your driving Charge in time after the battery voltage comes to be protected. - Page 5 I. Validity of quality assurance and fixing service: The fixing assurance for bike and parts damage is six months. II. Quality assurance scope 1. The controller, battery manage-board, charger, being broken (except man-made) after sold could be repaired freely within six months. 2.
-
Page 6: Main Specifications
Safety notice Do not lay the vehicle near to the fire or in the high temperature environment. The battery could flare or explode if it is set in water, fire ,being heated ,or being incorrectly disassembled. Stop using the battery if there is liquid flowing out or if there is peculiar smelling. Don’t touch the output of the plug with conductive object directly. -
Page 7: Name Of Parts
Name of Parts： Please learn the names of all the parts of the electric bicycle 1.steering handle 2 shock absorber 3. seat 4. battery 5. motor 6. pedal 7. front light 8. front wheel 9. rear wheel 10.six-speed shift ．Ready for tire’s air inflation before assemble (1) take the bike out of the package. -
Page 8: Battery Charge
Notice: Over-charge the front tire would grasp the front wheel rim and noise. Insufficient charge the rear tire would increase the speed, that may reduce the continuous distance. Insufficient tire pressure would effects the increasing speed, so as to waste power. Battery charge Reasonable charging time is 4-6 hours,the maximum time is 8 hours. - Page 9 Storage (1)Long time storage, the battery must remain more than 50% capacity. (2)Transported by airplane or vehicles, the battery capacity should be less than 50%. (3)Full power capacity is safe half power capacity is very safe, no battery is absolutely safe. Braking system and tires .Regulate the braking system when it too loosen or too tight Using standard bicycle air pump, charge the front tire to20PSI (1.5Kg/cm2) and the rear...
- Page 10 Can’t start Power switch off Turn on power switch Braking switch on operate braking switch several times Problem reason solution DC or AC plug touching badly Insert the plugs well Battery charging failure bad charger change to a good charger circuit short-protection pull off the charger ,recharge again long time no use, battery exhaust...
- Page 11 Packing list Part name Specification & model Unit Quantity Note Entire vehicle Seat cushion Battery charger User’s manual volume Quality Certificate sheet Service card sheet User information card sheet Packing list sheet Approved ： Inspector： Packed Date：...
