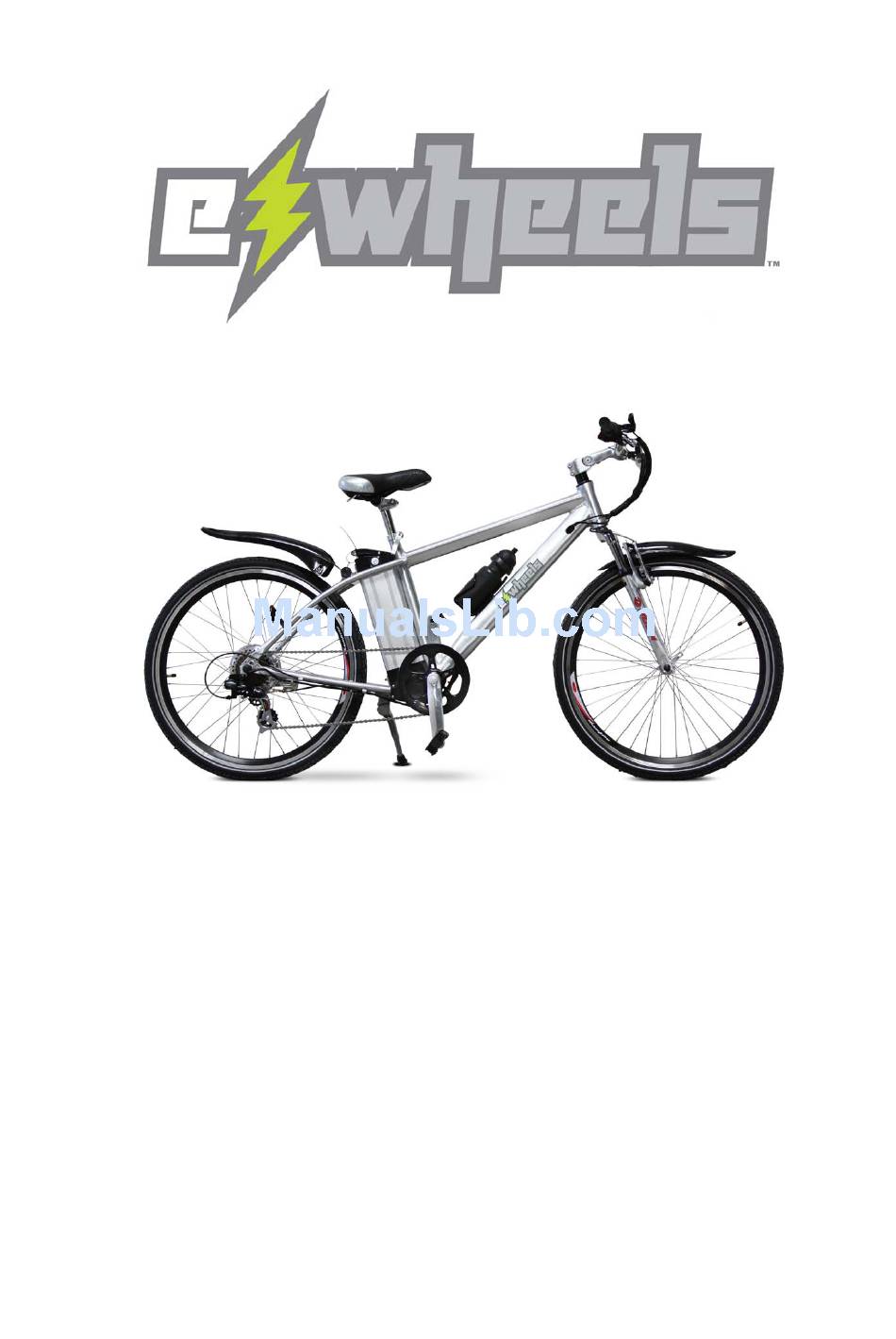

  • Page 1 EW-1200 Owners Manual Electricw heelstore.com...
  • Page 2 THE CONTENTS OF THIS MANUAL MUST BE CAREFULLY READ AND INSTRUCTIONS FOLLOWED BEFORE YOU RIDE YOUR Index of Contents Ⅰ、General Assembly Instructions. Ⅱ、Recommended Inspection Before Riding. Ⅲ、Charging Instructions. Ⅳ、Maintenance. Ⅴ、Simple Troubleshooting. Ⅵ、Warranty. One Riverway, suite 1700, Houston, Texas 77056 info@electricwheelstore.com www.electricwheelstore.com...
  • Page 3 General Assembly Instructions Ⅰ、 Remove all Packaging PLEASE ALLOW YOURSELF ONE HOUR FOR UNPACKING, ASSEMBLY & CHECKING EW1200 Remove all materials and set parts aside for assembly. Pedals and Charger Front Mudguard Saddle...

  • Page 4: Install Front Wheel

    Attention: when you take the wheel out from the crank, please keep the crank parallel with the ground Minimal assembly is required for your EW1200. However please follow the guidelines below for correct assembly. Tools required- 15mm pedal spanner, 6 mm hex key, 8 mm hex key, 8 &10mm Spanner. Set Up Install front mud guard Please install the front mud guard before you install the front wheel.
  • Page 5 The front wheel is a quick release type. The quick release locking lever must be set squarely in line with the front fork and firmly tightened to ensure safety. Please check before each ride. Remove the front fork spacer from Front Fork and then fit the front wheel.

  • Page 6: Install Pedals And Tighten Crank

    Please loose this screw to adjust the height of handle Quick Release for Motor cable Shimano Thumb Shifter (7 speed) Derailleur Battery Condition Indicator lights Pedal Assist On-off Button: Switch from Electric Power to Pedal Assist Mode. Install Pedals and Tighten Crank. Place a small amount of grease on the thread before installing.

  • Page 7: Front Brake Set Up

    Front Brake Set Up Front Caliper V-Type Quick Release Brake. Loosen the 6 mm Allen Screw on the cable holder (Pic 1) and Pass the cable through loosely. Close the caliper manually and locate the metal cable guide in the caliper holder (Pic 2).
  • Page 8 Ensure you are fully familiar with the operation of the bike. Ensure you know how the pedal assist and power button works. Ensure the saddle is adjusted to suit your leg length. Ensure people/children are clear of moving wheels etc. Safety Ride safely and always wear protective gear including knee pads, elbow pads, gloves and helmet.
  • Page 9 in position with ignition key. Never Remove Battery From The Housing Enclosure – This Will Void Your Warranty. Always have the charger switched off before connecting to the battery. Connect and turn on. The LED will turn red when charging then green when fully charged. It is recommended to switch off charger once charged. •...
  • Page 10 Key in upright position – Power OFF Turn key clockwise power ON. Ⅳ 、Maintenance 1. Wipe the bike with a dry cloth, or neutral detergent. 2. Use lubricating oil sparingly for moving parts. 3. Wipe the plastic and painted parts with a cloth. 4.

  • Page 11: Simple Troubleshooting

    Chain Front brake Front wheel Gear adjustments • It is recommended you have a bicycle workshop assist you with the adjustment of the gears. • Cable tension must be checked to ensure there is no slack in cable when in highest (fastest gear). Failure to do this will result in poor gear changes.
  • Page 12 Ⅵ. Warranty 1. This Warranty takes effect after dealers confirm. 2. Warranty period items Warranty period Parts Covered By Warranty All the parts but excluding wearing parts. (Tires, Normal parts 180 days after purchase Brake Pads etc). Battery 90 days after purchase Lithium battery Position of Serial number on the Crank Housing for Insurance and Identification purposes.
