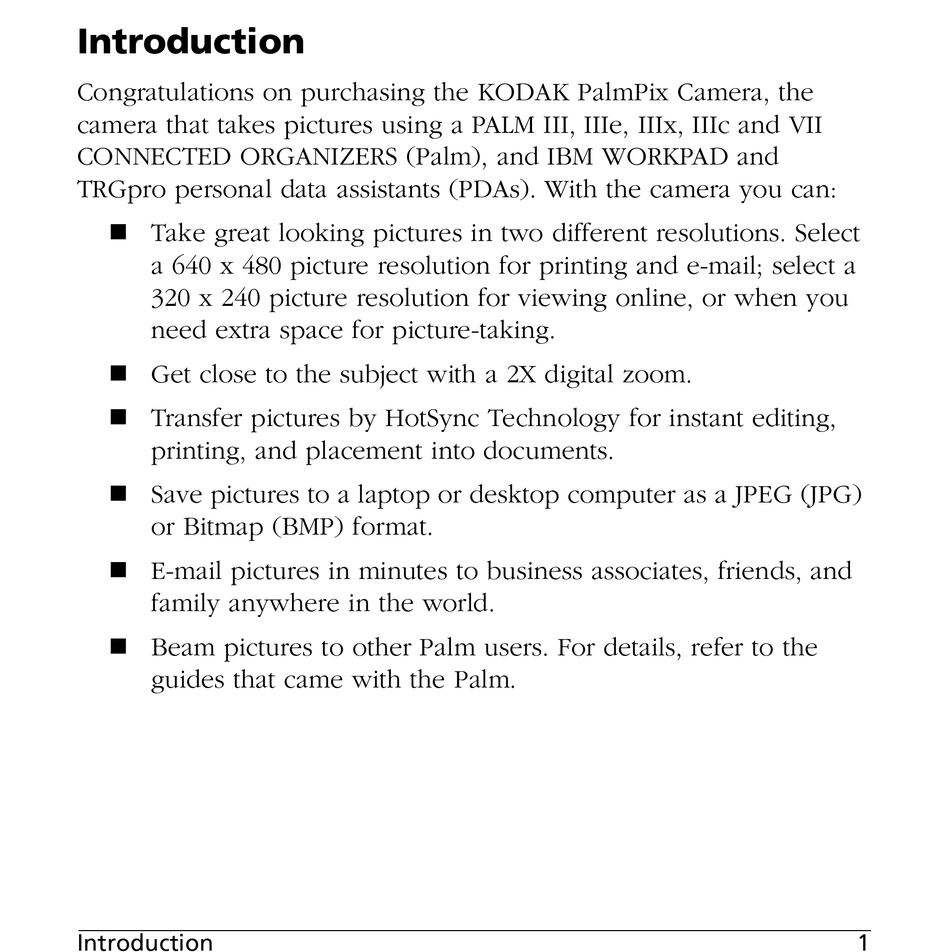

Introduction

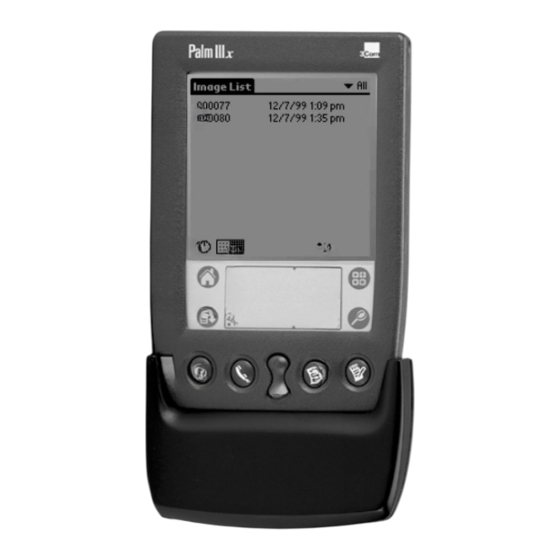

Congratulations on purchasing the KODAK PalmPix Camera, the
camera that takes pictures using a PALM III, IIIe, IIIx, IIIc and VII
CONNECTED ORGANIZERS (Palm), and IBM WORKPAD and
TRGpro personal data assistants (PDAs). With the camera you can:
n Take great looking pictures in two different resolutions. Select
a 640 x 480 picture resolution for printing and e-mail; select a
320 x 240 picture resolution for viewing online, or when you
need extra space for picture-taking.
n Get close to the subject with a 2X digital zoom.
n Transfer pictures by HotSync Technology for instant editing,
printing, and placement into documents.
n Save pictures to a laptop or desktop computer as a JPEG (JPG)
or Bitmap (BMP) format.
n E-mail pictures in minutes to business associates, friends, and
family anywhere in the world.
n Beam pictures to other Palm users. For details, refer to the
guides that came with the Palm.
Introduction
1
Advertisement
Table of Contents
Related Manuals for Kodak PalmPix m100
Summary of Contents for Kodak PalmPix m100
- Page 1 Introduction Congratulations on purchasing the KODAK PalmPix Camera, the camera that takes pictures using a PALM III, IIIe, IIIx, IIIc and VII CONNECTED ORGANIZERS (Palm), and IBM WORKPAD and TRGpro personal data assistants (PDAs). With the camera you can: n Take great looking pictures in two different resolutions. Select a 640 x 480 picture resolution for printing and e-mail;...
-
Page 2: About The Software
About the Software Four applications are included on the Kodak CD supplied with the camera. n KODAK PalmPix Software—runs on the Palm and controls the camera and picture transfer functions. n KODAK PalmPix Conduit Software—provides the capability to perform a HotSync operation for transferring pictures from the Palm to the computer. - Page 3 Customizing the Transfer Conduit The KODAK PalmPix Conduit default settings are set when you install the software, but can be changed using the Advanced window of the HotSync Manager. You can: n Save pictures in a JPEG (default) or BMP format.
-
Page 4: Preparing The Camera
Preparing the Camera Loading Batteries 1. Open the battery door (not shown). 2. Insert two AAA batteries into the chamber as shown. 3. Close the battery door. Checking Batteries A battery status symbol appears on the Palm when previewing a picture (page 6). - Page 5 Using the PalmPix Software With the camera connected, turn on the Palm, tap the Applications button, then tap the PalmPix icon to display the main PalmPix window. A. Picture File Name—name given to pictures stored on the Palm. Pictures can be renamed, deleted, and categorized using the Details window (page 7).
-
Page 6: Taking Pictures
Taking Pictures With the camera connected to the Palm, picture-taking is controlled by the PalmPix Software. When PalmPix is activated, the Date Book button becomes the camera Preview/Shutter button. 1. Press the Date Book button once to view the subject. The Palm screen displays a live preview. -
Page 7: Viewing Pictures
Viewing, Renaming, and Deleting Pictures Viewing Pictures Tap the file name to view the picture. The picture appears with the file name, and the date and time when the picture was taken. Press the Scroll button to navigate through the pictures. Note: Pictures beamed between non-color and color PDAs appear as grayscale images on the color PDA. -
Page 8: Transferring Pictures To A Computer
Transferring Pictures to a Computer 1. Tap Menu->Options->Select Image Uploads. Note: You cannot access Options->Select Image Uploads when a picture is displayed. 2. Highlight the file name and tap the single arrow button to add the picture, or tap the double arrow button to add all the pictures to be transferred to the Upload List. -
Page 9: Using Your Batteries
If pictures appear too dark when viewing on a computer, increase the available light source when taking pictures. Using Your Batteries n Kodak recommends KODAK PHOTOLIFE AAA Alkaline Batteries, or KODAK AAA Ni-MH Rechargeable Batteries. n Remove the batteries when the camera is stored for extended periods of time. - Page 10 Preview or Review to less than 10-minutes per session. n When disposing of batteries, follow the manufacturer’s instructions and all federal, state, and local regulations. Kodak suggests customers take advantage of any community battery recycling programs that may exist in your area. Contact your local waste remover or recycler for details.
-
Page 11: Specifications
Specifications VGA Resolution High Color Picture File Format Lens Aperture Zoom Focal Length Focus Distance Shutter Speed Power Dimensions (w x d x h) Weight Operating Temperature Design and specifications are subject to change without notice. Specifications 640 x 480=307,200 pixels 320 x 240=76,800 pixels 24-bit, millions of colors BMP, JPEG... -
Page 12: Customer Support
Customer Support n Web—www.kodak.com/go/palmpix. n U.S. and Canada—call toll free, 1-888-375-6325, between 9:00 a.m. and 8:00 p.m. (Eastern Standard Time) Monday through Friday. n Europe—call toll free the number associated with your location, or the U.K. toll line, 44-0-131-458-6714, between 09.00 and 17.00 (GMT/CET) Monday through Friday. - Page 13 Country Dominican Republic Egypt Eire France Finland Germany Greece Hong Kong Hungary India Ireland Italy Japan Korea Latin America Lebanon Malaysia Mexico Middle East Netherlands New Zealand Norway Customer Support Help Number 809-563-1252 20-2-394-2205 01-407-3054 01-55-1740-77 0800-117056 069-5007-0035 00800-44125605 852-2564-9777 36-1-269-71-17 91-22-617-5823 1-800-409391...
- Page 14 Country Panama Peru Philippines Portugal Russia Singapore South Africa Spain Sweden Switzerland Taiwan Thailand Turkey U.K. Uruguay Venezuela Help Number 52-3-678-6200 51-1-224-8610 63-2-810-0331 351-1-4149-500 7-095-929-9166 65-470-9875 27-11-804-2852 91-749-76-53 08-587-704-21 01-838-53-51 886-2-893-8210 66-2-271-3040 90-216-342-3332 0870-2430270 59-2-92-0473 58-2-903-1111 52-3-678-6210 51-1-224-8605 63-2-816-6718 351-14194-321 7-095-929-9170 65-479-8397 27-11-804-5013...
-
Page 15: Full One Year Warranty
Full One Year Warranty Kodak warrants this product against any defects that are due to faulty workmanship or material for a one-year period after the original date of purchase. During that one-year period, Kodak will replace this product without charge if defective in material or workmanship. To obtain warranty service, please contact Kodak support at the telephone numbers provided in your user’s manual. -
Page 16: Warranty Repair Coverage
If the equipment does not function properly during the warranty period due to defects in either materials or workmanship, Kodak will, at its option, either repair or replace the equipment without charge, subject to the conditions and limitations stated herein. -
Page 17: Regulatory Information
Regulatory Information FCC Compliance and Advisory This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 18: Canadian Doc Statement
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation.
