Ublox EVK-ANNA-B112 Quick Start

Quick Start EVK-ANNA-B112

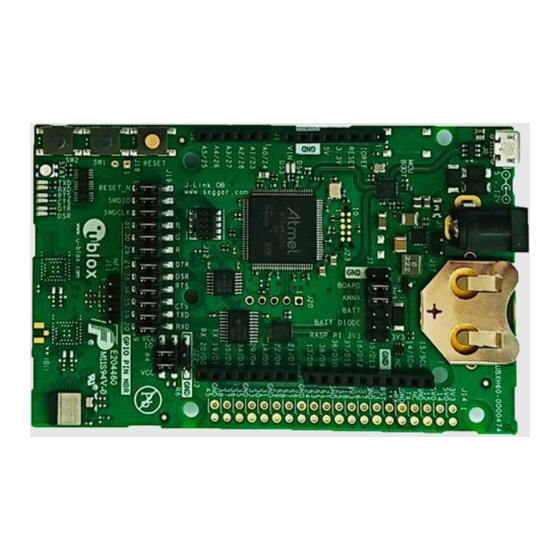

USB connector
RESET button
(SW0)
Restore button
(SW1)
Power RGB
LED DS9
UART LEDs: DS1, DS2,
DS5, DS6, DS7, DS8
UBX-18019809 - R03
U.FL ANNA-B112
connector module
Software installation
The EVK-ANNA-B112 software and doc-
umentation is available at www.u-blox.
com/evk-search. Supported Windows
operating systems are Vista, 7, 8, and 10.
1. Download latest s-center software; run
the executable following instructions.
2. When the installation is complete, find
the s-center menu under Windows
Start button, All Programs > u-blox
3. In the s-center menu, you will find the
s-center application, user guide and
uninstall options.
Refer to the EVK-ANNA-B112 User
Guide for a comprehensive description of
the evaluation kit.
Copyright © 2019, u-blox AG
