Monoplex Trio
INSTALLATION AND SERVICE MANUAL
Part Number
00-01070-000
PRELIMINARY
00-00929-100 00-00929-000 **
** non-back lit
CAUTION: The full power of the vehicle battery is available at the power input stud on the top
of the unit. Service should be performed by a qualified technician.
131 Eisenhower Lane North
Intellitec
Lombard, IL 60148
630.268.0010 / 1.800.251.2408
www.intellitec.com
1
P/N 53-00920-100 Rev. B 101505

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monoplex Trio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellitec Monoplex Trio

Summary of Contents for Intellitec Monoplex Trio

  • Page 1 Monoplex Trio INSTALLATION AND SERVICE MANUAL Part Number 00-01070-000 PRELIMINARY 00-00929-100 00-00929-000 ** ** non-back lit CAUTION: The full power of the vehicle battery is available at the power input stud on the top of the unit. Service should be performed by a qualified technician.

  • Page 2: Product Description

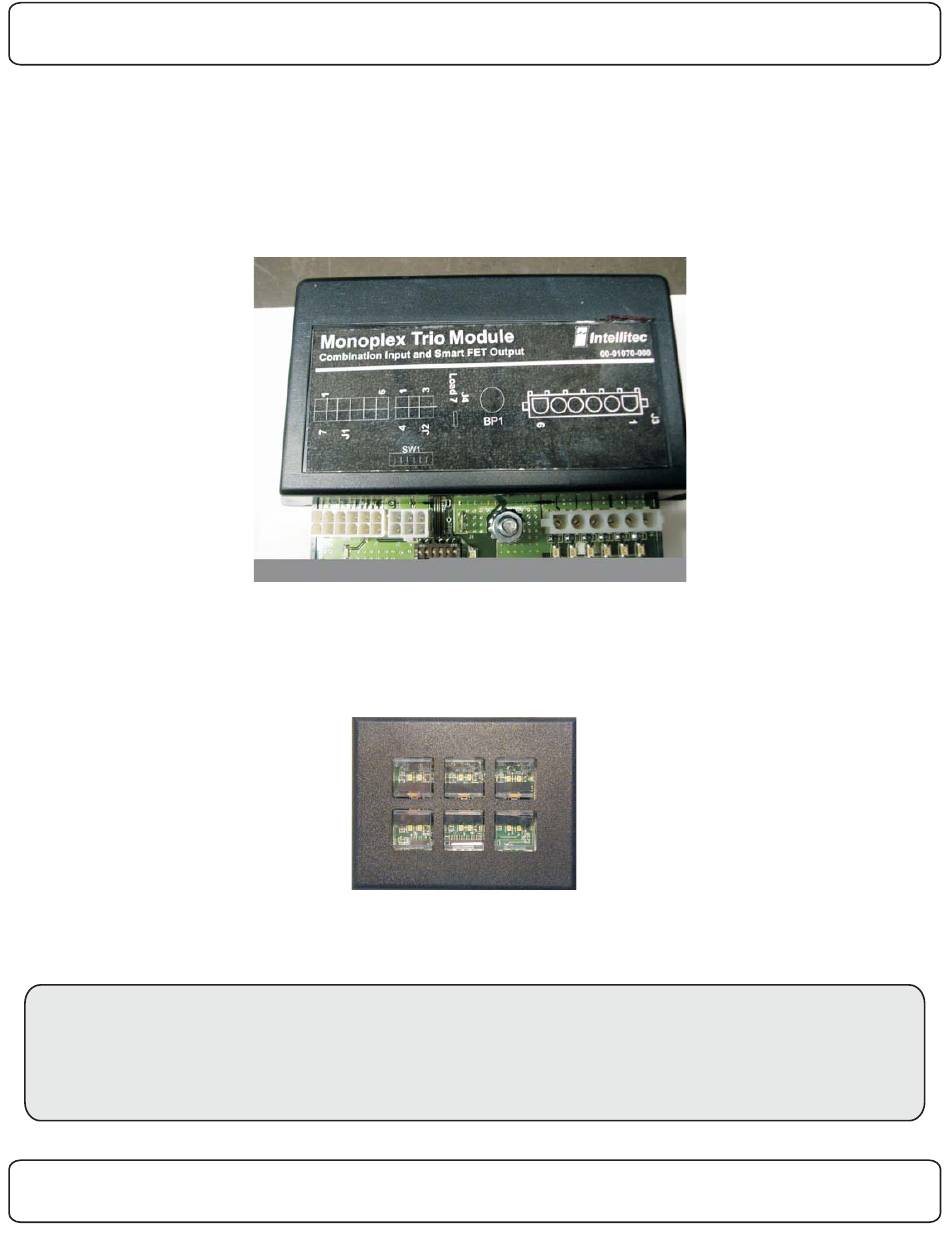

    PRODUCT DESCRIPTION The Monoplex Trio is used to switch 12 volt DC loads in a specialty vehicle application. It includes seven channels of switching, all of the output channels are solid state devices, (self-Protecting FETs). The module is capable of providing dimming on four channels and then ON/OFF logic control for the remaining three output channels.
  • Page 3 Once the Monoplex Trio TV Play Timer expires, cycle the ignition in order to reset the TV Play Timer. The timer setting is selected by position 5 and 6 of SW1, Dip Switch located on the Monoplex Trio module, (see page 6 for specifics).

  • Page 4: Installation

    When the button is released at the desired output intensity setting, the value is stored and will be recalled each time the output is enabled. If power is removed from the Monoplex Trio module and then restored, the last known ‘dim value’ will be remembered and sotred internally in the module.
  • Page 5 Monoplex Trio INSTALLATION AND SERVICE MANUAL SUGGESTED MINIMUM FOOTPRINT FOR MODULE 4 5/8” 6 5/8” 131 Eisenhower Lane North Intellitec Lombard, IL 60148 630.268.0010 / 1.800.251.2408 www.intellitec.com P/N 53-00920-100 Rev. B 101505...

  • Page 6: Dip Switch Settings

    Monoplex Trio INSTALLATION AND SERVICE MANUAL CONNECTOR PIN-OUTS & FUSES CAUTION - Maximum continuous current output for this module is 60 Amps. Maximum in-rush current for any channel is 70 Amps. The output channel is controlled by solid-state output devices, self-protecting FETs.

  • Page 7: Troubleshooting

    Switch Input Fault - Yellow LED fails to illuminate when a switch is pressed The fault will be communicated to the switch panel to alert the user of the fault condition. The Monoplex Trio will automatically shutdown if the inrush surge current is greater than 70 Amps on any channel.
  • Page 8 Monoplex Trio INSTALLATION AND SERVICE MANUAL 131 Eisenhower Lane North Intellitec Lombard, IL 60148 630.268.0010 / 1.800.251.2408 www.intellitec.com P/N 53-00920-100 Rev. B 101505...
  • Page 9 Monoplex Trio INSTALLATION AND SERVICE MANUAL 131 Eisenhower Lane North Intellitec Lombard, IL 60148 630.268.0010 / 1.800.251.2408 www.intellitec.com P/N 53-00920-100 Rev. B 101505...

This manual is also suitable for:

00-01070-000

Table of Contents
