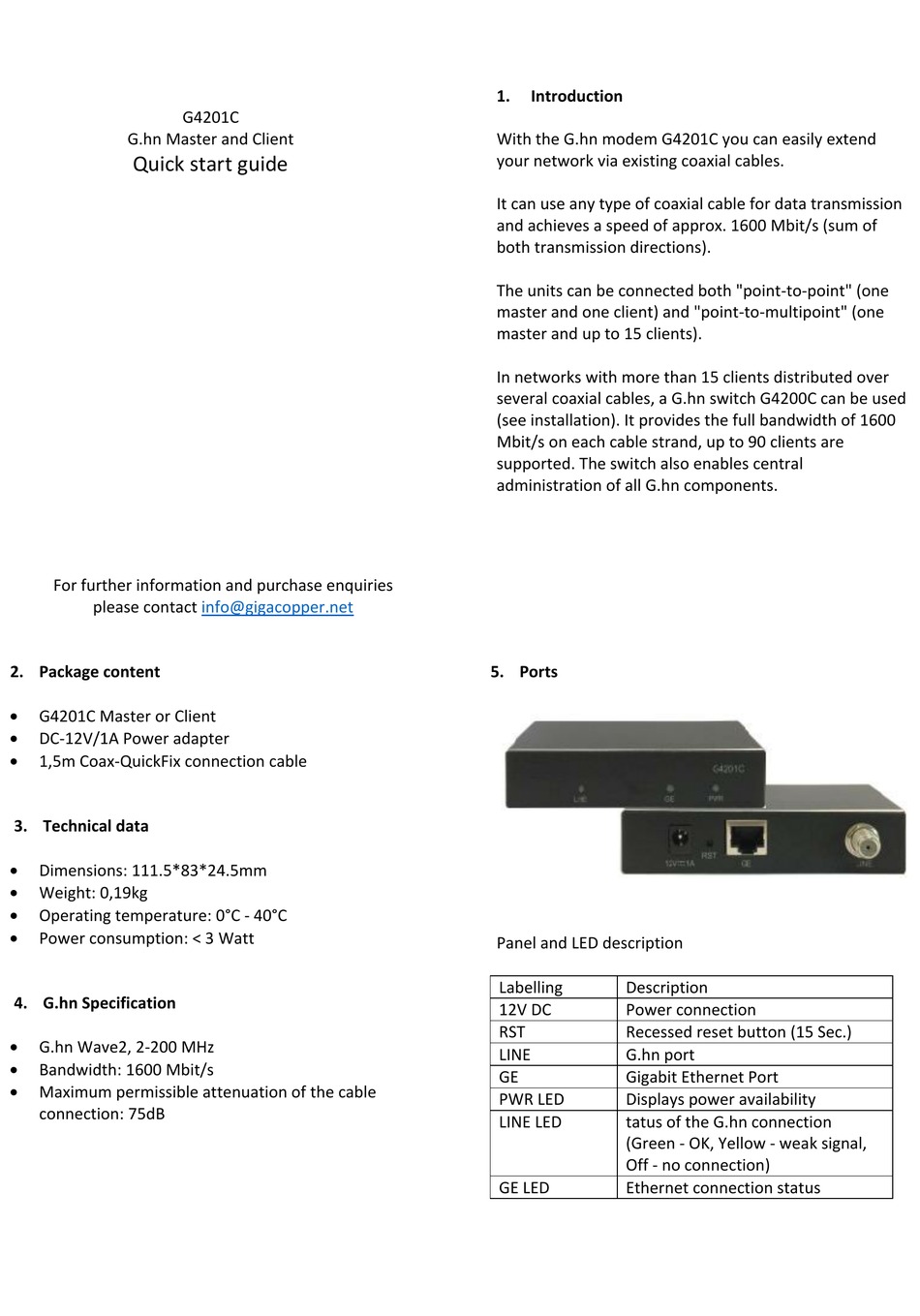

GIGA Copper G4201C Quick Start Manual

G4201C
G.hn Master and Client
Quick start guide
For further information and purchase enquiries
please contact
2. Package content

G4201C Master or Client

DC-12V/1A Power adapter

1,5m Coax-QuickFix connection cable
3. Technical data

Dimensions: 111.5*83*24.5mm

Weight: 0,19kg

Operating temperature: 0°C - 40°C

Power consumption: < 3 Watt
4. G.hn Specification

G.hn Wave2, 2-200 MHz

Bandwidth: 1600 Mbit/s

Maximum permissible attenuation of the cable
connection: 75dB
info@gigacopper.net
1. Introduction
With the G.hn modem G4201C you can easily extend
your network via existing coaxial cables.
It can use any type of coaxial cable for data transmission
and achieves a speed of approx. 1600 Mbit/s (sum of
both transmission directions).
The units can be connected both "point-to-point" (one
master and one client) and "point-to-multipoint" (one
master and up to 15 clients).
In networks with more than 15 clients distributed over
several coaxial cables, a G.hn switch G4200C can be used
(see installation). It provides the full bandwidth of 1600
Mbit/s on each cable strand, up to 90 clients are
supported. The switch also enables central
administration of all G.hn components.
5. Ports
Panel and LED description
Labelling Description
12V DC Power connection
RST Recessed reset button (15 Sec.)
LINE G.hn port
GE Gigabit Ethernet Port
PWR LED Displays power availability
LINE LED tatus of the G.hn connection
(Green - OK, Yellow - weak signal,
Off - no connection)
GE LED Ethernet connection status
