Summary of Contents for Welbilt Kolpak ArcticFox Deluxe Display

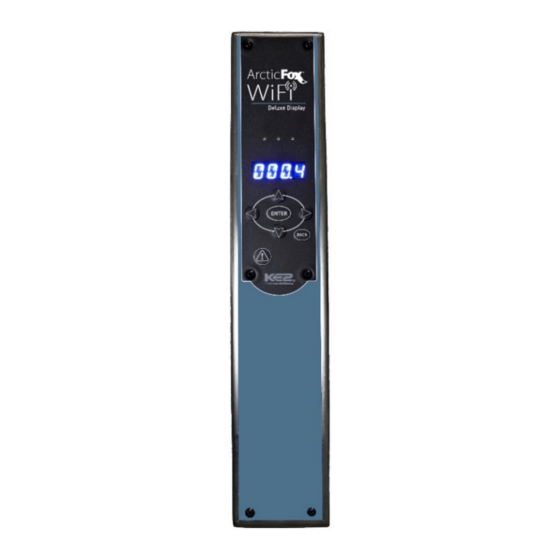

- Page 1 Protecting Your Future ArcticFox Deluxe Display Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 500002385-3 12/20...
- Page 2 Safety Notices DANGER Indicates a hazardous situation that, if not avoided, will Read this manual thoroughly before operating, result in death or serious injury. This applies to the most installing or performing maintenance on the extreme situations. equipment. Failure to follow instructions in this manual can cause property damage, injury or Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Receiving Inspection ........................4 Warranty Information ......................... 4 Section 2 Specifications Specifications ..........................5 Accessories ..........................5 Combinations Of Control......................6 Dimensions ..........................7 Deluxe Display – Stand Alone – Alarms & Variables Menu ............9 Deluxe Display –... -
Page 4: General Information
Section 1 General Information Receiving Inspection • Check the shipment carefully and compare to the bill of lading. • Account for all items listed and inspect each container for damage. • Carefully inspect for any concealed damage. • Report any shortages or damages to the carrier, note on the bill of lading, and file a freight claim. •... -
Page 5: Specifications
Section 2 Specifications Controller Input Voltage: 120 V or 208 V-240 V Ambient Temp: -40°F to 140°F (-40°C to 60°C) Operating Temp: -40°F to 140°F (-40°C to 60°C) Operating Humidity Range: 0%-95%, non-condensable (3) multi-use (temp sensor or digital input) Temperature/Digital Inputs: (1) Designated as digital input for door switch Input:... -
Page 6: Combinations Of Control
Combinations Of Control... -
Page 7: Dimensions
Dimensions - Inches... - Page 8 Connecting The Controllers...
-
Page 9: Deluxe Display - Stand Alone - Alarms & Variables Menu
Deluxe Display – Stand Alone – Alarms & Variables Menu ACCESS THE ALARMS MENU. Use the to scroll through the Alarms & Variables menu. Note: Alarms will display first, if no alarms are active only the Variables are displayed. NAME DESCRIPTION ROOMTEMP2 SENSOR ALARM Temp 2 input is shorted or open... -
Page 10: Deluxe Display - Stand Alone - Setpoints Menu
Deluxe Display – Stand Alone – Setpoints Menu 1. ACCESS THE SETPOINTS MENU. Press and hold for 3 seconds to access Setpoint mode. AUX1 Function is displayed. Use the to scroll through the Setpoints menu. (Press to display the current value of a Setpoint). To change the value, press and hold for 3 seconds. -
Page 11: Arcticfox Oem Controller - Variables Menu
ArcticFox OEM Controller – Variables Menu 1. ACCESS THE VARIABLES MENU. The controllers should be scrolling on the Deluxe Display (Ex. Freezer, -10.2F, Defrost, Cooler 35.0F) Use the to display the controller. Press to select desired controller. Use the to scroll through the menus (Setpoints – Variables – Manual Menu – Password – Alarms). Press when Variables is displayed. -
Page 12: Arcticfox Oem Controller - Setpoints Menu
ArcticFox OEM Controller – Setpoints Menu 1. ACCESS THE SETPOINTS MENU. The controllers should be scrolling on the Deluxe Display (Ex. Freezer, -10.2F, Defrost, Cooler 35.0F) Use the until desired controller is displayed. Press to select desired controller. Press Use the to scroll through the menus (Setpoints –... - Page 13 NAME Default DESCRIPTION The temperature the coil sensor(s) must exceed in order to DEFROST TERM TEMP 35.0°F 90.0°F 50.0°F terminate defrost Coefficient to KE2 Defrost algorithm. Only available if DEFROST DEFROST PARAMETER MODE = DEMAND Maximum amount of time the defrost relay is energized. Only MAX DEFROST TIME 0 Min 90 Min...
-
Page 14: Refrigerants
NAME Default DESCRIPTION An offset added or subtracted from the suction pressure SUCT PRES OFFSET -5.0 PSI 5.0 PSI 0.0 PSI transducer reading An offset added or subtracted from the temperature sensor SUCT TEMP OFFSET -5.0°F 5.0°F 0.0°F reading An offset added or subtracted from the air temperature sensor AIR TEMP OFFSET -5.0°F 5.0°F... -
Page 15: Aux Input Modes
Aux Input Modes NAME SCROLLING TEXT DISABLED Input not used ROOM TEMP Temperature input used as another Room Temp COIL TEMP Temperature input used as another Coil Temp MONITOR Temperature input used for monitoring only TEMP Inactive = 2 ROOM TEMP SP off, Active = WND ROOM TEMP SP on DOOR SWITCH Inactive = Door Closed, Active = Door Open EXT ALARM (1) (2) (3) -
Page 16: Arcticfox Oem Controller - Alarms Menu
ArcticFox OEM Controller – Alarms Menu Use the to move through the Menus (Setpoints – Variables – Manual Menu – Password – ALARMS). Press when Alarms is displayed. Use the to scroll through the Alarms list. Press once to return to the Menus. Press two more times to return to the default display. -
Page 17: Communications
NAME DESCRIPTION DISPLAY AUX3 SENSOR Set if display AUX3 Function set to one of the temperature inputs and input is shorted or open HIGH MONITOR TEMP3 Display Monitor3 temperature is above MON TMP3 HI ALRM for longer than MON TMP3 AL DLY LOW MONITOR TEMP3 Display Monitor3 temperature is below MON TMP3 LO ALRM for longer than MON TMP3 AL DLY DISP EXTERNAL ALARM 1... - Page 18 This page intentionally left blank...
- Page 19 This page intentionally left blank...
- Page 20 This page intentionally left blank...
- Page 21 This page intentionally left blank...
- Page 22 This page intentionally left blank...
- Page 23 This page intentionally left blank...
- Page 24 All of our products are backed by KitchenCare® – our aftermarket, repair, and parts service. CLEVELAND DELFIELD® FRYMASTER® KOLPAK® MANITOWOC® MERRYCHEF® CONVOTHERM FITKITCHEN™ GARLAND LINCOLN MERCO® MULTIPLEX® ©2017 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Continuing product improvement may necessitate change of specifications without notice. Part Number: 50002385-3 12/20...
