PORT SML-1145 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

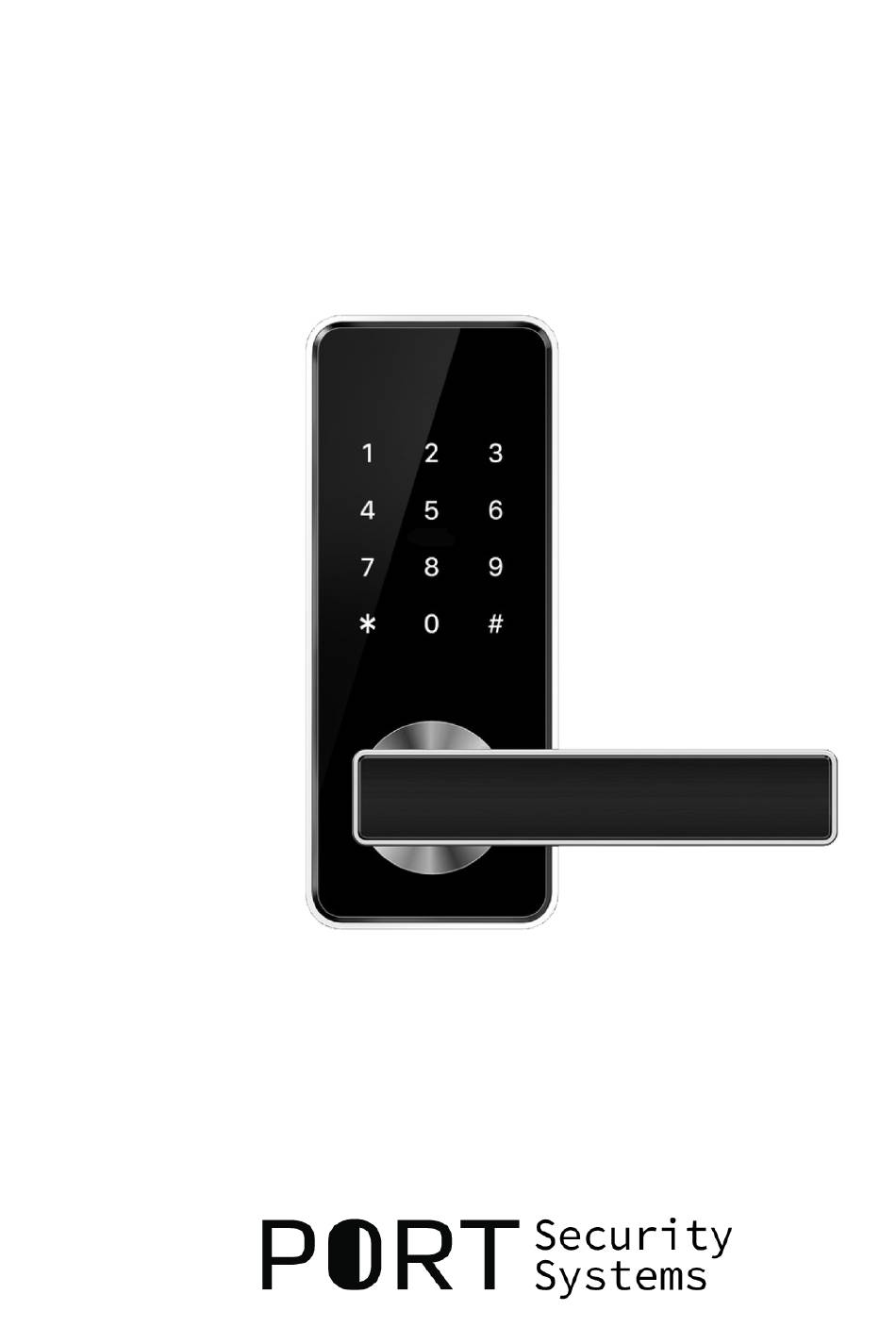

Smart Lock User Manual
Model: SML-1145

Advertisement

loading

Related Manuals for PORT SML-1145

Summary of Contents for PORT SML-1145

  • Page 1 Smart Lock User Manual Model: SML-1145...

  • Page 3: Table Of Contents

    Table of Contents In the Box Product Specifications Features Preparing the Lock Installation Instructions Programming Your Lock Setting Your Passcode Lock Records Remote WiFi Management (Optional) Troubleshooting...

  • Page 4: In The Box

    In the Box 2.) Back Panel (1) 3.) Latch (1) 1.) Front Panel (1) 4.) Manual Key (2) 5.) Waterproof 6.) Strike (1) Rubber Gasket (2) 8.) Bushing: M4x30mm 9.) Bushing: M5x30mm 7.) Strike Box (1)
  • Page 5 10.) Sliding 11.) Mortise Screws: 10x5 12.) Mortise Screws (2) (For Aluminum Door) (4) Screws: 25x4mm (For Wooden Door) 13.) M4x30mm Screw 14.) M4x50mm Screw 15.) M4x6mm Screws for Door Thickness for Door Thickness (For the Back Panel 35mm-55mm 60mm-65mm and Battery Panel) (4) (1 3/8’’- 2 1/16’’) (2) (2 1/8’’-2 1/2’’) (2)
  • Page 6 18.) M5x50mm Screws 19.)Wifi Gateway (optional) for door thickness 45mm-65mm (1 3/4’’-2 1/2’’) (1) 20.) Suction Cup (1)

  • Page 7: Product Specifications

    Product Specifications Model SML-1145 Materials 304 Stainless Steel & Zinc Alloy Front Panel Lock Size 170x70x20mm (6 3/4x 2 3/4x 3/4’’) Back Panel Lock Size 170x70x20mm (6 3/4x2 3/4x3/4’’) Lock Weight 1.5KG (3.3 lbs) Unlocking Methods Bluetooth Password Manual Key...
  • Page 8 (6 3/4’’) (3 3/8’’) (1’’) (2 3/4’’) (2 3/4’’) (2 1/4’’) (2 3/8’’) (1’’) Adjustable backset latch (slide the (“2 3/8’’) spindle hub to your desired backset) (3/4’’)

  • Page 9: Features

    Features Lock/Unlock • Unlock using Passcode, Bluetooth app (iOS and Android) or remotely using Wi-Fi (optional) • The Linnea Smart Lock unlocks with a permanent Master Passcode • Bluetooth keys based on duration can be generated and shared with guests. The mobile app can generate user passcodes, with validity duration from One-Time, Permanent, or a Duration based on Date-Time •...

  • Page 10: Preparing The Lock

    Preparing the Lock Set up the levers to match the swing hand of the door. Exterior Panel: Remove the 4 • For Left Swing: Put the screws back screws. Turn lever to left and tighten and set • For Right Swing: Turn lever to right and set Interior Panel:...

  • Page 11: Installation Instructions

    Installation Instructions Install Latch 1) Use the template enclosed to cut holes for the door. ‫٭‬It is important to follow the template 2) Adjust the latch to the desired backset (2 3/8’’ or 2 3/4’’) 3) Install the latch using the 25x4mm (Parts #12) for wood doors and 10x5mm (Parts #11) screws for aluminum doors...
  • Page 12 Installing Interior Panel and Wire 1) Install the second waterproof rubber gasket (Part #5) 2) Connect the wires to the exterior panel wire (just plug in and click) 3) Connect the interior panel to the exterior panel using the M4 screws (Parts 13 and 14) (pick the desired length based on the door thickness)
  • Page 13 Install the Battery 1) Install (8) new AAA batteries into the battery chamber Reinstall the Battery Cover 1) Put the battery cover back...
  • Page 14 Programming Your Lock 1) Search for TTLock in the App Store or Google Play to download Login Register Register Phone Email Country/Region American Samoa+1684 Enter your Phone number Password between 6-20 characters Phone number/Email Confirm Password Password Verification Code Get Code Login Register Forgot Password?
  • Page 15 2) Register a new account with your email address or login with an existing account (skip this step if you have an existing account) 3) Touch the glass panel to light, click “+Add Lock’’ on the app 4) The lock nearby will appear on the phone screen, click “+” 5) Rename the lock if you wish (EX: front door, back door, office, etc.) 6) Wait for “lock added”...
  • Page 16 Bluetooth Management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock, click “ ” to unlock (the phone (the phone needs to be within 16 feet of the door to unlock) needs to be within 16 feet of the door to unlock) Setting Your Passcode Passcodes can also be used to unlock the door.
  • Page 17 Generate Passcode Generate Passcode anent Timed One-Time Erase Custom anent Timed One-Time Erase Custom Recurruring Permanent 4-9 Digits in length Cancel You can Configure the Customized Passcode via Bluetooth or Remotely via a Gateway Succeeded. The passcode is 25097 Set Passcode Complete Share ‫٭‬You can share the...
  • Page 18 Sending E Keys 1) Click on “ ” as shown in the figure below; you can send the eKey to other users of TTLock to authorize the unlock (the receiver must download the app and set up an account) 2) Select e-key format (timed, permanent, one-time, recurring) 3) Enter the recipent’s account of TTLock, then set the name and effective time of the eKey.
  • Page 19 Authorized Admin Create Admin You can authorize admin Admin List status to other users Managing E Keys 1) Click “ ” to manage the eKeys you send. The key management here refers to the Bluetooth key management. 2) After the administrator has successfully added the lock, the administrator will have the highest rights of the lock.
  • Page 20 Lock Records Click “ “ as shown below. With “Lock Records” you can view: eKeys, saved passcodes and unlock history TTLock eKeys Pending... S31A 2020.03.06 11:14-2021.03.06 11:14 Touch to Unlock. Long Press to Lock Passcodes Records Refresh Records 444335 Invalid ...
  • Page 21 Remote Wifi Management (Optional) Adding a Gateway Please note that when adding a gateway, your smartphone and the gateway must be connected to the same Wi-Fi network.
  • Page 22 TTLock is directly connected via Bluetooth and is not connected to the network itself, which is why it is not vulnerable to network attacks. The gateway is an accessory of the smart lock, it is the bridge connecting the smart lock and the home wifi network. Through the gateway, users can remotely view and calibrate the lock clock, read the unlocking records of passwords in a timely manner and remotely delete and modify passwords.
  • Page 23 Troubleshooting Programming Troubleshooting 1) How do I read operation In the “Records” of the main records? interface or on the TTLock website 2) What is the maximum limit of There is no limit e-Key? 3) Why does it show “pending” Before the receiver opens the app when I send e-Keys to other to receive, the status shows...
  • Page 24 Hardware Troubleshooting 1) After installation, the touch a.) In this case, first check that the keypad is not responding positive and negative electrodes of the battery have been installed upside down, whether the battery has enough power b.) Remove the back panel and see if it’s connected c.) To eliminate the above situation, you need to remove the...
  • Page 25 7) How many records can be kept • Bluetooth: 500 on the lock? • Non-Bluetooth: 10,000 8) How many locks can match at No limit the same time? 9) I cannot automatically wake lock Change the spring wire when unlocking Resetting the Lock Open the cover plate of the back panel, press the “Reset”...
  • Page 26 Security Systems...
