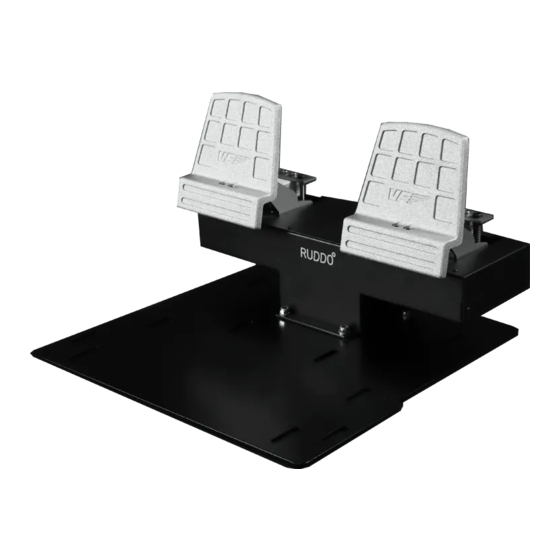

RUDDO & RUDDO+
USER'S MANUAL
Rev. 1.2 - November 2020

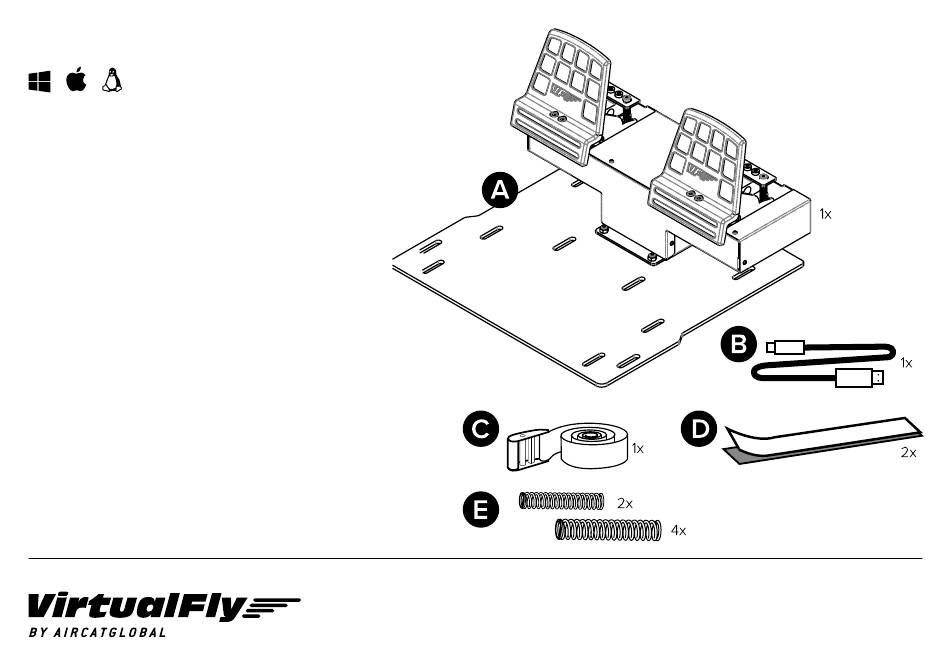

1. IN THE BOX
A) RUDDO / RUDDO+
B) USB-B to USB Cable
C) Lashing Strap
D) Velcro Strap with adhesive back
E) Extra Springs
For support visit help.virtual-fly.com
or contact us at support@virtual-fly.com
© 2021 Virtual Fly, SL
All trademarks and brand names are
trademarks or registered trademarks of their
respective owners. All rights reserved.
C. Maria Aurèlia Capmany, 21
P.I. La Fàbrica – 08297 Castellgalí (Spain)
Phone: (+34) 983 333 301
www.virtual-fly.com
Advertisement
Related Manuals for Aircatglobal Virtualfly RUDDO
Summary of Contents for Aircatglobal Virtualfly RUDDO
- Page 1 RUDDO & RUDDO+ USER’S MANUAL Rev. 1.2 - November 2020 1. IN THE BOX A) RUDDO / RUDDO+ B) USB-B to USB Cable C) Lashing Strap D) Velcro Strap with adhesive back E) Extra Springs For support visit help.virtual-fly.com or contact us at support@virtual-fly.com ©...
-
Page 2: Hardware Setup
2. HARDWARE SETUP If your chair has wheels or moves, you can use the lashing Place the RUDDO/RUDDO+ on the floor in front of the chair strap (C) to minimize its movements. Finally, connect the in the desired position. We recommend it is in contact with USB-B to USB cable (B) between the RUDDO/RUDDO+ and the wall. - Page 3 2.1 Changing the brakes and rudder An Allen key n.3 (not included) is needed to change the springs. hardness Your RUDDO/RUDDO+ offers the possibility to adapt the brakes and rudder hardness to your preference. 1. Unscrew one of the screws 2.1.1 Brakes hardness from the rear part of the pedal.
- Page 4 2.1.2. Rudder hardness For adjusting the rudder hardness, you can add or remove An Allen key n.2 (not included) is needed to one of the springs of each side of the rudder pedals. remove the black cover of the device. 1.
- Page 5 4. There are a total of 8 springs placed in 4 guides. Add or 3. Remove the white axis using a flat head screwdriver (not remove springs based on your preference. Below, you can included) see the four different configurations where the fourth is the strongest and the first one the softest.
-
Page 6: Software Setup
3. SOFTWARE SETUP The RUDDO/RUDDO+ interacts with any computer as a joystick (HID), so it is compatible with any flight simulation If your device is a RUDDO, make sure to calibrate software. Below, you have two options for setting up your the device in VFHub. - Page 7 3.2 Using an alternative joystick configuration Since the RUDDO/RUDDO+ interacts with any computer and go to the controls menu. Inside, select the ‘RUDDO/ as a joystick (HID), it is compatible with any flight simulation RUDDO+’ from the devices list. Assign the axes as you software.
