Summary of Contents for Aircatglobal VirtualFly SOLO-G1

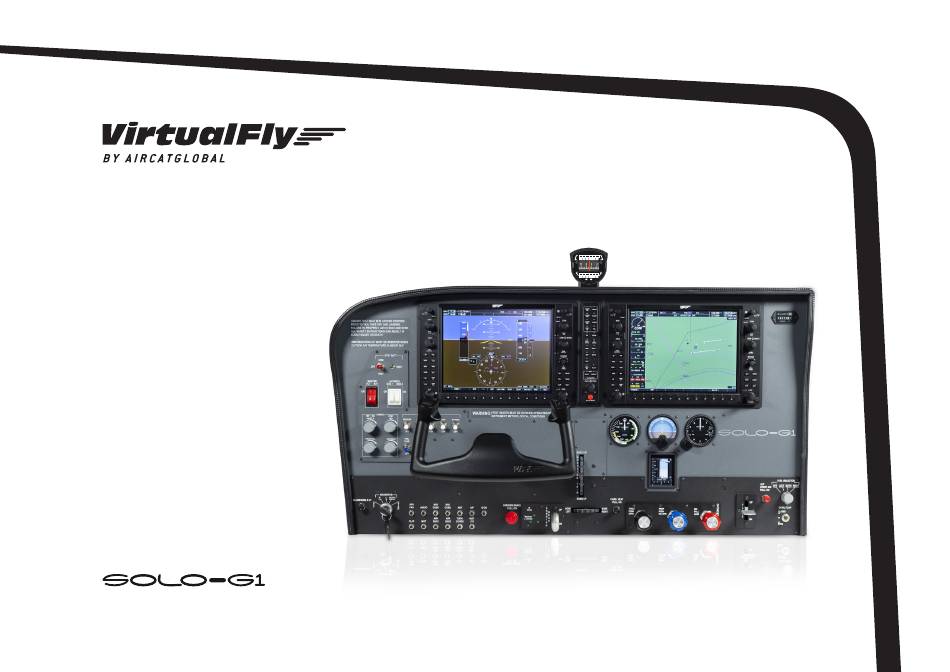

- Page 1 SOLO G1 USER'S MANUAL FO R 06 0E 120 150 ST EE R Rev. 1.1 FO R S2 10 240W 3003 30 STEE R February 2021 RADI O FOR Cessna C172SP Skyhawk, Cessna Skylane II RG R182 and Cessna T206...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. IDENTIFICATION OF ELEMENTS 2. INSTALLATION 2.1. CABLE CONNECTION 2.2. INSTALATION OF FILES TO THE COMPUTER OF MFS/P3D. 2.3. VF-COMPASS, YOKO & V3RNIO FLIGHT CONTROLS CONFIGURATION 3. START-UP THE SOLO-G1 4. SELECTION OF PANEL TYPE 5. GLASS-COCKPIT VF-G1000 5.1. -
Page 4: Identification Of Elements
1. IDENTIFICATION OF ELEMENTS Packaging contents: 1. SOLO-G1 panel (1 unit). 2. SOLO-G1 Electrical power cable (1 unit). 3. SOLO-G1 Network cable (1 unit). 4. YOKO+ “the yoke” USB cable (1 unit) (male, male A-B). 5. V3RNIO “TPM” USB cable (1 unit) (male, male A-A). 6. -
Page 5: Installation
2. INSTALLATION OPTION 1: Direct Switch OFF Cable 2 The SOLO-G1, has been technologically developed to be fully plug&play. It connects easily to any computer running the “Microsoft Cable 4 Flight Simulator” or “Prepar3D” hereinafter referred to as “MFS/P3D”. Still, we’ll give you a series of steps to follow to install your panel. The user must consider that SOLO-G1 has 5 important modules: FO R 06 0E... - Page 6 2.2. INSTALLATION OF FILES TO THE COMPUTER OF MFS/P3D FSUIPC Installation To install the Aircraft follow these instructions: In case you already have FSUIPC installed in your MFS/Prepar3D you • Go to the FSX-Prepar3D installation root folder. Default locations are: can skip this step.
-
Page 7: Vf-Compass, Yoko & V3Rnio Flight Controls Configuration
2.3. VF-COMPASS, YOKO & V3RNIO FLIGHT CONTROLS V3RNIO CONFIGURATION Configuration Using VF-Test&Calibrate-S YOKO • Disable "VirtualFly - TPM V3RNIO" assignments on MFS/P3D "Button and keys" tab and "Axes" tab. YOKO calibration on Windows (example based on Windows 7) • Just double click on the "VF-Test&Calibrate-S.exe" file to execute it. •... -
Page 8: Start-Up The Solo-G1
3. START UP THE SOLO-G1 The SOLO-G1 incorporates a mini-computer that is to be connected to FIGURE 1 Switch ON Push the MFS/P3D computer using the previously mentioned Network cable. It is important to note that in no case should you access or manage the SOLO-G1 mini-computer. - Page 9 DEACTIVATING THE SOLO-G1 • If you have the Windows FireWall activated, a warning permission to • Press the black push-button (F) on the back of the SOLO-G1 to deacti- communicate with networks appears, you must click "Allow Access". vate the operating system. Wait for "Windows" to completely stop. • Once the connection is established, you should see an image like • Once "Windows " is stopped, disconnect the red switch (2) on the the second. back.
-
Page 10: Selection Of Panel Type
4. SELECTION OF PANEL TYPE (ACCORDING THE FSX/P3D PLANE) FO R 06 0E 120 150 ST EE R The SOLO-G1 can represent 3 panel types of general aviation aircraft, FO R S2 10 240W 3003 30 STEE R RADI O Cessna C172SP Skyhawk, Cessna Skylane II RG R182 and Cessna T206. -
Page 11: Glass-Cockpit Vf-G1000
5. GLASS-COCKPIT VF-G1000 5.1. INTRODUCTION 5.2. PFD/MFD CONTROLS The SOLO-G1 can represent 3 panel types of general aviation aircraft, Cessna C172SP Skyhawk, Cessna Skylane II RG R182 and Cessna T206. Our G1000 simulation training device looks and works like the G1000 in your airplane and is a great training tool. - Page 12 5. GLASS-COCKPIT VF-G1000 - SOLO-G1 USER'S MANUAL...
- Page 13 5. GLASS-COCKPIT VF-G1000 - SOLO-G1 USER'S MANUAL...
-
Page 14: Multiple Soloflightpanel Or Multiple
6. MULTIPLE SOLO- FLIGHTPANEL OR MULTIPLE MFS/P3D COMPUTER IN THE SAME NETWORK If you connect more than one SOLO-G1 to the same network, you should be aware that to use them simultaneously you should have more than one computer using MFS/P3D connected to the same network and indi- cate the right "MFS/P3D computer"... -
Page 15: Troubleshooting
7. TROUBLESHOOTING 3. A Windows firewall window should appear. 4. Depending on your windows version: a. Windows XP: On the exceptions tab, there is a list where you should find VFConnect, check the check box to allow that it connects. If VFConnect is not on the list, press “Add a program”... -
Page 16: Anomaly: Connection Goes Down, Is Intermittent Or Indicators Moves Sharply
POSSIBLE Network Discovery disabled CAUSE 8 SOLUTION Check that in your current network profile (Public / Home or Work ) Network discovery option is turned on. For that, go to: "Control Panel\All Control Panel Items\Network and Sharing Center\Advanced sharing settings" and turn Discovery Network option on for all profiles available. -
Page 17: Technical Features
8. TECHNICAL FEATURES INPUT: 110 – 240Vac ~1Amp. 50/60Hz. Anchors measures (8 units M6) (mm) General packaging measures (mm) 102,4 427,6 SOLO-G1 general measures (mm) 8. TECHNICAL FEATURES - SOLO-G1 USER'S MANUAL... -
Page 18: Remote Assistance
9. REMOTE ASSISTANCE In case you need help from VirtualFly technical service, there is the pos- 3. Wait until the next tab appears on the screen: sibility to make a remote connection to your SOLO-G1. For that, you should do the following: 1. - Page 19 9. REMOTE ASSISTANCE - SOLO-G1 USER'S MANUAL...
- Page 20 VIRTUAL FLY HEADQUARTERS c. Morales, 39 bajos 08029 Barcelona (Spain) R & D CENTER - SHOWROOM C. Maria Aurèlia Capmany, 29 P. I. La Fàbrica 08297 Castellgalí - Barcelona (Spain) T. (+34) 93 833 33 01 info@virtual-fly.com www.virtual-fly.com...
