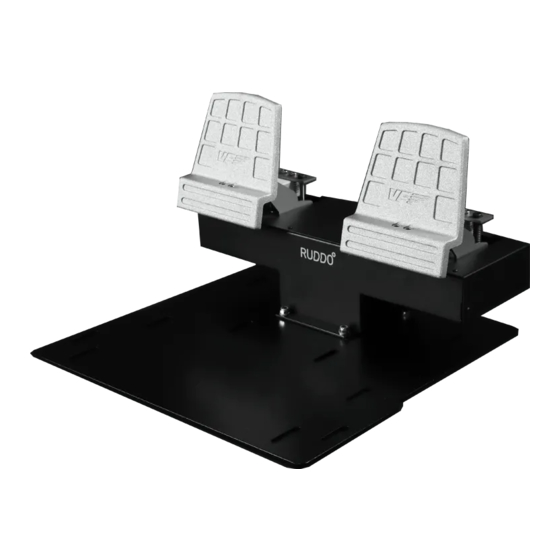

RUDDO & RUDDO+
USER'S MANUAL
Rev. 2.0 - March 2022
1. IN THE BOX
A) RUDDO/RUDDO+
B) USB Cable
C) Lashing Strap
D) Velcro Strip with adhesive back
E) Extra Springs
For support, contact us at
support@virtual-fly.com
A
C
E
© 2022 Virtual Fly, SL
All trademarks and brand names are
trademarks or registered trademarks of their
respective owners. All rights reserved.
B
D
1x
2x
4x
C. Maria Aurèlia Capmany, 21
P.I. La Fàbrica – 08297 Castellgalí (Spain)
Phone: (+34) 938 333 301
https://www.virtual-fly.com/
1x
1x
2x
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aircatglobal VirtualFly RUDDO
Summary of Contents for Aircatglobal VirtualFly RUDDO
- Page 1 RUDDO & RUDDO+ USER’S MANUAL Rev. 2.0 - March 2022 1. IN THE BOX A) RUDDO/RUDDO+ B) USB Cable C) Lashing Strap D) Velcro Strip with adhesive back E) Extra Springs For support, contact us at support@virtual-fly.com © 2022 Virtual Fly, SL C.
-
Page 2: Hardware Setup
2. HARDWARE SETUP If your chair has wheels or moves, you can use the lashing 2.1 SECURING & CONNECTING TO PC strap (C) to minimize its movement, as displayed below. Place the RUDDO/RUDDO+ on the floor in front of the chair in the desired position. - Page 3 2.2 CHANGING BRAKING AND RUDDER CONTROL HARDNESS A 3mm Allen key (not included) is needed to change the springs. Your RUDDO/RUDDO+ offers the possibility to adapt the brakes and rudder pedals hardness to match your preference. 2.2.1 Brake hardness 1. Unscrew one of the screws from the rear part of the pedal.
- Page 4 2.2.2 Rudder hardness 2. Carefully remove the cover. To adjust the hardness of the rudder pedals, you can add or remove springs located under the RUDDO/RUDDO+’s cover. You have four possible configurations to choose from, all displayed in Step 4. Follow the following steps to add/remove springs: A 2mm Allen key (not included) is needed to remove the black cover of the device.
- Page 5 4. There can be a total of 8 springs placed in 4 guides. Add or remove springs (E) based on your hardness preference. A flat head screwdriver (not included) is needed to Below, you can see the four different configurations, where remove the white axis of the device.
-
Page 6: Software Setup
3. SOFTWARE SETUP VFHub takes care of making your RUDDO/RUDDO+ work with MSFS, Prepar3D and X-Plane 11, so it must always be The RUDDO/RUDDO+ interacts with any computer as a V4-V5 running when you use the RUDDO/RUDDO+. joystick (HID), so it is compatible with any flight simulation software. - Page 7 Prepar3D If you want to customize how your RUDDO/RUDDO+ Open Prepar3D and go to the “Options” menu. Locate the works, select the device’s options button ( ) in VFHub’s “Key Assignments” and “Axis Assignments” and select the Dashboard. For detailed instructions on all the tuning and “RUDDO/RUDDO+”...
