  • Page 1 8900 Keystone Crossing, Suite 1220 Indianapolis, Indiana 46240 1 . 800 . KLIPSCH • www.klipsch.com Make sure you return your warranty card so that we may keep you up-to-date on new Klipsch products and promo- tions. As always, if you have any questions, contact your local authorized Klipsch dealer.
  • Page 2 LF-10 and LF-12 Subwoofers O w n e r ’s Manual & Wa rranty...
  • Page 3 CAUTION! To reduce the risk of electric shock and fire, do not remove the cover or back plate of this device. There are no user-serviceable parts inside. Refer repairs to a Klipsch authorized service center. AVIS: Risque de choc electricque, ne pas ouvrir.

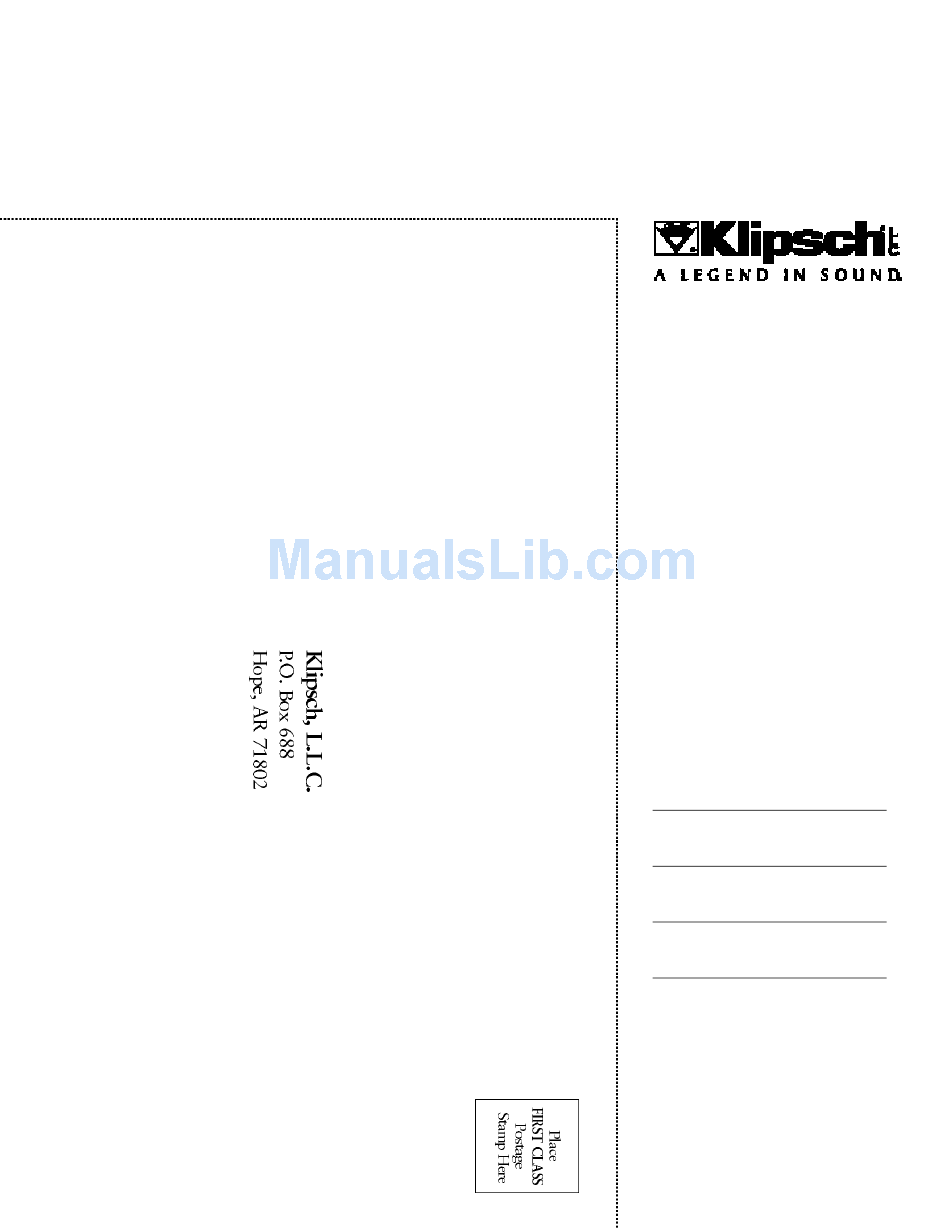

  • Page 4 Have you purchased Klipsch products before? If yes, what products? Product Name(s): When do you hope to purchase additional loudspeakers? How likely are you to consider Klipsch products for your upcoming purchases? Somewhat likely Doubtful If doubtful, why? Don’t carry product I’m looking for...

  • Page 5: Component Specifications

    KLIPSCH, L.L.C. (“KLIPSCH”) warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below). For a period of five (5) years from the date of purchase, KLIPSCH will repair or replace (at KLIPSCH’s option) this product or any defective parts (excluding electronics and amplifiers) in this product.
  • Page 6 15. Dangerous Entry. Care should be taken that no foreign objects or liquids fall or are spilled inside the device. 16. Damage Requiring Service. The device should be serviced by a Klipsch authorized service center when: -The plug or power supply cord has been damaged.

  • Page 7: Subwoofer Placement

    To ensure that your loudspeaker is in its original condition, please inspect it immediately. If any damage is discovered, notify the authorized Klipsch dealer that the unit was purchased from or the transporta- tion company responsible for safe delivery. In the latter case, make a request for inspection from the transportation company and hold the product in its original shipping carton for the inspector.
  • Page 8 FIGURE A LF SERIES INPUT PANEL Main speakers full range • Line level connections shown at left, one channel shown, repeat for opposite channel • Speaker level connections shown at right, one channel shown, repeat for opposite channel • Optional LFE connection (— - - — - - — ) compatible with speaker or line level hookups FIGURE B LF SERIES INPUT PANEL...

  • Page 9: Operating Controls

    Connect the “LFE/BYPASS IN” input on the LF-10 and LF-12 to your electronic’s desig- nated LFE output jack. The “LFE/BYPASS IN” requires a low pass filtered signal from your electronics (high frequencies removed).
  • Page 10 floorstanding speakers as they are better able to handle bass energy, only needing reinforcement at the lowest frequencies. The subwoofer’s high pass filter has a gentle cutoff so there is still some audible signal content in your main speakers below the circuit’s cutoff frequency.

  • Page 11: Troubleshooting

    (if present) from the system. If the hum disappears, consult your Klipsch dealer for a ground isolator for the cable line. If this does not solve the problem, contact your Klipsch dealer for further advice.

  • Page 12: Speaker Level Connections

    Be sure to observe proper polarity when making connections between the subwoofer and the amplifier (+ to + and - to -). If the polarity of one of these wires is reversed, the output of the subwoofer will be diminished. Most speaker wire is color-coded or has some distinguishing feature differentiating the two conductors.
