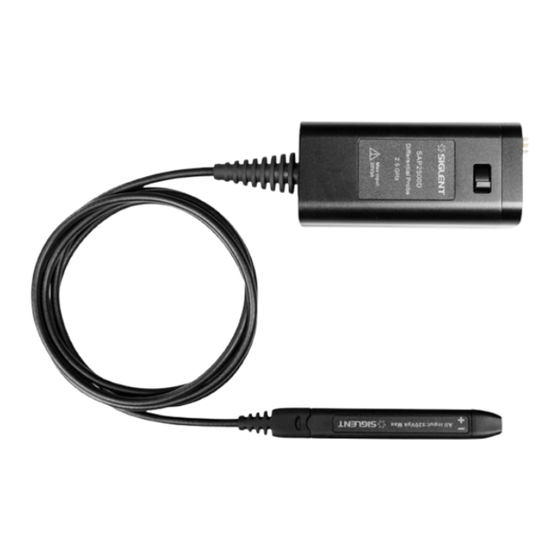

SIGLENT TECHNOLOGIES SAP2500D User Manual

Differential probe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SAP2500D
Differential Probe
User Manual
EN01A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAP2500D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGLENT TECHNOLOGIES SAP2500D

Summary of Contents for SIGLENT TECHNOLOGIES SAP2500D

  • Page 1 SAP2500D Differential Probe User Manual EN01A...

  • Page 3: Table Of Contents

    UALITY SSURANCE ..........................8 AINTENANCE GREEMENT MECHANICAL DIMENSION ..........................9 ACCESSORIES ..............................10 PROBE OPERATION ............................14 ..................14 ONNECTING THE ROBE TO AN SCILLOSCOPE ..................14 ONNECTING THE ROBE TO THE IRCUIT SPECIFICATIONS..............................16 SAP2500D Differential Probe User Manual...

  • Page 4: Safety Instructions

    Use indoors only. Keep product surfaces clean and dry. Be careful with sharp tips. The tips may cause bodily injury if not handled properly. SAP2500D Differential Probe User Manual...

  • Page 5: Symbols

    Temperature： 5° C to 40° C. Humidity：The maximum relative humidity is 80 % for temperatures up to 30 ° C decreasing linearly to 50 % relative humidity at 40° C. Altitude：Up to 10,000 ft (3,048 m). SAP2500D Differential Probe User Manual...

  • Page 6: Calibration

    CAUTION: The probe case is not sealed and should never be immersed in any fluid. 1.5 Abnormalities This probe should only be used for the purpose specified by the manufacturer. The probe may be damaged when it exhibits visible damage or is subjected to SAP2500D Differential Probe User Manual...
  • Page 7 WARNING: Using the probe in a manner not specified by the manufacturer may damage the probe. This probe and related accessories should not be directly connected to the human body or used for patient monitoring. SAP2500D Differential Probe User Manual...

  • Page 8: First Steps

    If you fail to contact us immediately in case of omission or damage, we will not be responsible for replacement. Figure 1 SAP2500D Differential Probe 2.2 Functional Check The function check needs to use an oscilloscope that supports the SIGLENT SAPBus interface.
  • Page 9 6. Change the scale factor of channel 1 to 500 mV/div, 200 mV/div, 100 mV/div, 50 mV/div, 20 mV/div, 10 mV/div, and repeat Step 5 to check the average voltage reading at each scale. SAP2500D Differential Probe User Manual...

  • Page 10: Quality Assurance

    We provide various services based on maintenance agreements. We offer extended warranties as well as installation, training, enhancement and on-site maintenance, and other services through specialized supplementary support agreements. For details, please consult your local SIGLENT customer service center or distributor. SAP2500D Differential Probe User Manual...

  • Page 11: Mechanical Dimension

    SAPBus interface 115.0 mm × 38.9 mm × 24.5 mm Probe head 100.0 mm x 12.0 mm x 10.0 mm Tip Pitch 2.54mm Cable length 1.3 m (from the probe head to the compensation box) SAP2500D Differential Probe User Manual...

  • Page 12: Accessories

    4 Accessories The SAP2500D Differential probes are provided with numerous features and accessories to make probing and connecting to different test points easier than ever. Quantity Unit Standard Accessory Part Number Straight Tip 2.74.70.12.003 Pogo Tip 2.74.70.12.004 Swivel Tip 2.74.70.10.018 Tip Saver 2.74.70.10.019...
  • Page 13 Swivel Tip (Part Number 2.74.70.10.018)：The swivel tip adapter features adjustable tip spacing to reach test points. A 20 Ω damping resistor is included to reduce inductive peaking. Tip Saver (Part Number 2.74.70.10.019)：To prevent wear out on the probe SAP2500D Differential Probe User Manual...
  • Page 14 Spring-loaded Ground (Part Number Short 2.52.42.11.025 / Long SAP2500D Differential Probe User Manual...
  • Page 15 A damping 56.2 Ω resistor is included to reduce inductive peaking. Channel ID Clips (Part Number 2.75.23.10.003)：They are used to distinguish the oscilloscope channel that the probe is connected to. SAP2500D Differential Probe User Manual...

  • Page 16: Probe Operation

    (wear wrist strap, etc.) when using or handling the probe. 5.1 Connecting the Probe to an Oscilloscope The SAP2500D differential probes have been designed for use with Siglent’s SDS5000X and SDS6000A platforms equipped with the SAPBus interface. When you attach the probe output connector to the oscilloscope’s input connector, the oscilloscope recognizes the probe and provides proper termination.
  • Page 17 Using one of the available accessories makes the SAP2500D probe with its small profile and low mass head ideally suited for applications in dense circuitry.

  • Page 18: Specifications

    With low input capacitance and high input resistance, circuit loading is minimized. With the SAPBus interface, the SAP2500D becomes an integral part of the oscilloscope measurement circuit. The probe can be controlled from the oscilloscope’s front panel. The oscilloscope provides power to the probe, so there is no need for a separate power supply or batteries.
  • Page 19 100 kΩ Offset range ± 8 V ÷10 Attenuation ratio (DC) Offset accuracy < 3% DC gain accuracy < 3% Input dynamic range ± 4 V Maximum input voltage 20 V (non-destructive) Cable length 130 cm SAP2500D Differential Probe User Manual...
  • Page 20 Figure 3 Typical system frequency response of the SAP2500D and an SDS6204A SAP2500D Differential Probe User Manual...
  • Page 21 SAP2500D Differential Probe User Manual...
