The SIGLENT TECHNOLOGIES SDS1104X-E oscilloscope does not have a dedicated spectrum analyzer, but it includes a 1 million point FFT math function, which provides high-frequency resolution for observing signal spectra.

This answer is automatically generated

Summary of Contents for SIGLENT TECHNOLOGIES SDS1104X-E

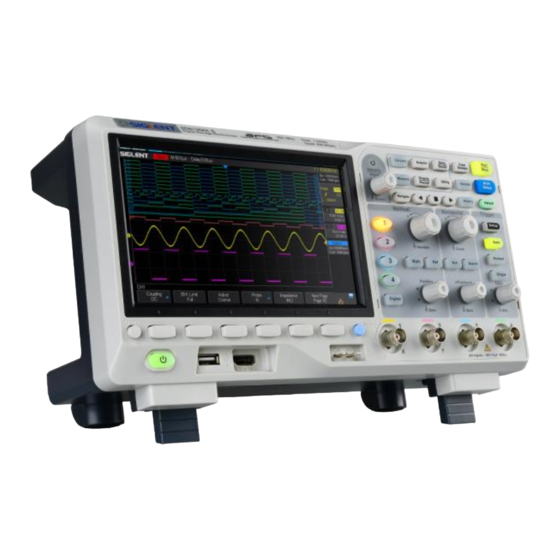

Page 1 SDS1000X-E User Manual SDS1000X-E Series Digital Oscilloscope User Manual UM0101E-E03B...
Page 2 Copyright SIGLENT TECHNOLOGIES CO., LTD. All Rights Reserved. Trademark Information SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD. Declaration SIGLENT products are protected by patent law in and outside of P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision.
Page 3 SDS1000X-E User Manual Safety Information General Safety Summary Carefully read the following safety precautions to avoid any personal injury or damage to the instrument and any products connected to it. To avoid potential hazards, please use the instrument as specified. Use Proper Power Line Only the power cord designed for the instrument and authorized by local country could be used.
Page 4 SDS1000X-E User Manual Do Not Operate in Wet Conditions. In order to avoid short circuiting to the interior of the device or electric shock, please do not operate in a humid environment. Do Not Operate in an Explosive Atmosphere. In order to avoid damages to the device or personal injuries, it is important to operate the device away from an explosive atmosphere.
Page 5: Safety Terms And Symbols
SDS1000X-E User Manual Safety Terms and Symbols Terms in this Manual. These terms may appear in this manual: WARNING Warning statements indicate the conditions or practices that could result in injury or loss of life. CAUTION Caution statements indicate the conditions or practices that could result in damage to this product or other property.
Page 6: Measurement Category
SDS1000X-E User Manual Measurement Category Measurement Categories This oscilloscope can make measurements in other circuits that are not directly connected to mains. WARNING This oscilloscope can only be used for measurements within its specified measurement categories. Not to use the product for measurements within other measurement categories, such as CAT II, CAT III, CAT IV.
Page 7: Working Environment
SDS1000X-E User Manual Working Environment Temperature Operating: 10℃ to +40℃ Non-operation:-20℃ to +70℃ Humidity Under +35℃:≤90% relative humidity +35℃ to +40℃: ≤60% relative humidity WARNING To avoid short circuit inside the instrument or electric shock, please do not operate in humid environment.
Page 8: General Care And Cleaning
SDS1000X-E User Manual General Care and Cleaning Care Do not store or leave the instrument in direct sunshine for long periods of time. WARNING To avoid damages to the instrument or probe, please do not leave them in fog, liquid, or solvent.
Page 9: L'information De Sûreté
SDS1000X-E User Manual L'information de sûreté Résumé général de sûreté Lisez soigneusement les mesures de sécurité suivantes pour éviter n'importe quelles blessures ou les dommages à l'instrument et à tous les produits se sont reliés à eux. Pour éviter des risques, utilisez svp l'instrument comme indiqué.
Page 10 SDS1000X-E User Manual service qualifié avant d'autres opérations. N'importe quel entretien, ajustement ou remplacement particulièrement aux circuits ou aux accessoires doivent être exécutés par le personnel autorisé par SIGLENT. Ne fonctionnez pas en conditions humides. Afin d'éviter de court-circuiter à l'intérieur du dispositif ou de la décharge é lectrique, svp ne fonctionnez pas dans un environnement humide.
Page 11: Limites Et Symboles De Sûreté
SDS1000X-E User Manual Limites et symboles de sûreté Limites en ce manuel. Ces limites peuvent apparaî tre en ce manuel : Les rapports d'avertissement D'AVERTISSEMENT indiquent les conditions ou les pratiques qui pourraient avoir comme conséquence les dommages ou la perte de la ie. Les rapports d'attention d'ATTENTION indiquent les conditions ou les pratiques qui pourraient avoir comme consequence...
Page 12: Catégorie De Mesure
SDS1000X-E User Manual Catégorie de mesure Les oscilloscopes peuvent faire des mesures dans d'autres circuits qui ne sont pas directement reliés aux forces. Pour ne pas employer le produit pour des mesures dans d'autres catégories de mesure, telles que le CAT II, CAT III, CAT IV. Ne pas utiliser l'é...
Page 13: Environnement De Fonctionnement
SDS1000X-E User Manual Environnement de fonctionnement Opération de la température : 10℃ au non-fonctionnement de +40℃ : - 20℃ à l'humidité de +70℃ sous +35℃ : humidité relative +35℃ de ≤90% à +40℃ : humidité relative de ≤60% EN AVERTISSANT d'éviter le court-circuit à...
Page 14: Condition De Ventilation
SDS1000X-E User Manual Condition de ventilation This oscilloscope uses fan to force cooling. Please make sure that the air intake and exhaust areas are free from obstructions and have free air. When using the oscilloscope in a bench-top or rack setting, provide at least 10 cm clearance beside, above and behind the instrument for adequate ventilation.
Page 15: Soin Général Et Nettoyage
SDS1000X-E User Manual Soin général et nettoyage Ne stockez pas ou ne laissez pas l'instrument en soleil direct pendant de longues périodes. Pour éviter d'endommager l'instrument, svp ne les laissez pas dans le brouillard, le liquide, ou le dissolvant. nettoyage Veuillez exécuter les étapes suivantes pour nettoyer l'instrument régulièrement selon ses conditions de fonctionnement.
Page 16: Document Overview
SDS1000X-E User Manual Document Overview This manual introduces how to use the digital oscilloscope in details. Provide information about preparations before Quick Start using the instrument and a brief introduction of the instrument. Vertical System Introduce the functions of the vertical system of the oscilloscope.
Page 17: Table Of Contents
SDS1000X-E User Manual Table of Content Copyright and Declaration ......................I Safety Information .......................... II General Safety Summary ......................II Safety Terms and Symbols ....................... IV Measurement Category ......................V Working Environment ......................VI Ventilation Requirement ......................VI General Care and Cleaning ..................... VII L'information de sûreté...
Page 18 SDS1000X-E User Manual Vertical Position ........................27 Coupling ..........................27 Bandwidth Limit ........................28 Probe ............................28 Input Impedance ........................29 Unit ............................29 Deskew ............................ 29 Invert ............................30 Trace Visible/Hidden ....................... 30 Horizontal System ........................30 Horizontal Scale ........................31 Trigger Delay..........................
Page 19 SDS1000X-E User Manual Interval Trigger ......................75 DropOut Trigger ......................77 Runt Trigger ........................79 Pattern Trigger ......................81 Serial Trigger and Decode ......................83 I2C Trigger and Serial Decode ....................84 Setup for I2C Signals ....................84 I2C Trigger ........................85 I2C Serial Decode ......................
Page 20 SDS1000X-E User Manual Voltage Measurements ....................130 Time Measurements ..................... 131 Delay Measurements ....................132 Automatic Measurement ...................... 134 All Measurement ........................136 Gate Measurement ....................... 137 Clear Measurement ....................... 137 Display ............................138 Display Type .......................... 139 Color Display ......................... 140 Persistence ..........................
Page 21 SDS1000X-E User Manual Set and Perform Pass/Fail Test ................167 Save and Recall Test Mask ..................168 Arbitrary Waveform Generator(Option)................171 Output ........................... 172 Wave..........................172 Setting .......................... 174 Systems ........................175 Remove Device ......................177 IO Set ............................. 178 USB Device .........................
Page 22 SDS1000X-E User Manual Content of Figure Figure 1 Front View (2-channel scope) ..................3 Figure 2 Top View (2-channel scope) ..................3 Figure 3 Front View (4-channel scope) ..................4 Figure 4 Top View (4-channel scope) ..................4 Figure 5 Adjust the Supporting Legs ..................5 Figure 6 To Connect to Power Supply ..................
Page 23 SDS1000X-E User Manual Figure 44 MISO Menu ......................91 Figure 45 MOSI Menu ......................91 Figure 46 SPI TRIG SET Menu ....................92 Figure 48 BUS CONFIG Menu ....................94 Figure 50 UART Trigger ......................96 Figure 58 C1+C2 Waveform ....................113 Figure 59 C1*C2 Waveform ....................
Page 24 SDS1000X-E User Manual Figure 103 Built-in Arb Interface ................... 174 Figure 92 AWG Setting Interface ................... 174 Figure 105 AWG System Information Interface ............. 176 Figure 106 AWG Update Interface ..................177 Figure 107 LAN Setting Interface ..................179 Figure 108 WIFI Setting Menu ....................180 Figure 109 Web Server Interface ..................
Page 25: Quick Start
SDS1000X-E User Manual Quick Start This chapter introduces the preparations when using the oscilloscope for the first time, the front panel, rear panel and user interface of the oscilloscope, The contents of this chapter:  General Inspection  Appearance and Dimensions ...
Page 26: General Inspection
SDS1000X-E User Manual General Inspection 1. Inspect the shipping container for damage. Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has passed both electrical and mechanical tests. The consigner or carrier shall be liable for the damage to instrument resulting from shipment.
Page 27: Appearance And Dimensions
SDS1000X-E User Manual Appearance and Dimensions Figure 1 Front View (2-channel scope) Figure 2 Top View (2-channel scope) WWW.SIGLENT.COM...
Page 28 SDS1000X-E User Manual Figure 3 Front View (4-channel scope) Figure 4 Top View (4-channel scope) WWW.SIGLENT.COM...
Page 29: Prepare For Using
SDS1000X-E User Manual Prepare for Using Adjust the Supporting Legs Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement of the oscilloscope as well as better operation and observation. Figure 5 Adjust the Supporting Legs Connect the Power Supply The power requirements of the oscilloscope are 100-240 V, 50/60Hz or 100-120 V, 400Hz.
Page 30: Power-On Inspection
SDS1000X-E User Manual 2-channel scope 4-channel scope Figure 6 To Connect to Power Supply Power-on Inspection When the oscilloscope is energized, press the power key at the lower-left corner of the front panel to start the oscilloscope. During the start-up process, the oscilloscope performs a series of self-tests and you can hear the sound of relay switching.
Page 31 SDS1000X-E User Manual 2-channel scope 4-channel scope 3. Use the probe to connect the input terminal of CH1 of the oscilloscope and the “Compensation Signal Output Terminal” of the probe. 4. Press the Auto Setup. 5. Observe the waveform on the display. In normal condition, the display should be a square waveform as shown in the figure below: Figure 7 Function Inspection 6.
Page 32: Probe Compensation
SDS1000X-E User Manual Probe Compensation When the probes are used for the first time, you should compensate the probes to match the input channels of the oscilloscope. Non-compensated or poorly compensated probes may cause measurement inaccuracy or error. The probe compensation procedures are as follows.
Page 33: Front Panel Overview
SDS1000X-E User Manual Front Panel Overview Figure 8 2-channel Scope Front Panel Overview NO. Description NO. Description LCD Display Vertical Control Universal Knob Probe Compensation/ Ground Terminal Common Function Menus Analog Channel and Ext Input Run/Stop USB Host Auto Setup Menu Softkey Trigger Control Menu on/off...
Page 34 SDS1000X-E User Manual Figure 9 4-Channel Scope Front Panel Overview NO. Description NO. Description LCD Display Horizontal Control Universal Knob Trigger Control Common Function Menus Menu on/off Clear Sweeps Menu Softkey Run/Stop One- Button shortcut for Save Decode Analog Channel Auto Setup Power Button Navigate...
Page 35: Rear Panel Overview
SDS1000X-E User Manual Rear Panel Overview Figure 10 2-Channel Scope Rear panel Overview 1. Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. 2. Safety lock Hole You can lock the instrument to a fixed location using the security lock (please buy it yourself) via the lock hole.
Page 36 SDS1000X-E User Manual Figure 11 4-channel Scope Rear panel Overview 1. Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. 2. LAN The instrument can be connected to network via this interface to perform remote control.
Page 37: Front Panel Function Overview
SDS1000X-E User Manual Front Panel Function Overview Horizontal 4-channel scope 2-channel scope : Quickly enter the roll mode. The timebase range is from 50mS/div to 100S/div. : Enable or disable search function. This function can search for the events that users specify in the acquired data, the results are displayed with white triangle symbol.
Page 38: Vertical
SDS1000X-E User Manual Vertical 2-channel scope 4-channel scope Analog input channels. The two channels are marked by different colors which are also used to mark both the corresponding waveforms on the screen and  the channel input connectors. Vertical Position Knob : adjust the vertical position of the current channel waveform.
Page 39: Trigger
SDS1000X-E User Manual Trigger 2-channel scope 4-channel scope : press the button to enter the TRIGGER function menu. The oscilloscope provides abundant advanced trigger functions : press the button to set the trigger mode to Auto. : press the button to set the trigger mode to Normal. : press the button to set the trigger mode to Single.
Page 40: Run Control
SDS1000X-E User Manual Run Control : press this key to enable the waveform auto setting function. The oscilloscope will automatically adjust the vertical scale, horizontal time base and trigger mode according to the input signal to realize optimum waveform display. : press the button to set the acquisition state to Run or Stop.
Page 41: Universal Knob
SDS1000X-E User Manual Universal Knob 1. Adjust the waveform intensity. You can press the Display/Persist button; press the Next Page softkey to go to the second page of the DISPLAY function menu; press the Intensity softkey and then turn the Universal Knob to adjust the waveform intensity. 2.
Page 42: Menu
SDS1000X-E User Manual Menu 2-channel scope common function panel 4-channel scope common function panel : Press to enter the CURSOR function menu. The oscilloscope provides manual and track cursor mode. : Press to enter the DISPLAY function menu and quickly enable the persist function.
Page 43: Help
SDS1000X-E User Manual waveforms, pictures, or CSV files, binary data, matlab files, and default key presets to internal memory or USB flash driver. : Press the button to reset the oscilloscope to user default setup. : Press the button to enter the history mode. In history mode, it can record most 80000 frames waveforms.
Page 44: User Interface
SDS1000X-E User Manual Figure 12 Help Message User Interface Figure 13 User Interface WWW.SIGLENT.COM...
Page 45 SDS1000X-E User Manual 1. Product Logo SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD. 2. Channel Label/Waveform Different channels are marked by different colors and the color of the waveform complies with the color of the channel. 3. Trigger Status Available trigger status includes Ready, Auto, Stop, Arm, Trig’d.
Page 46 SDS1000X-E User Manual channel. Available probe attenuation factors: 0.1X, 0.2X, 0.5X, 1X, …properties 2000X, 5000X, 10000X. Input impedance : display the current input impedance of the channel. Input impedance that available: 1MΩ. Channel coupling : display the current channel coupling of the channel. Channel coupling that available: DC, AC, and GND.
Page 47: Security Lock
SDS1000X-E User Manual Security Lock If needed, you can use the security lock (please buy it yourself) to lock the oscilloscope to a fixed location. The method is as follows, align the lock with the lock hole and plug it into the lock hole vertically, turn the key clockwise to lock the oscilloscope and then pull the key out.
Page 48: Vertical System
SDS1000X-E User Manual Vertical System This chapter introduces how to set the vertical system of the oscilloscope. The contents of this chapter:  Enable the Channel  Adjust Scale  Vertical Position  Coupling  Bandwidth Limit  Probe  Input Impedance ...
Page 49: Enable The Channel
SDS1000X-E User Manual Enable the Channel The oscilloscope provides 2/4analog input channels and provides independent vertical control system for each channel. As the vertical system setting methods of every channel is the same, this chapter takes CH1 as an example to introduce the setting method of the vertical system.
Page 50: Adjust Scale
SDS1000X-E User Manual Adjust Scale The vertical scale can be adjusted in Coarse or Fine mode.  Coarse adjustment (take counterclockwise as an example): set the vertical scale in 1-2-5 step namely 500uV/div, 1 mV/div, 2 mV/div, 5 mV/div, 10 mV/div …10 V/div. ...
Page 51: Vertical Position
SDS1000X-E User Manual Vertical Position Turn the VERTICAL Position Knob to adjust the vertical position of the channel waveform. Turn the knob clockwise to increase the vertical position and the channel waveform moves up while counterclockwise to reduce the vertical position and the waveform moves down.
Page 52: Bandwidth Limit
SDS1000X-E User Manual Bandwidth Limit Set the bandwidth limit to reduce display noise. For example, the signal under test is a pulse with high frequency oscillation.  When the bandwidth limit set to Full, the high frequency components of the signal under test can pass the channel.
Page 53: Input Impedance
SDS1000X-E User Manual 5000X 5000 : 1 10000X 10000 : 1 Input Impedance The channel input impedance is 1MΩ.  Impedance setting to 1MΩ is for use with many passive probes and for general- purpose measurements. The higher impedance minimizes the loading effect of the oscilloscope on the device under test.
Page 54: Invert
SDS1000X-E User Manual Invert When Invert is set to On, the voltage values of the displayed waveform are inverted. Invert affects how a channel is displayed and it keeps the trigger settings. Inverting a channel also changes the result of any math function selected and measure function.
Page 55: Horizontal Scale
SDS1000X-E User Manual Horizontal Scale Turn the HORIZONTAL Scale Knob on the front panel to adjust the horizontal time base. Turn clockwise to reduce the horizontal time base and turn counterclockwise to increase. The time base information at the upper left corner of the screen will change accordingly during the adjustment.
Page 56: Trigger Delay
SDS1000X-E User Manual Trigger Delay Turn the Position Knob on the front panel to adjust the trigger delay of the waveform. During the modification, waveforms of all the channels would move left or right and the trigger delay message at the upper-right corner of the screen would change accordingly. Press down this knob to quickly reset the trigger delay.
Page 57: Roll Mode
SDS1000X-E User Manual Roll Mode Press the Roll button to enter the roll mode. In Roll mode the waveform moves slowly across the screen from right to left. It only operates on time base settings of 50 ms/div and slower. If the current time base setting is faster than the 50 ms/div limit, it will be set to 50 ms/div when Roll mode is entered.
Page 58: Zoom Mode
SDS1000X-E User Manual Zoom Mode Zoom is a horizontally expanded version of the normal display. You can use Zoom to locate and horizontally expand part of the normal window for a more detailed (higher- resolution) analysis of signals. Press the HORIZONTAL Scale Knob on the front panel to turn on the zoom function, and press the button again to turn off the function.
Page 59 SDS1000X-E User Manual To change the time base of the normal window, turn off Zoom; then, turn the Horizontal Scale Knob. WWW.SIGLENT.COM...
Page 60: Sample System
SDS1000X-E User Manual Sample System This chapter introduces how to use the run control and set the sampling system of the oscilloscope. The contents of this chapter:  Run Control  Overview  Memory Depth  Sampling Mode  Interpolation Method ...
Page 61: Run Control
SDS1000X-E User Manual Run Control Press the Run/Stop or Single button on the front panel to run or stop the sampling system of the scope.  When the Run/Stop b is green, the oscilloscope is running, that is, acquiring data when trigger conditions are met.
Page 62: Overview
SDS1000X-E User Manual Overview To understand the oscilloscope's sampling and acquisition modes, it is helpful to understand sampling theory, sample rate and oscilloscope bandwidth and sample rate. Sampling Theory The Nyquist sampling theorem states that for a limited bandwidth (band- limited) signal with maximum frequency f , the equally spaced sampling frequency f must be greater...
Page 63: Bandwidth And Sample Rate
SDS1000X-E User Manual 3. Waveform Leakage: when the sample rate is too low, the waveform rebuilt from the sample data does not reflect all the actual signal information. Pulse disappeared Bandwidth and Sample Rate An oscilloscope's bandwidth is typically described as the lowest frequency at which input signal sine waves are attenuated by 3 dB (- 30% amplitude error).
Page 64: Memory Depth
SDS1000X-E User Manual However, digital signals have frequency components above the fundamental frequency (square waves are made up of sine waves at the fundamental frequency and an infinite number of odd harmonics), and typically, for 500 MHz bandwidths and below, oscilloscopes have a Gaussian frequency response.
Page 65: Sampling Mode
SDS1000X-E User Manual oscilloscope provides up to 14 Mpts memory depth. Press the Acquire button on the front panel; press the Mem Depth softkey and then turn the Universal Knob to select the desired value and push down the knob to confirm. Press the Mem Depth softkey continually can also select the desired value.
Page 66 SDS1000X-E User Manual out the gaps between points, to reconstruct an accurate waveform. Press the Acquire button on the front panel to enter the ACQUIRE Function menu; then press the Interpolation softkey to select Sinx/x or X.  X: In the adjacent sample points are directly connected on a straight line. This method is only confined to rebuild on the edge of signals, such as square wave.
Page 67 SDS1000X-E User Manual Figure 17 x Interpolation Figure 18 Sinx/x Interpolation WWW.SIGLENT.COM...
Page 68: Acquisition Mode
SDS1000X-E User Manual Acquisition Mode The acquisition mode is used to control how to generate waveform points from sample points. The oscilloscope provides the following acquisition mode: Normal, Peak Detect, Average and Eres. 1. Press the Acquire button on the front panel to enter the ACQUIRE function menu; 2.
Page 69: Peak Detect
SDS1000X-E User Manual Peak Detect In this mode, the oscilloscope acquires the maximum and minimum values of the signal within the sample interval to get the envelope of the signal or the narrow pulse of the signal that might be lost. In this mode, signal confusion can be prevented but the noise displayed would be larger.
Page 70: Average
SDS1000X-E User Manual Figure 21 Pulse With 0.1% Duty, Peak Detect Mode Average In this mode, the oscilloscope averages the waveforms from multiple samples to reduce the random noise of the input signal and improve the vertical resolution. The greater the number of averages is, the lower the noise will be and the higher the vertical resolution will be but the slower the response of the displayed waveform to the waveform changes will The available range of averages is from 4 to 1024 and the default is 16.
Page 71: Eres
SDS1000X-E User Manual Figure 22 With Random Noise, Normal Mode Figure 23 With Random Noise, Average Mode Eres This mode uses a kind of ultra-sample technique to average the neighboring points of the sample waveform to reduce the random noise on the input signal and generate much WWW.SIGLENT.COM...
Page 72 SDS1000X-E User Manual smoother waveforms on the screen. This is generally used when the sample rate of the digital converter is higher than the storage rate of the acquisition memory. Eres mode can be used on both single- shot and repetitive signals and it does not slow waveform update.
Page 73: Horizontal Format
SDS1000X-E User Manual Horizontal Format Press the Acquire button on the front panel; then press the XY soft key to set the XY(On) or YT(Off) mode. The default setup is YT. It is the normal viewing mode for the oscilloscope. In the Normal time mode, signal events occurring before the trigger are plotted to the left of the trigger point and signal events after the trigger plotted to the right of the trigger point.
Page 74 SDS1000X-E User Manual obtained should be within quadrant I and IV, namely within (0 to π/2) or (3π/2 to 2π). If the principal axis of the ellipse is within quadrant II and IV, the phase deviation angle obtained should be within quadrant II and III, namely within (π/2 to π) or (π to 3π/2). X-Y function can be used to measure the phase deviation occurred when the signal under test passes through a circuit network.
Page 75: Sequence Mode
SDS1000X-E User Manual Sequence Mode Sequence is also a kind of acquisition mode, which does not display waveform during sampling process. It improves the waveform capture rate, and the maximal capture rate is 400,000 wfs/s. So it can capture the small probability event effectively. The oscilloscope runs and fills a memory segment for each trigger event.
Page 76 SDS1000X-E User Manual every frame and shows the frame number that displaying on the screen. 3. Press the Frame No. softkey; and then turn the Universal Knob to select the frame to display. 4. Press the softkey to replay the waveform from the current frame to 1. 5.
Page 77: Trigger
SDS1000X-E User Manual Trigger For trigger, you set certain trigger condition according to the requirement and when a waveform in the waveform stream meets this condition, the oscilloscope captures this waveform as well as the neighboring part and displays them on the screen. For digital oscilloscope, it displays waveform continuously no matter whether it is stably triggered, but only stable trigger can ensures stable display.
Page 78 SDS1000X-E User Manual  Trigger Level  Trigger Coupling  Trigger Holdoff  Noise Rejection  Trigger Type WWW.SIGLENT.COM...
Page 79: Trigger Source
SDS1000X-E User Manual Trigger Source The 2-channel oscilloscope’s trigger source includes analog channels, EXT, EXT/5 and AC Line. The 4-channel oscilloscope’s trigger source includes analog channels and AC Line. Press the Setup button on the front panel to enter the TRIGGER function menu; press the Source softkey and then turn the Universal Knob to select the desired trigger source.
Page 80: Trigger Mode
SDS1000X-E User Manual Trigger Mode The oscilloscope’s trigger mode includes auto, normal and single. Trigger mode affects the way in which the oscilloscope searches for the trigger After the oscilloscope starts running, the oscilloscope operates by first filling the pre-trigger buffer. It starts searching for a trigger after the pre-trigger buffer is filled and continues to flow data through this buffer while it searches for the trigger.
Page 81 SDS1000X-E User Manual  To capture burst or other unusual signals. WWW.SIGLENT.COM...
Page 82: Trigger Level
SDS1000X-E User Manual Trigger Level Trigger level and slope define the trigger point, You can adjust the trigger level for a selected analog channel by turning the Trigger Level Knob. You can push the Trigger Level Knob to set the level to the waveform's 50% value immediately.
Page 83: Trigger Coupling
SDS1000X-E User Manual Trigger Coupling Press the Setup button on the front panel to enter the TRIGGER function menu, and then press the Coupling softkey and turn the Universal Knob or press the Coupling softkey continually to select the desired coupling mode. The oscilloscope provides 4 kinds of trigger coupling modes: ...
Page 84: Trigger Holdoff
SDS1000X-E User Manual Trigger Holdoff Trigger holdoff can be used to stably trigger the complex waveforms (such as pulse series). Holdoff time is the amount of time that the oscilloscope waits before re-arming the trigger circuitry. The oscilloscope will not trigger until the holdoff time expires. Use the holdoff to trigger on repetitive waveforms that have multiple edges (or other events) between waveform repetitions.
Page 85: Noise Rejection
SDS1000X-E User Manual Noise Rejection Noise Reject adds additional hysteresis to the trigger circuitry. By increasing the trigger hysteresis band, you reduce the possibility of triggering on noise. However, this also decreases the trigger sensitivity so that a slightly larger signal is required to trigger the oscilloscope.
Page 86 SDS1000X-E User Manual Figure 27 Turn on the Noise Reject If the signal you are probing is noisy, you can set up the oscilloscope to reduce the noise in the trigger path and on the displayed waveform. First, stabilize the displayed waveform by removing the noise from the trigger path.
Page 87: Trigger Type
SDS1000X-E User Manual Trigger Type The oscilloscope provides abundant advanced trigger functions, including various serial bus triggers.  Edge trigger  Slope trigger  Pulse trigger  Video trigger  Window trigger  Interval trigger  DropOut trigger  Runt trigger ...
Page 88: Edge Trigger
SDS1000X-E User Manual Edge Trigger Edge trigger distinguishes the trigger points by seeking the specified edge (rising, falling, alter) and trigger level. Rising Edge Falling Edge Trigger Level Trigger Point Trigger Point 1. Press the Setup button on the front panel to enter the TRIGGER system function menu.
Page 89: Slope Trigger
SDS1000X-E User Manual Slope Trigger The slope trigger looks for a rising or falling transition from one level to another level in greater than or less than a certain amount of time. In the oscilloscope, positive slope time is defined as the time difference between the two crossing points of trigger level line A and B with the positive edge as shown in the figure below.
Page 90 SDS1000X-E User Manual Figure 29 Slope Trigger 6. Press the Limit Range softkey; then turn the Universal Knob to select the desired slope condition, and push down the knob to confirm.  <= (less than a time value): trigger when the positive or negative slope time of the input signal is lower than the specified time value.
Page 91: Pulse Trigger
SDS1000X-E User Manual Pulse Trigger Trigger on the positive or negative pulse with a specified width. Positive Pulse Width Trigger Level Negative Pulse Width 1. Press the Setup button on the front panel to enter the TRIGGER function menu. 2. Press the Type softkey; turn the Universal Knob to select Pulse and then push the knob to confirm.
Page 92 SDS1000X-E User Manual than the specified upper limit of time value. For example, for a positive pulse, if you set t (pulse real width) >100ns and t<300ns, the waveform will trigger.  --][-- (outside a range of time value): trigger when the positive or negative pulse time of the input signal is greater than the specified upper limit of time and lower than the specified lower limit of time value.
Page 93: Video Trigger
SDS1000X-E User Manual Video Trigger Video triggering can be used to capture the complicated waveforms of most standard analog video signals. The trigger circuitry detects the vertical and horizontal interval of the waveform and produces triggers based on the video trigger settings you have selected. The oscilloscope supports standard video signal field or line of NTSC (National Television Standards Committee), PAL (Phase Alternating Line) HDTV (High Definition Television) and custom video signal trigger.
Page 94 SDS1000X-E User Manual (line value)/6 (line value)/7 (line value)/8 The table below takes Of Lines as 800 as an example to explain the relation between Of Lines, Of Fields, Interlace, Trigger Line and Trigger Field. Of Lines Of Fields Interlace Trigger Line Trigger Field 1,2,4 or 8 1, 1~2, 1~4, 1~8...
Page 95 SDS1000X-E User Manual turn the universal to select 022 and push the knob to confirm; press the Field softkey and then turn the Universal Knob to select 1 and push the knob to confirm Figure 31 Video Trigger To Use Custom Video Trigger Custom video trigger supports frame rate of 25Hz, 30Hz, 50Hz and 60Hz, and the line range is available from 300 to 2000.
Page 96: Window Trigger
SDS1000X-E User Manual Window Trigger Windows trigger provides a high trigger level and a low trigger level. The instrument triggers when the input signal passes through the high trigger level or the low trigger level. There are two kinds of window types: Absolute and Relative. They have different trigger level adjustment methods.
Page 97 SDS1000X-E User Manual level. Figure 32 Absolute Window Trigger To set window trigger via Relative window type: 1. Press the Setup button on the front panel to enter the TRIGGER system function menu. 2. Press the Type softkey; then use the Universal Knob to select Window and push down the knob to confirm.
Page 98 SDS1000X-E User Manual Figure 33 Relative Window Trigger WWW.SIGLENT.COM...
Page 99: Interval Trigger
SDS1000X-E User Manual Interval Trigger Trigger when the times difference between the neighboring rising or falling edges meets the time limit (<=, >=, [--,--], --][--). Trigger Trigger To set interval trigger: 1. Press the Setup button on the front panel to enter the TRIGGER system function menu.
Page 100 SDS1000X-E User Manual Figure 34 Interval Trigger WWW.SIGLENT.COM...
Page 101: Dropout Trigger
SDS1000X-E User Manual DropOut Trigger DropOut trigger includes two types: edge and state. Edge Trigger when the time interval (△T) from when the rising edge (or falling edge) of the input signal passes through the trigger level to when the neighboring rising edge (or falling edge) passes through the trigger level is greater than the timeout time set, as shown in the figure below.
Page 102 SDS1000X-E User Manual Figure 35 Edge DropOut Trigger To set state DropOut trigger: 1. Press the Setup button to enter the TRIGGER system function menu. 2. Press the Type softkey; then turn the Universal Knob to select DropOut and push doown the knob to confirm.
Page 103: Runt Trigger
SDS1000X-E User Manual Runt Trigger The Runt trigger looks for pulses that cross one threshold but not another as shown in the picture below. Positive runt pulse High level Low level Negative runt pulse  A positive runt pulse across through a lower threshold but not an upper threshold. ...
Page 104 SDS1000X-E User Manual Figure 37 Runt Trigger WWW.SIGLENT.COM...
Page 105: Pattern Trigger
SDS1000X-E User Manual Pattern Trigger The Pattern trigger identifies a trigger condition by looking for a specified pattern. The pattern trigger can be expanded to incorporate delays similar to other triggers. Pattern durations are evaluated using a timer. The timer starts on the last edge that makes the pattern “true”.
Page 106 SDS1000X-E User Manual 6. Press the Time softkey; then turn the Universal Knob to select the desired time value. 7. Press the Holdoff Close softkey to turn on the Holdoff function; then turn the Universal Knob to select the desired value. Figure 38 Pattern Trigger WWW.SIGLENT.COM...
Page 107: Serial Trigger And Decode
SDS1000X-E User Manual Serial Trigger and Decode The oscilloscope provides I2C, SPI, UART, CAN and LIN serial trigger and decode. This chapter introduces the method of triggering and decoding these serial signals in details. The contents of this chapter:  I2C Trigger and Decode ...
Page 108: I2C Trigger And Serial Decode
SDS1000X-E User Manual I2C Trigger and Serial Decode Please in order of “Setup for I2C Signals”, “I2C Trigger” and “I2C Serial Decode” to trigger and decode the signals. Setup for I2C Signals Setting the I2C (Inter-IC bus) signal includes two steps: connecting the serial data signal (SDA) and serial clock signal (SCK) to oscilloscope, specifying the threshold voltage of each input signal.
Page 109: I2C Trigger
SDS1000X-E User Manual I2C Trigger This part introduces the nine kinds of trigger conditions (Start, Stop, Restart, No Ack, EEPROM, 7 Addr&Data, 10 Addr&Data and Data Length) and the methods of setting them. Trigger Conditions  Start Condition— the oscilloscope will be triggered when SDA signal transitions from high to low while the SCL clock is high.
Page 110 SDS1000X-E User Manual set value.  If you have set either Data1’s or Data2’s value, and the signal has a data is the same as that value. If you have set both Data1’s and Data2’s value, the signal should has two consecutive data, the first data’s value is Data1, second data value is Data2.
Page 111 SDS1000X-E User Manual  Data Length — When SDA data’s length is equal to the value of Byte Length and address’s length is the same as set value, the oscilloscope will be triggered. Byte length is in the range of 1 to 12 bits. Operation Steps Press the Setup to enter the TRIGGER function menu.
Page 112 SDS1000X-E User Manual device’s address is 10-bit, the value of address is in range of 0x00 to 0x3FF.)  If you select the Data Length condition: Press the Address to set the SDA address length 7bit or 10 bit. Press the Byte Length softkey and set the byte length by Universal Knob. The range of the Byte Length is 1 to 12.
Page 113: I2C Serial Decode
SDS1000X-E User Manual I2C Serial Decode After completing the setup of I2C signal and trigger, we will decode I2C signals. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press the Display and select On to display the result of decoding. 3.
Page 114: Spi Trigger And Serial Decode
SDS1000X-E User Manual SPI Trigger and Serial Decode Please in order of “Setup for SPI Signals”, “SPI Trigger” and “SPI Serial Decode” to trigger and decode the signals. Setup for SPI Signals Setting the SPI (Serial Peripheral Interface) signal includes two steps: connecting the CLK, MISO, MOSI and CS signals to oscilloscope;...
Page 115 SDS1000X-E User Manual Press the softkey to return previous menu. Figure 44 MISO Menu Set MOSI: Press the MOSI softkey to enter the MOSI menu. Press the MOSI softkey to select the channel that is connected to the SPI MOSI signal.
Page 116: Spi Trigger
SDS1000X-E User Manual SPI Trigger This part will provide a brief introduction and description for the operation of the SPI trigger. 1. Press the Setup button to enter the TRIGGER function menu. 2. Press the Type and select Serial. 3. Press the Protocol and select SPI. 4.
Page 117: Spi Serial Decode
SDS1000X-E User Manual SPI Serial Decode After completing the setup of SPI signal and trigger, we will decode SPI signals. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press the Display and select On to display the result of decoding. 3.
Page 118: Uart Trigger And Serial Decode
SDS1000X-E User Manual UART Trigger and Serial Decode Please in order of “Setup for UART Signals”, “UART Trigger” and “UART Serial Decode” to trigger and decode the signals. Setup for UART Signals Press the Decode key to enter the DECODE function menu. Press the Decode softkey and select the desired slot (Decode1 or Decode2).
Page 119 SDS1000X-E User Manual 11. Press the Parity Check softkey to set the type of parity check (Even, Odd or None). 12. Press the Stop Bit softkey to set the length of stop bit (1, 1.5 or 2 bits). 13. Press the Next Page softkey. 14.
Page 120: Uart Trigger
SDS1000X-E User Manual UART Trigger This part shows a brief introduction and description for the operation of the UART trigger. 1. Press the Setup button to enter the TRIGGER function menu. 2. Press the Type and select Serial. 3. Press the Protocol and select UART. 4.
Page 121: Uart Serial Decode
SDS1000X-E User Manual UART Serial Decode After completing the setup of UART signal and trigger, we will decode UART signals. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press the Display and select On to display the result of decoding. 3.
Page 122: Can Trigger And Serial Decode
SDS1000X-E User Manual  Time— the horizontal displacement between current frame and trigger position.  RX — the receiving channel.  TX — the transmitting channel.  RX Err— Parity error or unknown error in the data received.  TX Err— Parity error or unknown error in the data transmitted. CAN Trigger and Serial Decode Please in order of “Setup for CAN Signals”, “CAN Trigger”...
Page 123: Can Trigger
SDS1000X-E User Manual CAN Trigger This part will provide a brief introduction and description for the operation of the CAN trigger. Trigger Conditions  Start— the oscilloscope will be triggered at the start bit of a frame.  Remote — the oscilloscope will be triggered by a remote frame with specified ID. ...
Page 124 SDS1000X-E User Manual d. Press the Data softkey and set the value of the first byte by Universal Knob. Figure 53 CAN Trigger WWW.SIGLENT.COM...
Page 125: Can Serial Decode
SDS1000X-E User Manual CAN Serial Decode After completing the setup of can signal and trigger, we will decode CAN signals. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press the Display and select On to display the result of decoding. 3.
Page 126: Lin Trigger And Serial Decode
SDS1000X-E User Manual LIN Trigger and Serial Decode Please take the order of “Setup for LIN Signals”, “LIN Trigger” and “LIN Serial Decode” to trigger and decode the signals. Setup for LIN Signals There are two steps of setting the LIN signal, connecting the signal to oscilloscope, specifying the parameters of each input signal.
Page 127: Lin Trigger
SDS1000X-E User Manual LIN Trigger This part will provide a brief introduction and description for the operation of the LIN trigger. Trigger Conditions  Break — the oscilloscope will be triggered at the position of break field’s break delimiter.  ID (Frame ID) —...
Page 128 SDS1000X-E User Manual Press the DATA2 softkey and set its value by turning the Universal Knob. Figure 55 LIN Trigger WWW.SIGLENT.COM...
Page 129: Lin Serial Decode
SDS1000X-E User Manual LIN Serial Decode After completing the setup of LIN signal and trigger, we will decode LIN signals. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press the Display and select On to display the result of decoding. 3.
Page 130 SDS1000X-E User Manual The list of decoding result:  Time— the horizontal displacement between current frame and trigger position.  ID — the value of frame’s Protected Identifier Field.  Data Length — the length of Data Field.  ID Parity — the two check bits of Protected Identifier Field. ...
Page 131: Reference Waveform
SDS1000X-E User Manual Reference Waveform The oscilloscope can save analog channel or math waveforms to the reference waveform locations in the oscilloscope. Then, a reference waveform can be displayed and compared against other waveforms. All reference waveforms can be displayed at a time. The contents of this chapter: ...
Page 132: Save Ref Waveform To Internal Memory
SDS1000X-E User Manual Save REF Waveform to Internal Memory Do the following steps to save the REF waveform to internal memory: 1. Press the REF button on the front to enter the REF WAVE function menu. Note that when the time horizontal format is in X-Y mode, REF function cannot be enabled. 2.
Page 133: Adjust Ref Waveform
SDS1000X-E User Manual Adjust REF Waveform 1. Please refer to the “To Display REF Waveform” above to display the desired reference waveform. 2. Press the Scale and Position softkey and turn the Universal Knob to adjust the vertical scale and position of the reference waveform. The vertical scale and position information display at the middle of the screen.
Page 134 SDS1000X-E User Manual To clear the appointed reference waveform, you can save a new reference waveform to the same location to cover it. Or follow the Save/Recall → Recall → type and select Security Erase to clear the stored waveform. WWW.SIGLENT.COM...
Page 135: Math
SDS1000X-E User Manual Math The oscilloscope supports many math operations between analog channels including addition (+), subtraction (-), multiplication (*), division (/), FFT, differential (d/dt), integral (∫dt), square root (√). The resulting math waveform is displayed in white and labeled with “M”.
Page 136: Units For Math Waveforms
SDS1000X-E User Manual Units for Math Waveforms Use the channel function menu to set the unit of each channel to “V” or “A”. The oscilloscope math operation includes units as below: Math Operation Unit Addition (+)or subtraction (-) V, A ∧...
Page 137: Math Operators
SDS1000X-E User Manual Math Operators The oscilloscope supports math count operation (Addition, subtraction, multiplication, division), FFT (Fourier transform) operation and math function operation (differential, integral, square root). Addition or Subtraction Math operators perform arithmetic operations add or subtract operation on any two analog input channels.
Page 138: Multiplication And Division
SDS1000X-E User Manual Multiplication and Division Math operators perform arithmetic operations multiplication or division operation on any two analog input channels. When you select multiplication or division, the Source A and Source B values are multiplied or divided point by point and the result is displayed. 1.
Page 139: Fft Operation
SDS1000X-E User Manual FFT Operation FFT is used to compute the fast Fourier transform using analog input channels. FFT takes the digitized time record of the specified source and transforms it to the frequency domain. When the FFT function is selected, the FFT spectrum is plotted on the oscilloscope display as magnitude in dBV versus frequency.
Page 140 SDS1000X-E User Manual measure different waveforms. You need to select the window function according to different waveforms and their characteristics. Please read the table below carefully to make an appropriate option according to the input signal. Window Applications and Characteristics These are normally used when the signal is transient (completely contained in the time-domain window) or known to have a fundamental frequency component that is an integer multiple of the...
Page 141 SDS1000X-E User Manual axis can be dBVrms, dBm, Vrms or dBArms, Arms, which use a logarithmic scale or a linear scale to display vertical amplitude respectively.  Press the Ext Lode softkey and then turn the Universal Knob to select the external load value.
Page 142 SDS1000X-E User Manual Figure 66 FFT Markers Menu  Press Markers Control softkey to enter MARKER Menu. Figure 67 Marker Control Menu Press the Marker softkey continuously to select the marker number from NO.1~NO.8. Press the Show Marker softkey continuously to turn on or off the selected mark.
Page 143 SDS1000X-E User Manual Figure 68 FFT Waveform Note:  Signals with DC components or deviation would cause error or deviation of the FFT waveform components. To reduce the DC components, set the Channel Coupling to AC.  To reduce the random noise and aliasing frequency components of repetitive or single pulse, set the Acquisition of the oscilloscope to Average.
Page 144: Math Function Operation
SDS1000X-E User Manual Math Function Operation The oscilloscope supports math function operation including differential (d/dt), integral (∫dt) and square root ( Differentiate d/dt (differentiate) calculates the discrete time derivative of the selected source. Where:  d = differential waveform.  y = channel 1, 2, 3, or 4 data points.
Page 145 SDS1000X-E User Manual Figure 69 Difference Function Operation You can use differentiate to measure the instantaneous slope of a waveform. For example, the slew rate of an operational amplifier may be measured using the differentiate function Note: Because differentiation is very sensitive to noise, it is helpful to set acquisition mode to Average.
Page 146 SDS1000X-E User Manual Integrate dt (integrate) calculates the integral of the selected source. You can use integrate to calculate the energy of a pulse in volt- seconds or measure the area under a waveform. dt plots the integral of the source using the "Trapezoidal Rule". The equation is: ...
Page 147 SDS1000X-E User Manual Figure 71 Integral with Offset WWW.SIGLENT.COM...
Page 148 SDS1000X-E User Manual Square Root Square root ( ) calculates the square root of the selected source. Where the transform is undefined for a particular input, holes (zero values) appear in the function output. Figure 72 Square Root WWW.SIGLENT.COM...
Page 149: Cursors
SDS1000X-E User Manual Cursors Cursors are horizontal and vertical markers that indicate X- axis values and Y- axis values on a selected waveform source. You can use cursors to make custom voltage, time measurements on oscilloscope signals. X Cursors X cursors are vertical dashed lines that adjust horizontally and can be used to measure time (when the source is FFT waveform, X cursors measure frequency) X1 cursor is the left (default position) vertical dotted line;...
Page 150 SDS1000X-E User Manual When set cursor type to Y2-Y1, use Universal Knob will move the Y1 and Y2 cursors together. The value under the menu option is the difference between the Y1 and Y2 cursors. WWW.SIGLENT.COM...
Page 151: Make Cursor Measurements
SDS1000X-E User Manual Make Cursor Measurements 1. Press the Cursors button on the front panel to enter the CURSOR function menu. 2. Press the Mode softkey and set the option to On. 3. Press the Source softkey, and then use the Universal Knob to select the desired source.
Page 152 SDS1000X-E User Manual Figure 73 Measure Pulse Width WWW.SIGLENT.COM...
Page 153: Measure
SDS1000X-E User Manual Measure The oscilloscope provides measurements of 36 waveform parameters and the statistics. It contains voltage, time and delay parameters. Voltage and time parameters are under Type option. The results of the last five selected measurements are displayed at the bottom of screen and above the menu. Delay parameters are under the All Measure submenu.
Page 154: Type Of Measurement
SDS1000X-E User Manual Type of Measurement Voltage Measurements Voltage measurements include 15 kinds of voltage parameter measurements. Figure 74 Voltage Measurements 1. Peak-Peak: Difference between maximum and minimum data values. 2. Maximum: Highest value in input waveform. 3. Minimum: Lowest value in input waveform. 4.
Page 155: Time Measurements
SDS1000X-E User Manual Figure 75 Overshoot 14. Preshoot: Preshoot is distortion that precedes a major edge transition expressed as a percentage of Amplitude. The X cursors show which edge is being measured (edge closest to the trigger reference point). Figure 76 Preshoot 15.
Page 156: Delay Measurements
SDS1000X-E User Manual Figure 77 Time Measurements 1. Period: Period for every cycle in waveform at the 50% level ,and positive slope. 2. Frequency: Frequency for every cycle in waveform at the 50% level ,and positive slope 3. + Width: Width measured at 50% level and positive slope. 4.
Page 157 SDS1000X-E User Manual 6. FRLR: Time from the first rising edge of channel A to the last rising edge of channel B. 7. FRLF: Time from the first rising edge of channel A to the last falling edge of channel 8.
Page 158: Automatic Measurement
SDS1000X-E User Manual Automatic Measurement Perform the steps below and select voltage or time parameters to make automatic measurement. 1. Press the Measure button on the front panel to enter the MEASURE function menu. At the same, the frequency and period are enabled with the current trigger channel, the statistics also was enabled.
Page 159 SDS1000X-E User Manual Figure 79 Added the Measurement Note: if the parameter does not match the measure condition, it will display as “****”. WWW.SIGLENT.COM...
Page 160: All Measurement
SDS1000X-E User Manual All Measurement All measurement could measure all the voltage, time and delay parameters of the current measurement source and display the results on the screen. Figure 80 All Parameters Measurement Do the following steps to make all parameters measurement. Press the Measure button on the front panel to enter the MEASURE function menu.
Page 161: Gate Measurement
SDS1000X-E User Manual Gate Measurement The SDS1000X-E supports gate measurement and performs the selected measurement within the upper and lower limits of the gate. Setting the gate will affect the measurement of all voltage, time, and delay parameters. Press Measure → Gate → On to open the gate measurement. Press the Gate A to move the position of gate A by the Universal Knob.
Page 162: Display
SDS1000X-E User Manual Display You can set the display type, color, persistence, grid type, waveform intensity, grid brightness and transparence. The contents of this chapter:  Display Type  Color Display  Persistence  Clear the Display  Grid Type ...
Page 163: Display Type
SDS1000X-E User Manual Display Type Press the Display button on the front panel, and then press the Type softkey to select Vectors or Dots display type.  Vectors: the sample points are connected by lines and displayed. Normally, this mode can provide the most vivid waveform to view the steep edge of the waveform (such as square waveform).
Page 164: Color Display
SDS1000X-E User Manual Figure 83 Dots Display Color Display Color temperature adopts the change of waveforms’ color to reflect the change of the waveforms’ appearing probability. The greater the probability that the waveform appears, the warmer the color is; the smaller the waveform appears, the colder the color is. The picture below shows the change of color from cold to warm.
Page 165: Persistence
SDS1000X-E User Manual Persistence With persistence, the oscilloscope updates the display with new acquisitions, but does not immediately erase the results of previous acquisitions. All previous acquisitions are displayed with reduced intensity. New acquisitions are shown in their normal color with normal intensity.
Page 166: Clear Display
SDS1000X-E User Manual Clear Display Press the Display button on the front panel to enter the DISPLAY function menu; press the Clear Display softkey to clear all the waveforms displaying on the screen and acquire and display new waveforms. Grid Type To select grid type 1.
Page 167: Grid Brightness
SDS1000X-E User Manual Note: Waveform intensity adjustment affects analog channel waveforms only (not math waveforms, reference waveforms, digital waveforms, etc.). Grid Brightness Do the following steps to adjust the grid brightness: 1. Press the Display button on the front panel to enter the DISPLAY function menu. 2.
Page 168: Save And Recall
SDS1000X-E User Manual Save and Recall Oscilloscope setups, waveforms, pictures, and CSV files can be saved to internal oscilloscope memory or to a USB storage device. The saved setups, waveforms can be recalled later. The oscilloscope provides an USB Host interface on the front panel to connect an USB device for external storage.
Page 169: Save Type
SDS1000X-E User Manual Save Type The oscilloscope supports setups, waveforms, pictures and CSV files storage. The default save type is setups. 1. Setups It’s the default storage type of the oscilloscope. It saves the settings of the oscilloscope in internal or external memory in “*.SET” format. At most 20 setting files (from No.1～No.20) can be stored in internal memory.
Page 170 SDS1000X-E User Manual parameters storage function. 8. Matlab The oscilloscope saves the waveform data in external memory in “*.DAT” format. The data of all the channels turned on can be saved in the same file. The recall of Matlab file is not supported.
Page 171: Internal Save And Recall
SDS1000X-E User Manual Internal Save and Recall Internal save and recall support Setups in Save/Recall. In the following part, the save and recall method and procedures are introduced.  Save the specified oscilloscope setting in internal memory. 1. Connect the signal to the oscilloscope and obtain stable display. 2.
Page 172: External Save And Recall
SDS1000X-E User Manual External save and recall Before using external storage and recall, make sure that the USB flash device is connected correctly. External storage supports all the types of files in save, but in recall, Picture and CSV are not supported. ...
Page 173 SDS1000X-E User Manual  Figure 87 Select Save Location 7. After the save position is selected, press the New softkey to turn on the interface as shown in the figure below. Refer to the descriptions in “To Create a new file or fold”...
Page 174 SDS1000X-E User Manual  Load the specified type of file in the external USB storage device. 1. Press the Save/Recall button on the front panel to enter the SAVE/RECALL function menu. 2. Press the Recall softkey to enter the RECALL menu. 3.
Page 175: Disk Management
SDS1000X-E User Manual Disk Management Disk management aim at the save and recall operations after the oscilloscope is connected with a USB storage device. Before using external disk, make sure that the USB storage device is connected correctly. Execute the following operations through the disk management menu: ...
Page 176: Create A New File Or Folder
SDS1000X-E User Manual Create a New File or Folder This operation is only valid in external storage. The oscilloscope supports English input method. The file name or folder name can contain letters, numbers, underscores and spaces. Let’s use an example to introduce how to create a file or folder. Example: create a file or folder named “SDS2013ab”...
Page 177: Delete A File Or Folder
SDS1000X-E User Manual Delete a File or Folder This operation is only valid in external storage. 1. Press the Save/Recall button on the front to enter the SAVE/RECALL function menu. 2. Press the Save softkey, and then turn the Universal Knob to select one of the type (if select Setups, please set the Save To option to External).
Page 178: Digital Channels(Option)
SDS1000X-E User Manual Digital Channels(Option) This chapter describes how to use the digital channels of a Mixed-Single Oscilloscope (MSO). The digital channels are enabled on SDS1000X-E series oscilloscopes (only 4 channels scope) that have installed the MSO activation license. As an external module, SLA1016 is independent of the host, and has its own system, so it needs to be upgraded if necessary.
Page 179: Connect The Digital Probes
SDS1000X-E User Manual Connect the Digital Probes 1. If necessary, turn off the power supply to the device-under-test.  Turning off the power to the device-under-test prevents damage that might occur if you accidentally short lines together while connecting probes. You can leave the oscilloscope powered on because no voltage appears at the probes.
Page 180: Acquire Digital Waveform
SDS1000X-E User Manual Acquire Digital Waveform Press the Digital button on the front panel to open the digital channels and start acquiring digital channel waveforms. For digital channels, each time the oscilloscope takes a sample it compares the input voltage to the logic threshold. If the voltage is above the threshold, the oscilloscope stores a 1 in the sample memory;...
Page 181: Digital Channels Position
SDS1000X-E User Manual Figure 92 High Display Type The display type control lets you spread out or compress the digital traces vertically on the display for more convenient viewing. Digital Channels Position 1. Press the Digital button on the front panel to open the DIGITAL function menu and display the digital channel waveforms.
Page 182: All Digital Channels
SDS1000X-E User Manual All Digital Channels 1. Press the Digital button on the front panel to open the DIGITAL function menu. 2. Press the Channel Group softkey to select On or Off to switch all digital channels which in this group on or off. Also, under the DIGITAL function menu, press the Digital button on the front panel to switch all digital channels off.
Page 183: Digital Bus
SDS1000X-E User Manual Digital Bus Digital channels may be grouped and displayed as a bus, with each value displayed at the bottom of the display in hex or binary. You can create up two buses. To configure and display each bus, do the following steps: 1.
Page 184: Deskew
SDS1000X-E User Manual Figure 95 Digital Bus Deskew 1. Press the Digital button on the front panel to open the DIGITAL function menu and display the digital channel waveforms. 2. Press the Deskew softkey, and then turn the Universal Knob to select to change deskew.
Page 185: System Setting
SDS1000X-E User Manual System Setting System Status Press Digital→NextPage2/2 → System ,then select the System Status option to view the digital system information , including software version, hardware version, and serial number. After finished, press the return soft key to quit the interface of system information.
Page 186: Remove Device
SDS1000X-E User Manual Figure 97 Digital Update Interface 4. After the updating is finished, the Digital device will automatically disconnected and display a message “Update completed, please reconnect Digital device!” Note：Don't cut off the power during the Digital device is being updated！ Remove Device Press Digital→...
Page 187: System Setting
SDS1000X-E User Manual System Setting This function module supports the oscilloscope’s system-related function, such as system status, language, sound and some other advanced setting, such as do self cal, update and remote interface configure The contents of this chapter:  View System Status ...
Page 188: View System Status
SDS1000X-E User Manual View System Status Do the following steps to view the system status: 1. Press the Utility button on the front to enter the UTILITY function menu. 2. Press the System Status softkey to view the system status of the oscilloscope. The system status includes the information below: ...
Page 189 SDS1000X-E User Manual minutes before the self-calibration. Do the following steps to do self-calibration: 1. Disconnect all the input channels. 2. Press the Utility button on the front panel，and then press the Do Self Cal softkey, and the oscilloscope will pop-out the message box shown as below: Figure 99 Do Self Cal 3.
Page 190: Quick-Cal
SDS1000X-E User Manual Quick-Cal Quick calibration can correct the measurement deviation caused by temperature, so that you can get more accurate measurements If the ambient temperature of your current operating oscilloscope is unstable, press Utility → Quick-Cal softkey to select On to enable quick calibration. Sound When the sound is enabled, you can hear the sound of the beeper when you press a function key or a menu softkey or when the prompt message pops up.
Page 191: Pass/Fail Test
SDS1000X-E User Manual Pass/Fail Test One way to verify a waveform's compliance to a particular set of parameters is to use pass/fail testing. A pass/fail defines a region of the oscilloscope's display in which the waveform must remain in order to comply with chosen parameters. Compliance to the mask is verified point- by- point across the display.
Page 192: Save And Recall Test Mask
SDS1000X-E User Manual 6. Press the Mask Setting softkey to enter the MASK function menu. 7. Press the X Mask or Y Mask softkey; and then turn the Universal Knob to select the desired value. The range is from 0.02div to 4div. 8.
Page 193 SDS1000X-E User Manual Save Test Mask to Internal Memory Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the second page of the UTILITY function menu. Press the Pass/Fail softkey to enter the PASS/FAIL function menu. Press the Enable Test softkey to select On to enable the pass/ fail test.
Page 194 SDS1000X-E User Manual 6. Press the Mask Setting softkey to enter the MASK function menu. 7. Press the X Mask or Y Mask softkey; and then turn the Universal Knob to select the desired value. 8. Press the Location softkey to select External 9.
Page 195: Arbitrary Waveform Generator(Option)
SDS1000X-E User Manual Arbitrary Waveform Generator(Option) SDS1000X-E (only 4 channels scope) supports an external Arbitrary Waveform Generator (AWG), which can easily and quickly provide multiple input signals to users. The AWG provides two kinds of waveforms: the standard waveform and the Arb. The Arb single consists of two types: the system’s built-in waveforms and the stored waveforms.
Page 196: Output
SDS1000X-E User Manual Output Connect AWG with USB cable, and the oscilloscope interface indicates "AWG device connection success", Press the Utility →Next Page4/4→ AWG,to enter the function menu interface of the AWG system as shown below, including: Output, Wave, Setting , System, Remove Device.
Page 197 SDS1000X-E User Manual The following table shows the waveform type and its corresponding characteristics. According to the selected waveform, to set the waveform parameters through Universal Knob and the corresponding function software under the menu. Amplitu Offset Wave Frequency Parameters (High- Type Range...
Page 198: Setting
SDS1000X-E User Manual Figure 103 Built-in Arb Interface Setting AWG Setting Interface Figure 104 Output Load Press Utility→ NextPage4/4→ AWG → Setting→ Output Load to set High-Z or 50Ω. Sync Output Press Utility→ NextPage4/4→ AWG→ Setting→ Sync Output, the AWG provides Sync output through the [Aux In/Out] connector on the rear panel.
Page 199: Systems
SDS1000X-E User Manual condition is meeting (the absolute value of input voltage is higher than 4V± 0.5V). When overvoltage protection occurs, a message will be displayed and the output is disabled. Default Press Utility →NextPage4/4→ AWG→ Setting→ Default to recover the default values of AWG (Sine, 1.000 KHz, 4.000Vpp, 0.0mVdc, High-Z, Sync output off, OVP On).
Page 200 SDS1000X-E User Manual Figure 105 AWG System Information Interface Update The software version file of the AWG can be updated directly via U-disk. Follow the steps below: Insert U-disk with firmware update file (*.ads) to USB host interface on the front panel of the oscilloscope.
Page 201: Remove Device
SDS1000X-E User Manual interface. Figure 106 AWG Update Interface After the updating is finished, the AWG will automatically disconnected and display a message “Update completed, please reconnect AWG device!” Note：Don't cut off the power during the AWG is being updated！ Remove Device Press Utility→NextPage4/4→AWG→Remove Device, and the oscilloscope interface display "AWG device removed!", the device can be pulled.
Page 202: Io Set
SDS1000X-E User Manual IO Set The oscilloscope provides abundant IO interfaces, including: USB Device, LAN and Aux Output. USB Device Do the following steps to set the oscilloscope to communicate with PC via USB: 1. Install the USBTMC device driver on PC. Suggest you install NI Vista. 2.
Page 203: Wlan
SDS1000X-E User Manual Figure 107 LAN Setting Interface WLAN Only 4 channels scope supports this function. Do the following steps to set the oscilloscope to communicate with PC via WLAN: 1. Connect the oscilloscope USB Host to your wireless network adapter, and make sure your local wireless network is normal.
Page 204 SDS1000X-E User Manual 7. Press Connect softkey when your SSID and PSK configuration finished. 8. Return to the I/O SET menu Press the IP Set softkey to finish the IP configuration(see “To Set the LAN”) Use EasyScopeX or NI Vista to communicate with the oscilloscope. Figure 108 WIFI Setting Menu WWW.SIGLENT.COM...
Page 205: Web Server
SDS1000X-E User Manual Web Server SDS1000X-E (only 4 channels scope supports this function) provides the web server function; you can access and control the oscilloscope using a web browser. Connect the oscilloscope to your LAN (or WLAN), then type the oscilloscope's IP address in the web browser.
Page 206: Update Firmware And Configuration
SDS1000X-E User Manual Update Firmware and Configuration The firmware and configuration can be updated directly via USB flash driver. Do the following steps to update the firmware: 1. Insert the USB flash driver which with the firmware and the configure files inside into the USB host interface on the front panel of the oscilloscope.
Page 207: Do Self-Test
SDS1000X-E User Manual Do Self-Test Self-tests include screen test, keyboard test, and LED test. Self-tests used to test the screen, buttons, knobs and LED lights whether works well. Screen Test 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2.
Page 208: Keyboard Test
SDS1000X-E User Manual Keyboard Test Keyboard test is used to test that if the keys or the knobs work well. Do the following steps to do keyboard test: 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2.
Page 209 SDS1000X-E User Manual 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2. Press the Next Page softkey to go to the second page of the UTILITY function menu. 3. Press the Next Page softkey to go to the third page of the UTILITY function menu. 4.
Page 210: Screen Saver
SDS1000X-E User Manual Screen Saver When the oscilloscope enters the idle state and holds for a certain period of time, the screen saver program will be enabled. Do the following steps to set the screen saver time: 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2.
Page 211: Reference Position
SDS1000X-E User Manual Reference Position The reference position setting determines the physical point that the oscilloscope uses during vertical and horizontal scale changes. In some situations, it is more convenient to use a fixed position on the display. Press the Utility button on the front panel and then press the Reference Pos. softkey to enter the Reference POS menu.
Page 212: Option Management
SDS1000X-E User Manual Option Management The SDS1000X-E provides multiple options to fulfill your measurement requirements. Please contact your SIGLENT sales representative or SIGLENT technical support to order the corresponding options. You can view the options currently installed on the oscilloscope or activate the newly purchased option license codes through this menu. Do the following steps to install the option on the oscilloscope: 1.
Page 213 SDS1000X-E User Manual 6. Press the Information softkey to view the option information. Figure 116 Option Information WWW.SIGLENT.COM...
Page 214: Bode Plot Ii
SDS1000X-E User Manual Bode Plot II The bode plot application for the SDS1000X-E (only 4 channels scope supports this function) controls an external arbitrary waveform generator(only Siglent’s arbitrary waveform generator can be supported) to sweep a sine wave across a range of frequencies while measuring the input to and output from a device under test (DUT).
Page 215 SDS1000X-E User Manual Connect the oscilloscope and the external AWG via LAN.  If LAN is selected, press the Set IP softkey, and set the IP of AWG in the pop-up dialog box.  Press the Connection Test softkey to check the connection. Press the Sweep Type softkey to select Simple or Vari-level.
Page 216 SDS1000X-E User Manual  Press the Load soft key to switch the load between 50Ω, 75Ω, 600Ω, Hi-Z. It also can turn the Universal Knob to set the load value. Press the Set Channel softkey to enter the SET CHANNEL menu. ...
Page 217 SDS1000X-E User Manual Figure 121 DATA Menu Press the List softkey repeatedly to turn the Bode plot data list on or off. After turning on the list, press the Scroll soft key and turn the Universal Knob to select the frequency point, as shown below. Figure 122 Bode Plot List On Press Save softkey (Recall softkey) to enable the bode plot save (recall) function.
Page 218: Example
SDS1000X-E User Manual Example The following are examples to familiarize you with bode plot.  Simple Sweep Operation  Vari-level Sweep Operation Simple Sweep Operation Press Utility button on the front panel to enter the UTILITY function menu, and then press the Next Page soft key to enter the second page.
Page 219 SDS1000X-E User Manual Configuration was done. Return to root menu and press Run, and wait for the sweep to complete. WWW.SIGLENT.COM...
Page 220: Vari-Level Sweep Operation
SDS1000X-E User Manual Vari-level Sweep Operation Press Utility button on the front panel to enter the UTILITY function menu, and then press the Next Page soft key to enter the second page. Press Bode Plot Ⅱ to enter the BODE PLOT function menu. Press Config to enter Configure menu. Press Source to enter Source menu to select the waveform generator.
Page 221 SDS1000X-E User Manual to 4 profiles can be saved. In this example, I will demonstrate how to specify a Vari-level profile widely used in testing power supply loop response. The profile is a 4-joint- polyline with large stimulus amplitude in low frequency and small amplitude in high frequency, and gradual amplitude in intermediate frequency.
Page 222 SDS1000X-E User Manual WWW.SIGLENT.COM...
Page 223: Search
SDS1000X-E User Manual Search SDS1000X-E (only 4 channels scope supports this function）provides search function. This function can search for the events that users specify in the acquired data, the results are displayed with white triangle symbol. In the YT mode or the Roll mode with the acquisition in stop, the maximum search events number is 700.In the Roll mode with acquisition in run, the maximum search events number is unlimited.
Page 224: Results
SDS1000X-E User Manual Limit Range includes four types: <=, >=, [--,--] and --][-- , Users can select the desired type and then input the time value. Pulse Polarity includes Positive and Negative Limit Range includes four types: <=, >=, [--,--] and --][-- , Users can select the desired type and then input the time value.
Page 225 SDS1000X-E User Manual Figure 125 Search in Stop When the acquisition is stop,” EVENT NUM:4/7” means current event number/total events number, the current event is the closest event to the middle of the screen. WWW.SIGLENT.COM...
Page 226: Navigate
SDS1000X-E User Manual Navigate SDS1000X-E （only 4 channels scope supports this function） provides three navigate type: Search Event, Time, History Frame. Time Navigate Press the Navigate on the front panel to enter the NAVIGATE function menu. Press the Type softkey In the NAVIGATE function menu, then select Time. There are two ways to navigate time.
Page 227 SDS1000X-E User Manual navigation controls to go to found search events Press the Navigate on the front panel to enter the NAVIGATE function menu. Press the Type in the NAVIGATE function menu, then select Search Event. There are two ways to navigate search events. Press Event Num softekey, then, turn the Universal Knob to select the desired value or press the Universal Knob then enter the value by the pop keyboard.
Page 228: History
SDS1000X-E User Manual History The history function can record the waveforms of the input channels before press the Run/Stop button. In run state, the oscilloscope records input waveform continually; when fill up the memory (reach the maximal frame), the new frames will cover the old frames and keep the latest frames.
Page 229 SDS1000X-E User Manual the maximal frames, because the memory is not filled. So if you want to get the maximal frames, please wait for enough time for acquisition. The table shows the maximal frame according to the sampling rate and current sampling point’s number.
Page 230: Factory Setup
SDS1000X-E User Manual Factory Setup Press Save/Recall function key, then press “Save” menu select “To Default Key” set the type to “Factory Setup”. Then press the Default button on the front to set the oscilloscope to the leave factory setup. Another way is press Save/Recall function key, then press “Recall”...
Page 231: Troubleshooting
SDS1000X-E User Manual Troubleshooting The commonly encountered failures and their solutions are listed below. When you encounter those problems, please solve them following the corresponding steps. If the problem remains still, please contact SIGLENT Company as soon as possible. The screen is still dark (no display) after power on: Check whether the power is correctly connected.
Page 232 SDS1000X-E User Manual and whether the trigger level exceeds the waveform range. If yes, set the trigger level to the middle or set the mode to “Auto”. Note: using AUTO could automatically finish the above setting. The display of waveform is ladder-like: The horizontal time base might be too low.

This manual is also suitable for:

Sds1000x-e series Sds1202x-e

SIGLENT TECHNOLOGIES SDS1104X-E User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGLENT TECHNOLOGIES SDS1104X-E

Summary of Contents for SIGLENT TECHNOLOGIES SDS1104X-E
