Figure 3-2: Sen-Xy-F Tape And Reel Dimensions; Figure 3-3: Sen-Xy-F Recommended Solder Pad, Paste, & Mask Layout - PNI RM3100 User Manual

Dimensions in mm
Full reel is 5000 pcs. Smaller quantities on cut tape.
Tape & reel meets ANSI/EIA standard EIA-418-B
Note: PNI recommends a 5 mil stencil. The solder paste area is much smaller than the pad
to reduce sensor tilt and misalignment. The above layout allows for rework: for minimal
footprint, contact PNI.

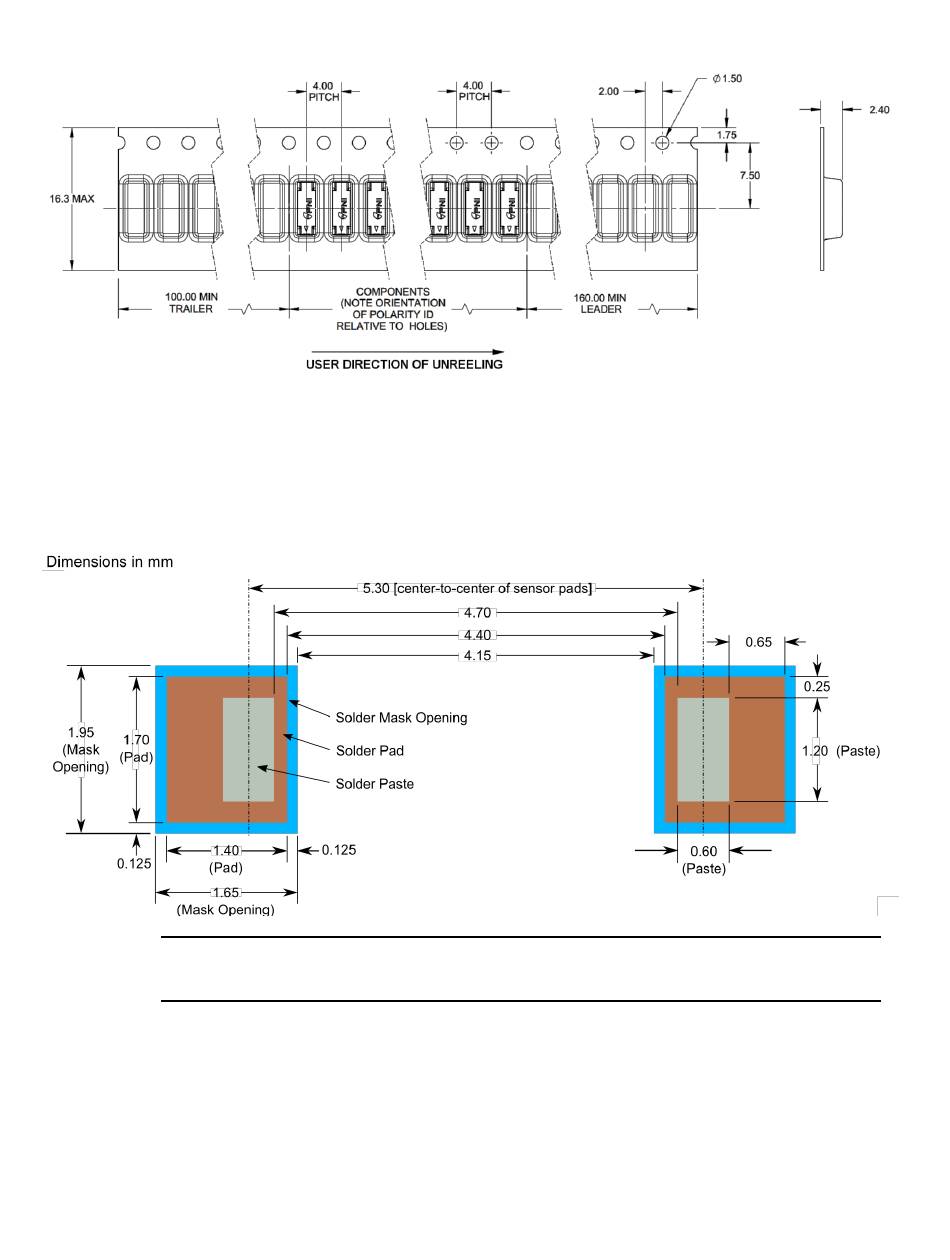

Figure 3-3: Sen-XY-f Recommended Solder Pad, Paste, & Mask Layout
PNI Sensor Corporation
RM3100 & RM2100 Sensor Suite User Manual

Figure 3-2: Sen-XY-f Tape and Reel Dimensions

Doc 1017252 r06
Page 9 of 41
