MICRO-EPSILON scanCONTROL 2600 Assembly Instructions Manual page 6

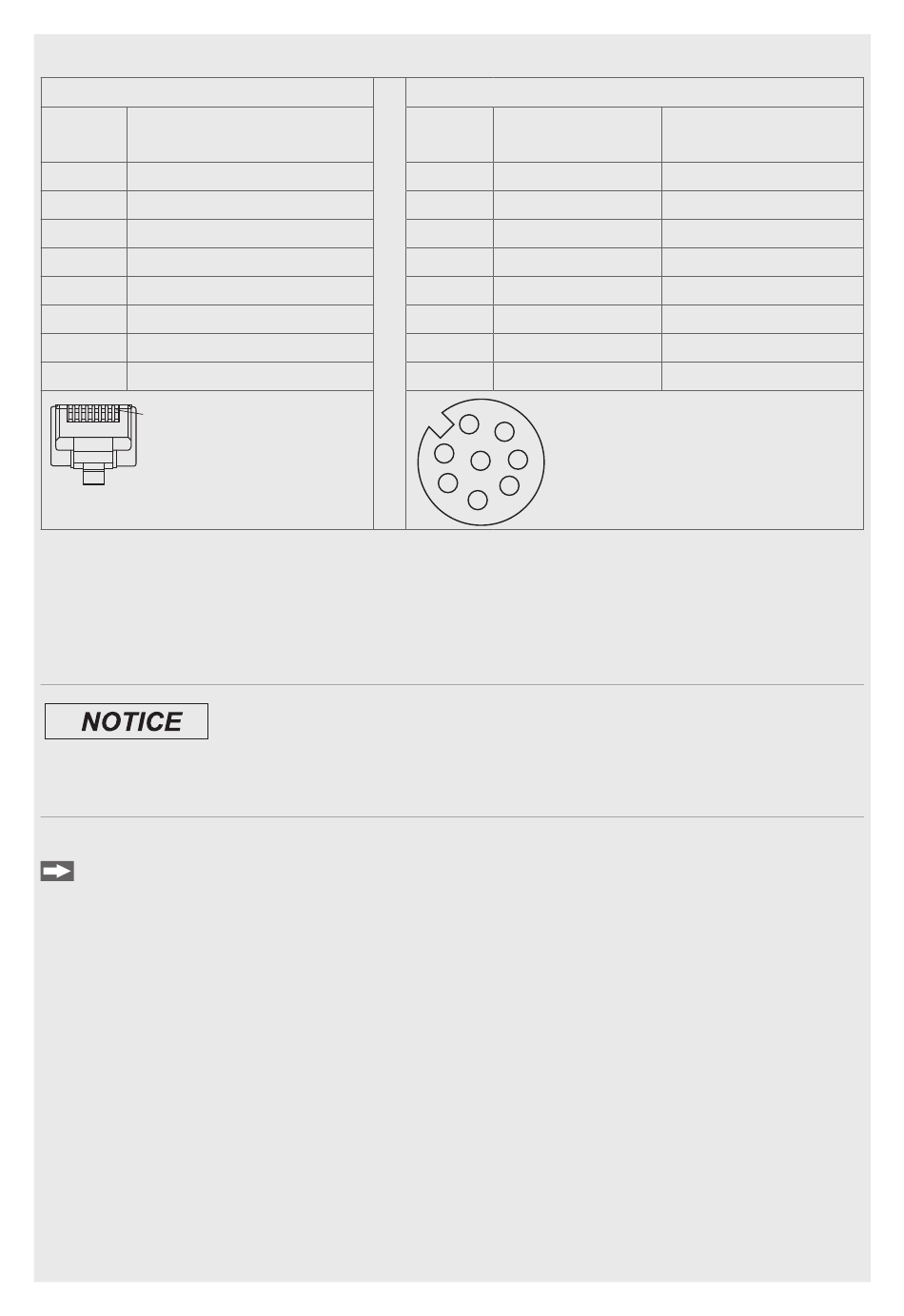

Ethernet Connection, Standard Connection to PC
RJ45 connector
Pin no. Color of stranded hook-
up wire SCR3000A-x
1 White (orange)
2 Orange
3 White (green)
4 Blau
5 White (blue)
6 Green
7 White (brown)
8 Brown
View on pin side
1
of male cable
connector
- The sensor supports an automatic, sensor-adapted IP address in the link-local-net
(169.254.x.x). No collision check is performed. This is also the standard setting.
- The sensor supports DHCP . This setting is activated by default and has priority over
the retrieval in the link-local net.
- The sensor scanCONTROL 26xx/29xx supports Power over Ethernet.
- A fixed IP address can be assigned.
Use the sensorTOOL program to make specify the sensor settings described
above.
The program is available online at
ware.
scanCONTROL 26xx / 29xx
If the sensor is connected to a POE-capable network adapter/
switch and you also use the power supply of the multifunction
port, these two power supplies must be galvanically isolated.
> Damage to the sensor and/or Ethernet card!
https://www.micro-epsilon.de/service/download/soft-
8-pin. screw connector (sensor side)
Pin no. 10BaseT,
100BaseTX
5 Tx+
6 Tx-
8 Rx+
1
2
7 Rx-
3
4
2
3
1
8
4
7
5
6
1000BaseT
D1+
D1-
D2+
D3+
D3-
D2-
D4+
D4-
View on solder side (ca-
ble) of screw connector
(A-coded)
