Channel Master 4228A Instruction Sheet

8-BAY MULTI-BOW ANTENNA
WARNING: Installation of this product near power lines is DANGEROUS.

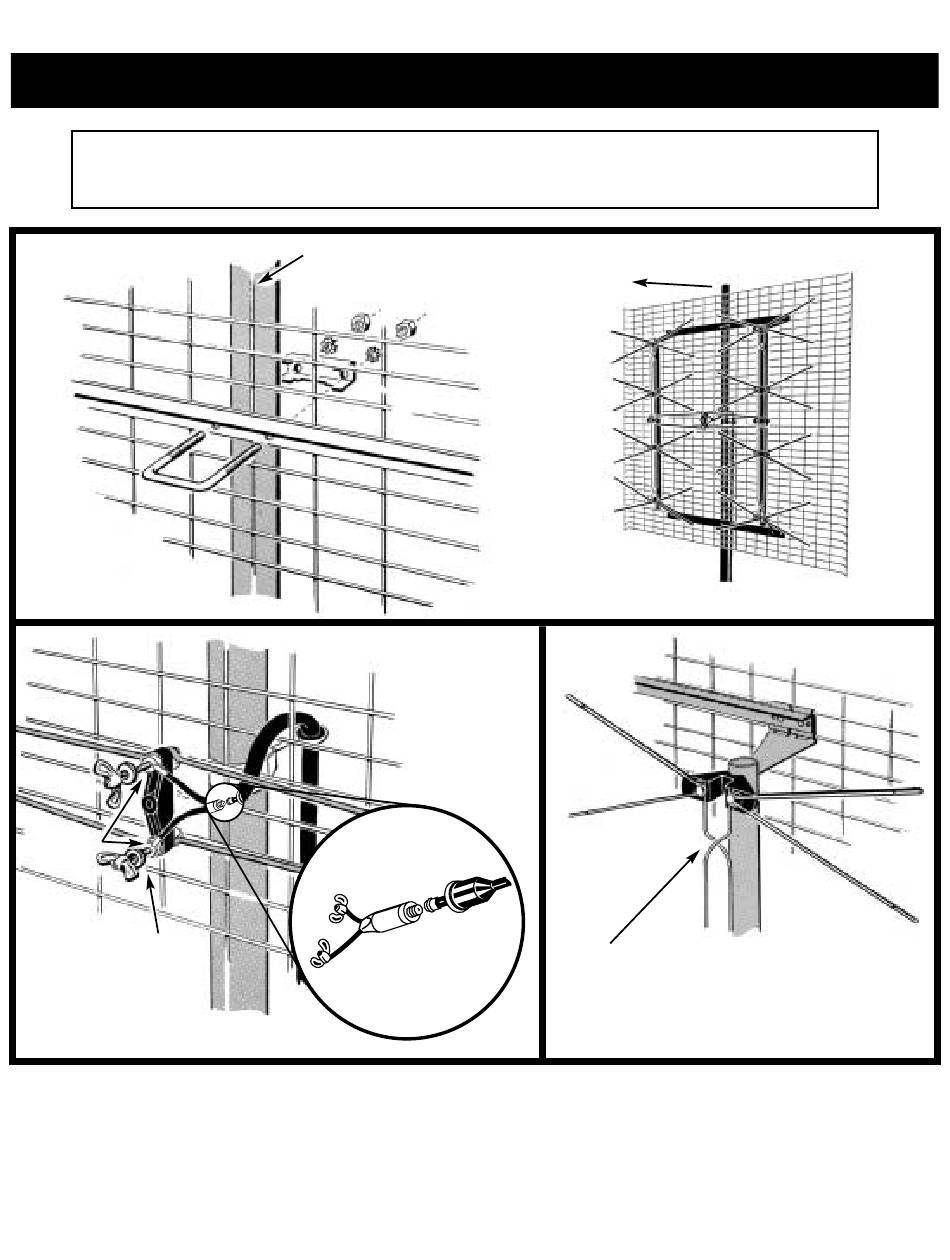

FIG. A
TAP-OFF
POINTS
WASHERS
FIG. B
STEP 1 Attach antenna to mast using nest, U-bolts, nuts and washers. See FIG. A.
STEP 2 Connect transmission line or matching transformer (supplied) to tap-off points
and secure with washers and wingnuts. See FIG. B.
P/N 51023
INSTRUCTION SHEET
For your safety, read the enclosed "DANGER" booklet before
beginning your installation.
MAST
USE TRANSFORMER
WITH WEATHERBOOT
TOWARDS
TRANSMITTING
STATION
NOTE: A SPACE OF 1/2" SHOULD BE
MAINTAINED BETWEEN WIRES AT
CROSSOVER POINTS.
FIG. C
Printed in U.S.A. 4228A Rev. F
