Summary of Contents for CEM DT-613

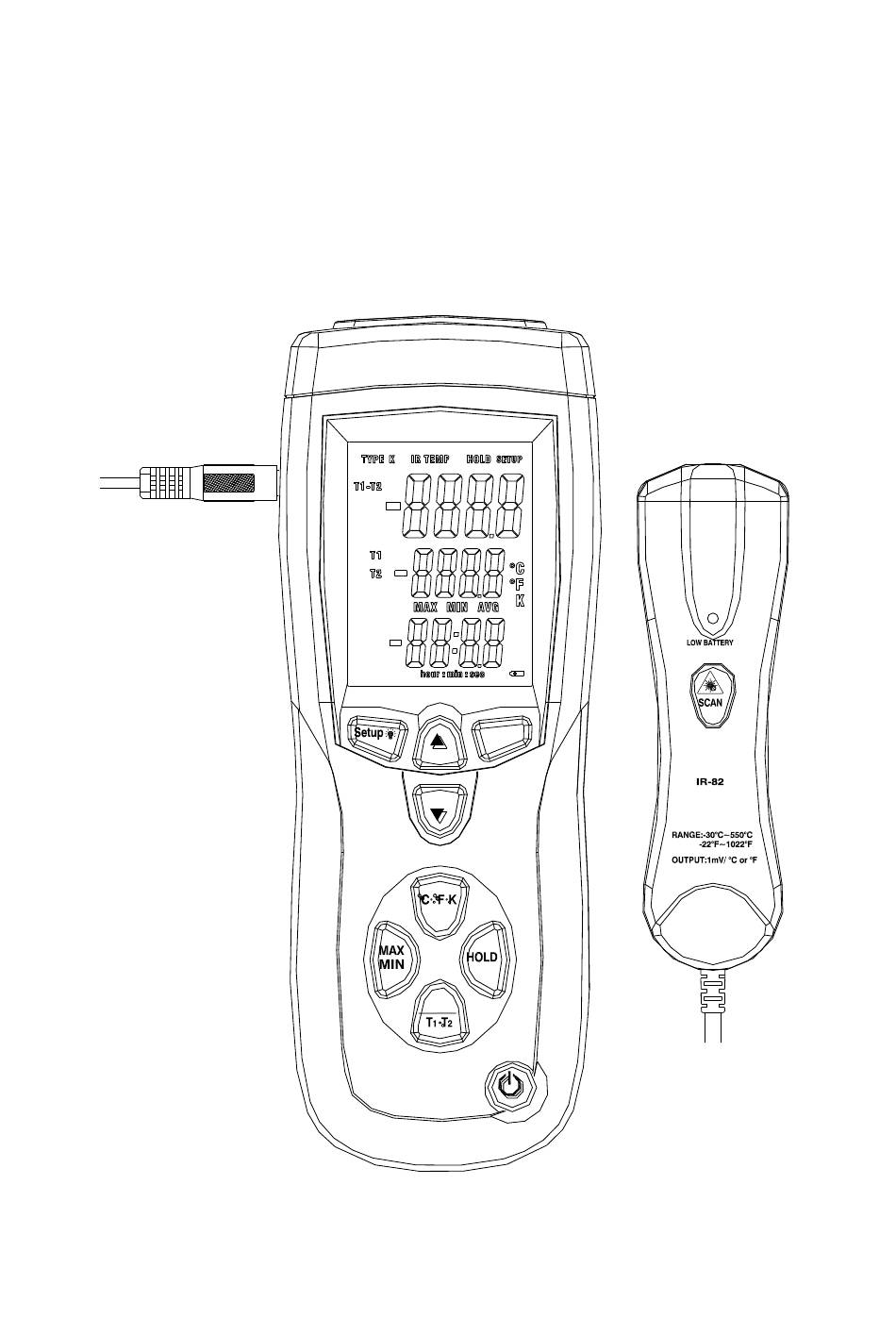

- Page 1 OPERATION MANUAL Professional Thermocouple Thermometers Enter...
- Page 3 The (two input) contact thermometers offer fast response and laboratory accuracy. These thermometers work with one K-type thermocouples and one IR temperature probe as temperature sensors, and it offered 0.1°C / 0.1°F resolution. Specifications General Specifications Battery Operating Temperature 0°C to °C (4°F °F) Noncondensing...
- Page 4 Features 1. Large backlit display shows any combination of T1, T2, T1-T2, plus MAX, MIN, AVG. 2. Relative time clock on MAX MIN and AVG provides a time reference for major events. 3. Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy. 4.
- Page 5 5. Press to toggle showing the T1, T2, and T1-T2 (differential temperature measurement) in the primary, secondary and tertiary display. 6. Press button to turn on the backlight. Press it again to turn off the backlight. Press button for 3 seconds to start or exit Setup.
- Page 6 Display Elements 1. Thermocouple type. 2. IR temperature. 3. The displayed readings do not change. 4. Entering or Exiting Setup. 5. Primary Display: T1, T2, T1-T2 reading. 6. Secondary Display: MAX, MIN, AVG, or offset T1 or T2 reading. 7. The temperature units. 8.
- Page 7 Using the IR (Infrared Ray) 1. Plug the output into the T2 (IR input) connector(s) “T2 - - - -” will show on screen. If the is not connected, “T2 - - - -” is not show on the screen. Press the “SCAN”...
- Page 8 Changing a Setup Option Press to scroll to the setup option you want to change. 2. Press to indicate that you want to change this setting. 3. Press until the setting you want to use appears on the display. Press to store the new setting in memory.
- Page 9 Displaying Temperatures 1. Press to select the correct temperature scale. 2. Hold or attach the thermocouple(s) to the measurement location. The temperature reading appears in the primary display. 3. Press to toggle between showing the T1, T2, and T1-T2, and readings in the primary or secondary display. Notes The display shows "- - - -"...
- Page 10 Viewing the MIN, MAX, and AVG Readings 1. Press to step through the maximum (MAX), minimum (MIN), or the average (AVG) readings. The elapsed time since entering MIN MAX mode, or the time at which the minimum or maximum occurred appears on the display. 2.
- Page 12 v081120...
