Summary of Contents for CEM DT-8806H

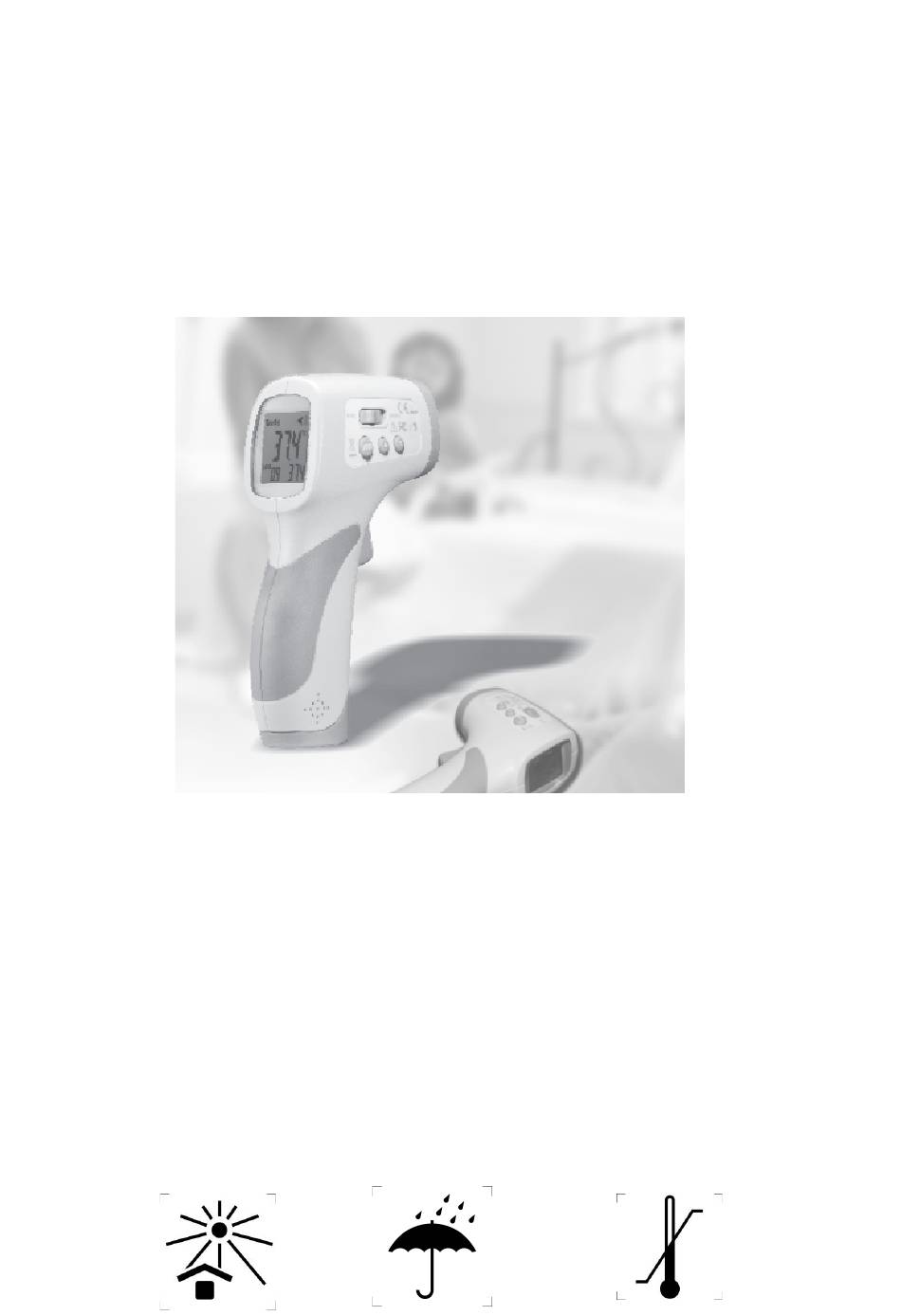

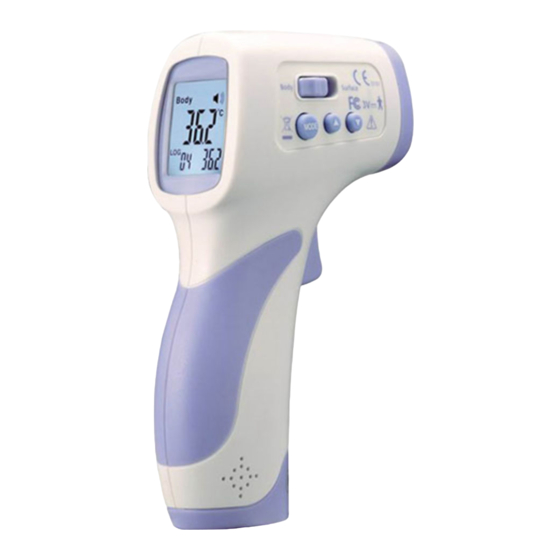

- Page 1 Non-contact forehead infrared thermometer DT-8806H Manual...
- Page 2 Imprint © 03/2020 CEM Test Instruments GmbH, Hermann-Köhl-Str. 7 28199 Bremen, reproduction, reproduction, copy, also in extracts, only with the consent of CEM Test Instruments GmbH. All rights reserved. No liability for technical and printing errors.
- Page 3 • Keep the device away from water and heat, including direct sunlight. • Do not drop the device or knock on it or use it if it is damaged. • It can affect the accuracy of measurements when the forehead is covered by hair.Sweat, hat or scarf (see part 10-4) •...
- Page 4 4. Purpose of use The non-contact forehead IR thermometer is designed to measure body surface area and forehead temperature in infants and adults without contact with the human body. The non-contact forehead IR thermometer can also be used to measure the temperature of a baby bottle or bath or room temperature (using the surface temperature function).
- Page 5 6. Indicator 1-surface mode icon 2-body mode icon 3-Digital Display 4-battery icon 5-The sequence number Save 6 data reading 7-Temperature °C (Celsius) / °F (Fahrenheit) Scale 8 buzzer symbo 7. Description of symbols The device complies with the Medical Devices Directive 93/42 / EEC The device complies with FCC part 15, subsection B: 2007 / High frequency devices IC regulation ICEC-003: 2004 Interference-causing devices Standard digital devices 3V DC Power Supply...
- Page 6 Accuracies 32 to 35.9 ° C / 93.2 to 96.6 ° F. ±0.3°C/0.5°F According to ASTM 36 to 39° C / 96.8 to 102.2° F. ±0.2°C/0.4°F Standard E1965-1998 (2003) 39 to 42.5 ° C / 102.2 to 108.5 ° F. ±0.3°C/0.5°F 9.Calibration instructions For stable and reliable results.The thermometer offers a user correction function.
- Page 7 10-5. If the room temperature has a significant difference or there is sweat on the forehead, you can measure the temperature behind the earlobe.Make sure there are no hairs present.sweat, cosmetics or cap.
- Page 8 11.Measurement operation 11-1 .Choosing the temperature unit - F1 function Press the "MODE" button for 2 seconds. The screen displays The Following: F1.Select "DOWN" for degrees Celsius, "UP" for degrees Fahrenheit. 11-2.Alarms Setup - F2 Menu Press the "MODE" button for 2 seconds. F1 is displayed on the screen. Press the "MODE" button twice to get F2.Select "UP"...
- Page 9 Make sure you select the body mode for internal temperature measurement and the surface mode for external area measurement (bottle, bath, room ...). 11-7.Data storage Data memory automatically after temperature measurements displayed in the right corner of the LCD.Press the "UP" or "DOWN" button to see the last temperature measurement. When turned off, press the "UP"...
- Page 10 • Do not clean the device with a corrosive cleaning agent. • Keep the device away from water or other liquids. •Store the device in a dry environment and keep it away from dust and direct sunlight. 14.Troubleshooting If you have any of the following issues while using the non-contact forehead IR thermometer, please refer to this service guide to resolve the issue.If the problem persists, please contact our customer service.
- Page 11 • EN 1041 information provided by the manufacturer with medical dives •EN 60601 -1: Medical electrical equipment part 1: General safety requirements (IEC60601-1) •EN 60601-1-2: Medical electrical equipment part 1-2: General safety requirements Safety standard Electromagnetic compatibility requirements and testing (IEC 60601-1-2) EMC Statement This device has been tested and homologated according to EN60601-1-2 for EMC.This does not guarantee in any way that the device is not affected by electromagnetic interference.Do not use the...
- Page 12 Shenzhen Everbest Machinery Industry Co., LTD Building,5th Region,Baiwangxin Industry park, Songbai Road,Baimang, Xinli, Nanshan, Shenzhen, China P.C.51808 Phone: +86-755-27353188 Fax: +86-755-27653699 www.cem-instruments.com Email: cemyjm@cem-instruments.com Importers: CEM Test Instruments GmbH Hermann-Koehl-Str. 7 28199 Bremen, Germany Tel.:+49(0)4219601-370 Fax: +49 (0)4219601-150 E-mail.info@cem-instruments.de www.cem-instruments.de...
- Page 13 The manufacturer reserves the right to change the specifications of the product without prior notice. The manufacturer allows himself the right to change the technical specifications of the product without prior opinion.
