CEM DT-8806 User Manual

Model: DT-8806

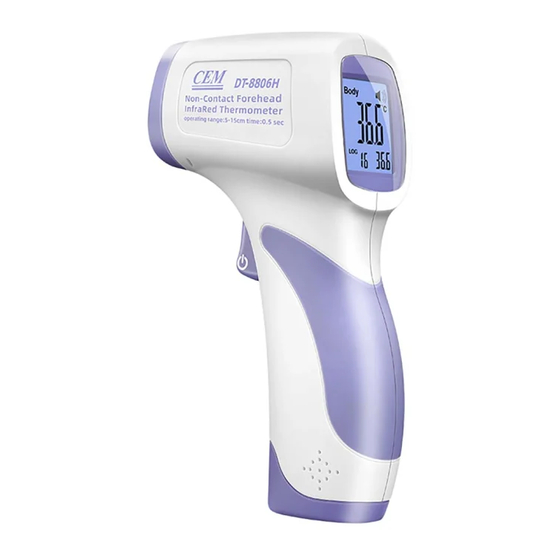

Infrared Human Body Temperature Meter
【 description 】
DT-8806 H is a professional human body temperature measurement forehead contactless infrared
thermometer measurement, it has been revealed that people scientific name infrared thermometer or
contactless infrared forehead thermometers.
【 product characteristics 】
1. Non-contact measurement, effectively reduce the bacteria cross infection
2. The body and the body with two measurement mode:
Body: special measuring the body temperature
The body: can be used to measure the environment, the object surface temperature
3. Fast measure, response time of just 0.5 seconds
4. Has the memory function, can be stored 32 measuring values
5. Can be set alarm functions, higher than the alarm value, buzzer automatic
6, invisible infrared measurement.
【 The technical indexes 】
It has been revealed people temperature range: 30.0-43 ℃ / 86-109 ℉
The surface temperature measuring range: 0-60 ℃ / 32 ℉-140 ℉
Basic precision: people it has been revealed under the mode of temperature + 0.4 ℃ / + 0.7 ℉
The surface temperature measurement mode + 0.8 ℃ / + 1.5 ℉
Distance is measured: 1-15 centimeters
Response time: 0.5 seconds
Super range tip: screen will show "HI" / "Lo"
Emission rate: fixed for 0.95
Spectrum response: 6-14 um
Automatic power: about seven seconds after the automatic shutdown
Operating temperature: 0 ℃-50 ℃ 32 ℉-122 ℉
Storage temperature:-20 ℃-60 ℃ (140 ℉-4-℉)
Relative humidity: 10% 90% RH operation, < 80% RH storage
Power supply: 2 section 5, AA battery
【 The operating instructions 】
1. The body temperature measurement to the body when dial mode; Measuring surface temperature dial the
to those mode.
2. The temperature will be pointing a gun at the forehead heart, a distance of about 1 to 15 CM, ensure no
hair, sweat, and keep out of the hat, etc.
3. Dig dynamic measurement trigger buttons, hear "di" of a loud buzz, measuring over.
【 The warm prompt 】
The human body each place, every morning and the temperature between men and women are the
difference, in view of the different body this product specially set up a school function when add and
subtract.
The products had been through strict and scientific sterile constant temperature in the room of the
adjustments. The first time users in order to make the measurement data comply with the use of personal
habits can also use mercury thermometer for DT-8806 H to reset.
(1) for measuring low temperature (see chart of different age stages in the temperature range), and mercury
thermometer how much time will accordingly how much can be complete correction and, like silver
thermometer monitoring to someone (20) temperature is 37.5 ℃, and DT-8806 H measure for 37 ℃, then
