- Page 1 Operating Instruction for Non-Contact Forehead InfraRed Thermometer Please read this manual before switching the unit on. Important safety information inside.
-
Page 3: Table Of Contents
Non-Contact Forehead InfraRed Thermometer Content Page 1.General Description............2.Safety Information............. 3.Importance................ 4.Features................5.Description................ 5-1.Meter Description............5-2.Display Description............6.Graphic Symbol Description..........7.Technical Specifications............. 8.Instructions............... 8-1.Measure Body Temperature........... 8-2.Measure Surface Temperature........9.Function Setting..............9-1.Body/Surface Setting............ 9-2.Temperature Unit Setting..........9-3.Buzzer ON/OFF............... 9-4. Longevity Use .............. -
Page 4: General Description
Non-Contact Forehead InfraRed Thermometer 1.General Description • Non-Contact Forehead Infra ed Thermometer specially designed to take the body temperature of a person regardless of room temperature. • Depending on various skin types and thickness, there may be temperature difference. • When the room temperature is significant difference, the body infrared thermometer should be left in that room during 15 to 20 minutes before using. -
Page 5: Safety Information
Non-Contact Forehead InfraRed Thermometer 2.Safety Information • This device must only be used for the purposes described in this instruction manual. • This device must only be used in an ambient temperature range between 15 and 35°C. • Do not expose this thermometer to electic shocks. •... -
Page 6: Importance
Non-Contact Forehead InfraRed Thermometer 3.Importance • Before taking of the temperature make sure to remove hair and perspiration from the forehead. • Selecting “Body” Mode to measure the body temperature; Selectin “Surface” Mode to measure the surface temperature. • Use of this thermometer is not intended as a substitute fo consultation with your physician. -
Page 7: Features
Non-Contact Forehead InfraRed Thermometer 4.Features • Precise non-contact measurements • Selectable Body and Surface temperature • User selectable °C or °F • Memorization of the last 10 measurements • Automatic Data Hold & Auto power off • Display Resolution 0.1°C (0.1°F) •... -
Page 8: Description

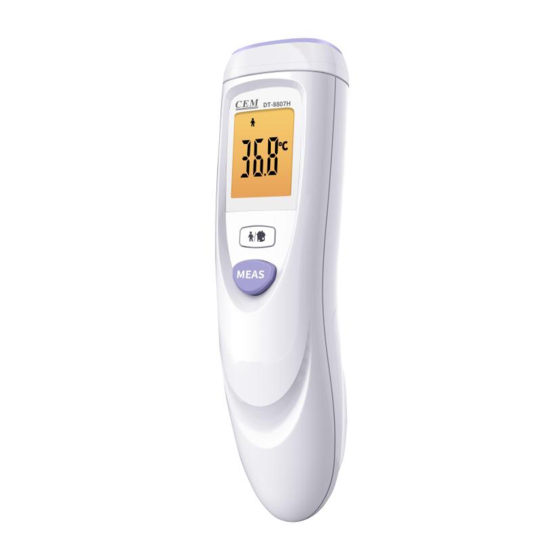

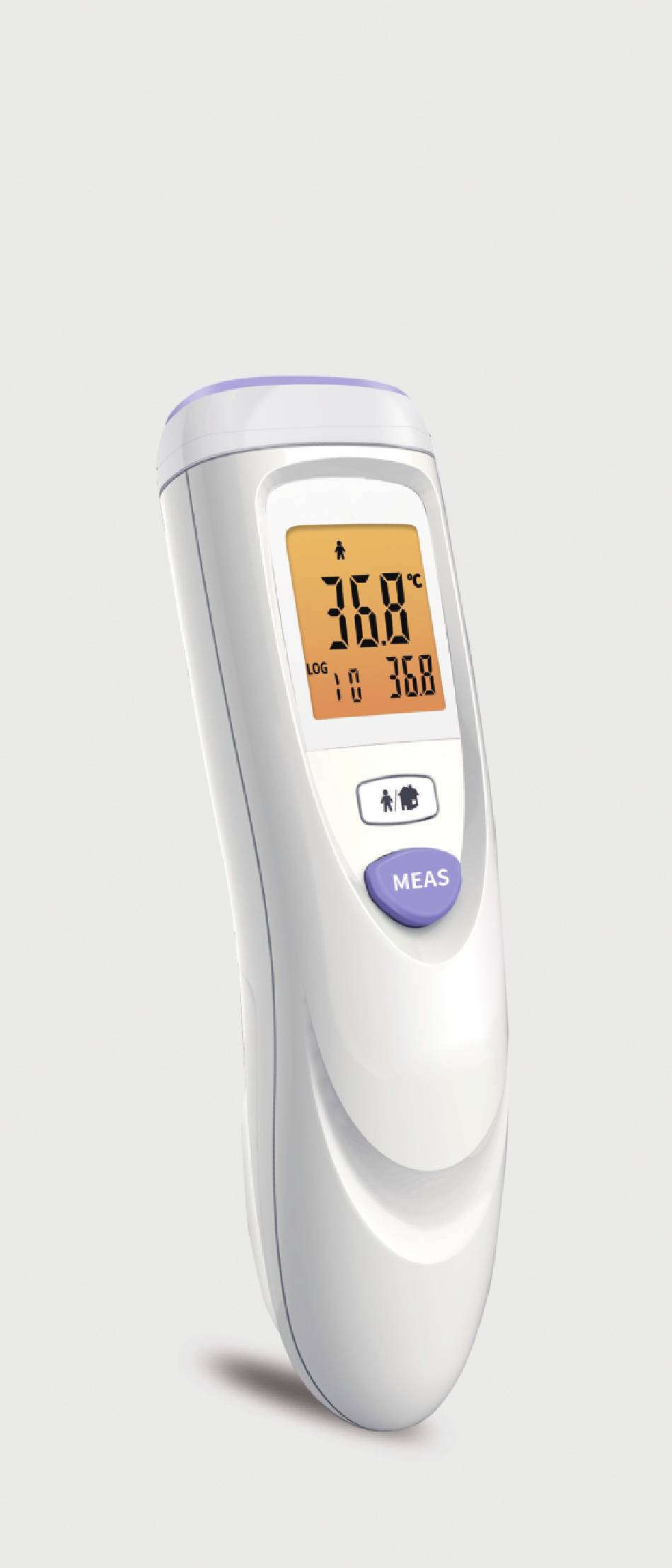

Non-Contact Forehead InfraRed Thermometer 5.Description 5-1.Meter Description 1-Detector 2-Probe Cover 3-LCD Display 4-Memory / Set Button 5-Measure Button 6-Battery Cover... -
Page 9: 5-2.Display Description
Non-Contact Forehead InfraRed Thermometer 5-2.Display Description 1-Buzzer ON/OFF Symbol 2-Body Symbol 3-Surface Symbol 4-Low Power Indication 5-Measure Data 6-°C/°F Symbol 7-Memory Symbol 8-The Last Reading... -
Page 10: Graphic Symbol Description
Non-Contact Forehead InfraRed Thermometer 6.Graphic Symbol Description The device is in accordance with Medical Device Directive 93/42/EEC The device is in accordance with FCC Part 15 Subpart B 3V DC power supply In order to protect the environment, please recycle the battery according to the local regulations. -
Page 11: Technical Specifications
Non-Contact Forehead InfraRed Thermometer 7.Technical Specifications Body Temp Range 32.0 to 42°C / 89.6 to 107.6°F Surface Temp Range 0 to 60°C / 32 to 140°F Basic Accuracy ±0.3°C Measuring Distance 1-4cm Response Time Over Range Indication LCD will show “Hi”/”Lo” Spectral Response 8 to 14µm Power Off... -
Page 12: Instructions
Non-Contact Forehead InfraRed Thermometer 8.Instructions 8-1.Measure Body Temperature 1.Remove the probe cover 2.Make sure working in “Body Temperature” mode, and LCD display the “ ”. 3.Hold the meter by its handle and point it toward the forehead to be measured. 4.Press the Measure Button to turn the meter on and take a temperature reading. -
Page 13: 8-2.Measure Surface Temperature
Non-Contact Forehead InfraRed Thermometer 8-2.Measure Surface Temperature 1.Remove the probe cover. 2.Make sure working in “Surface Temperature” mode, and LCD display the “ ”. 3.Hold the meter by its handle and point it toward the forehead to be measured. 4.Press the Measure Button to turn the meter on and take a temperature reading. -
Page 14: Function Setting
Non-Contact Forehead InfraRed Thermometer 9.Function Setting 9-1.Body/Surface Setting • Press Memory/Set Button for 2 seconds, F1 will appear in the display. • Release the button, press Measure Button to change measure mode. 9-2.Temperature Unit Setting • Press Memory/Set Button for 2 seconds, F2 will appear in the display. -
Page 15: Maintenance And Cleaning
Non-Contact Forehead InfraRed Thermometer 10.Maintenance and Cleaning • The infrared Sensor is the most precise part, must be protected carefully. • Clean the device with a cotton bud lightly moistened with 70% isopropyl alcohol, do not clean the device with corrosive detergent. •... -
Page 16: This Appliance Conforms To The Following Standards
Non-Contact Forehead InfraRed Thermometer 11.This Appliance Conforms to the Following Standards • ISO80601-2-56 and ASTM E1965-98 • EN 60601-1: Medical electrical equipment Part 1: General requirements for safety (IEC:60601-1) • EN60601-1-11: Medical electrical equipment-Part 1-11: General requirements for basic safety and essential performance-Collateral Standard: Requirements for medical electrical equipment and medical electrical systems used in the home healthcare environment... -
Page 17: Battery Replacement
Non-Contact Forehead InfraRed Thermometer 12.Battery Replacement • The low-power symbol “ ” will be showed on the screen when press the button on device if battery power is low, please change a new 3V (2xAAA) battery. • Turn on battery cover, and change battery. •... -
Page 18: Troubleshooting
Non-Contact Forehead InfraRed Thermometer 13.Troubleshooting • If you happen to have one of the following problems while using your the non-contact forehead IR thermometer please refer to this breakdown service guide to help resolve the problem. • If the problem persists please contact our customer service. -
Page 19: Emc Statement
Table 201-Declaration-Electromagnetic Emissions Guidance and Manufacturer’s Declaration-Electromagnetic Emissions The DT-8807H is intended for use in the electromagnetic environment specified below. The customer or the user of the DT-8807H should assure that it is used in such an environment. Emissions Compliance Electromagnetic Environment-... - Page 20 Table 202-Declaration-Electromagnetic Immunity - Guidance and Manufacturer’s Declaration-Electromagnetic Immunity The DT-8807H is intended for use in the electromagnetic environment specified below. The customer or the user of the DT-8807H should assure that it is used in such an environment. Immunity IEC 60601 Compliance...
- Page 21 Table 204-Declaration-Electromagnetic Immunity- Guidance and-Manufacturer’s Declaration. Electromagnetic Immunity The DT-8807H is intended for use in the electromagnetic environment specified below. The customer or the user of the DT-8807H should assure that it is used in such an environment. Immunity IEC 60501 Compliance...
- Page 22 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the DT-8807H is used exceeds the applicable RF compliance level above, the Model Number or Type Number - by manufacturer should be observed to verify normal operation.
- Page 23 The DT-8807H is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the DT-8807H can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the DT-8807H as recommended below, according to the maximum output power of the communications equipment.
-
Page 24: Classification
Aethod(s) of sterilization or 70% isopropyl alcohol disinfection Degree of safety of application DT-8807H is not suitable for use in the presence of a flammable in the presence of a flammable Anaesthetic mixture with ai or anaesthetic mixture with air or... -
Page 25: Disposal
Non-Contact Forehead InfraRed Thermometer 16.Disposal WEEE MARK If you want to dispose this thermometer, do not mix with general household waster. There is a separate collection system for used electronics products in accordance with legislation under WEEE Directive (Directive 2020/96/EC) and is effective only with in European Union. - Page 28 Shenzhen Everbest Machinery Industry Co., Ltd. 19th Building, 5th Region, Baiwangxin Industry Park, Songbai Road, Baimang, Xili, Nanshan, Shenzhen, China P.C. 518108 Tel: +86.755.27353188 www.cem-instruments.com Lotus NL B.V. EC REP Koningin Julianaplein 10, 1e Verd, 2595AA, The Hague, Netherlands. Tel: +31644168999 E-mail: peter@lotusnl.com...
