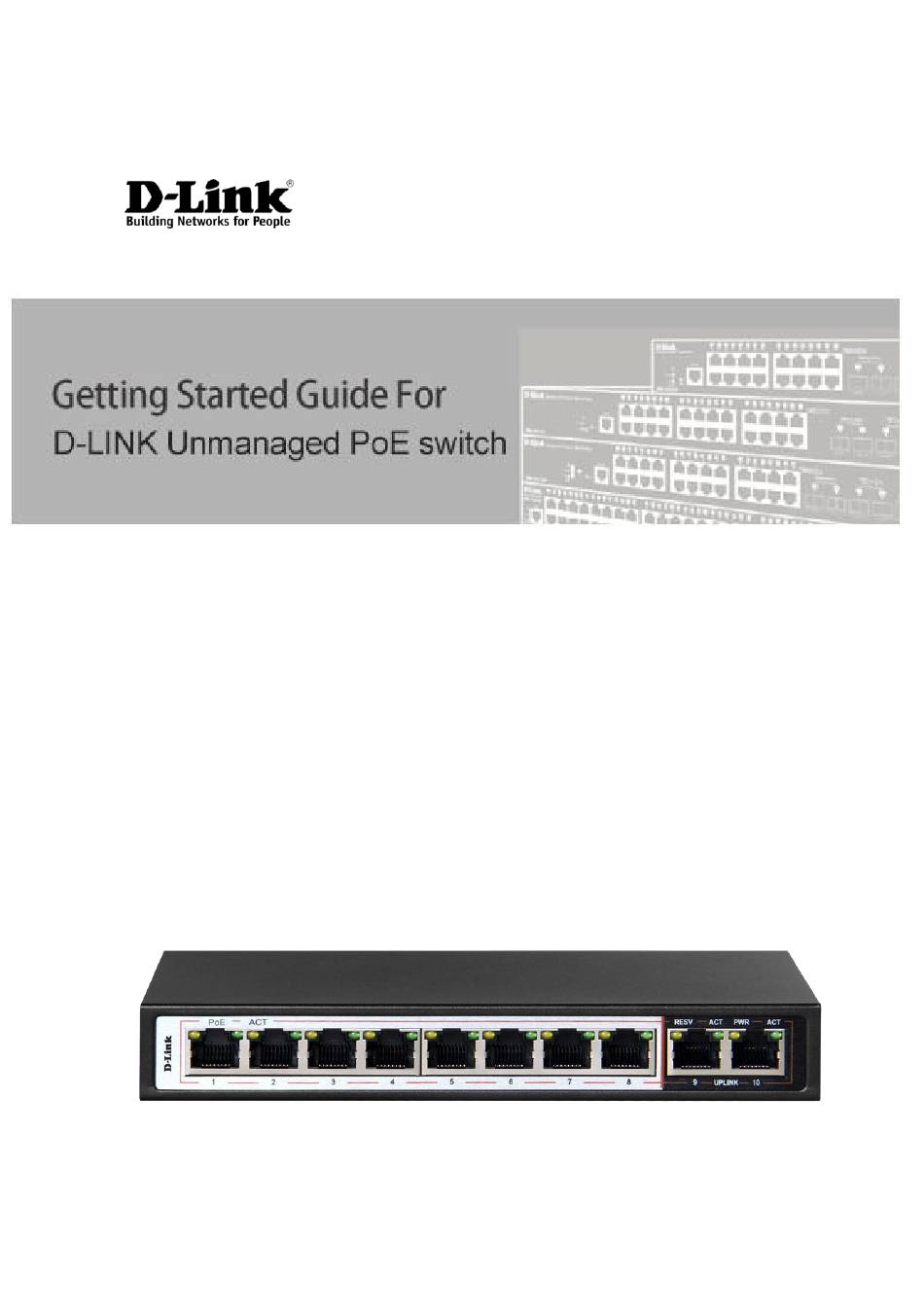

- Page 1 PRODUCT QUICK INSTALLATION GUIDE DES-F1010P-E 10-Port Fast Ethernet 250m Long Reach PoE+ Switch...
- Page 2 1.1 Package Contents The package contains the following items: PoE Switch • External Power Adapter • Power Cord • Quick Installation Guide • 1.2 Safety Instructions Use the following safety guidelines to ensure your own personal safety and to help protect your equipment from potential damage. The power adapter should be disconnected from the mains during the installation •...
- Page 3 1.4 Product Connection Diagram 1.5 Product Ports Description Port Description PoE Ports: Support IEEE802.3af/at standard Power over Ethernet, PoE 1-8 used to connect PD devices. Uplink 9-10 Non-PoE ports: used to connect NVR, PC, Aggregation Switch etc. DC Power Power adapter connector (supports 48-56V). Input Please use the adapter supplied with the switch.
- Page 4 1.6 Product Specifications Extend: Supports long reach PoE delivery, up to 250m. (Cat 5 or better cabling is recommended) VLAN: Isolates ports from each other. Adds security and improves network performance by constraining broadcast traffic. Switch Modes QOS: Introduces application prioritisation. Traffic with higher priority (e.g.
