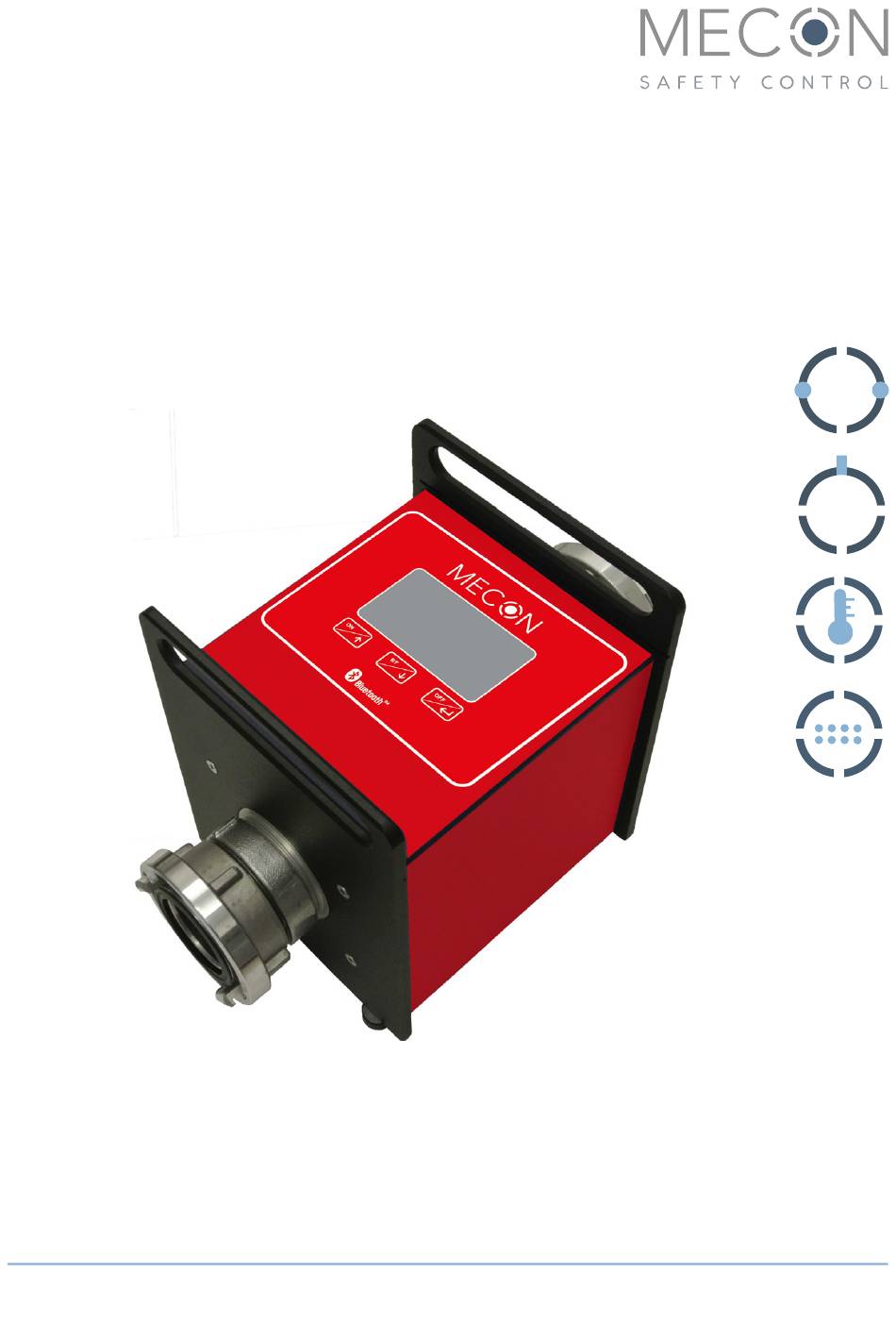

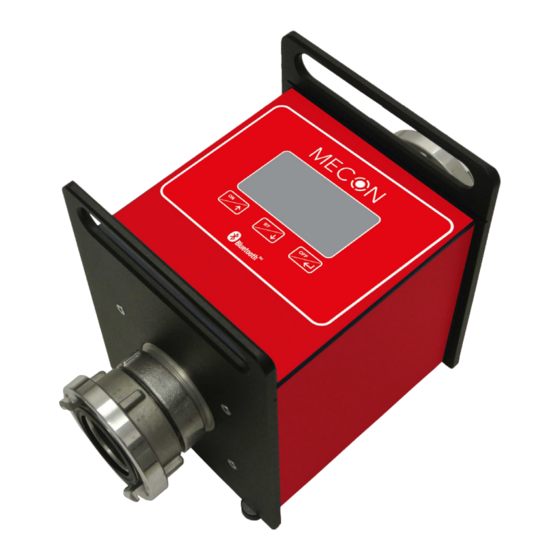

- Page 1 OPERATING INSTRUCTIONS mag-flux HTL Portable hydrant tester for measuring flow, pressure, temperature* and turbidity* *optional © MECON GmbH BA / mag-flux HTL / EN / 21-04...
- Page 2 All rights reserved. Any reproduction or usage without written authorisation of MECON GmbH - even partial content - is strictly prohibited. Subject to change without notice. Copyright 2021 by MECON GmbH - Röntgenstr. 105 - 50169 Kerpen - Germany © MECON GmbH BA / mag-flux HTL / EN / 21-04...
- Page 3 © MECON GmbH BA / mag-flux HTL / EN / 21-04...
-
Page 4: Table Of Contents
Start measurement with save (optionally with GPS coordinates) ......19 Selecting Bluetooth Mode ....................20 Read data ..........................21 TECHNICAL DATA ......................22 Flow meter...........................22 Pressure sensor .........................22 Temperature sensor ......................22 Turbidity sensor (seperate device) .................23 Medium conditions ......................23 © MECON GmbH BA / mag-flux HTL / EN / 21-04... - Page 5 DESCRIPTION CODE ....................28 Hydrant tester ........................28 Regulating valve.........................28 Pressure reducer .......................28 Turbidity sensor........................28 SERVICE ......................... 29 Storage ..........................29 Maintenance ........................29 Returning the device to the manufacturer ..............29 Disposal ..........................30 © MECON GmbH BA / mag-flux HTL / EN / 21-04...
-
Page 6: Safety Instructions
Particular effort must be made to ensure that the materials selected for the wetted parts of the flow meter are suitable for the process media to be measured. The meter must not be exposed to external loads. © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 7: Certifications
The manufacturer reserves the right to revise the content of the documents, including this disclaimer, without notice, and is not liable in any way for the possible consequences of such changes. The responsibility for ensuring that the flow meter is suitable for the particular application rests solely with the operator. MECON GmbH assumes no liability for any damage caused by improper use, replacement parts, electrical or mechanical external influences, over- voltage or lightning. Under such circumstances the warranty lapses. Likewise, no liability whatsoever is accepted for any resulting consequential damages. - Page 8 SAFETY INSTRUCTIONS Special designs for special applications and custom models are not covered by this documentation. © MECON GmbH BA / mag-flux HTL / EN / 21-04...
-
Page 9: Device Description
DEVICE DESCRIPTION 2 DEVICE DESCRIPTION 2.1 Scope of delivery Hydrant tester Power adapter Operating instructions Calibration certificate Fig. 1 Scope of delivery © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 10: Nameplate
We reserve the right to change technical data as a result of technological progress. The latest information on this product can be found on the internet at www.mecon. You can also contact our sales department via e-mail at info@mecon.de. -
Page 11: Installation And Mode Of Operation
The nickel-metal-hydride high performance batteries used have a low self-discharge. For this reason it is advisable that if the hydrant tester is not in operation for a long time, it is charged regularly (at least once every four weeks). 3.2 Installation notes Information! All instruments are carefully checked for proper functionality before shipment. On receipt, immediately check the outer packing carefully for damage or signs of improper handling. Report any damage to the carrier and your local sales staff. In such cases, a description of the damage, the type and the serial number of the device should be given. Unpack the unit carefully to avoid damage. Check the completeness of the delivery against the packing list. Check the nameplate to ensure that the delivered flow meter meets your order. © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 12: Installation Instructions
» Switching on the hydrant tester » Arrow upwards BT button » Turn Bluetooth on / off » Arrow down OFF / Enter button » Confirm the selection » Press and hold cancels the selected function » Press and hold in start mode results in the device switching Pairing code for the 1st Bluetooth connection: -1234- © MECON GmbH BA / mag-flux HTL / EN / 21-04... - Page 13 Save measurement Measurement without saving Back Settings Save interval Memory management Date Time Lighting time Change Password Standby Language Software version Back Turbidity Turbidity enabled Back Bluetooth Mode Bluetooth Mode Back © MECON GmbH BA / mag-flux HTL / EN / 21-04...
-
Page 14: Settings
This action is confirmed by pressing the "OFF / Enter key" (hours: minutes: seconds). A storage interval of 1 second is set in the as-delivered condition. © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 15: Memory Management
All measured values are retained in the memory, even when the battery is discharged. The selection of the corresponding function is carried out with the arrow keys ("ON key" or "BT key") the confirmation by means of the "OFF / Enter key". 3.5.3 Date Factory set already! Date 29.03.21 Time Factory set already! Time 15:09:19 © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 16: Illumination Time
Standby The device does not turn off automatically Standby From 0 to 180 after a measurement is completed. A time period (in minutes) can be entered here, after which the device switches itself off automatically. © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 17: Language
The device is switched on with the "ON button". Press the "ON button" again to return to the main menu. The next menu item is selected using the → Start measurement arrow keys ("ON key" or "/ BT key") Settings Turbidity Bluetooth Mode Back © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 18: Start Measurement With Save
A … Z / a … z Numbers: 0 … 9 Special characters: _ : ( ) + - Please confirm the change with the "OFF / Enter key". This allows the measured values to be assigned to a measuring point description. © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 19: Start Measurement With Save (Optionally With Gps Coordinates)
Should the measurement be stopped? and hold the "OFF / Enter" key and then the following appears: Afterwards, confirm by pressing the "OFF / Enter key". The measurement is now complete and the start screen appears. 4.3 Start measurement with save (optionally with turbidity measurement) To measure with turbidity, please select the Start measurement main menu item "Turbidity" and press the Settings "OFF / Enter key". Turbidity → Bluetooth Mode Back © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 20: Selecting Bluetooth Mode
Wasserkarte.info app: Bluetooth Mode BT - Android > Bluetooth Mode: BLE Back BLE - IOS You can then return to the main menu via the menu item "Back". © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 21: Read Data
Serial number: 134669 Flow direction After a successful data transmission, the Bluetooth off Bluetooth module should be switched off again by pressing the "BT key", whereupon this message appears. © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 22: Technical Data
» Zero point max. 0.0125 mV/°C » Sensitivity type 0.01 %/°C Long-term stability type 0.0125 mV/°C Influence of base pressure 0.01 %/°C Compensated area -10 … +80 °C 5.3 Temperature sensor Type PT 1000 class B, DIN EN 60751 Accuracy ±0.3 % © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 23: Turbidity Sensor (Seperate Device)
5.7 for dimensions and weights Display 5 inch LCD display, backlit display (240 x 128 pixels) Flow rate limits 0.25 ... 12 m/s Housing material Aluminium Sensor materials » Measuring tube » Coil space » Measuring tube lining » Stainless steel Electrode material Corrosion protection class C2 (low polluted atmosphere, dry climate) © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 24: Power Supply
Storz C 14.5 DN 65 Storz B 14.5 DN 80 Storz B 14.8 DN 100 Storz A 19.5 DN 150 Storz 150 Tab. 1: Dimensions and weights mag-flux HTL © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 25: Equipment
The measurement protocols as well as diagrams are displayed directly as a preview. The holistic solution approach for hydrant maintenance from documenta- tion, planning, localisation, performance to maintenance. http:/ /wasserkarte.info/en/hydrant-measurement To the website: www.wasserkarte.info/en/ © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 26: Regulating Valve
» No flooding on unpaved ground » No danger to the environment » Clean handling and transport after use » Capacity up to 3.619 l/min. (217.2 m³/h) » Weight 6.4 kg Fig. 5: Pressure reducer © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 27: Turbidity Sensor
FNU values by means of sep- arate turbidity measurement, especially during flushing campaigns. values and thus adjust the flushing strat- egy efficiently and in a resource-saving manner. Fig. 6: Turbidity measurement © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 28: Description Code
Storz B (Dimension DN 80 / 3") - FNU values 0.1 ... 100 (incl. hose connection 0.5 m) HTLTU100 Storz A (Dimension DN 100 / 4") - FNU values 0.1 ... 100 (incl. hose connection 0.5 m) © MECON GmbH BA / mag-flux HTL / EN / 21-04... -
Page 29: Service
Due to careful manufacturing processes and final checks on the device, the mag-flux HTL is expected to operate trouble-free, where both installation and operation are in accordance with these instructions Should you nevertheless need to return a device to MECON GmbH please observe the following points: Caution! -
Page 30: Disposal
(unsorted municipal waste). Some of our products include batteries, some of which are rechargeable, which also must not be disposed of with household waste. Such batteries are marked with the crossed- out dustbin symbol under which the chemical symbol for classification as heavy metal containing harmful substances (Cd for cadmium, Hg for mercury or Pb for lead) is affixed. As a consumer, you are legally obliged to return used batteries. You can hand them in for professional disposal at public collection points or return them to us. © MECON GmbH BA / mag-flux HTL / EN / 21-04... - Page 31 SERVICE © MECON GmbH BA / mag-flux HTL / EN / 21-04...
- Page 32 MECON GmbH Röntgenstr. 105 50169 Kerpen Germany Tel.: +49 (0) 2237 600 06 - 0 E-mail: info@mecon.de Web: www.mecon.de © MECON GmbH BA / mag-flux HTL / EN / 21-04...
