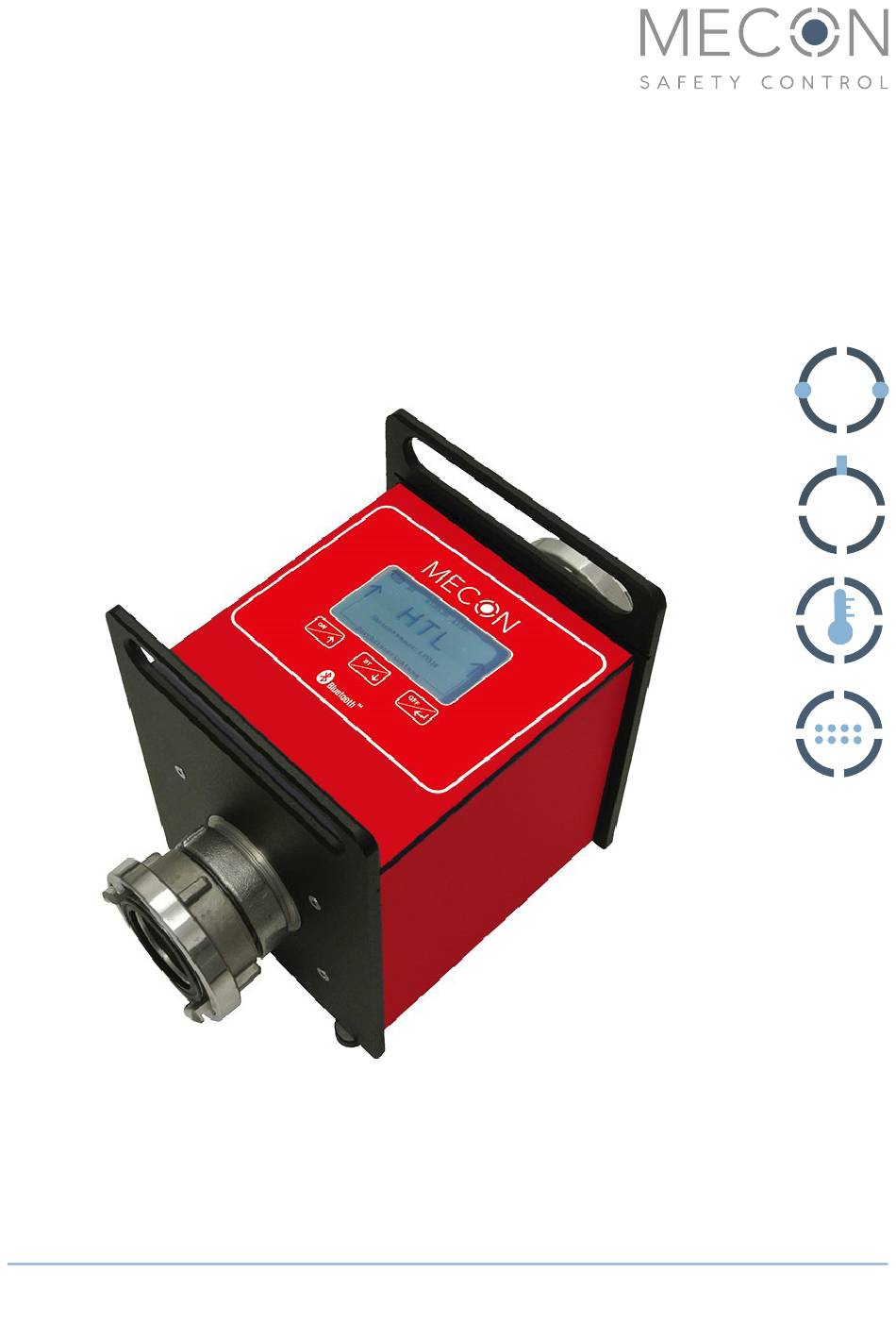

- Page 1 OPERATING INSTRUCTIONS mag-flux® HTL Portable hydrant tester for measuring flow, pressure, temperature* and turbidity* *optional © MECON GmbH BA / mag-flux® HTL / EN / 24-03...
- Page 2 All rights reserved. Any reproduction or usage without written authorisation of MECON GmbH - even partial content - is strictly prohibited. Subject to change without notice. Copyright 2023 by MECON GmbH - Roentgenstr. 105 - 50169 Kerpen - Germany © MECON GmbH BA / mag-flux® HTL / EN / 24-03...
- Page 3 © MECON GmbH BA / mag-flux® HTL / EN / 24-03...
-
Page 4: Table Of Contents
Record measurement (optionally with turbidity measurement) ......22 Selecting Bluetooth mode ....................23 Data management ......................24 Read data ..........................24 Critical battery status .......................25 TECHNICAL DATA ......................26 Flow meter...........................26 Pressure sensor .........................26 © MECON GmbH BA / mag-flux® HTL / EN / 24-03... - Page 5 Power supply ........................27 Dimensions and weights ....................28 EQUIPMENT ........................29 Mobile App ...........................29 SERVICE ......................... 29 Storage ..........................29 Maintenance ........................29 Returning the device to the manufacturer ..............30 Disposal ..........................30 © MECON GmbH BA / mag-flux® HTL / EN / 24-03...
-
Page 6: Safety Instructions
Particular effort must be made to ensure that the materials selected for the wetted parts of the flow meter are suitable for the process media to be measured. The meter must not be exposed to external loads. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 7: Certifications
The manufacturer reserves the right to revise the content of the documents, including this disclaimer, without notice, and is not liable in any way for the possible consequences of such changes. The responsibility for ensuring that the flow meter is suitable for the particular application rests solely with the operator. MECON GmbH assumes no liability for any damage caused by improper use, replacement parts, electrical or mechanical external influences, over- voltage or lightning. Under such circumstances the warranty lapses. Likewise, no liability whatsoever is accepted for any resulting consequential damages. - Page 8 SAFETY INSTRUCTIONS These instructions are intended to cover the correct installation, operation and mainte- nance of the equipment. Special designs for special applications and custom models are not covered by this documentation. © MECON GmbH BA / mag-flux® HTL / EN / 24-03...
-
Page 9: Device Description
DEVICE DESCRIPTION 2 DEVICE DESCRIPTION 2.1 Scope of delivery Hydrant tester Power adapter Operating instructions Calibration certificate Fig. 1 Scope of delivery © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 10: Nameplate
We reserve the right to change technical data as a result of technological progress. The latest information on this product can be found on the internet at www.mecon. You can also contact our sales department via e-mail at info@mecon.de. -
Page 11: Installation And Mode Of Operation
All instruments are carefully checked for proper functionality before shipment. On receipt, immediately check the outer packing carefully for damage or signs of improper handling. Report any damage to the carrier and your local sales staff. In such cases, a description of the damage, the type and the serial number of the device should be given. Unpack the unit carefully to avoid damage. Check the completeness of the delivery against the packing list. Check the nameplate to ensure that the delivered flow meter meets your order. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 12: Installation Instructions
» Switching on the hydrant tester » Arrow upwards BT button » Turn Bluetooth on / off » Arrow down OFF / Enter button » Confirm the selection » Press and hold cancels the selected function » Press and hold in start mode results in the device switching Pairing code for the 1st Bluetooth connection: -1234- © MECON GmbH BA / mag-flux® HTL / EN / 24-03... - Page 13 Record the measurement Without saving measurement Exit Settings Recording interval Sensor attenuation Set date Set time Lighting time Change password Standby Language Software version Exit Turbidity Turbidity enabled Exit © MECON GmbH BA / mag-flux® HTL / EN / 24-03...
- Page 14 INSTALLATION AND MODE OF OPERATION Bluetooth Mode Bluetooth Mode Exit Units Pressure Flow Temperature Exit Data Management Delete last dataset Delete all datasets Exit © MECON GmbH BA / mag-flux® HTL / EN / 24-03...
-
Page 15: Settings
"OFF / Enter" button (hours: minutes: seconds). A storage interval of 1 second is set in the as-delivered condition. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 16: Sensor Attenuation
The value "0" stands for the lowest and the value "10" for the highest attenuation. Pressure Flow Flow → Attenuation factor (0-10) Exit By pressing the arrow keys ("ON” button or "BT” button) you can select between the values. A desired value is confirmed with of the "OFF / Enter” button. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 17: Date/ Time
When this menu item is called up, the adjacent screen will appear. To protect the operation of the device with a password, enter a four-digit number. After confirming with the "OFF / Enter" button the password protection is active. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 18: Standby
Language → English (GB) Individually, another language can be set in German (DE) this menu item. French (FR) Italian (IT) Exit 3.5.8 Software version The current software version is displayed Software version here for service purposes. 3.1.0 © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 19: Select Units
Flow → bar Temperature Exit Exit selected: Selection of the unit for flow: Flow Pressure → Flow → m /h, l/min, l/s Temperature USgpm, USgps, USgph Exit gpm, gps, gph Exit selected: /h, l/min, l/s The selected units for the flow rate can be changed during the measurement by pressing the "ON" button. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 20: Start-Up
It can be selected note the arrow buttons ("ON" button or "BT" button) you can select whether a measurement is made with the measuring point and the associated data being stored on the device or a measurement without storage of the data. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 21: Record The Measurement
A … Z / a … z Numbers: 0 … 9 Special characters: _ : ( ) + - Please confirm the change with the "OFF / Enter" button. This allows the measured values to be assigned to a measuring point description. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 22: Record Measurement (Optionally With Turbidity Measurement)
4.3 Record measurement (optionally with turbidity measurement) To measure with turbidity, please select the Start measuring main menu item "Turbidity" and press the Settings Turbidity → "OFF / Enter" button. Bluetooth Mode Data management Exit © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 23: Selecting Bluetooth Mode
Wasserkarte.info app: BT - Android Bluetooth Mode → Bluetooth Mode: BLE BLE - iOS Exit You can then return to the main menu via the menu item "Back". © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 24: Data Management
(see also 3.4). Afterwards you have to press the "BT button". The following screen appears: BT 29.03.23 15:15 As soon as a Bluetooth connection is established between the hydrant tester and the mobile device, the Wasserkarte-in- fo APP has access to the mag-flux HTL. Serial number: 134669 Flow direction After a successful data transmission, the Bluetooth module should be switched off again by pressing the "BT" button. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 25: Critical Battery Status
(see also the note under 3.1). The device switches off atomatically to protect the batteries when the battery level is too low. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 26: Technical Data
0.0125 mV/°C » Sensitivity type 0.01 %/°C Influence of base pressure 0.01 %/°C Compensated area 14 °F ... 176 °F ( -10 °C ... 80 °C) 5.3 Temperature sensor Type PT 1000 class B, DIN EN 60751 Accuracy ±1 % FS © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 27: Turbidity Sensor (Seperate Device)
» Measuring tube lining » Stainless steel Electrode material Corrosion protection class C2 (low polluted atmosphere, dry climate) 5.6 Power supply Power supply 2 integrated rechargeable battery packs (NiMH) each 7.2 V Operating time up to 24 hours Charging time approx. 4 hours © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 28: Dimensions And Weights
Storz C 14.5 DN 65 Storz B 14.5 DN 80 Storz B 14.8 DN 100 Storz A 19.5 DN 150 Storz F 32.0 Tab. 1: Dimensions and weights mag-flux HTL © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 29: Equipment
-4 °F ... 140 °F. 7.2 Maintenance The hydrant tester "mag-flux HTL" is maintenance-free. It is recommended that the device be returned to the manufacturer for recalibration after two years, depending on the con- ditions of use (see point 7.3 Return of the device to the manufacturer). This will guarantee a long and trouble-free service life. © MECON GmbH BA / mag-flux® HTL / EN / 24-03... -
Page 30: Returning The Device To The Manufacturer
Due to careful manufacturing processes and final checks on the device, the mag-flux HTL is expected to operate trouble-free, where both installation and operation are in accordance with these instructions Should you nevertheless need to return a device to MECON GmbH please observe the following points: Caution! In order to protect the environment and safeguard the health and safety of our personnel, all devices sent to MECON GmbH for repair must be free of toxic and hazardous substances. - Page 31 © MECON GmbH BA / mag-flux HTL / EN / 24-03...
- Page 32 MECON GmbH Roentgenstr. 105 50169 Kerpen Germany Tel.: +49 (0) 2237 600 06 - 0 E-mail: info@mecon.de Web: www.mecon.de © MECON GmbH BA / mag-flux HTL / EN / 24-03...
