S.A.S. au capital de 5 000 000 ! - Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - RCS GRAY B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090

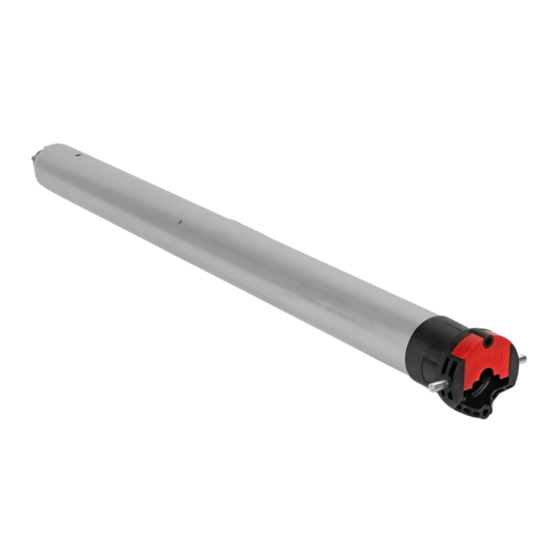

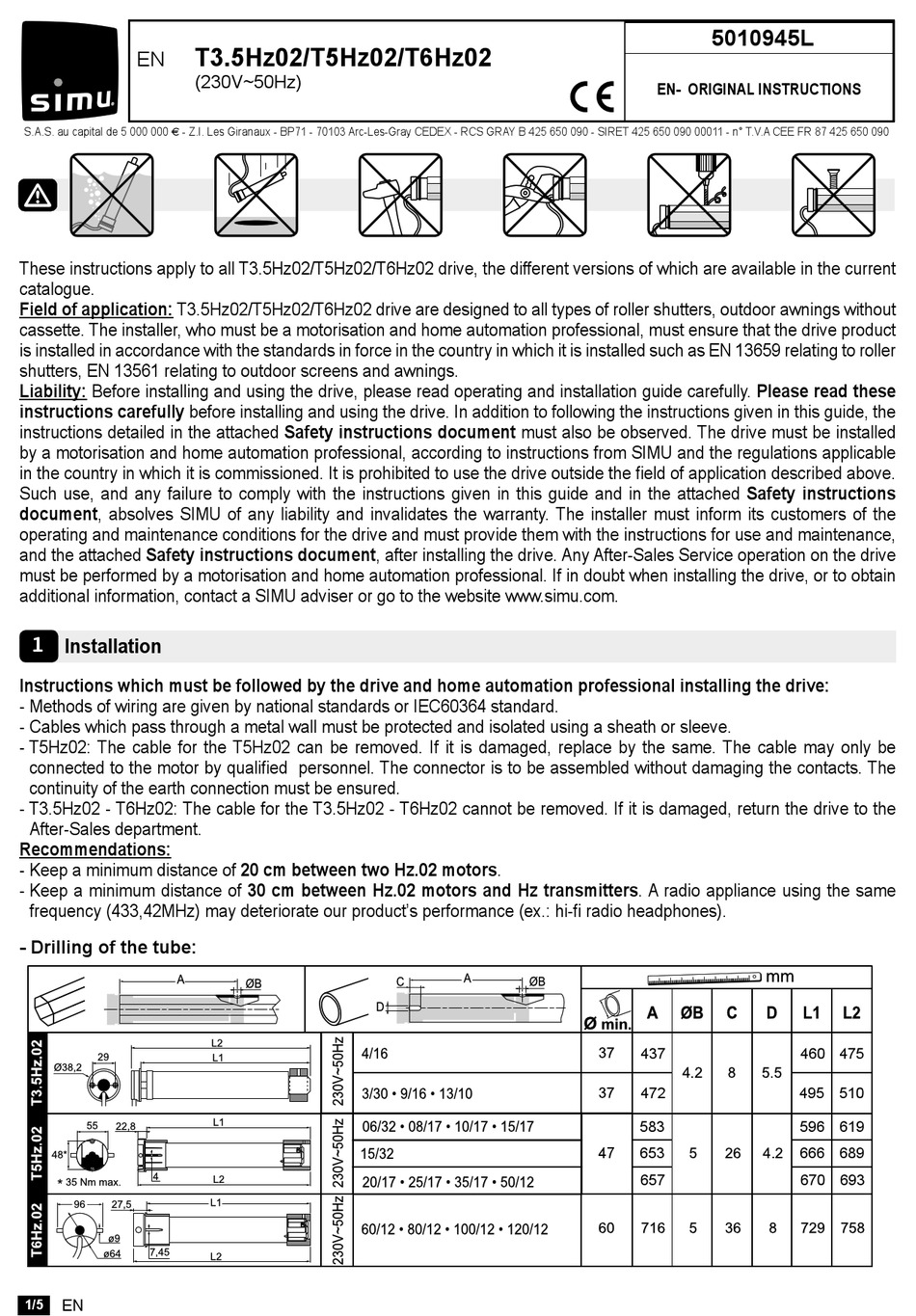

These instructions apply to all T3.5Hz02/T5Hz02/T6Hz02 drive, the different versions of which are available in the current
catalogue.
Field of application: T3.5Hz02/T5Hz02/T6Hz02 drive are designed to all types of roller shutters, outdoor awnings without
cassette. The installer, who must be a motorisation and home automation professional, must ensure that the drive product
is installed in accordance with the standards in force in the country in which it is installed such as EN 13659 relating to roller
shutters, EN 13561 relating to outdoor screens and awnings.
Liability: Before installing and using the drive, please read operating and installation guide carefully. Please read these
instructions carefully before installing and using the drive. In addition to following the instructions given in this guide, the
instructions detailed in the attached Safety instructions document must also be observed. The drive must be installed
by a motorisation and home automation professional, according to instructions from SIMU and the regulations applicable
in the country in which it is commissioned. It is prohibited to use the drive outside the field of application described above.
Such use, and any failure to comply with the instructions given in this guide and in the attached Safety instructions
document, absolves SIMU of any liability and invalidates the warranty. The installer must inform its customers of the
operating and maintenance conditions for the drive and must provide them with the instructions for use and maintenance,
and the attached Safety instructions document, after installing the drive. Any After-Sales Service operation on the drive
must be performed by a motorisation and home automation professional. If in doubt when installing the drive, or to obtain
additional information, contact a SIMU adviser or go to the website www.simu.com.
1
Installation
Instructions which must be followed by the drive and home automation professional installing the drive:
- Methods of wiring are given by national standards or IEC60364 standard.
- Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
- T5Hz02: The cable for the T5Hz02 can be removed. If it is damaged, replace by the same. The cable may only be
connected to the motor by qualified personnel. The connector is to be assembled without damaging the contacts. The
continuity of the earth connection must be ensured.
- T3.5Hz02 - T6Hz02: The cable for the T3.5Hz02 - T6Hz02 cannot be removed. If it is damaged, return the drive to the
After-Sales department.
Recommendations:
- Keep a minimum distance of 20 cm between two Hz.02 motors.
- Keep a minimum distance of 30 cm between Hz.02 motors and Hz transmitters. A radio appliance using the same
frequency (433,42MHz) may deteriorate our product's performance (ex.: hi-fi radio headphones).
- Drilling of the tube:
EN
1/5
T3.5Hz02/T5Hz02/T6Hz02
(230V~50Hz)
5010945L
EN- ORIGINAL INSTRUCTIONS
437
472
583
47
653
657
460 475
495 510
596
619
666
689
670
693
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simu T3.5Hz02
Summary of Contents for Simu T3.5Hz02
- Page 1 The connector is to be assembled without damaging the contacts. The continuity of the earth connection must be ensured. - T3.5Hz02 - T6Hz02: The cable for the T3.5Hz02 - T6Hz02 cannot be removed. If it is damaged, return the drive to the After-Sales department.
- Page 2 Nm ≥ 60 & ALUMINIUM WHEEL T6Hz02 : 9910062 Wiring You must have the possibility to switch off individually each motor. T3.5Hz02 T5Hz02 - T6Hz02 230V ~ 50 Hz 230V ~ 50 Hz - Attach cables to prevent any contact with moving parts.
- Page 3 4.1- Learning mode: - Switch the motor ON. - Simultaneously press the "UP" and "DOWN" keys of a Hz transmitter. The motor will run for 0,5 second in one direction, then in the other. The transmitter now controls the motor in unstable mode, move to stage 4.2. 4.2- Checking the rotation direction: Press the "UP"...
- Page 4 Programming a new (individual, group or main) control point: 6.1- Open the memory of the receiver from the control transmitter: - Press the PROG key of the transmitter for about 3 seconds. The motor will run for 0,5 second in one direction, then in ≥...
- Page 5 If the motorised product still does not work, contact a drive and home automation professional. SIMU SAS, F-70103 GRAY as manufacturer hereby declares that the drive covered by these instructions when marked for input voltage 230V~50Hz and used as intended according to these instructions, is in compliance with the essential requirements of the applicable European Directives and in particular of the Machinery Directive 2006/42/EC, and the Radio Directive 2014/53/EU.
