Electrical Requirements

WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Observe all governing codes and ordinances. A 120 Volt,
60 Hz, AC only, 15- or 20-amp fused electrical supply (or
circuit breaker) is required. (A time-delay fuse or circuit breaker
is recommended.) It is recommended that a separate circuit
serving only this appliance be provided.
GROUNDING INSTRUCTIONS
For all cord connected appliances:
The microwave oven must be grounded. In the event
of an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire for
the electric current. The microwave oven is equipped
with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING:
Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions
are not completely understood, or if doubt exists as to
whether the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord
is too short, have a qualified electrician or serviceman
install an outlet near the microwave oven.
SAVE THESE INSTRUCTIONS

Microwave Oven Preparation

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.

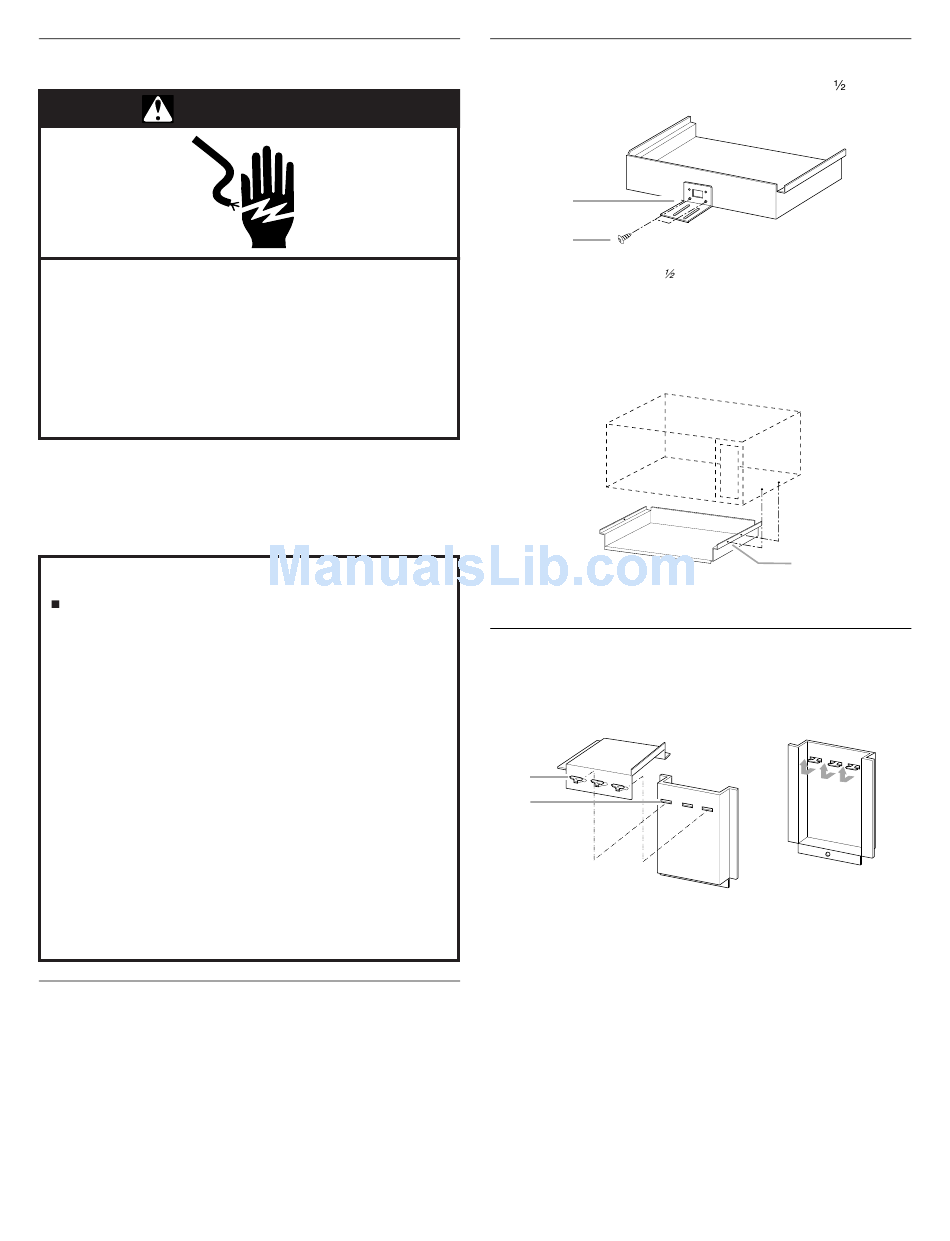

Bottom Duct Assembly

1. Fasten bottom bracket to bottom duct using two
(Rear view of bottom duct)
A
B
A. Bottom bracket
B. " screws
2. Remove 2 existing screws from right side of microwave oven,
and 1 existing screw from left side.
3. Install bottom duct with 2 existing screws on right side of
oven.
(Front view of microwave oven)
A. Existing screws

Side Duct and Upper Duct Assembly

1. Connect side duct to upper duct:
Insert projecting tabs of upper duct into holes of side duct.
Then bend tabs upward.
A
B
A. Tabs of upper duct
B. Holes in side duct
NOTE: Remove any dirt or oil on microwave oven surface before
ducts are attached.
" screws.
A
3
