To camera power
supply (either
connector)
Figure 72: Apogee, QSI and SBIG ST-402 power connectors on the 36-inch (91 cm) bottom cable.
Figure 73: Apogee, QSI and SBIG ST-402 power connectors on the 36-inch (91 cm) top cable.

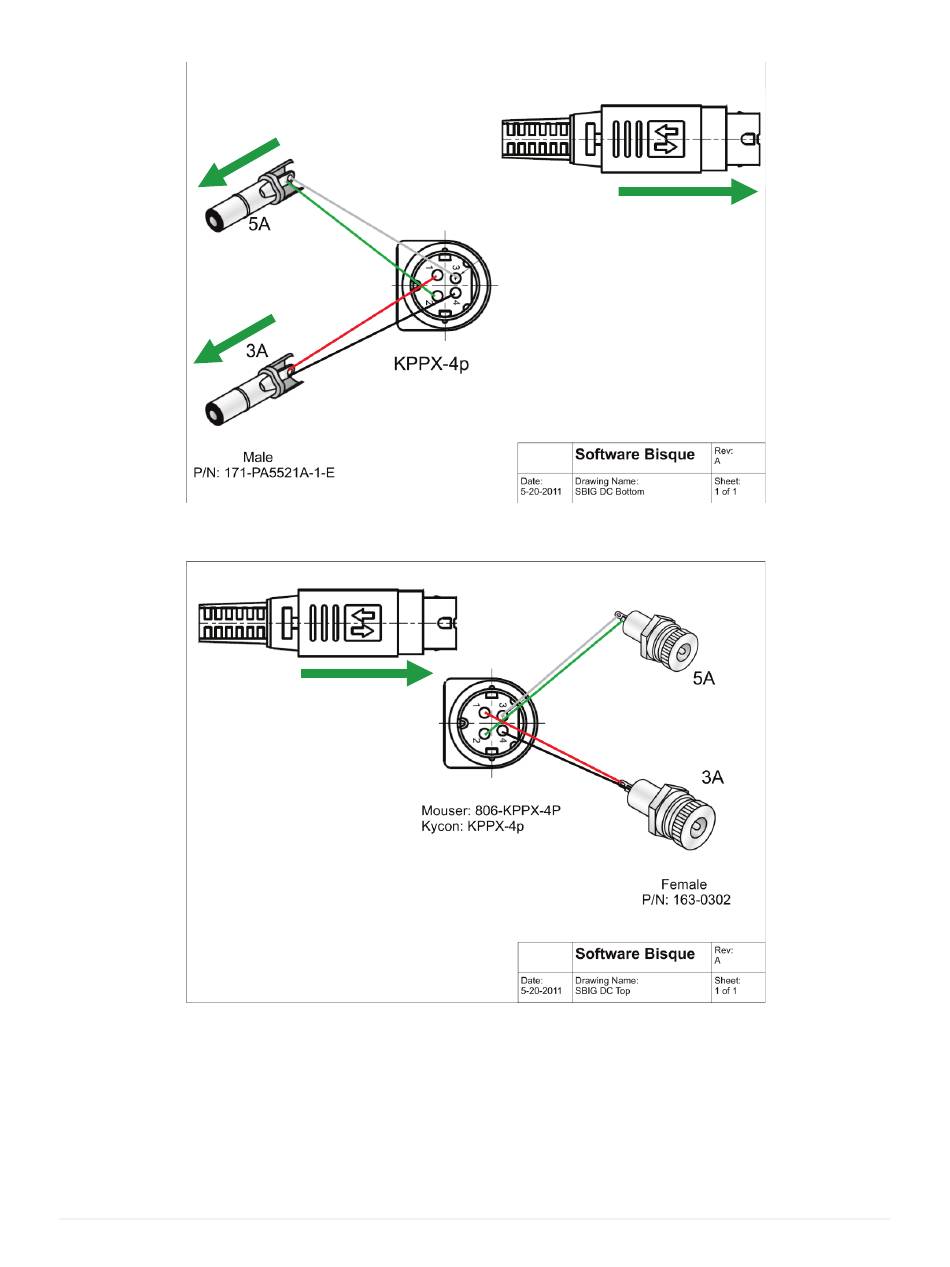

SBIG ST-7 Series (5-Pin) External Power Cable Specs
Figure 74 shows the wiring specifications for the SBIG ST-7 series 5-pin bottom cable. Figure 75 shows
the specifications for the top cable in this set.
To camera
power supply
Paramount MX User Guide
To External
Power
connector
(input)
129 |
P a g e
